state relay, with enhanced on-resistance, that uses
optically coupled MOSFET technology to provide
3750V
rms
of input to output isolation.
Its optically coupled outputs, which use the patented
OptoMOS architecture, are controlled by a highly
efficient GaAIAs infrared LED.
Use the LCA126 to replace mechanical relays,
and gain the superior reliability associated with
semiconductor devices, which, because they have no
moving parts, offer faster, bounce-free switching in a
compact surface mount or through-hole package.
Features
•
3750V
rms
Input/Output Isolation
•
Low Drive Power Requirements (TTL/CMOS
Compatible)
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Small 6-Pin Package
•
Machine Insertable, Wave Solderable
•
Surface Mount Tape & Reel Version Available
Approvals
•
UL Recognized Component: File E76270
•
CSA Certified Component: Certificate 1175739
•
EN/IEC 60950-1 Certified Component:
TUV Certificate B 09 07 49410 004
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook,
Pocket Size)
•
Hook Switch
•
Dial Pulsing
•
Ground Start
•
Ringing Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment—Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Ordering Information
Part #
LCA126
LCA126S
LCA126STR
Description
6-Pin DIP (50/Tube)
6-Pin Surface Mount (50/Tube)
6-Pin Surface Mount (1,000/Reel)
Pin Configuration
AC/DC Configuration
+ Control
– Control
NC
1
2
3
6
5
4
Load
Do Not Use
Load
DC Only Configuration
+ Control
– Control
NC
1
2
3
6
5
4
+ Load
– Load
Switching Characteristics of
Normally Open (Form A) Devices
Form-A
I
F
90%
Pb
DS-LCA126-R04
e
3
www.ixysic.com
I
LOAD
t
on
10%
t
off
1
I
NTEGRATED
C
IRCUITS
D
IVISION
Absolute Maximum Ratings @ 25°C
Parameter
Blocking Voltage
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation Voltage, Input to Output
Operational Temperature
Storage Temperature
1
2
LCA126
Ratings
250
5
50
1
150
800
3750
-40 to +85
-40 to +125
Units
V
P
V
mA
A
mW
mW
V
rms
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 1.33 mW / ºC
Derate linearly 6.67 mW / ºC
Electrical Characteristics @ 25°C
Parameter
Output Characteristics
Load Current
AC/DC Configuration, Continuous
1
DC Configuration, Continuous
1
Peak
On-Resistance
2
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics
Input Control Current to Activate
Input Control Current to Deactivate
Input Voltage Drop
Reverse Input Current
Common Characteristics
Input to Output Capacitance
1
2
Conditions
Symbol
Min
Typ
Max
Units
-
-
t=10ms
I
L
=170mA
I
L
=300mA
V
L
=250V
P
I
L
I
LPK
-
-
-
-
-
-
-
-
-
-
0.4
0.9
-
-
-
-
-
10
4
-
-
-
50
-
0.7
1.2
-
3
170
300
400
15
5
1
5
5
-
5
-
1.4
10
-
mA
rms
/ mA
DC
mA
DC
mA
P
µA
ms
ms
pF
mA
mA
V
µA
pF
R
ON
I
LEAK
t
on
t
off
C
OUT
I
F
I
F
V
F
I
R
C
I/O
I
F
= 5mA, V
L
= 10V
V
L
=50V, f=1MHz
I
L
= 170mA
-
I
F
= 5mA
V
R
= 5V
-
If both poles operate, then the load current must be derated so that the package power dissipation value is not exceeded.
Measurement taken within 1 second of on-time.
2
www.ixysic.com
R04
I
NTEGRATED
C
IRCUITS
D
IVISION
PERFORMANCE DATA (@25ºC Unless Otherwise Noted)*
35
30
Device Count (N)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
Device Count (N)
LCA126
Typical LED Forward Voltage Drop
(N=50, I
F
=5mA)
25
20
15
10
5
0
Typical Turn-On Time
(N=50, I
F
=5mA, I
L
=170mA
DC
)
25
20
15
10
5
0
Typical Turn-Off Time
(N=50, I
F
=5mA, I
L
=170mA
DC
)
Device Count (N)
0.625 0.875 1.125 1.375 1.625 1.875 2.125
Turn-On Time (ms)
0.35
0.40
0.45
0.50
0.55
0.60
0.65
Turn-Off Time (ms)
25
20
15
10
5
0
Typical I
F
for Switch Operation
(N=50, I
L
=170mA
DC
)
25
20
15
10
5
0
Typical I
F
for Switch Dropout
(N=50, I
L
=170mA
DC
)
35
30
Device Count (N)
25
20
15
10
5
0
Typical On-Resistance Distribution
(N=50, I
F
=5mA, I
L
=170mA
DC
)
Device Count (N)
.40
.50
.60
.70
.80
.90
1.0
Device Count (N)
0.3
0.4
0.5
0.6
0.7
0.8
0.9
11.6
11.8
12.0
12.2
12.4
LED Current (mA)
LED Current (mA)
On-Resistance ( )
Typical Blocking Voltage Distribution
(N=50)
35
30
Device Count (N)
25
20
15
10
5
0
305
315
325
335
345
355
365
Blocking Voltage (V
P
)
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
Turn-On Time (ms)
1.6
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
1.4
1.2
Typical Turn-On Time
vs.LED Forward Current
(I
L
=170mA
DC
)
0.80
0.75
Turn-Off Time (ms)
0.70
0.65
0.60
0.55
0.50
0.45
Typical Turn-Off Time
vs. LED Forward Current
(I
L
=170mA
DC
)
1.0
0.8
0.6
0.4
0.2
0
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
I
F
=50mA
I
F
=10mA
I
F
=5mA
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
R04
www.ixysic.com
3
I
NTEGRATED
C
IRCUITS
D
IVISION

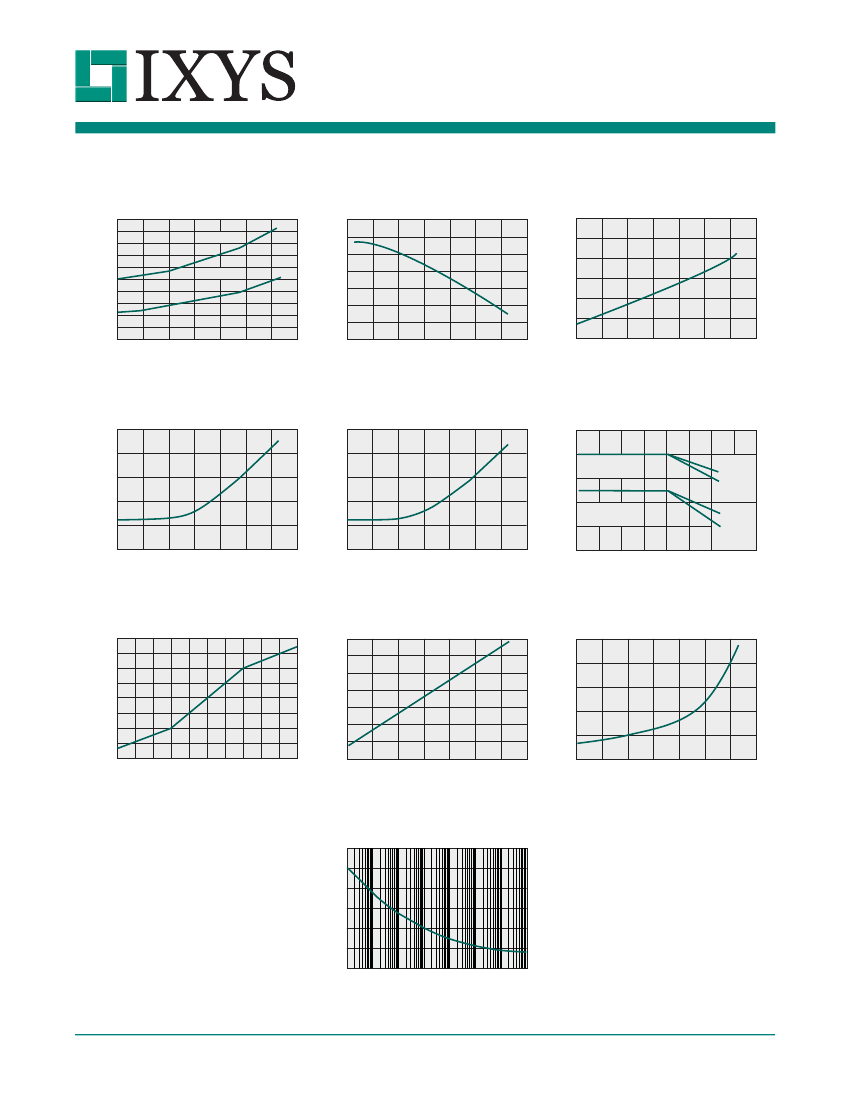

PERFORMANCE DATA (@25ºC Unless Otherwise Noted)*
Typical Turn-On Time
vs. Temperature
(I
L
=170mA
DC
)
Turn-Off Time (ms)
I
F
=5mA
LCA126
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
-40
-20
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
Typical Turn-Off Time
vs. Temperature
(I
F
=5mA, I
L
=170mA
DC
)
On-Resistance ( )
30
25
20
15
10
5
0
Typical On-Resistance vs. Temperature
AC/DC Configuration
(I
F
=5mA, I
L
=120mA
DC
)
Turn-On Time (ms)
I
F
=10mA
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
Temperature (ºC)
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
-40
Typical I
F
for Switch Operation
vs. Temperature
(I
L
=170mA
DC
)
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
Typical I
F
for Switch Dropout
vs. Temperature
(I
L
=170mA
DC
)
Maximum Load Current
vs. Temperature
300
Load Current (mA)
250
DC Configuration
200
150
AC/DC Configuration
100
50
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
I
F
=10mA
I
F
=5mA
I
F
=10mA
I
F
=5mA
-20
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
200
150
Load Current (mA)
100
50
0
-50
-100
-150
Typical Load Current vs. Load Voltage
(I
F
=5mA)
Blocking Voltage (V
P
)
Typical Blocking Voltage
vs. Temperature
350
345
Leakage ( A)
340
335
330
325
320
315
-40
-20
0
20
40
60
80
100
Temperature (ºC)
0.025
0.020
0.015
0.010
0.005
0
-40
Typical Leakage vs. Temperature
Measured across Pins 4&6
-200
-2.5 -2.0 -1.5 -1.0 -0.5
0
0.5 1.0 1.5 2.0 2.5
-20
0
20
40
60
80
100
Load Voltage (V)
Temperature (ºC)
Energy Rating Curve
1.2
1.0
Load Current (A)
0.8
0.6
0.4
0.2
0
10 s 100 s 1ms 10ms 100ms
Time
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
1s
10s
100s
4
www.ixysic.com
R04
I
NTEGRATED
C
IRCUITS
D
IVISION
Manufacturing Information
Moisture Sensitivity
LCA126
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. IXYS Integrated
Circuits Division classified all of its plastic encapsulated devices for moisture sensitivity according to
the latest version of the joint industry standard,
IPC/JEDEC J-STD-020,
in force at the time of product
evaluation. We test all of our products to the maximum conditions set forth in the standard, and guarantee proper
operation of our devices when handled according to the limitations and information in that standard as well as to any
limitations set forth in the information or standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a
Moisture Sensitivity Level (MSL) rating
as shown below, and should be handled according
to the requirements of the latest version of the joint industry standard
IPC/JEDEC J-STD-033.
Device
LCA126 / LCA126S
Moisture Sensitivity Level (MSL) Rating
MSL 1
ESD Sensitivity
This product is
ESD Sensitive,
and should be handled according to the industry standard
JESD-625.
Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020
must be observed.
Device
LCA126 / LCA126S
Maximum Temperature x Time
250ºC for 30 seconds
Board Wash
IXYS Integrated Circuits Division recommends the use of no-clean flux formulations. However, board washing to
remove flux residue is acceptable. Since IXYS Integrated Circuits Division employs the use of silicone coating as
an optical waveguide in many of its optically isolated products, the use of a short drying bake could be necessary
if a wash is used after solder reflow processes. Chlorine- or Fluorine-based solvents or fluxes should not be used.
Cleaning methods that employ ultrasonic energy should not be used.
I am using the stm32_eth_lib firmware library, and I hope to forward the data received by Ethernet to the host computer through USB (I only need to forward a frame of data received by the Ethernet phy...
I have the following two questions: 1. synplify cannot synthesize the "when others" state of the state machine: I am using VHDL, and the coding style requires that the use of case statements must full...
[align=left][color=#000][size=4] With the rapid development of mobile phones, smart wireless devices and electric vehicles, the market demand for lithium batteries is becoming more and more extensive,...
[p=24, null, left][color=rgb(51, 51, 51)][font=宋体, Arial, Helvetica, sans-serif]I saw a news and would like to share it with you: [url=https://www.eeworld.com.cn/IoT/2014/0305/article_477.html]No need...
When debugging, you often need to check some signals inside the module under test or even the signals inside multiple submodules instantiated in the module under test to find the cause of the problem....
The TIA Portal software's shift instructions shift the contents of an accumulator bit by bit to the left or right. The number of bits shifted is determined by N. A left shift of N bits multiplies t...[Details]
PV DC fuses are safety devices used to protect PV panels, inverters, and DC loads. To ensure their safety and reliability, they must be UL248 certified.
Before applying for UL248 certifi...[Details]
introduction
Bluetooth technology is a short-range wireless communication technology designed to replace wired cables. It is a wireless communication technology standard developed by the SIG, ...[Details]
Some time ago, I attended the 4th Energy Chemistry Forum of the Chinese Chemical Society and learned about high-energy-density and high-safety batteries. I would like to summarize and share this wi...[Details]
Electric vehicles are currently gaining momentum, but this is just a facade. Fuel-powered vehicles remain unchallenged. While electric vehicles boast unique advantages in environmental emissions an...[Details]
On August 25th, Apple's expansion in India encountered new troubles. According to Bloomberg, Foxconn Technology Group has recalled approximately 300 Chinese engineers from India, further hindering ...[Details]
According to foreign media reports, secondary battery materials company POSCO Future M announced that it has successfully developed two experimental (prototype) positive electrode materials for the...[Details]
With the rapid advancement of automation technology, collaboration between robots is no longer just science fiction. Imagine dozens of machines moving goods in a warehouse without interfering with ...[Details]
This paper proposes a temperature real-time transmission and display solution based on LED optical data transmission, with Jingwei Yager low-power FPGA HR (Yellow River) series as the main controll...[Details]
In daily life, power transformers have different functions and uses due to different usage scenarios. The most common ones can be divided into: control transformers, isolation transformers, rectifi...[Details]
On August 20, Geely announced its focus on "One Cockpit". Through a unified AI OS architecture, a unified AI Agent, and a unified user ID, it will achieve an All-in-One AI cockpit, create the first...[Details]
Over the past decade, the narrative surrounding fuel vehicles has been one of decline and replacement. Under the onslaught of new energy vehicles, traditional automakers have been forced to acceler...[Details]
A pure sine wave inverter has a good output waveform with very low distortion, and its output waveform is essentially the same as the AC waveform of the mains power grid. In fact, the AC power prov...[Details]
Batteries, at the core of new energy vehicles, are crucial to vehicle performance and range. Existing automotive batteries are categorized into lead-acid and lithium batteries. Currently, new energ...[Details]
For self-driving cars, LiDAR is the sensory organ that allows them to "see the road." Simply put, its operating principle involves sending out a laser beam, receiving the echo, and ultimately gener...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
