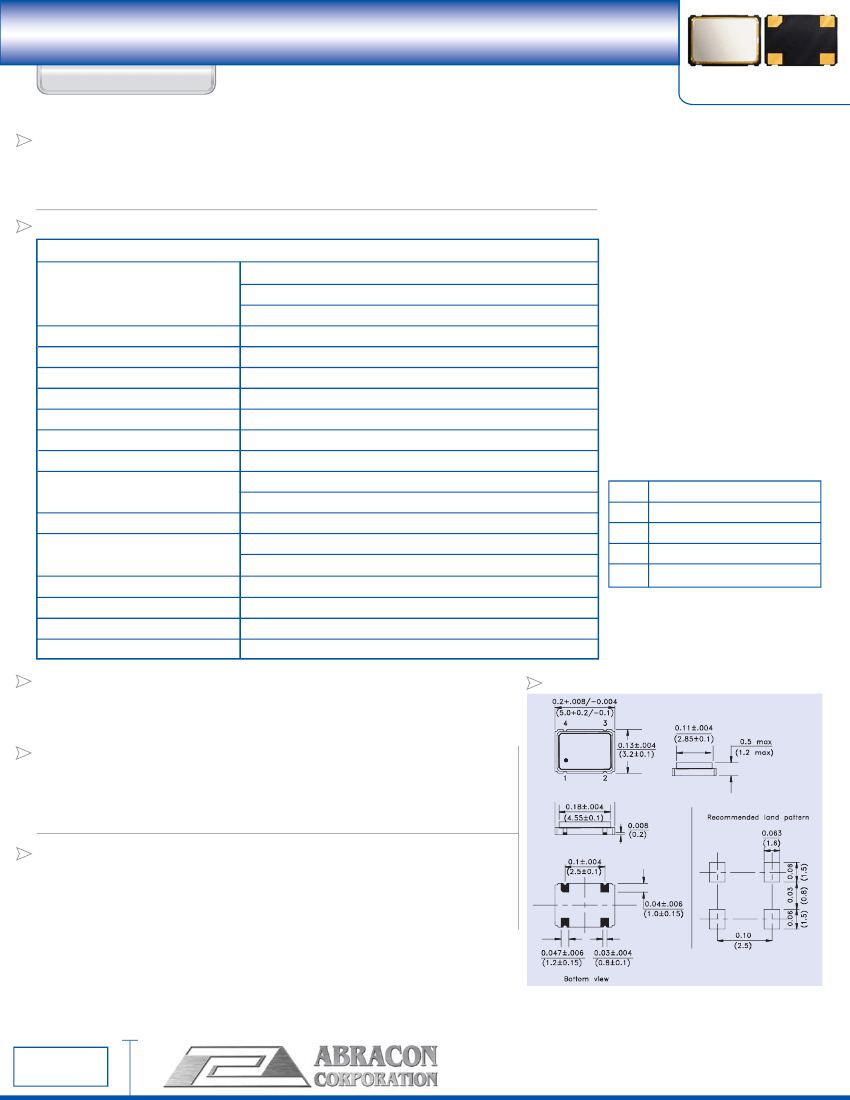

HCMOS/TTL COMPATIBLE SURFACE-MOUNT
PROGRAMMABLE CRYSTAL CLOCK OSCILLATOR
AP5S
: PRELIMINARY
Available Q3 2006
• Alternative to long lead-time XO's
*PB FREE & ROHS COMPLIANT
5.0 x 3.2 x 1.1mm
| | | | | | | | | | | | | | |
FEATURES:
• Performance equivalent to fixed frequency oscillator
• Lowest peak-to-peak jitter
• Low supply current
STANDARD SPECIFICATIONS:
PARAMETERS
Frequency Range
10 MHz to 200 MHz (3.3V)
10 MHz to 166 MHz (2.5V)
10 MHz to 133 MHz (1.8V)
Operating Temperature
0°C to + 70°C (see options)
Storage Temperature
- 55°C to +125°C
Overall Frequency Stability ± 50 ppm max. (see options)
Supply Voltage (Vdd)
1.8 to 3.3Vdc ± 10%
Input Current
6.5mA typ. (3.3V), 5.5mA typ. (2.5V & 1.8V)
Symmetry @ 1/2Vdd
45/55% max.
(PLL Disabled)
; 47.5/52.5% max
(PLL Enabled)
Rise and Fall Time (Tr/Tf)
2.5ns typ.; 3.5nS max (10%/90%, 15pF Load)
Output Voltage
VOH = Vdd-0.4V min.
VOL = 0.4V max.
Start-up Time
10mS max
Tri-State Function
“1” (VIH = 2.0V min) or open: Oscillation
“0” (VIL = 0.8V max) : Hi Z
Stand-by Current (option -B) 10 µA max.
Jitter Peak-to-Peak
70pS typ.
Phase Jitter RMS
2.5pS typ.
Output Type
CMOS
* Can drive CMOS, HCMOS, and TTL inputs
PIN
1
2
3
4
FUNCTION
OE or Stand-By
Ground/Case
Output
VDD
MARKING without options:
- Line 1 : AP5xxx.xx (Frequency)
- Line 2: 042104
(Six digit lot & blank date code, Ex: AP180.00, AP45.00)
OUTLINE DRAWING:
MARKING with options:
- Line 1 : AP5xxxRB, LB, LRB (xxx.xx: Frequency; R for Stability or
L for Temp, & B for Stand-by)
- Line 2: 042104
(Six digit lot & blank date code, Ex: AP180.00, AP45.00)
OPTIONS AND PART IDENTIFICATION
(Left blank if standard)
:
AP5S - Frequency - Temperature - Overall Frequency Stability - Standby -
Drive Strength - Packaging
Temperature options:
L
for -40°C to +85°C
Drive Strength:
D
for High Drive
Drive Strength:
B
for Sleep Mode
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev1.1-10/05
Overall Frequency stability options:
R
for ± 25 ppm max.
Packaging option:
T
for Tape and Reel (1,000pcs/reel)
Dimensions: inch (mm)
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
