Crimp
VA
CONNECTOR

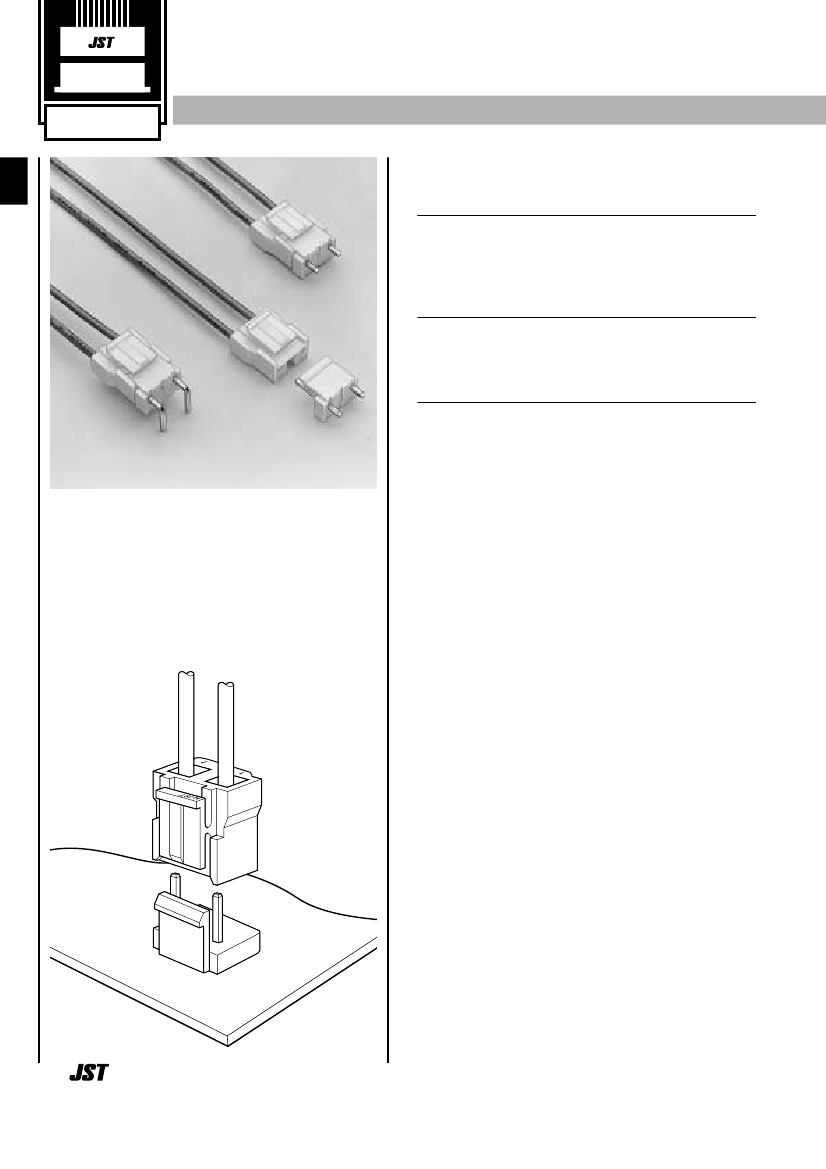

Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Box contact
This connector has the box-shaped contact. The reliable NV
connector can be used in a wide variety of applications, from
low-voltage, low-current signal circuits to power supply circuits
having a relatively large capacity.
7.92mm
(.312") pitch
• Secure contact and mounting
The housing has an arm lock mechanism which prevents the
connector from working loose due to vibration. The mechanism
also prevents misinsertion (misalignment or reverse insertion).
• Compact connector with a large capacity
Even though this connector has a large current carrying
capacity (7A), it is compact, with a mounting height of 17.5mm
(.689").
This 7.92mm (.312") pitch large current
carrying capacity connector is used with
primary power supply circuits and various
other circuits requiring large currents. It
features an anti-misinsertion construction
and a reliable locking mechanism to ensure
maximum safety.
Specifications –––––––––––––––––––
• Current rating: 7A AC, DC (AWG #18)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,200V AC/minute
• Applicable wire: AWG #20 to #18
• Applicable PC board thickness: 1.6mm(.063")
172
1
2
H JST
Standards ––––––––––––––––––––––
0
1
2
Recognized E60389
Certified LR20812
R75122
VA
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Applicable wire
Model No.
SVA-41T-P1.1
mm
2
AWG #
20 to 18
Insulation O.D.
mm(in.)
1.9 to 3.7(.075 to .146)
Q'ty /
reel
3,500
0.5 to 0.83
3.0(.118)
3.8(.150)
11.6(.457)
4.0(.157)
Material and Finish
Phosphor bronze, tin-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
Model No.
VAR-2
Material
Nylon 6, UL94V-0, natural (white)
Q’ty / bag
1,000
Circuit No.1
2.1
(.083) 9.7(.382)
3.8
6.8(.268) (.150)
10.6(.417)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
VAR-2-o o-
(blank)…natural (white)
K…black R…red E…blue Y…yellow
7.92(.312)
12.92(.509)
14.3(.563)
173
VA
CONNECTOR
Locking header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
1.14(.045)
2
Circuits
2
Circuits
Top entry
type
Side entry
type
Side entry
type
with
PCB stabilizer
Model No.
B2P3-VH
B2P3S-VH
Q’ty / box
1,000
500
7.7(.303)
3.7 3.2
(.146) (.126)
9.4(.370)
2
S2P3-VH
500
Material and Finish
Post: Brass, copper-undercoated, tin/lead-plated
Wafer: Nylon 66, UL94V-0, natural (white)
7.92(.312)
11.82(.465)
Circuit No.1
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B2P3(S)-VH-o o-
(blank)…natural (white)
BK…black R…red BL…blue Y…yellow
S2P3-VH-o o-
(blank)…natural (white)
K…black R…red Y…yellow
Side entry type
9.4(.370)
ex.
8.5(.335)
4.8(.189)
3.6
(.142)
7.92(.312)
11.82(.465)
Circuit No.1
Side entry type with PCB stabilizer
11.82(.465)
4.8(.189)
1.14
(.045)
1.14
( .045)
3.2
4.0
7.7(.303) (.126) (.157)
14.9(.587)
13.9(.547)
7.92(.312)
Circuit No.1
7.7(.303)
5.7(.224)
174
3.6
(.142)
VA
CONNECTOR
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
7.92±0.05
2.0
(.312±.002) (.079)
min.
5.0
(.197)
min.
10.6(.417)
Side entry type
7.92±0.05
2.0
(.312±.002) (.079)
min.
7.2
(.283)
min.
21.5(.846)
10.6(.417)
7.2
(.283)
22.0(.866)
10.6(.417)
5.7
(.224)
7.7(.303)
Circuit No.1
17.5(.689)
1.65
+ 0.1
0
(.065
+ .004
)dia.
0
0.1
1.65
+ 0
(.065
+ .004
)dia.
0
Circuit No.1
5.0
(.197)
Side entry type with PCB stabilizer
7.92±0.05 1.95
(.312±.002) (.077)
min.
5.7
(.224)
min.
1.65
+ 0.1
0
.004
(.065
+ 0
)dia.
Circuit No.1
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline.
Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SVA-41T-P1.1
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SVA41-11
APLNC SVA41-11
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
Strip-crimp applicator MKS-SC
with safety cover
APLSC SVA41-11
175
