This document was generated on 12/16/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0330122004
Active
MX150™ Sealed and Unsealed Connector System
MX150™ Female Terminal Sealed, Tin Plating, Grip Code M3, Preferred Terminal
for use in Sealed Application with 0.35-0.50mm², Right Reel Payoff, Contact Material
Thickness 0.30mm²
Documents:
Drawing (PDF)
Product Specification PS-33012-002-001 (PDF)
Product Specification TS-33012-002-001 (PDF)
Application Specification AS-33012-002-001 (PDF)
General
Product Family
Series
Application
Comments
Application Specification AS-33012-002-CH-001
(PDF)
Application Specification AS-33012-002-FR-001
(PDF)
RoHS Certificate of Compliance (PDF)

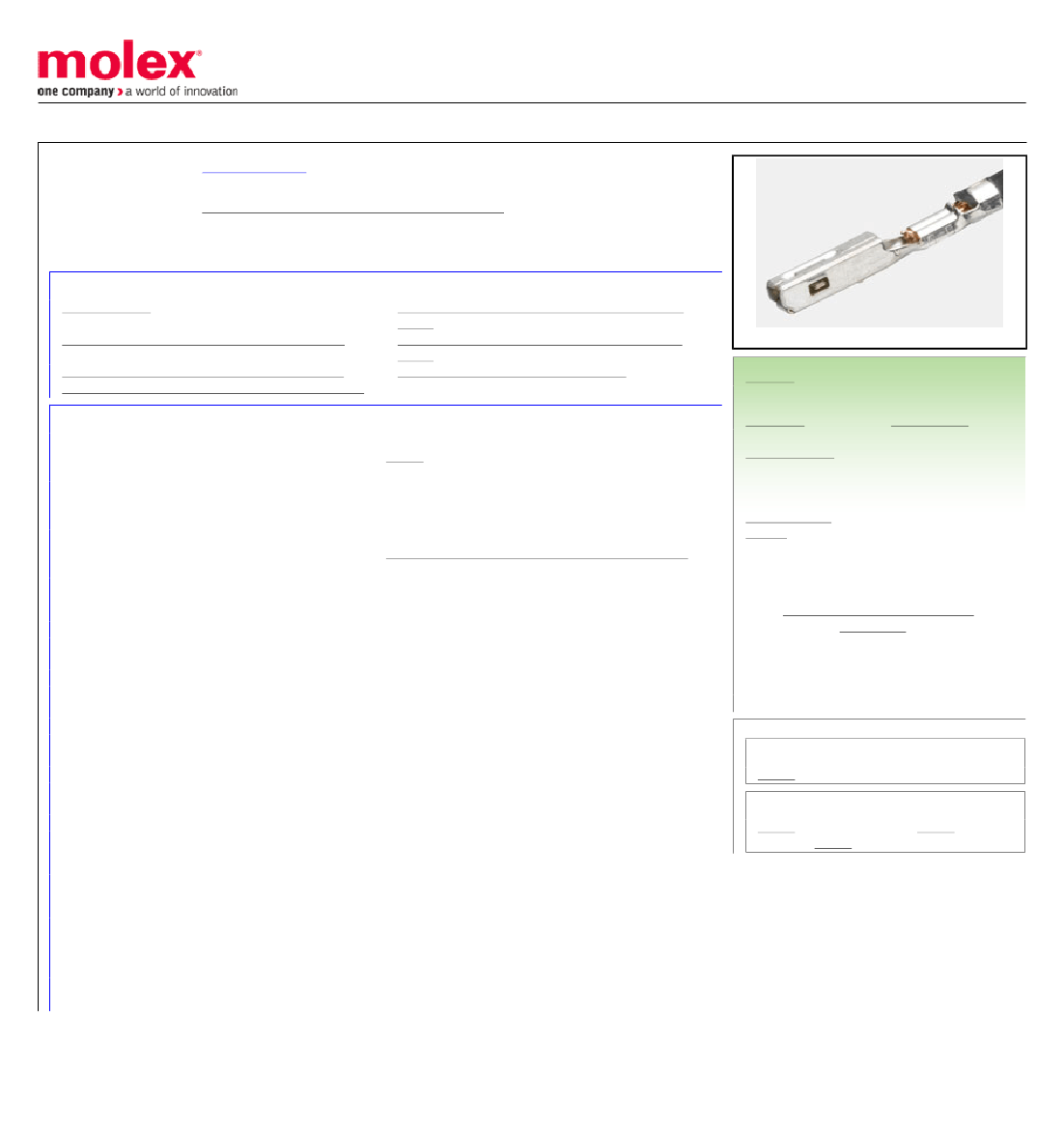

Series image - Reference only
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/21/2016 (20 June
2016)
Halogen-Free
Status
Not Relevant
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Compliant
Not Contained
Crimp Quality Equipment
Overview
Product Name
UPC
Physical
Gender
Grip Code
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
Crimp Terminals
33012
Power
For automatic and semi-automatic crimping, use Left
Reel Payoff terminals. See Sales Drawing for Left Reel
Payoff Part Numbers.
Yes
MX150™ Sealed and Unsealed Connector System
MX150™
884982250611
Female
M3
High Performance Alloy (HPA)
Tin
Tin
0.391/g
Reel
0.762µm
2.540µm
Crimp or Compression
1.70mm max.
N/A
0.35-0.50
Contact Molex
14V DC
Search Parts in this Series
33012 Series
Use With
33472 Dual Row Housing. 33476 Hybrid
Housing. 33471 Single Row Housing
AS-33012-002-001, AS-33012-002-CH-001,
AS-33012-002-FR-001
PS-33012-002-001, TS-33012-002-001
SD-33012-002
