ELSF-406SYGWA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> ELSF-406SYGWA

ELSF-406SYGWA: Description7 SEG NUMERIC DISPLAY, BRILLIANT YELLOW GREEN, 10 mm; CategoryLED optoelectronic/LED; File Size302KB，8 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric View All

ELSF-406SYGWA Overview

7 SEG NUMERIC DISPLAY, BRILLIANT YELLOW GREEN, 10 mm

ELSF-406SYGWA Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	4
Processing package description	ROHS COMPLIANT, surface mount, 12 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	NOT SPECIFIED
structure	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH decimal POINT
Optoelectronic device type	7 SEG digital display
color	bright yellow-green
Maximum continuous forward current	25 mA
Display height	10 mm

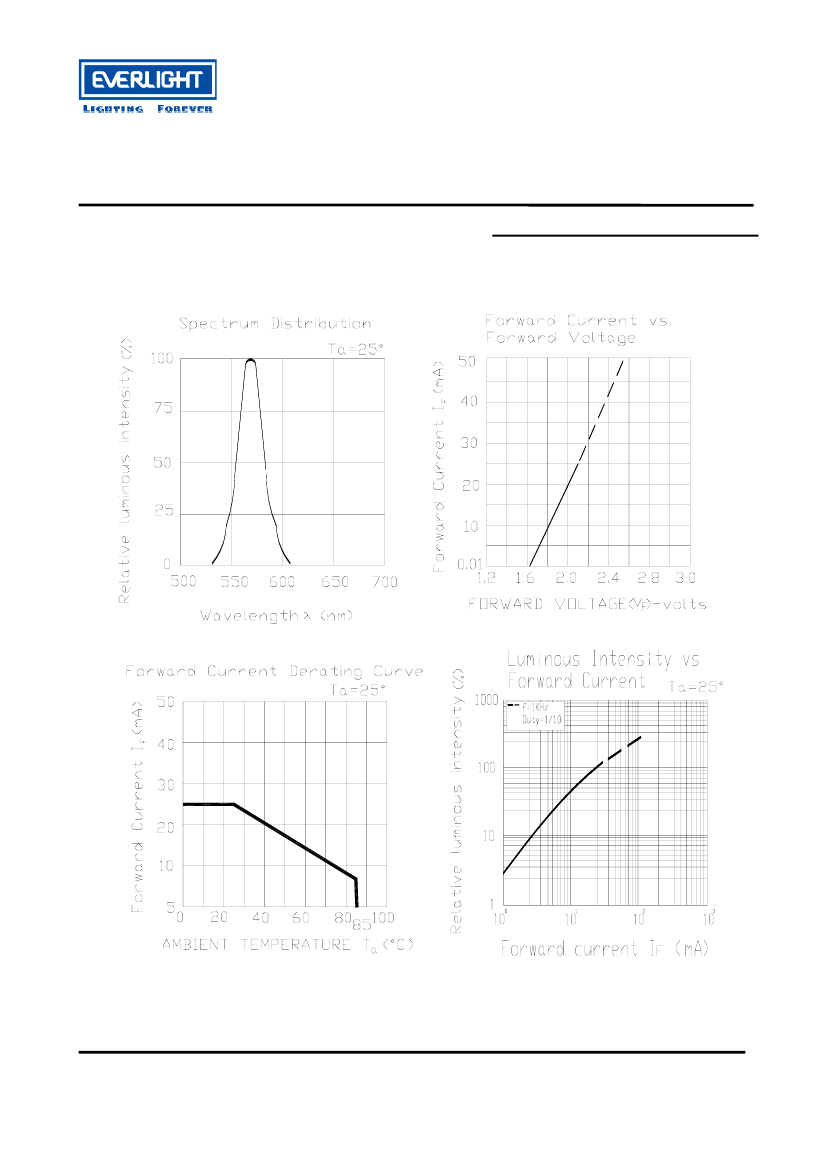

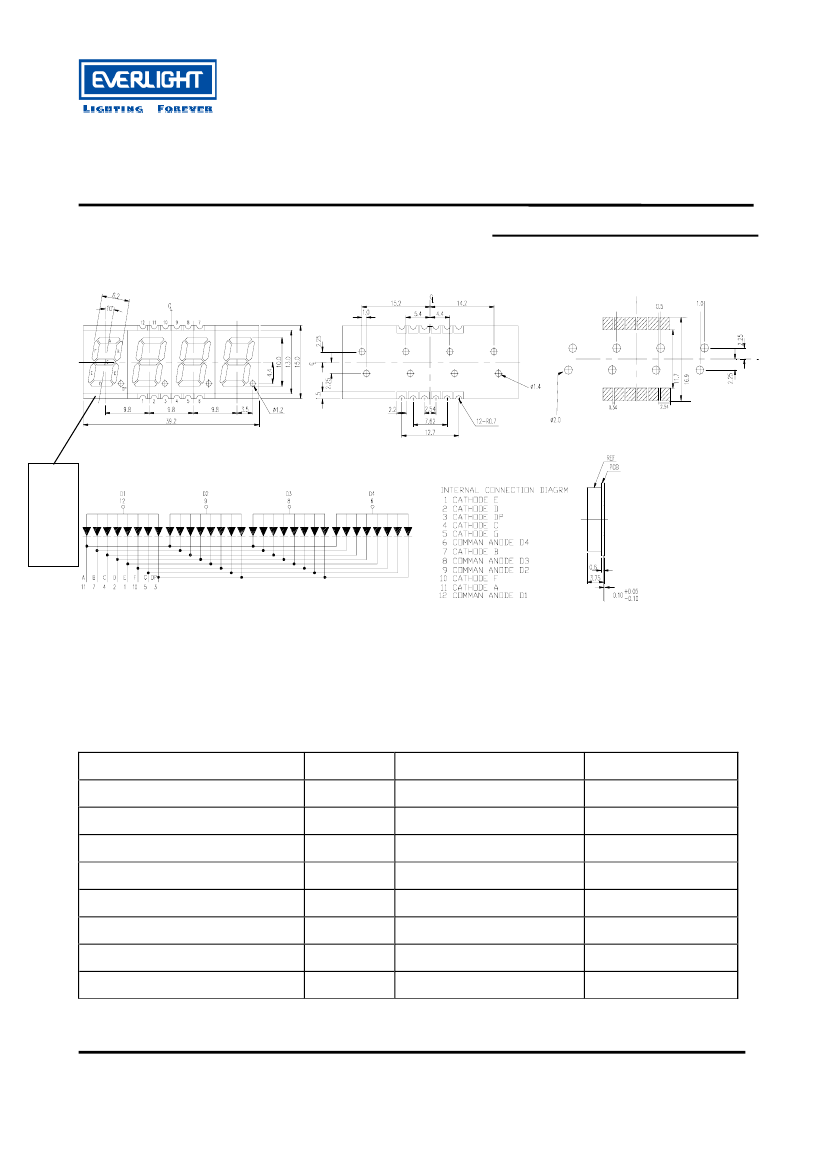

Preview

Download Datasheet

View All

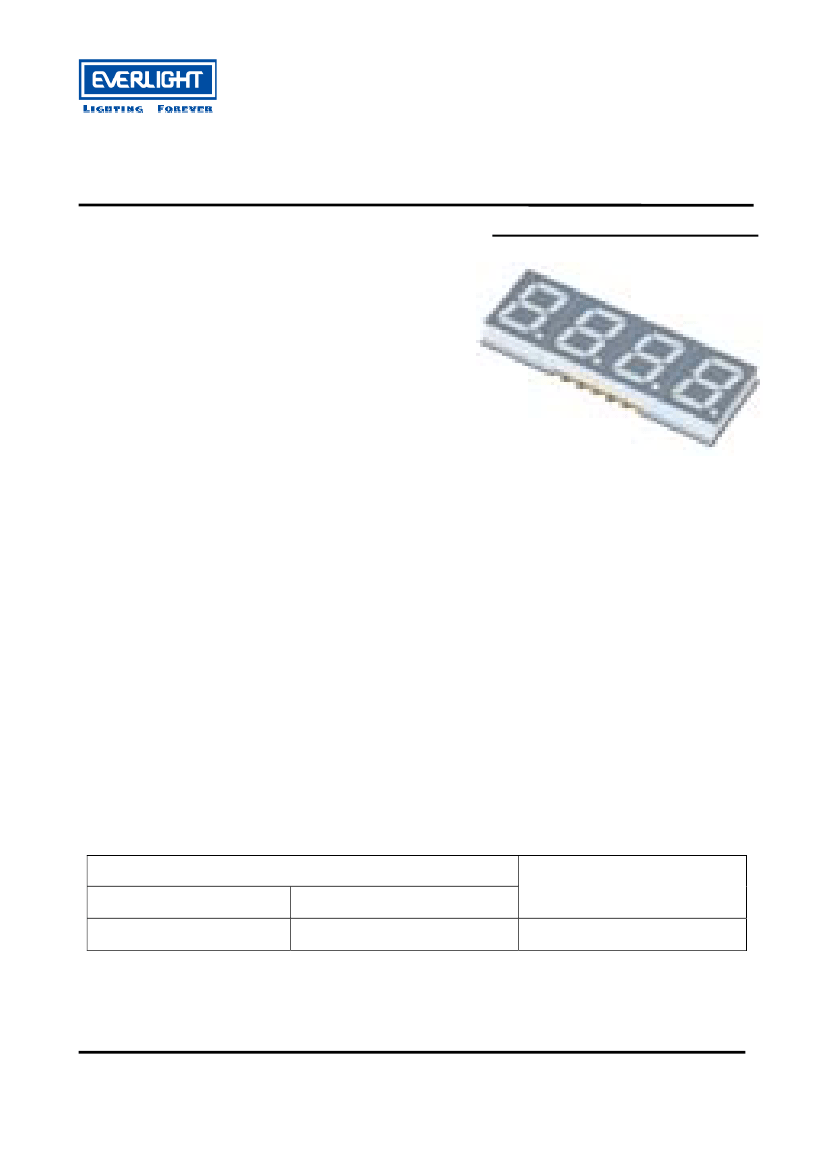

Technical Data Sheet

0.39" Quadruple Digit SMD Displays

Features

․Packaged

in tape and reel for SMT manufacturing.

․Design

flexibility (common cathode or anode).

․Categorized

for luminous intensity.

․The

thickness is thinness than tradition display.

․Pb

free.

․The

product itself will remain within RoHS

compliant version.

ELSF-406SYGWA/S530-E2

Descriptions

․The

SMD type is much smaller than tradition type

components, thus enable smaller board size, higher

packing density, reduced storage space and finally

smaller equipment to be obtained.

Applications

․Suitable

for indoor use.

․Audio

system.

․Set

top box.

․Game

machine.

․Channel

indicator of TV.

Device Selection Guide

Chip

Material

AlGaInP

Emitted Color

Brilliant Yellow Green

Face Color

Gray

Everlight Electronics Co., Ltd.

Device No.: DDF-0000409

http://www.everlight.com

Prepared date: 2009/07/02

Rev. 2

Page: 1 of 8

Prepared by: Sun Li
