CA-25DPID-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CA-25DPID-4

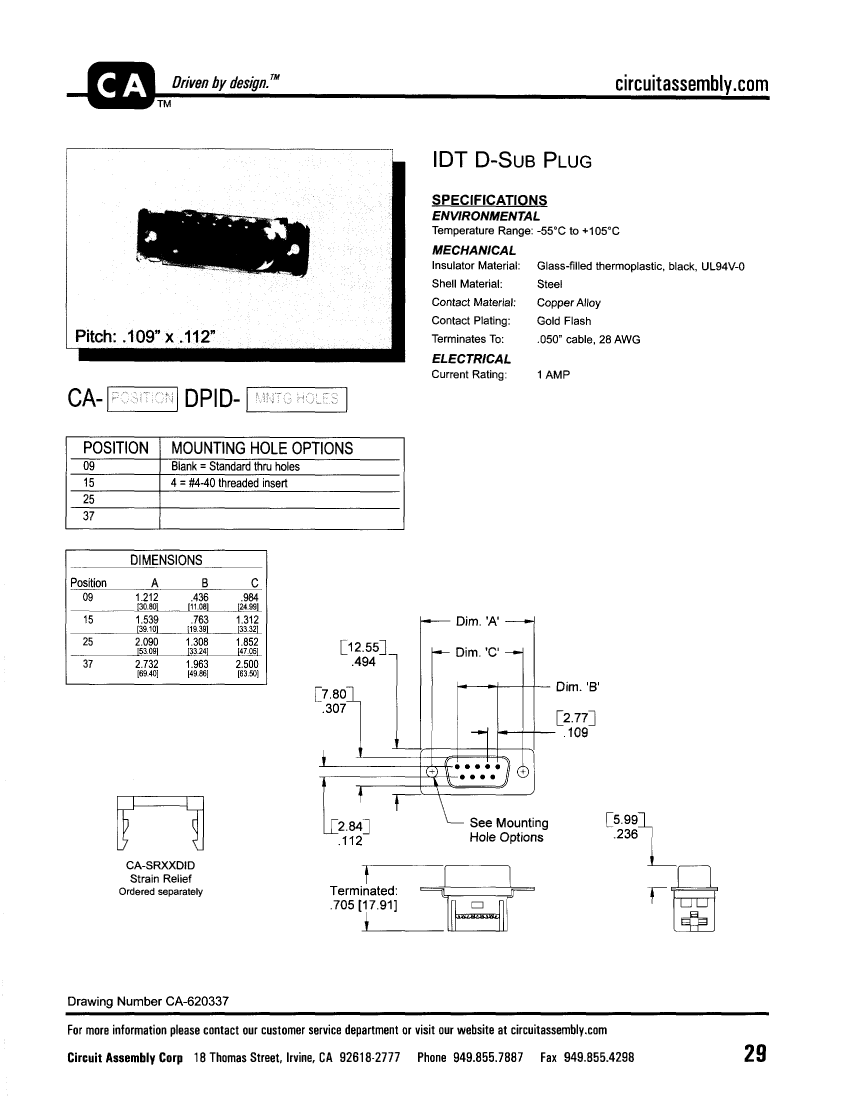

CA-25DPID-4: DescriptionD Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerCircuit Assembly

Download Datasheet Parametric Compare View All

CA-25DPID-4 Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle

CA-25DPID-4 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.59 inch
body length	2.086 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYETHYLENE
Manufacturer's serial number	CA
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	IDC
Total number of contacts	25
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

CA-25DPID-4 Related Products

	CA-25DPID-4	CA-37DPID	CA-37DPID-4	CA-09DPID-4	CA-15DPID-4	CA-09DPID	CA-15DPID	CA-25DPID
Description	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch
body length	2.086 inch	2.734 inch	2.734 inch	1.218 inch	1.546 inch	1.218 inch	1.546 inch	2.086 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
Manufacturer's serial number	CA	CA	CA	CA	CA	CA	CA	CA
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	#4-40	HOLE .112-.124	#4-40	#4-40	#4-40	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	THREADED	NON-THREADED	THREADED	THREADED	THREADED	NON-THREADED	NON-THREADED	NON-THREADED
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	4/C	4/C	1/E	3/B	1/E	3/B	3/B
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	25	37	37	9	25	9	25	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Base Number Matches	1	1	1	1	1	-	-	-
Maker	-	Circuit Assembly	Circuit Assembly	-	-	Circuit Assembly	Circuit Assembly	Circuit Assembly
