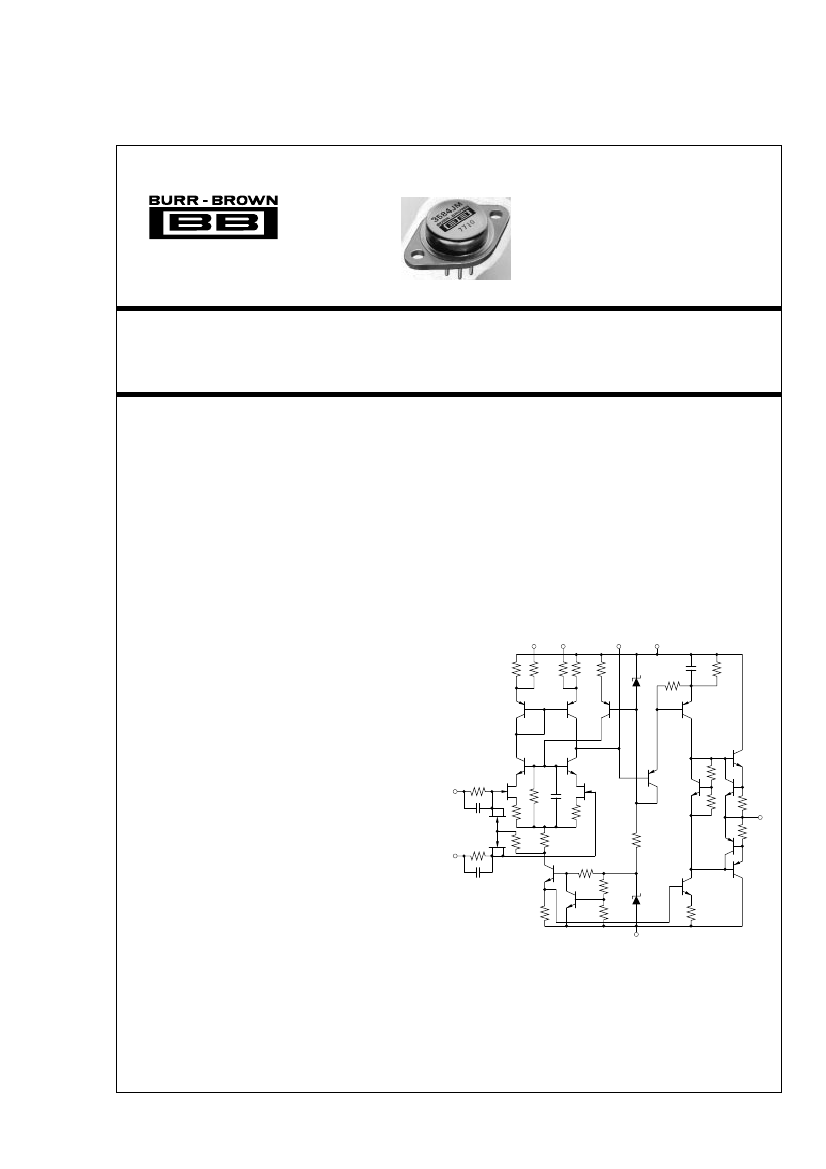

NOTE: (1) Inputs may be damaged by input slew rates exceeding 1000V/µs. Inputs can be protected from signals exceeding 1000V/µs by limiting input current to 150mA
with external series resistors (pins 5 and 6).
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN
assumes no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject
to change without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not
authorize or warrant any BURR-BROWN product for use in life support devices and/or systems.
®
3584
2

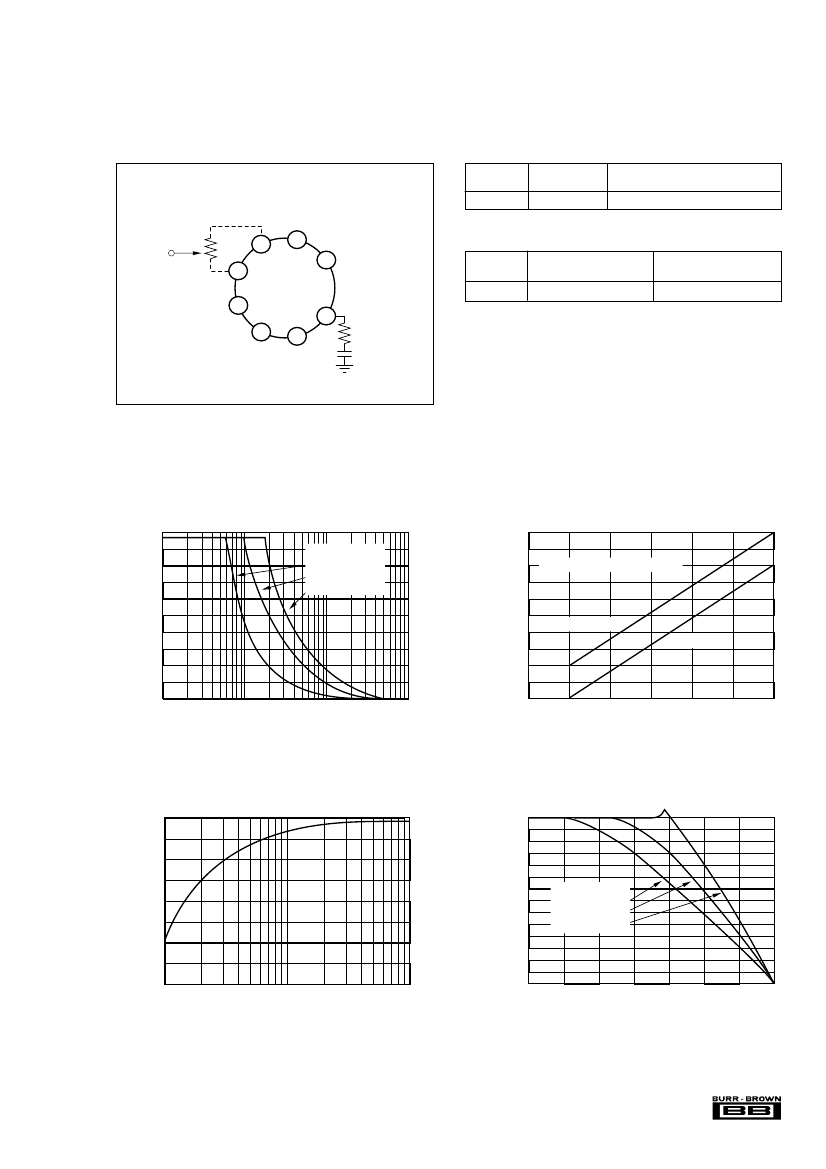

CONNECTION DIAGRAM
Top View
ORDERING INFORMATION
MODEL
PACKAGE
8-Pin TO-3
TEMPERATURE
RANGE
0°C to +70°C
Optional
Offset
Adjust
100kΩ
to +V
CC
Offset
Trim
5
–In
+In
4
3584JM
Offset
Trim
3
2
+V
CC
1
Output
PACKAGE INFORMATION
MODEL
3584JM
PACKAGE
8-Pin TO-3
PACKAGE DRAWING
NUMBER
(1)
030
8
6
7
–V
CC
Compensation
R
C
C
C
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix D of Burr-Brown IC Data Book.
Optional Socket: Burr-Brown Model 0804MC
TYPICAL PERFORMANCE CURVES
T
CASE
= +25°C, V
S
=
±150V,
unless otherwise noted.
OUTPUT VOLTAGE vs FREQUENCY
150
Compensation:
200Ω and 0.1µF
2kΩ and 500pF
20Ω and 50pF
1.0
SLEW RATE vs SUPPLY VOLTAGE AT FULL LOAD
Output Voltage (±Vp-p)
Normalized Slew Rate
120
0.9
Compensation: 200Ω and 0.01µF
90
0.8
25°C to 85°C (Case)
0.7
–25°C (Case)
60
30
0
10k
100k
Frequency (Hz)
1M
10M
0.6
0.5
40
50
60
70
80
90
100
Power Supply (% of max)
SLEW RATE vs COMPENSATION
160
120
100
Voltage Gain (dB)
OPEN-LOOP FREQUENCY RESPONSE FULL LOAD
120
Slew Rate (V/µs)
80
60
40
20
0
Compensation:
200Ω and 0.1µF
2kΩ and 500pF
20Ω and 50pF
80
40
0
200
2k
External Compensation Impedance (Ω)
20k
–20
1
10
100
1k
10k
100k
1M
10M
Frequency (Hz)
®
3
3584
TYPICAL PERFORMANCE CURVES
(CONT)
T
CASE
= +25°C, V
S
=
±150V,
unless otherwise noted.
OPEN-LOOP GAIN
vs SUPPLY VOLTAGE AT MAX LOAD
0
–1
–2
–3
–25°C (Case)
–4
–5
–6
40
50
60
70
80
90
100
Power Supply (% of max)
+85°C (Case)
25°C (Case)
POWER DISSIPATION
5
Case
Internal Power Dissipation (W)
∆
Open-Loop Gain (dB)
4
θ
JC
= 12°C/W
3
Ambient
2
θ
JA
= 42°C/W
1
0
0
25
50
75
100
125
Temperature (°C)
SAFETY OPERATING AREA (Secondary Breakdown)
30
20
DC
5ms
NOISE vs SOURCE RESISTANCE
1000
Total Input Noise (µVp-p, µVrms)
(rms) 10Hz to 10kHz
100
(p-p) 0.01Hz to 10kHz
10
(rms) 10Hz to 1kHz
Output Current
10
Internal Current Limit
0
–10
DC
–20
–30
–150
–100
–50
0
Output Voltage
50
100
5ms
150
1
Noise of Source Resistor
Amplifier Noise
0
10
3
10
4
10
5
10
6
10
7
10
8
Source Resistance (Ω)
CURRENT LIMIT vs TEMPERATURE
20
Normalized Current Limit (%)
10
0
–10
–20
–30
–40
–50
–25
0
25
50
75
100
125
Case Temperature (°C)
CMR (dB)
COMMON-MODE REJECTION
120
100
80
60
40
20
0
1
10
100
1k
Frequency (Hz)
10k
100k
1M
Compensation: 200Ω and 0.01µF
®
3584
4
TYPICAL PERFORMANCE CURVES
(CONT)
T
CASE
= +25°C, V
S
=
±150V,
unless otherwise noted.
MAXIMUM COMMON-MODE VOLTAGE
vs FREQUENCY
150
Compensation: 200Ω and 0.01µF
Power Supply Rejection (dB)
120
100
80
60
POWER SUPPLY REJECTION vsFREQUENCY
Common-Mode Voltage (±)
125
100
75
50
25
0
10k
100k
Frequency (Hz)
1M
Positive Supply
40
Negative Supply
20
0
10
100
1k
10k
100k
1M
Frequency (Hz)
APPLICATION INFORMATION
Figure 1 shows the basic connections required to operate the
3584. Bypass capacitors should be connected close to the
device pins. Be sure that these capacitors have an adequate
voltage rating.
Frequency compensation components must be connected to
pin 8 for closed-loop gains of 100 or less. Recommended
values are shown in Figure 1. Some adjustment in these
values may be required depending on exact circuit configu-
ration and load conditions. Be sure the compensation capaci-
tor has a voltage rating equal to or greater than the positive
power supply voltage, V+. Standard 0.25W resistors can be
used for R
C
.
Input offset voltage and drift of the 3584 are laser-trimmed.
Many applications require no external offset trimming.
Figure 1 shows connection of an optional offset trim poten-
tiometer which connects to pins 3 and 4.
FET input circuitry reduces the input bias current of the
3584 to less than 20pA at room temperature. Input bias
current remains nearly constant throughout the full com-
mon-mode range. Input bias current approximately doubles
for each 10°C increase in case temperature above 25°C.
Heat sinking can help minimize this effect by reducing the
case temperature.
Input circuitry of the 3584 is protected with series limiting
resistors and input clamp diodes. The inputs can withstand
the full rated supply voltage of
±150V
(common-mode or
differential).
THERMAL PROTECTION
The 3584 has internal thermal shut-down circuitry that
activates at a case temperature of approximately 150°C or
higher. As this circuitry is activated, the output current drive
is reduced. As the case temperature returns to less than the
activation temperature, operation will return to normal.
5
+70V to +150V
V+
0.1µF
4
3
3584
The thermal shut-down circuit will normally protect the
amplifier during a short-circuit to ground. It will not protect
against short-circuit to one of the power supplies. The
typical performance curve “Safe Operating Area” shows that
the large stress occurring during this high voltage condition
may cause damage if it exceeds 5ms duration. The thermal
protection circuitry will not activate fast enough to protect
the device from short-circuits to one of the power supplies.
The package case of the 3584 is electrically isolated from all
circuitry. No special insulating hardware is required. Al-
though not absolutely required, it is recommended that the
