HRS4 Series
PCB Power Relays
Features:
•
SPCO contacts.
•
Sealed to allow washing after flow soldering.
Specifications:
Coil Data:
Nominal Voltage
Nominal Power Consumption
Contact Data:
Contact Arrangement
Contact Material
Contact Rating
Maximum Switching Voltage
Maximum Switching Current
Maximum Switching Power
Contact Resistance (Initial)
Life Expectancy Electrical
Mechanical
General Data:
Minimum Insulation Resistance
Dielectric Strength
Maximum Operate Time
Maximum Release Time
Operating Temperature Range
Shock Resistance
Vibration Resistance
: 3V dc to 48V dc.
: 360 to 450 mW.
: 1 Form A , 1 Form C.
: AgCdo.
: 10A 120V ac/24V dc (1C).
15A 120V ac/24V dc (1A).
: 110V dc/240V ac.
: 15A.
: 1800VA , 360W.
: 50mΩ at 6V dc 1A.
: 100,000 operations at nominal load
: 10,000,000 operations.
: 100MΩ at 500V dc.
: 750V ac , 1 minute between open contacts
1,500V ac , 1 minute between contacts and coil.
: 8ms.
: 5ms.
: -30°C to +85°C.
: 10G.
: 10 - 55Hz , Amplitude 1.5mm.
Page 1
08/05/06 V1.0

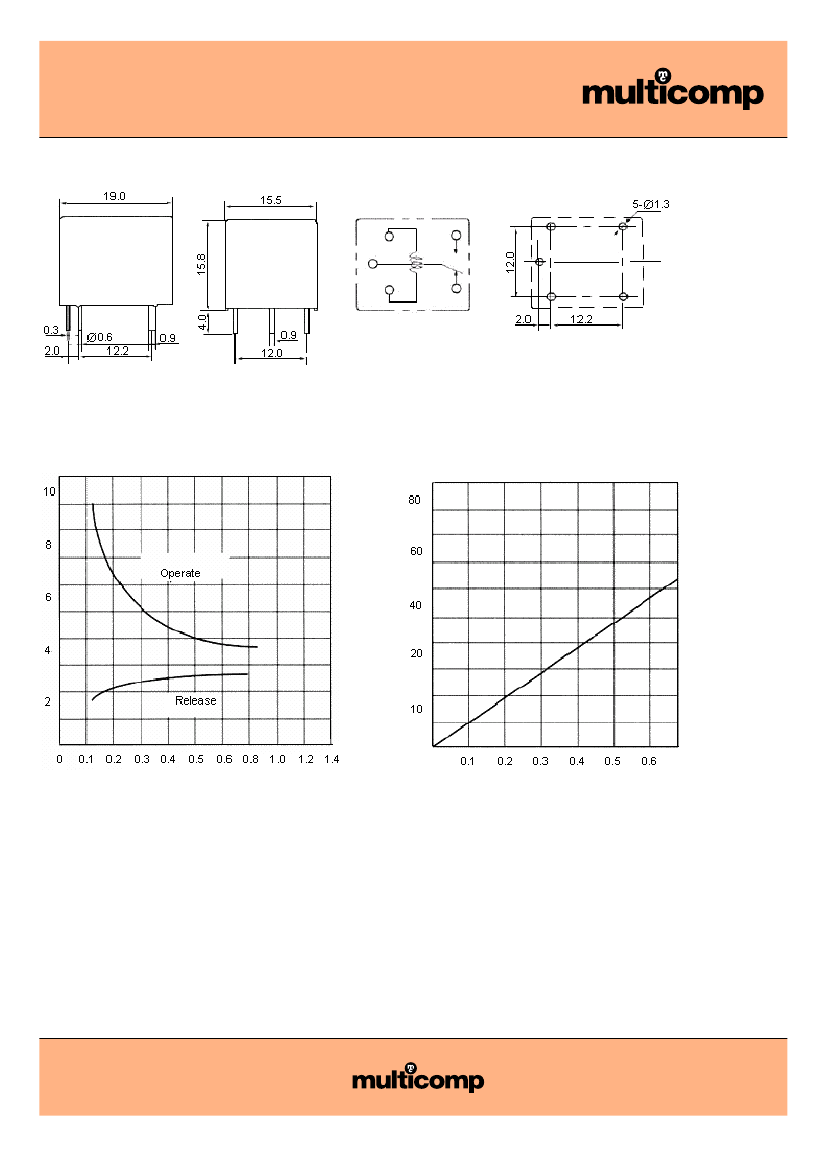

HRS4 Series
PCB Power Relays

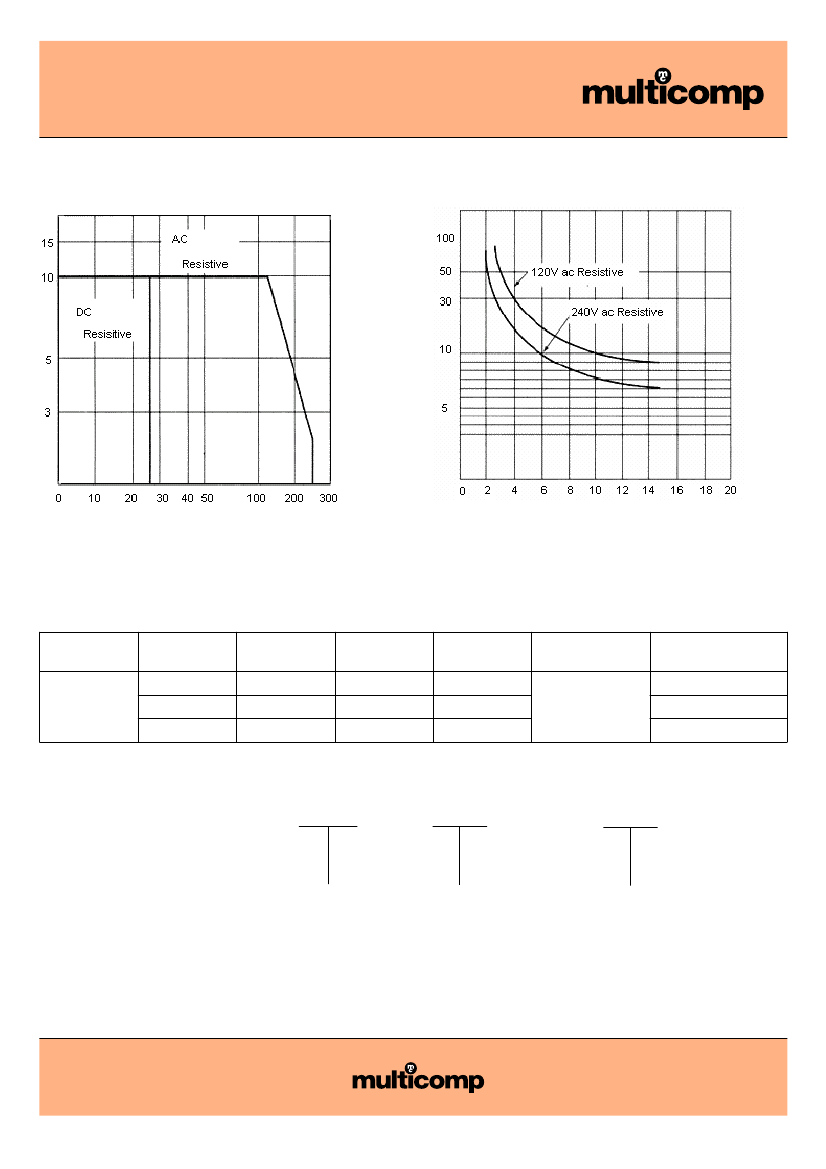

Notes:
