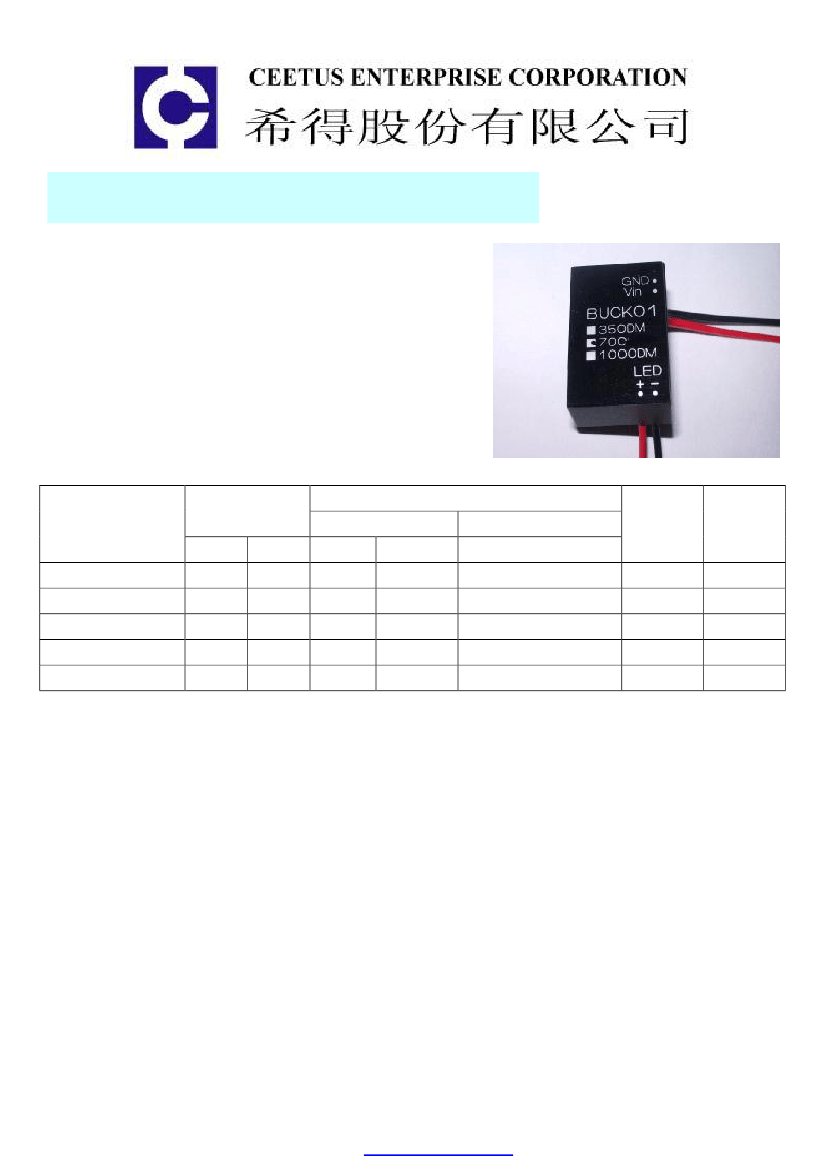

DC DRIVER
BUCK01 SERIES
High Power Constant Current LED Driver Dimmable
Total
Power
-----------------------
20 Watts max
Input voltages ---------------------
5 ~ 30 VDC
MODEL：BUCK01-xxxx
DC INPUT
MODEL NO.
BUCK01-350
BUCK01-700
BUCK01-1000
BUCK01-1200
BUCK01-1500
Voltage (V)
Min
5
5
5
5
5
Max
30
30
20
15
12
Min
1
1
1
1
1
OUTPUT (LED)
Voltage (V)
Max
Vin ~ 0.8
Vin ~ 0.8
Vin ~ 0.8
Vin ~ 0.8
Vin ~ 0.8
Current
Typ
350
±
7.5%
700
±
7.5%
1000
±
7.5%
1200
±
7.5%
1500
±
7.5%
(mA)
Efficiency
Max
%
95
95
94
94
93
Watts
Max
(W)
10
20
20
18
18
SPECIAL FEATURES
n
Output short circuit protection
n
High efficiency reduce total power consumption
n
Tight regulated constant current output to maximize the LED performance
n
Wide range of input voltage from 5 ~ 30 VDC
n
Wide selection of pre-adjusted C/C outputs
ENVIRONMENTAL
n
Operating temperature ----------------------------- - 40℃ to + 65℃
n
Storage temperature -------------------------------- - 40℃ to + 85℃
n
Humidity (Non
–
Condensing) ------------------ 5% to 95%
n
Cooling ----------------------------------------------- Convection
n
n
Vibration Frequency -------------------------------- 5 to 50 HZ
MTBF ----------------------------------- >100,000 Hours at full load and 25℃ ambient conditions (MIL-217F)
PDF created with pdfFactory Pro trial version
www.pdffactory.com
DC DRIVER
BUCK01 SERIES

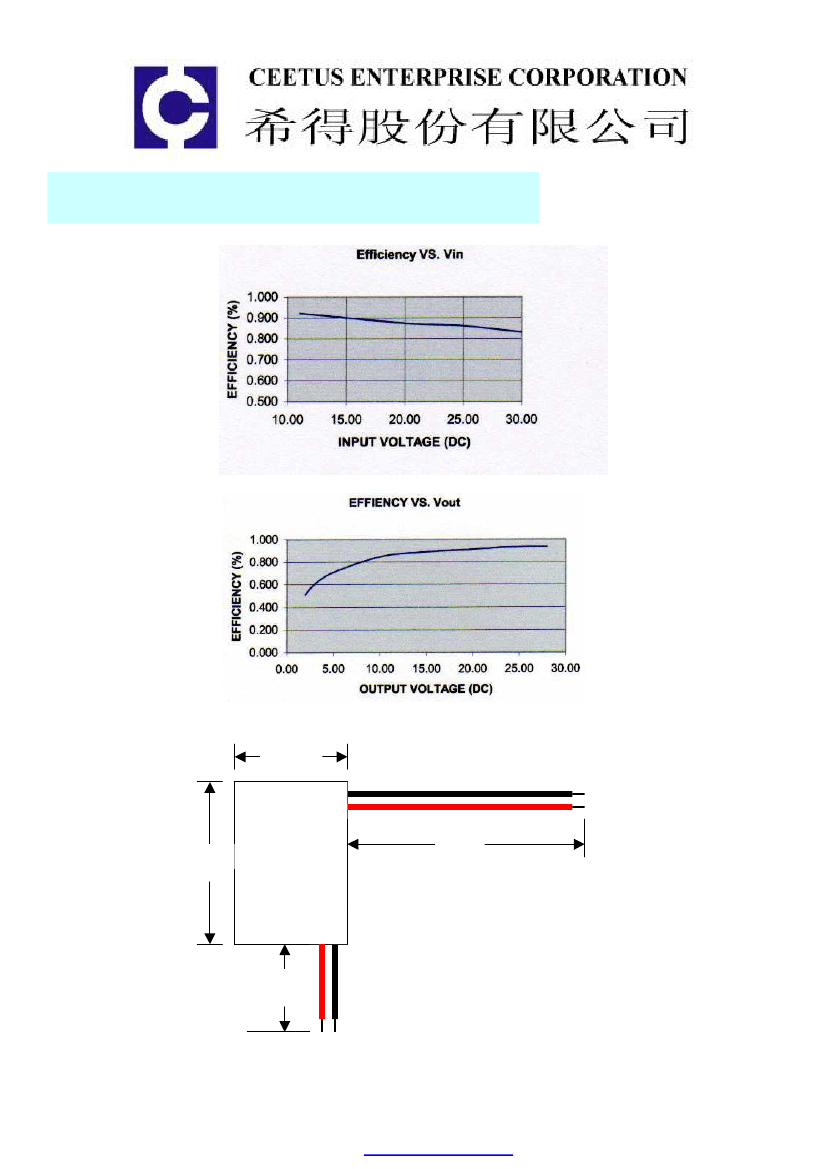

Dimension
(BOTTOM VIEW)
20.3
GND
Vin
31.8
82
LED
+
-
Wire：AWG#20
28
Note : 1. All dimensions are in millimeter
2. All dimensions without tolerances are for reference only.
