FFC-11T11AMEP2: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric View All

FFC-11T11AMEP2 Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

FFC-11T11AMEP2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

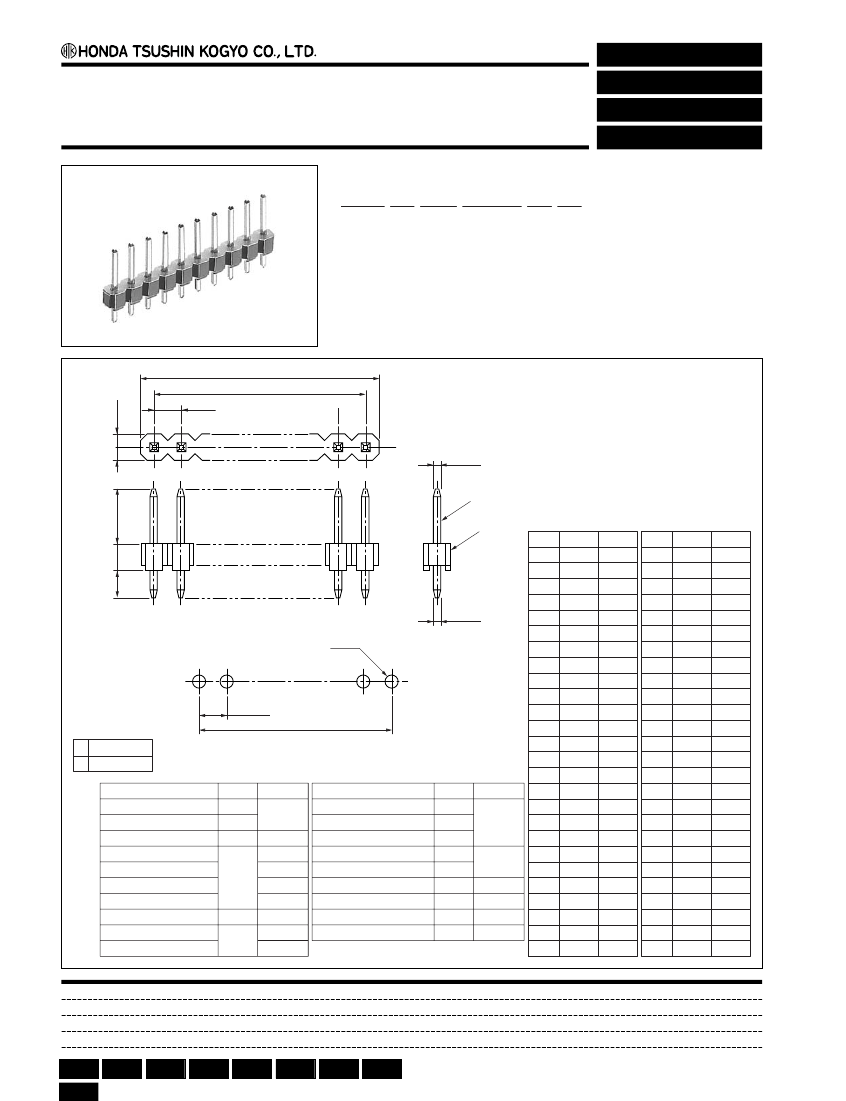

2.54 mm pitch connector

Straight DIP type male connector for PCBs

FFC-( )(T )AMEP( )( )

●

Configuration of product Part No.

For PCBs

Straight DIP

FFC- ( ) (T ) AMEP ( ) ( )

➀

➁

➂

➃

➄

➅

➄

Contact plating

1: Gold plate

2: Solder plate

➅

Insulator color

Blank: Blue

: Black

➀

Series name

➁

No. of contacts: 1–52

➂

Length of contact

Blank: Standard (6 mm)

T, T1–T18 (Refer to the following

dimension table.)

➃

Type of contact

AMEP: 0.635 mm square contacts,

single row type

2.54

œ0.635

➁

➀

2.54

●

Dimensions

No. of

contacts

œ0.635

ø1

+0.1

2.54

– 0.05

–

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

No. of

contacts

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

+ 0.1

–

●

Components

➀

Insulator

➁

Contacts

Part No.

FFC- (1~52 ) AMEP( )( )

FFC- (1~52 )TAMEP( )( )

FFC- (1~52 )T1AMEP( )( )

FFC- (1~52 )T2AMEP( )( )

FFC- (1~52 )T3AMEP( )( )

FFC- (1~52 )T4AMEP( )( )

FFC- (1~52 )T5AMEP( )( )

FFC- (1~52 )T6AMEP( )( )

FFC- (1~52 )T7AMEP( )( )

FFC- (1~52 )T8AMEP( )( )

8.54

9.5

5.84

7.5

1.8

15.4

7.5

3.43

1.7 REF.

1.11 REF.

2.5

PCB layout for reference only

99.06 101.60

101.60 104.14

104.14 106.68

106.68 109.22

109.22 111.76

111.76 114.30

114.30 116.84

116.84 119.38

119.38 121.92

121.92 124.46

124.46 127.00

127.00 129.54

129.54 132.08

10.86

5.84

2.5

3.43

12.7

17.78

5.08

20.32

2.54

10.16

Part No.

FFC- (1~52 )T9AMEP( )( )

FFC- (1~52 )T10AMEP( )( )

FFC- (1~52 )T11AMEP( )( )

FFC- (1~52 )T12AMEP( )( )

FFC- (1~52 )T13AMEP( )( )

FFC- (1~52 )T14AMEP( )( )

FFC- (1~52 )T15AMEP( )( )

FFC- (1~52 )T16AMEP( )( )

FFC- (1~52 )T18AMEP( )( )

* T17 is obsolete.

5.72

Mating connectors:

DIC series or HKP series of female connectors

Z-220-( )FD( ) female connectors

DIP

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others
