PLSI2032-150LT44 datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> PLSI2032-150LT44

PLSI2032-150LT44: DescriptionEE PLD, 11ns, 32-Cell, CMOS, PQFP44, TQFP-44; CategoryProgrammable logic devices Programmable logic; File Size695KB，14 Pages; ManufacturerLattice; Websitehttp://www.latticesemi.com

Download Datasheet Parametric Compare View All

PLSI2032-150LT44 Overview

EE PLD, 11ns, 32-Cell, CMOS, PQFP44, TQFP-44

PLSI2032-150LT44 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	TQFP-44
Contacts	44
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	3 EXTERNAL CLOCKS
maximum clock frequency	111 MHz
In-system programmable	NO
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
JTAG BST	NO
length	10 mm
Humidity sensitivity level	3
Dedicated input times	2
Number of I/O lines	32
Number of macro cells	32
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP44,.47SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Programmable logic type	EE PLD
propagation delay	11 ns
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm
Base Number Matches	1

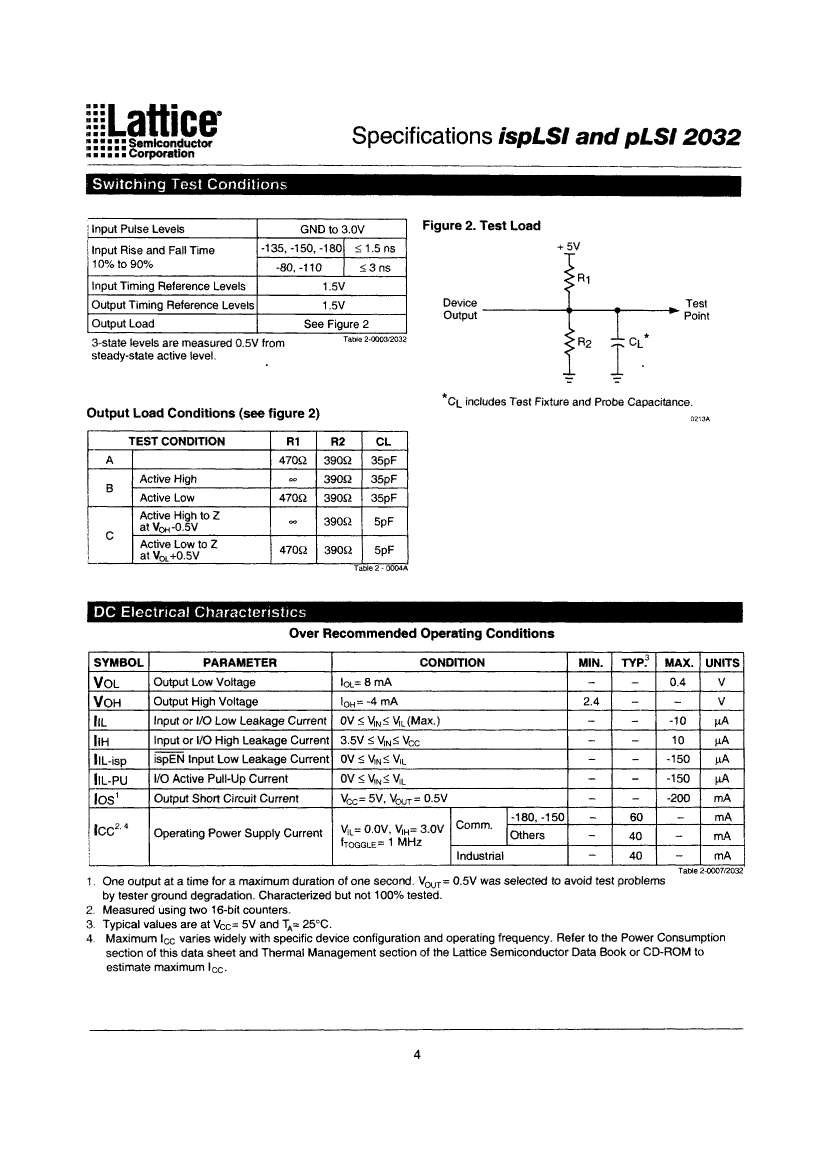

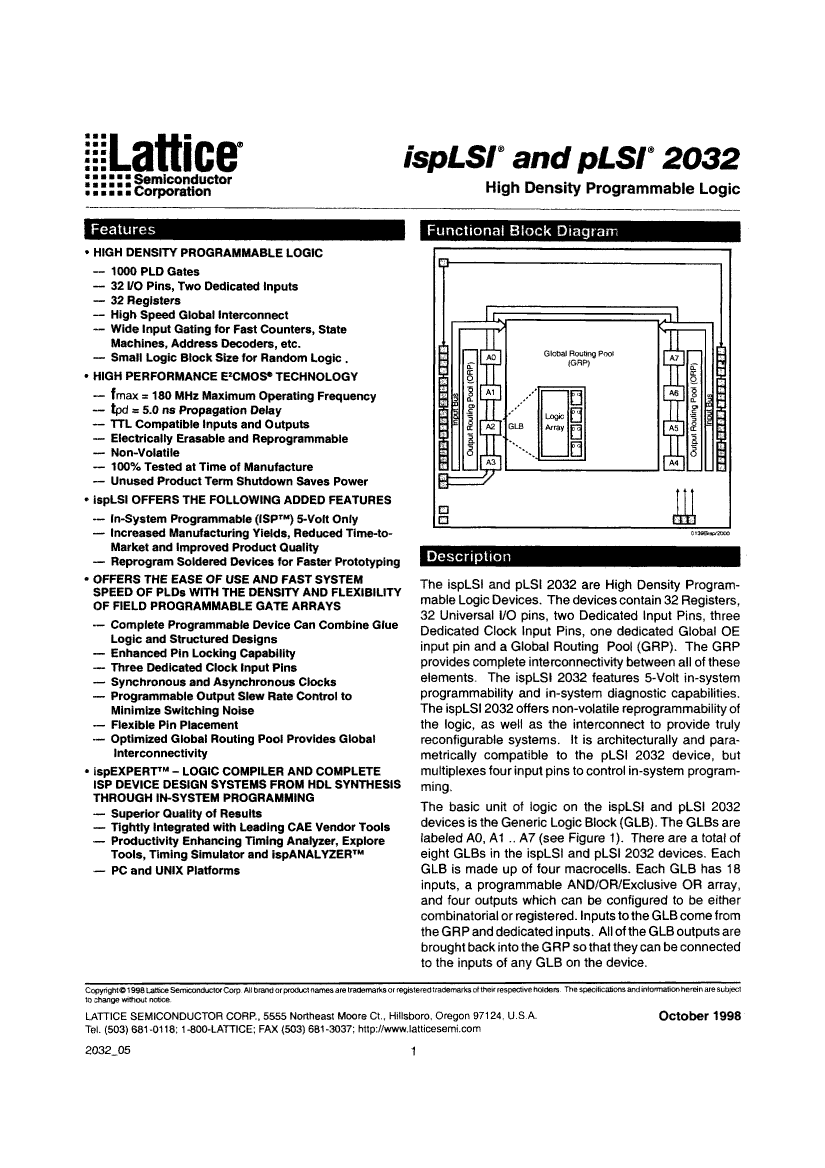

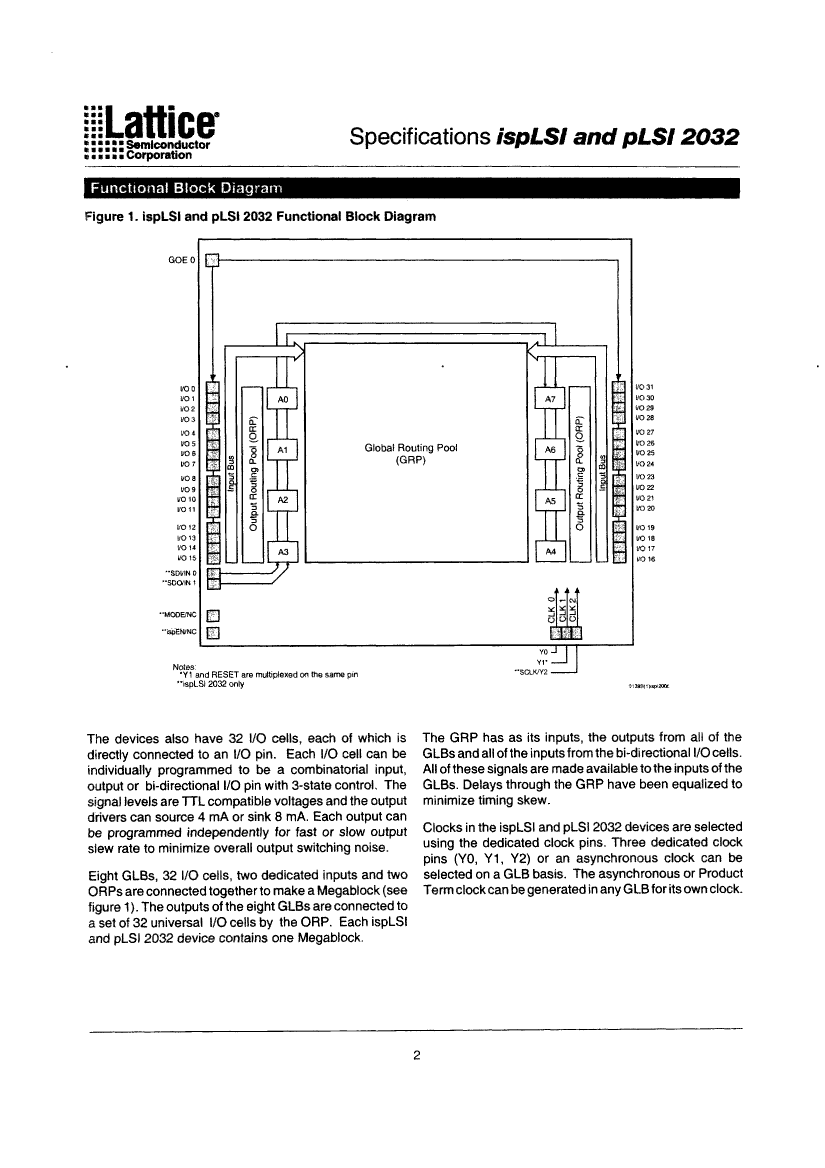

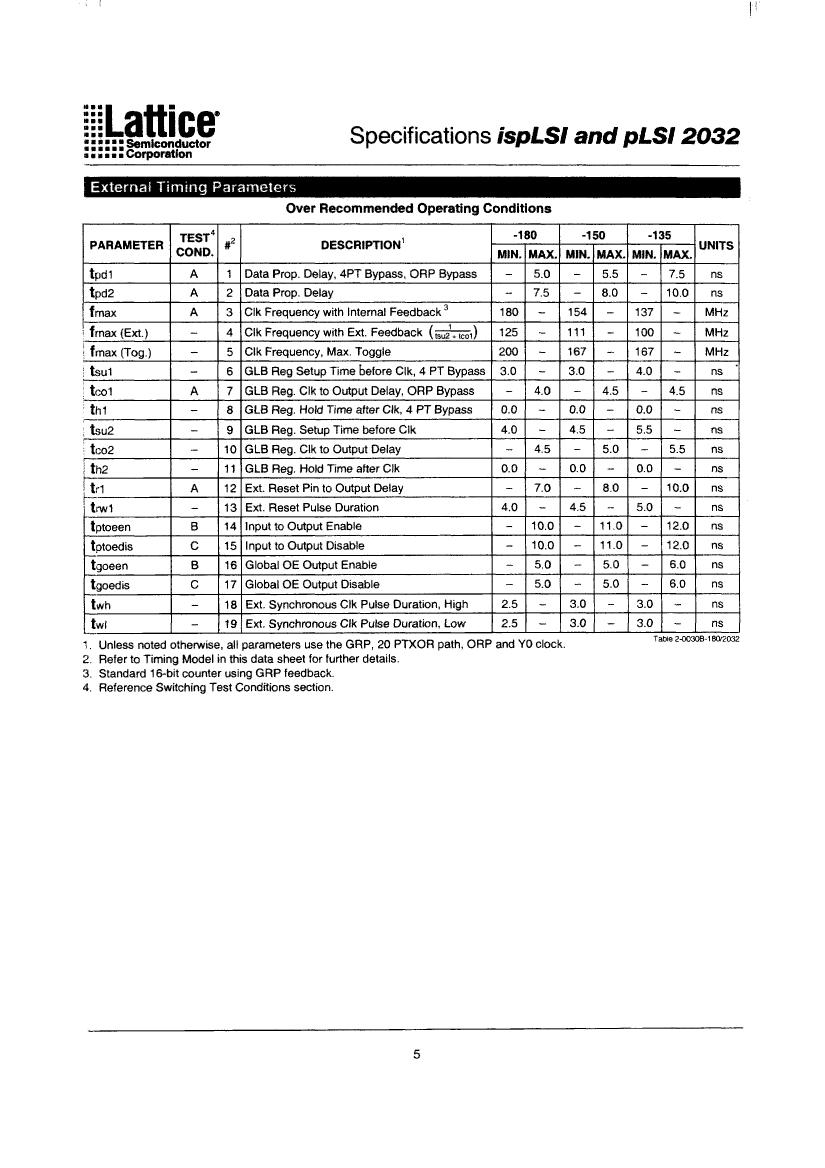

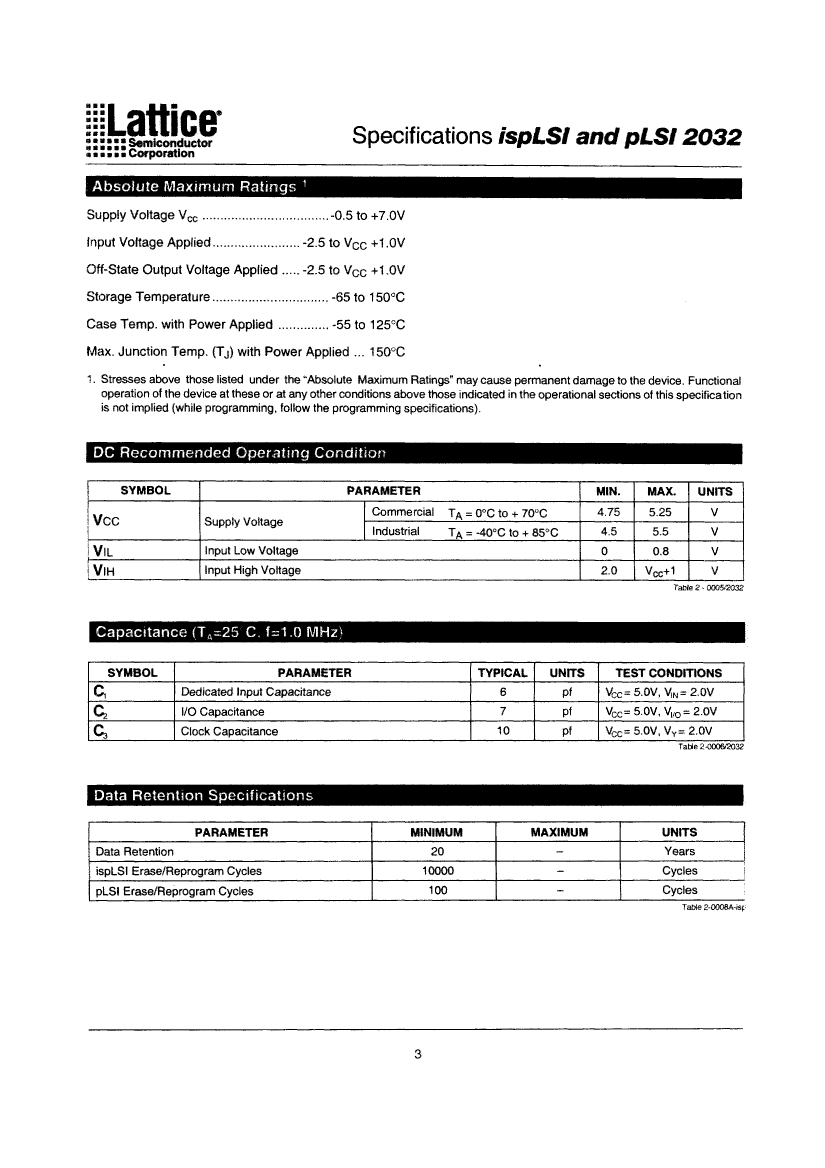

Preview

Download Datasheet

View All

PLSI2032-150LT44 Related Products

	PLSI2032-150LT44	PLSI2032-135LT44	PLSI2032-135LJ	PLSI2032-180LJ	PLSI2032-80LT44	PLSI2032-110LT44	PLSI2032-110LJ	PLSI2032-150LJ	PLSI2032-80LJ
Description	EE PLD, 11ns, 32-Cell, CMOS, PQFP44, TQFP-44	EE PLD, 12ns, 32-Cell, CMOS, PQFP44, TQFP-44	EE PLD, 12ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44	EE PLD, 7.5ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44	EE PLD, 24ns, 32-Cell, CMOS, PQFP44, TQFP-44	EE PLD, 14.5ns, 32-Cell, CMOS, PQFP44, TQFP-44	EE PLD, 14.5ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44	EE PLD, 11ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44	EE PLD, 24ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	QFP	LCC	LCC	QFP	QFP	LCC	LCC	LCC
package instruction	TQFP-44	TQFP-44	PLASTIC, LCC-44	PLASTIC, LCC-44	TQFP-44	TQFP-44	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, LCC-44
Contacts	44	44	44	44	44	44	44	44	44
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS	NO	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS
maximum clock frequency	111 MHz	100 MHz	100 MHz	125 MHz	57 MHz	77 MHz	77 MHz	111 MHz	57 MHz
In-system programmable	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G44	S-PQFP-G44	S-PQCC-J44	S-PQCC-J44	S-PQFP-G44	S-PQFP-G44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
JTAG BST	NO	NO	NO	NO	NO	NO	NO	NO	NO
length	10 mm	10 mm	16.5862 mm	16.5862 mm	10 mm	10 mm	16.5862 mm	16.5862 mm	16.5862 mm
Humidity sensitivity level	3	3	3	3	3	3	3	3	3
Dedicated input times	2	2	2	-	2	2	2	2	2
Number of I/O lines	32	32	32	32	32	32	32	32	32
Number of macro cells	32	32	32	32	32	32	32	32	32
Number of terminals	44	44	44	44	44	44	44	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	LQFP	QCCJ	QCCJ	LQFP	LQFP	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	QFP44,.47SQ,32	QFP44,.47SQ,32	LDCC44,.7SQ	LDCC44,.7SQ	QFP44,.47SQ,32	QFP44,.47SQ,32	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	CHIP CARRIER	CHIP CARRIER	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	11 ns	12 ns	12 ns	7.5 ns	24 ns	14.5 ns	14.5 ns	11 ns	24 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	4.57 mm	4.57 mm	1.6 mm	1.6 mm	4.57 mm	4.57 mm	4.57 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	J BEND	J BEND	GULL WING	GULL WING	J BEND	J BEND	J BEND
Terminal pitch	0.8 mm	0.8 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	10 mm	10 mm	16.5862 mm	16.5862 mm	10 mm	10 mm	16.5862 mm	16.5862 mm	16.5862 mm
Base Number Matches	1	1	1	1	1	1	-	-	-
Maker	-	Lattice	Lattice	Lattice	-	-	Lattice	Lattice	Lattice
