1.25 Gbps Single Mode Transceiver
C-1X-1250(C)-TDFB(3)-SSC(2/3/4)

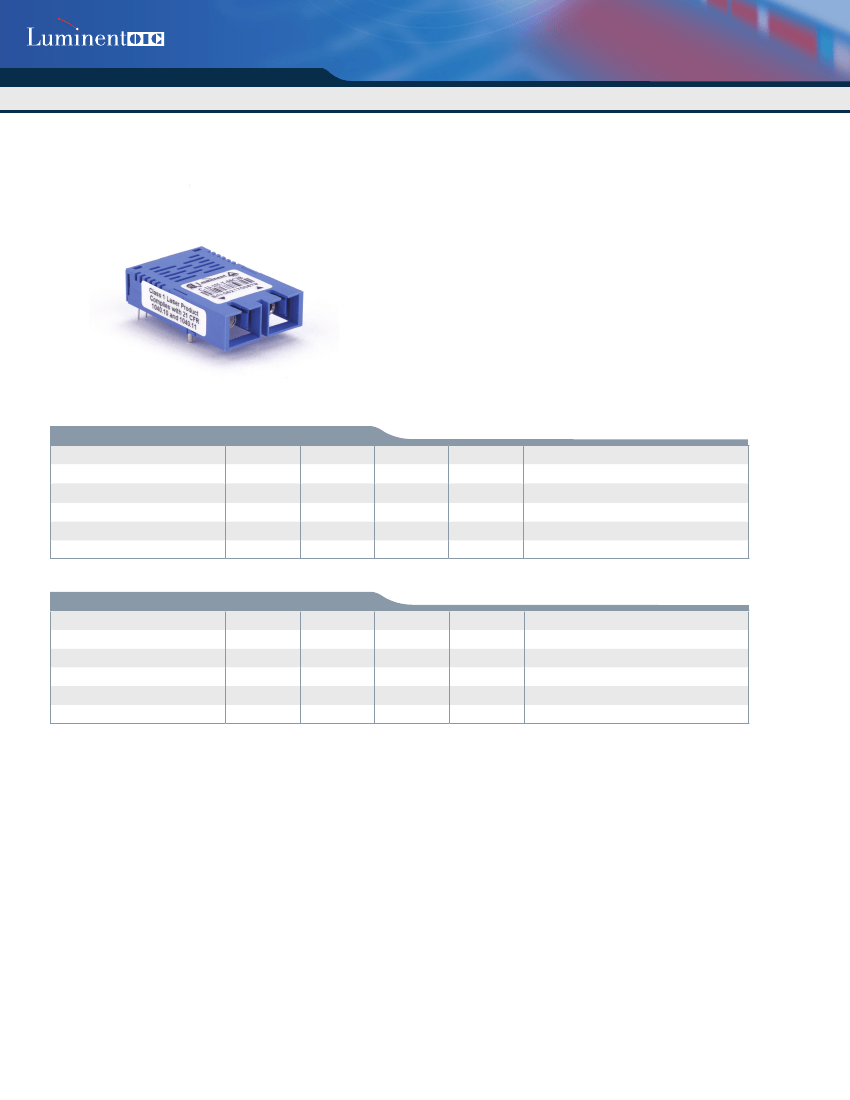

Features
• SC Duplex Single Mode Transceiver
• Industry Standard 1x9 Footprint
• Gigabit Ethernet Compliant
• Single +3.3/5V Power Supply
• PECL Differential Inputs and Outputs
• PECL/LVPECL Signal Detection Output
[C-1X-1250-TDFB(3)-SSC(2/3/4)]
• TTL/LVTTL Signal Detection Output
[C-1X-1250C-TDFB(3)-SSC(2/3/4)]
• Wave Solderable and Aqueous Washable
• Uncooled laser diode with MQW structure
• Complies with Telcordia (Bellcore) GR-468-CORE
• Gigabit Ethernet Application
• RoHS compliance available
Absolute Maximum Rating
Parameter
Power Supply Voltage
Power Supply Voltage
Output Current
Soldering Temperature
Storage Temperature
Symbol
V
cc
V
cc
I
out
-
Min.
0
0
0
-
-40
Max.
3.6
6
30
260
85
Unit
V
V
mA
ºC
ºC
Note
C-1X-1250(C)-TDFB3-SSC(2/3/4)
C-1X-1250(C)-TDFB-SSC(2/3/4)
10 seconds on leads only
T
stg
Recommended Operating Condition
Parameter
Power Supply Voltage 1
Power Supply Voltage 1
Operating Temperature1 (Case)
Operating Temperature1 (Case)
Data Rate
Note1: Please refer to ordering information
Symbol
V
cc
V
cc
T
opr
T
opr
-
Min.
3.1
4.75
0
-40
-
Typ.
3.3
5
-
-
1250
Max.
3.5
5.25
70
85
-
Unit
V
V
ºC
ºC
Mbps
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
LUMNDS602-May1006
Rev A.4
1.25 Gbps Single Mode Transceiver
C-1X-1250(C)-TDFB(3)-SSC(2/3/4)
Transmitter Specifications (Optical)
Parameter
Optical Transmit Power
Optical Transmit Power
Optical Transmit Power
Optical Transmit Power
Output center Wavelength
Output center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Relative Intensity Noise
Total Jitter
t
r
t
f
RIN
TJ
Symbol
P
o
P
o
P
o
P
o
λ
λ
∆λ
SMSR
ER
Min
-9.5
-5
-3
0
1280
1520
-
30
9
-
-
-
-
Typical
-
-
-
-
1310
1550
-
35
-
-
-
-
-
Max
-3
0
+2
+5
1340
1580
1
-
-
0.26
0.26
-120
0.27
Unit
dBm
dBm
dBm
dBm
nm
nm
nm
dB
dB
ns
ns
dB/Hz
ns
Measured with 2
7
-1 PRBS
20% to 80% Values
20% to 80% Values
Notes
C-1X-1250(C)-TDFB(3)-SSC
C-1X-1250(C)-TDFB(3)-SSC2
C-1X-1250(C)-TDFB(3)-SSC3
C-1X-1250(C)-TDFB(3)-SSC4
C-13-1250(C)-TDFB(3)-SSC(2/3/4)
C-15-1250(C)-TDFB(3)-SSC(2/3/4)
-20 dB width
Compliant with IEEE 802.3
Transmitter Specifications (Electrical)
Parameter
Power Supply Current
Data Input Current-Low
Data Input Current-High
Differential Input Voltage
Data Input Voltage-Low
Data Input Voltage-High
Symbol
I
CC
I
IL
I
IH
V
IH
-V
IL
V
IL
-V
CC
V
IH
-V
CC
Min
-
-350
-
300
-2.0
-1.1
Typical
-
-
-
-
-
-
Max
180
-
350
-
-1.58
-0.74
Unit
mA
µA
µA
mV
V
V
These inputs are compatible with 10K, 10KH
and 100K ECL and PECL inputs
Notes
Maximum current is specified at Vcc=
Maximum @ maximum temperature
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS602-May1006
Rev A.4
1.25 Gbps Single Mode Transceiver
C-1X-1250(C)-TDFB(3)-SSC(2/3/4)
Receiver Specifications (Optical)
Parameter
Sensitivity2
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Wavelength of Operation
Note 2: Measured with 2
7
-1 PRBS, BER= 10
-12
Symbol
-
P
in
Pa
Pd
Min
-
0
-
-38
1
1100
Typical
-
-
-
-
-
-
Max
-24
-
-24
-
-
1600
Unit
dBm
dBm
dBm
dBm
dB
nm
Measured on transition: low to high
Measured on transition: high to low
Notes
Receiver Specifications (Electrical)
Parameter
Power Supply Current
Data output Voltage-Low
Data output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Symbol
I
CC
V
OL
-V
cc
V
OH
-
V
cc
V
SDL
V
SDH
V
SDL-
V
cc
V
SDH-
V
cc
Min
-
-2.0
-1.1
-
2.0
-2.0
-1.1
Typical
-
-
-
-
-
-
-
Max
100
-1.58
-0.74
0.5
-
-1.58
-0.74
Unit
mA
V
V
V
V
V
V
Note
The current excludes the output load current
These outputs are compatible with 10K,
10KH and 100KECL and LVPECL outputs
C-1X-1250C-TDFB(3)-SSC(2/3/4)
C-1X-1250-TDFB(3)-SSC(2/3/4)
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS602-May1006
Rev A.4
1.25 Gbps Single Mode Transceiver
C-1X-1250(C)-TDFB(3)-SSC(2/3/4)
Connection Diagram
1. (Rx GND)
2. (Rx +)
3. (Rx-)
4. (SD)
5. (Rx Vcc)
6. (Tx Vcc)
7. (TX-)
8. (TX+)
9. (Tx GND)
NC
Receiver Signal Ground
Receiver Data Out
Receiver Data Out Bar
Signal Detect
Receiver Power Supply
Transmitter Power Supply
Transmitter Data In Bar
Transmitter Data in
Transmitter Signal Ground
Top View
NC
PIN
1
2
3
4
5
6
7
8
9
Symbol
RxGND
RD+
RD-
SD
RxVcc
TxVcc
TD-
TD+
TxGND
Notes
Directly connect this pin to the receiver ground plane
See recommended circuit schematic
See recommended circuit schematic
Active high on this indicates a received optical signal
+3.3V/5V dc power for the receiver section
+3.3V/5V dc power for the transmitter section
See recommended circuit schematic
See recommended circuit schematic
Directly connect this pin to the transmitter ground plane
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS602-May1006
Rev A.4
1.25 Gbps Single Mode Transceiver
C-1X-1250(C)-TDFB(3)-SSC(2/3/4)

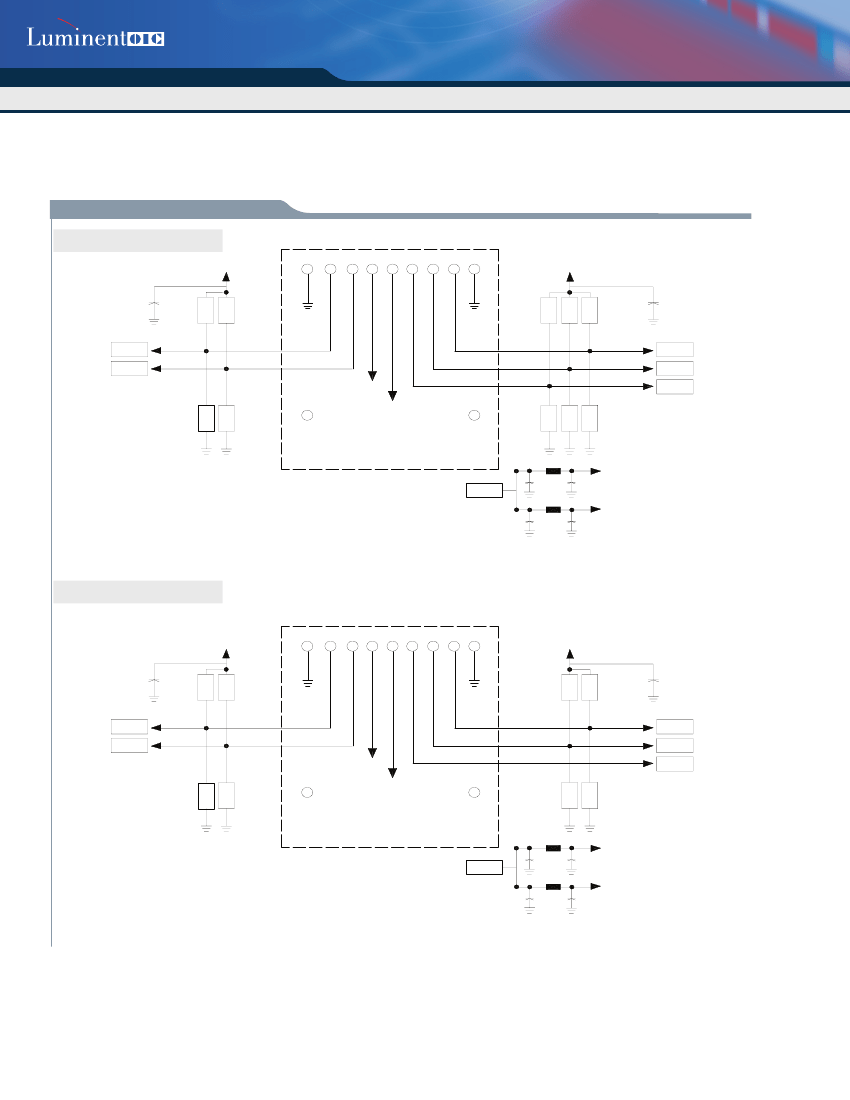

Recommended Circuit Schematic
C-1X-1250-TDFB(3)-SSC(2/3/4)
Tx Vcc
C5
Rx Vcc
9
R1
R3
8
7
6 5
4 3
2
1
R9
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
SD
R10
R6
No internal
connection
Transceiver
Top view
No internal
connection
R8
L1
Vcc
Notes +3.3V:
R1=R3=R5=R7=R9=130
R2=R4=R6=R8=R10=82
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
Notes +5V:
R1=R3=R5=R7=R9=82
R2=R4=R6=R8=R10=130
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
C3
C1
Rx Vcc
L2
C4
C2
Tx Vcc
C-1X-1250C-TDFB(3)-SSC(2/3/4)
Tx Vcc
C5
Rx Vcc
9
R1
R3
8
7
6 5
4 3
2
1
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
SD
R6
R8
No internal
connection
Transceiver
Top view
No internal
connection
L1
Vcc
Notes +3.3V:
R1=R3=R5=R7=130
R2=R4=R6=R8=82
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
Notes +5V:
R1=R3=R5=R7=82
R2=R4=R6=R8=130
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
C3
C1
Rx Vcc
L2
C4
C2
Tx Vcc
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
