EVERLIGHT ELECTRONICS CO., LTD
Technical Data Sheet
High Performance with Reflector LEDs
94-22SUBC/S400-XX
Features：
․White
package.
․Dual-chip,
wide-angle, low-profile LEDs .
․Excellent
chip to chip consistency
․Super
Intensity
․High
performance
․Pb-free
․The
product itself will remain within RoHS
compliant version.
Applications：
․Automotive:
backlighting in dashboard and switch.
․Telecommunication:
indicator and backlighting in telephone and fax.
․Indicator
and backlight for audio and video equipment.
․Indicator
and backlight for battery driven equipment.
․Display
Screen Illumination on Portable Handheld Devices
․Indicator
and backlight in office equipment.
․General
use.
Device Selection Guide
Chip
Lens Color
Material
InGaN
Emitted Color
Blue
Water Clear
Everlight Electronics Co., Ltd.
Device No. : DSE-942-054
http://www.everlight.com
Prepared date: 21-Sep-2005
Rev. 2
Page: 1 of 6
Prepared by: Ray Yuan
EVERLIGHT ELECTRONICS CO., LTD
94-22SUBC/S400-XX
Package Dimensions
Notes: All dimensions are in millimeters.
Tolerances unspecified are±0.1mm.
Everlight Electronics Co., Ltd.
Device No. : DSE-942-054
http://www.everlight.com
Prepared date: 21-Sep-2005
Rev. 2
Page: 2 of 6
Prepared by: Ray Yuan
EVERLIGHT ELECTRONICS CO., LTD
94-22SUBC/S400-XX
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge(HBM)
Power Dissipation
Peak Forward Current(Duty 1/10 @ 1KH
Z
)
Soldering Temperature
Symbol
V
R
I
F
Topr
Tstg
ESD
Pd
I
FP
Tsol
Rating
5
25
-40 ~ +85
-40~ +100
150
110
100
Unit
V
mA
℃
℃
V
mW
mA
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
*Chip
Rank
A3
Luminous intensity
I
V
A4
A5
A6
Viewing Angle
Peak Wavelength
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
2θ1/2
λp
λd
△λ
V
F
I
R
-----
-----
-----
-----
-----
-----
Min.
30
40
50
60
-----
-----
-----
-----
-----
-----
Typ.
40
50
60
70
130
468
470
35
7.0
-----
-----
-----
-----
-----
8.6
10
deg
nm
nm
nm
V
μA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
-----
mcd
I
F
=20mA
Max.
Unit
Condition
*
94-22SUBC/S400-XX
Chip Rank
Everlight Electronics Co., Ltd.
Device No. : DSE-942-054
http://www.everlight.com
Prepared date: 21-Sep-2005
Rev. 2
Page: 3 of 6
Prepared by: Ray Yuan
EVERLIGHT ELECTRONICS CO., LTD
94-22SUBC/S400-XX

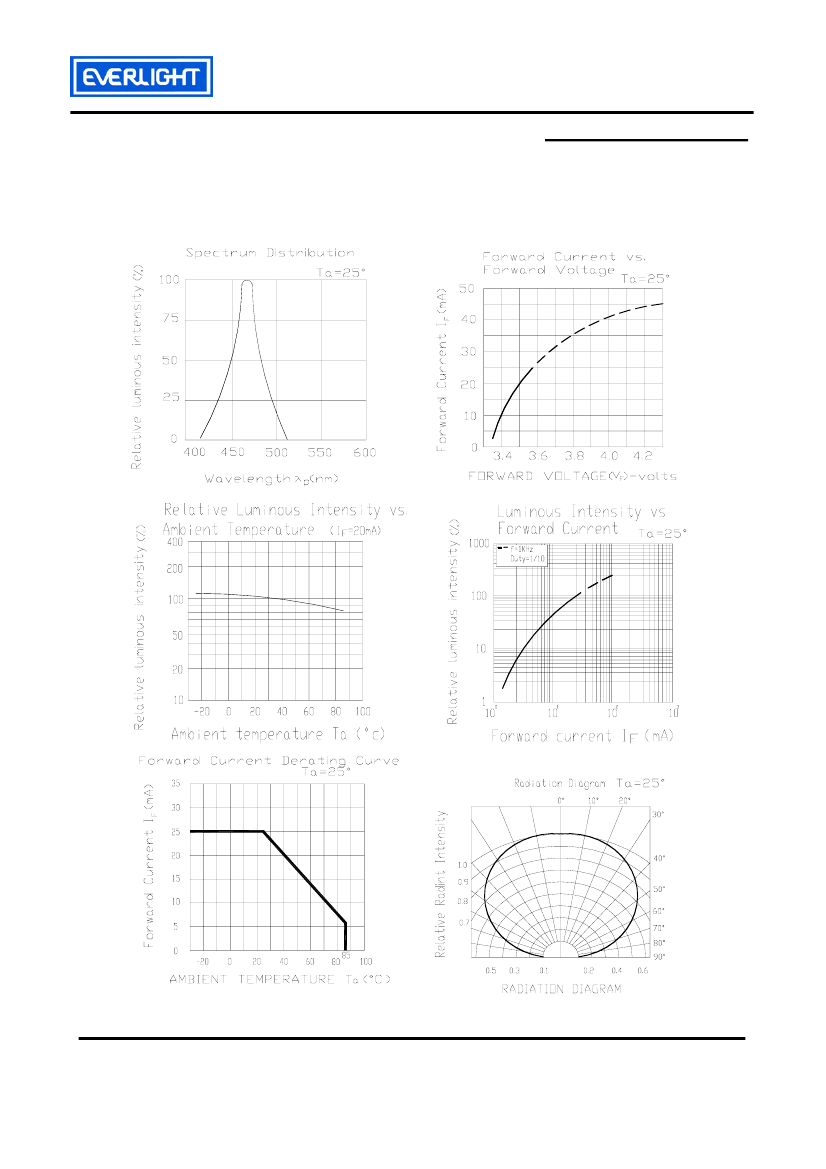

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. : DSE-942-054
http://www.everlight.com
Prepared date: 21-Sep-2005
Rev. 2
Page: 4 of 6
Prepared by: Ray Yuan
EVERLIGHT ELECTRONICS CO., LTD
94-22SUBC/S400-XX
Label explanation
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below.
Confidence level : 90 % LTPD : 10 %
Test
Sample
No.
Items
Test Condition
Hours/Cycles
Size
Temp : 260
℃
±5
℃
1
Solder Heat
22 Pcs
10sec.
2
Temperature Cycle
H : +100℃ 15min.
∫
5 min.
L : -40℃ 15min.
H : +100℃ 5min.
∫
10 sec.
L : -10℃ 5min.
Temp. : 100℃
Temp. : -40℃
I
F
= 20 mA
85℃/R.H85%
300 Cycles
22 Pcs.
Ac/Re
0/1
0/1
3
Thermal Shock
High Temperature
Storage
Low Temperature
Storage
DC Operating Life
High Temperature
/ High Humidity
300 Cycles
1000 Hrs.
1000 Hrs.
1000 Hrs.
1000 Hrs.
22 Pcs.
0/1
4
5
6
7
22 Pcs.
22 Pcs.
22 Pcs.
22 Pcs.
0/1
0/1
0/1
0/1
Everlight Electronics Co., Ltd.
Device No. : DSE-942-054
http://www.everlight.com
Prepared date: 21-Sep-2005
Rev. 2
Page: 5 of 6
Prepared by: Ray Yuan
