K1602TEFREQ1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> K1602TEFREQ1

K1602TEFREQ1: DescriptionHCMOS/TTL Output Clock Oscillator, 2MHz Min, 13.999MHz Max, DIP-14; CategoryPassive components oscillator; File Size273KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

K1602TEFREQ1 Overview

HCMOS/TTL Output Clock Oscillator, 2MHz Min, 13.999MHz Max, DIP-14

K1602TEFREQ1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Ageing	2 PPM/10 YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	9 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	28 ppm
frequency stability	7%
Manufacturer's serial number	K1602TE
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	14 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	5 TTL, 15 pF
physical size	20.828mm x 13.208mm x 10.16mm
longest rise time	9 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

K1602TE Series

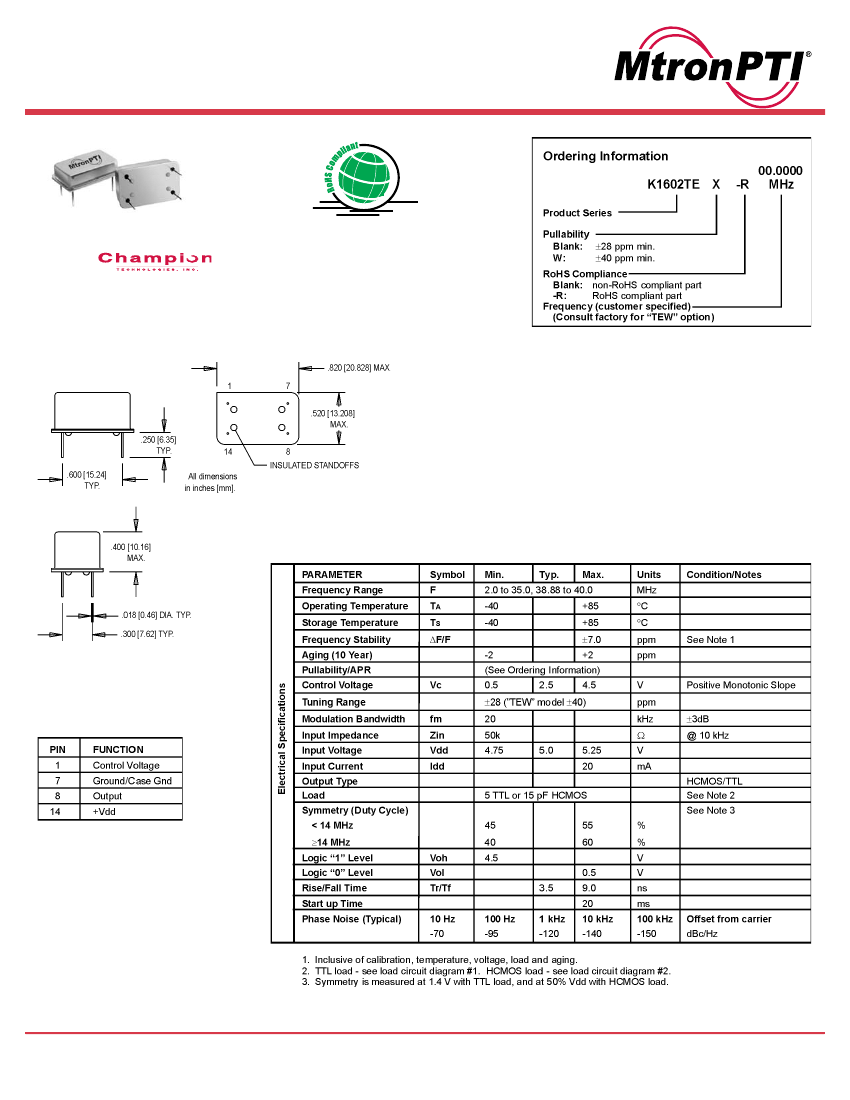

14 pin DIP, 5.0 Volt, CMOS/TTL, TCVCXO

•

Former

Product

•

Phase-Locked Loops Clocking “Sync” to NTSC Video

Standards, Reference Signal, Signal Tracking

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 11-17-06

K1602TEFREQ1 Related Products

	K1602TEFREQ1	K1602TE-RFREQ3	K1602TEW-RFREQ2	K1602TEW-RFREQ3	K1602TE-R02.0000MHZ	K1602TE02.0000MHZ	K1602TEW02.0000MHZ	K1602TE-RFREQ2	K1602TEWFREQ1	K1602TEWFREQ3
Description	HCMOS/TTL Output Clock Oscillator, 2MHz Min, 13.999MHz Max, DIP-14	HCMOS/TTL Output Clock Oscillator, 38.88MHz Min, 40MHz Max, ROHS COMPLIANT PACKAGE, DIP-14	HCMOS/TTL Output Clock Oscillator, 14MHz Min, 35MHz Max, ROHS COMPLIANT, HERMETIC, DIP-14/4	HCMOS/TTL Output Clock Oscillator, 38.88MHz Min, 40MHz Max, ROHS COMPLIANT PACKAGE, DIP-14	Oscillator	Oscillator	Oscillator	HCMOS/TTL Output Clock Oscillator, 14MHz Min, 35MHz Max, ROHS COMPLIANT, HERMETIC, DIP-14/4	HCMOS/TTL Output Clock Oscillator, 2MHz Min, 14MHz Max, HERMETIC, DIP-14/4	HCMOS/TTL Output Clock Oscillator, 38.88MHz Min, 40MHz Max, HERMETIC, DIP-14/4
Is it Rohs certified?	incompatible	conform to	conform to	conform to	conform to	incompatible	incompatible	conform to	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Ageing	2 PPM/10 YEAR	2 PPM/YEAR	2 PPM/YEAR	2 PPM/10 YEAR	-	-	-	2 PPM/10 YEAR	2 PPM/10 YEAR	2 PPM/10 YEAR
Maximum control voltage	4.5 V	4.5 V	4.5 V	4.5 V	-	-	-	4.5 V	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V	0.5 V	0.5 V	-	-	-	0.5 V	0.5 V	0.5 V
maximum descent time	9 ns	9 ns	9 ns	9 ns	-	-	-	9 ns	9 ns	9 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	-	-	-	NO	NO	NO
Frequency offset/pull rate	28 ppm	28 ppm	40 ppm	40 ppm	-	-	-	28 ppm	40 ppm	40 ppm
frequency stability	7%	7%	7%	7%	-	-	-	7%	7%	7%
Manufacturer's serial number	K1602TE	K1602TE	K1602TE	K1602TE	-	-	-	K1602TE	K1602TE	K1602TE
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	-	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	14 MHz	40 MHz	35 MHz	40 MHz	-	-	-	35 MHz	14 MHz	40 MHz
Minimum operating frequency	2 MHz	38.88 MHz	14 MHz	38.88 MHz	-	-	-	14 MHz	2 MHz	38.88 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	-	-	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-	-40 °C	-40 °C	-40 °C
Oscillator type	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	-	-	-	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL
Output load	5 TTL, 15 pF	5 TTL, 15 pF	5 TTL, 15 pF	5 TTL, 15 pF	-	-	-	5 TTL, 15 pF	5 TTL, 15 pF	5 TTL, 15 pF
physical size	20.828mm x 13.208mm x 10.16mm	20.828mm x 13.208mm x 10.16mm	20.828mm x 13.208mm x 10.16mm	20.828mm x 13.208mm x 10.16mm	-	-	-	20.828mm x 13.208mm x 10.16mm	20.828mm x 13.208mm x 10.16mm	20.828mm x 13.208mm x 10.16mm
longest rise time	9 ns	9 ns	9 ns	9 ns	-	-	-	9 ns	9 ns	9 ns
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	-	-	-	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	-	-	-	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	-	-	-	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	-	-	-	NO	NO	NO
maximum symmetry	55/45 %	60/40 %	60/40 %	60/40 %	-	-	-	60/40 %	55/45 %	60/40 %
