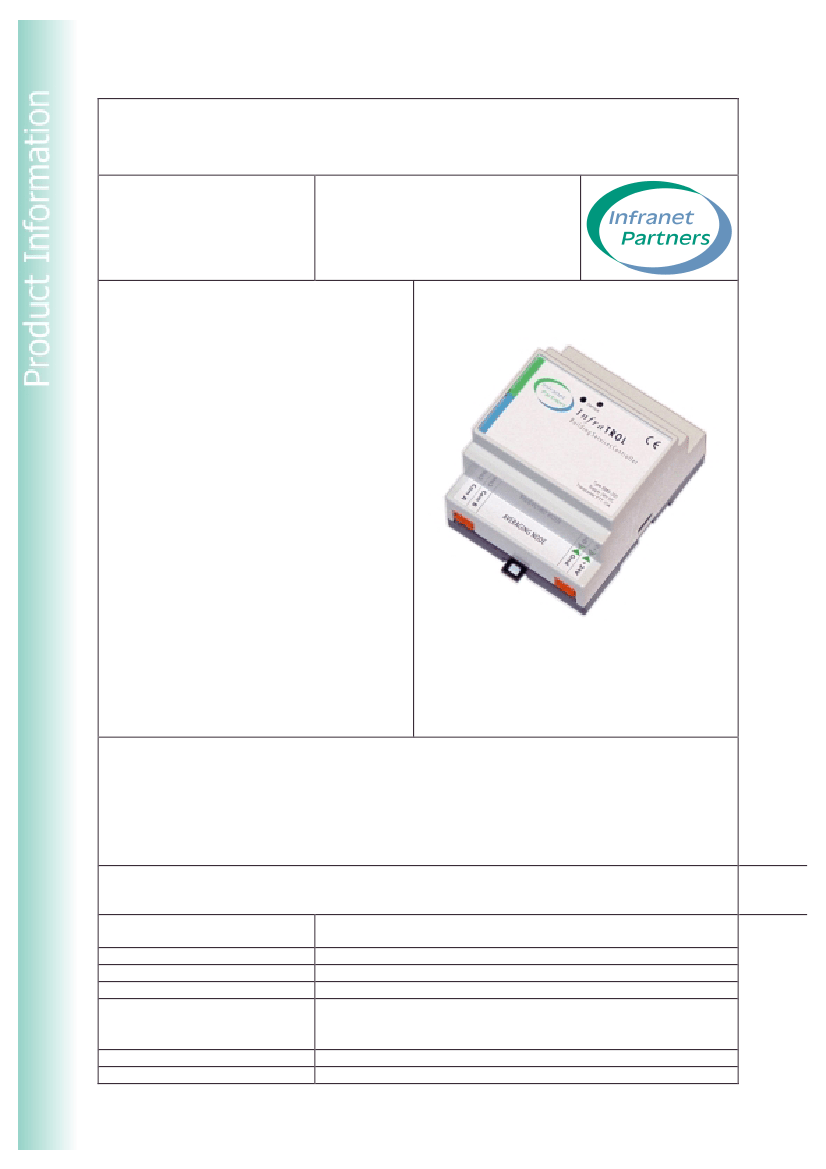

InfraTrol AVG 5x5
Versatile Averaging Node for HVAC applications
Calon Associates Limited
PO Box 148
Runcorn WA7 1FW, UK
!
calon@infranet-partners.com
"
http://www.infranet-partners.co.uk
Product Number :
406005G
General Description:
Most main plant control systems within large buildings
require feedback variables such as temperature from the
Fan Coil Units (FCUs) or Variable Air Volume (VAVs) units
on each floor, to give the correct demand signal to the
Boilers, Chillers and Air Handling Units (AHUs).
In a typical building with over 500 floor controls, it is not
feasible to connect the feedback temperature from each
controller back to the main plant. This would
flood the backbone network with messages as each sensor
in the entire building transmits its data back to one controller
in the plant room.
The InfraTrol AVG 5x5 averaging module collects all the
temperatures for five individual zones and provides the
average value of each zone for transmission to the main
plant, greatly reducing network traffic on the backbone.
The unit also provides a relay function for a enable signals
from the main plant controls. A single enable message is
sent to each floor via the InfraTrol AVG relay function block
using acknowledged service, and the output of this network
relay function is connected to each floor control. The relay
can repeatedly (using a configurable heartbeat timer)
broadcast the signal to the floor controls without using up
network bandwidth on the backbone.
Features:
-
-
-
-
5 Individual Averaging Objects each reading up to 5 variables (changeable SNVT type)
5 Relay function objects for ‘Enable’ variables
Simple, configuration
Optimises use of backbone bandwidth
Specification:
Dimensions:
Housing:
Network:
Power Supply:
Environmental Condition:
69mm wide x 90mm high x 58mm deep
Self-extinguishing material (UL94-VO)
DIN Rail, M36 format enclosure, 4m module width
FTT-10A
24V DC ± 10%
Operating temperature: 0
°
C to + 70
°
C
Storage temperature: -50
°
C to + 95
°
C
max. humidity : 90 % , not condensing
TLON MCM 1060-02 (Toshiba TMPN3150B1AF)
64k Flash, 32k RAM
Micro Processor:
Memory:

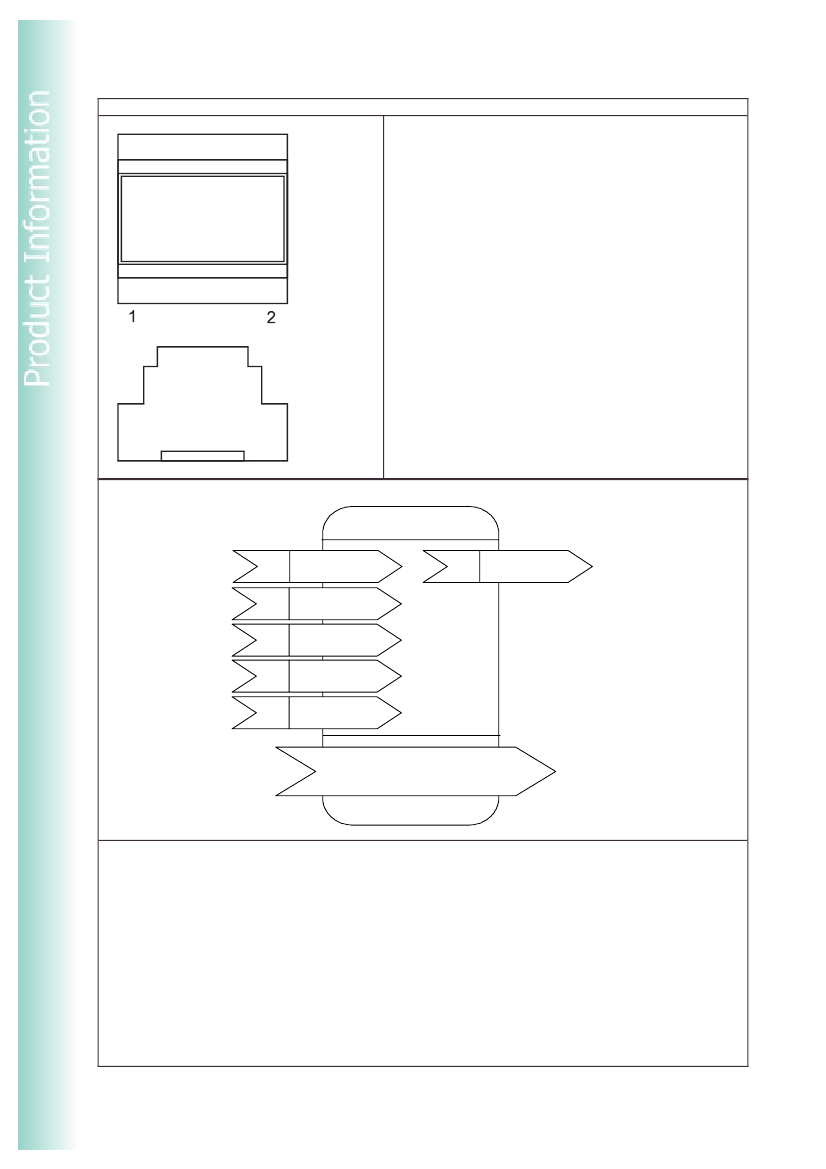

Mechanical layout and pinout
Connectors:
1: LON Network, FT-10
2: DC Power, 24V DC
Both connectors are
2-pole Wieland type
LonMark™ Objects and Network Variables, 5 x 5 point Averaging objects
5Pt Averaging Object
nv
01
nv
01
nv
01
nv
01
nv
01
nviAvg
SNVT_xxx
nviAvg
SNVT_xxx
nviAvg
SNVT_xxx
nviAvg
SNVT_xxx
nviAvg
SNVT_xxx
nv
06
nvoAvg
SNVT_xxx
scpt49 -
nciSendHeartbeat
Available from the following Infranet Partners:
A
CH
D
DK
E
F
FIN
GB
IND
NL
LOYTEC
IBT
TLON
LK NETLON
ELVA
CIAC
FATMAN OY
CALON ASSOCIATES
I.S.P.L.
HITECHNOLOGIES
Stoltzenthalergasse 24/3, 1080 Wien
Kasernenstrasse 5, 3600 Thun
Karl Kurz Straße 36, 74523 Schwäbisch Hall
Bouet Møllevej 16, DK-9400 Nr Sundby
Frederic Soler 109, 08224 Terrassa
18 rue Joseph Bara, 92130 Issy Les Moulineaux
P.O. Box 26, 01621 Vantaa
P.O. Box 148, Runcorn WA7 1FW
49 1
st
Floor, JP Nagar 1
st
Phase, Bangalore 560078
Postbus 242, 3400 AE IJsselstein
#
+43 14020 8050
#
+41 33 223 00 80
#
+49 791 93050 0
#
+45 96 32 31 80
#
+34 93 736 8081
#
+33 1 46 48 70 00
#
+358 9 725 49 50
#
+44 870 747 3150
#
+91 80 63 40 122
#
+31 30 687 5335
$
+43 1 4020 80599
$
+41 33 223 00 84
$
+49 791 93050 50
$
+45 96 32 31 88
$
+34 93 736 8166
$
+33 1 46 48 45 00
$
+358 9 725 49 555
$
+44 870 747 3120
$
+91 80 66 44 150
$
+31 30 687 5333
