Technical Data Sheet
3.0mm Round Type LED Lamps
204-10SURD/S530-A3/C171
█
Features :
●
●
●
●
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
Pb free
The product itself will remain within RoHS compliant version.
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
204-10SURD/S530-A3/C171
Material
AlGaInP
Emitted Color
Hyper Red
Lens Color
Red Diffused
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-020-939
http : //www.everlight.com
Prepared date: 2005/9/5
Rev.:
1
Page: 1 of 6
Xiuzen Feng
Prepared by:
BG0508062，R0503703
Technical Data Sheet
3.0mm Round Type LED Lamps
204-10SURD/S530-A3/C171
Package Dimensions
Notes:
1. All dimensions are in millimetres
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
ESD
Pd
V
R
Rating
25
-40 to +85
-40 to +100
260
±
5
2000
60
5
Unit
mA
℃
℃
℃
V
mW
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-020-939
http : //www.everlight.com
Prepared date:
2005/9/5
Rev.:
1
Page: 2 of 6
Xiuzen Feng
Prepared by:
Technical Data Sheet
3.0mm Round Type LED Lamps
204-10SURD/S530-A3/C171
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
VF
IR
Iv
2θ1/2
λp
λd
△λ
Condition
I
F
=
V
R
=
I
F
=
I
F
=
I
F
=
I
F
=
I
F
=
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
Min.
／
／
40
／
／
／
／
Typ.
2.0
／
80
30
632
624
20
Max.
2.4
10
／
／
／
／
／
Unit
V
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-020-939
http : //www.everlight.com
Prepared date:
2005/9/5
Rev.:
1
Page: 3 of 6
Xiuzen Feng
Prepared by:
Technical Data Sheet
3.0mm Round Type LED Lamps
204-10SURD/S530-A3/C171
█

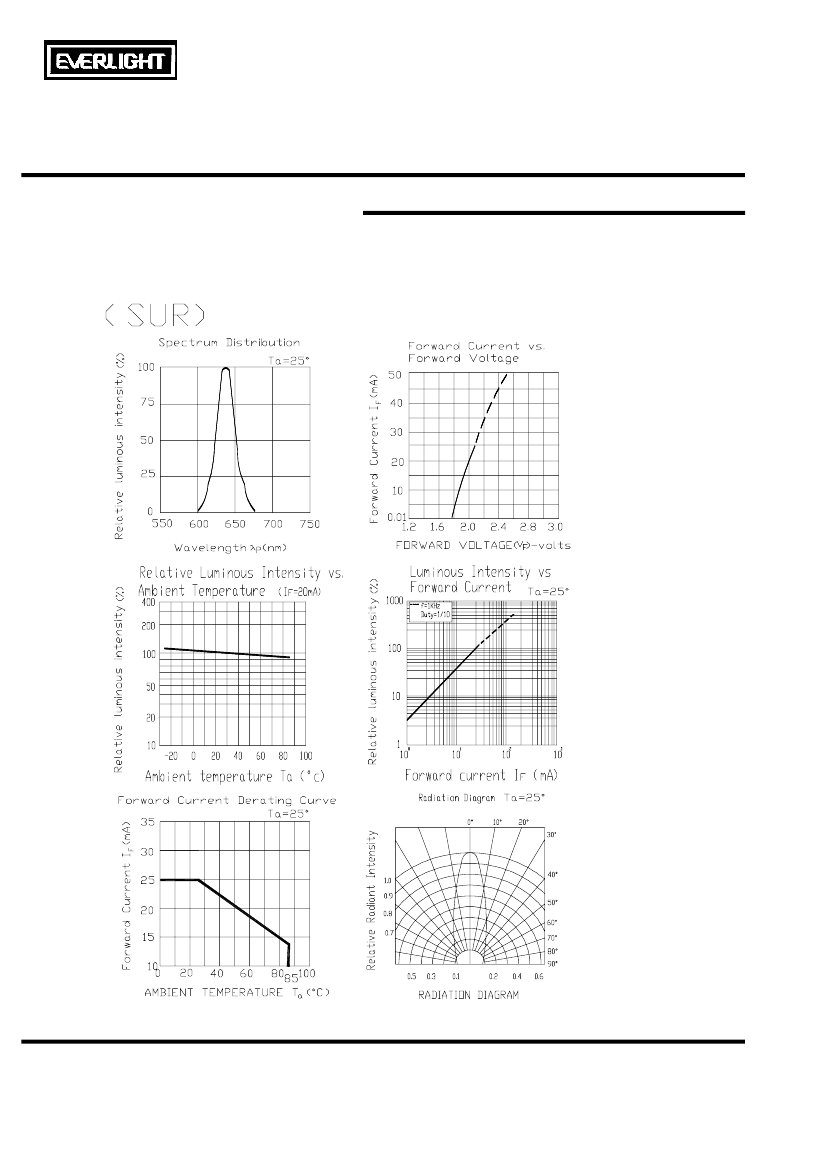

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-020-939
http : //www.everlight.com
Prepared date:
2005/9/5
Rev.:
Prepared by:
1
Page: 4 of 6
Xiuzen Feng
Technical Data Sheet
3.0mm Round Type LED Lamps
204-10SURD/S530-A3/C171
█
Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%
NO
Item
Test Conditions
Test
Hours/Cycle
10 SEC
Sample
Size
76 PCS
Failure
Judgment
Criteria
Ac/Re
1
Solder Heat
TEMP : 260℃
±
5 ℃
H : +100℃ 15min
∫ 5 min
L : -40℃ 15min
H : +100℃ 5min
∫ 10 sec
L : -10℃ 5min
TEMP : 100℃
0/1
2
Temperature Cycle
300 CYCLES
76 PCS
0/1
3
Thermal Shock
High Temperature
Storage
Low Temperature
Storage
DC Operating Life
High Temperature /
High Humidity
300 CYCLES
76 PCS
4
1000 HRS
Iv≦Ivt*0.5
or
Vf≧U
76 PCS
or
Vf≦L
76 PCS
0/1
0/1
5
TEMP : -40℃
TEMP : 25℃
I
F
= 20mA
85℃ / 85% RH
1000 HRS
0/1
6
7
1000 HRS
1000 HRS
76 PCS
76 PCS
0/1
0/1
Note：Ivt：To test Iv value of the chip before the reliablility test
Iv：The test value of the chip that has completed the reliablility test
U：Upper Specification Limit
L： Lower Specification Limit
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-020-939
http : //www.everlight.com
Prepared date:
2005/9/5
Rev.:
1
Page: 5 of 6
Xiuzen Feng
Prepared by:
