EL15C5
Series
• RoHS Compliant (Pb-Free)
• LVDS Output Oscillators
• 2.5V Supply Voltage
• Ceramic 6-pad SMD Package
• Stability to ±20ppm
• Tri-State Output
• Complementary Output
• Available on Tape and Reel
• Wide Range of Available Frequencies
ELECTRICAL SPECIFICATIONS
Nominal Frequency (MHz)
EL15C5
H
L
W
1.3
5.0
3.2
OSCILLATOR
77.76MHz, 78.125MHz, 80MHz, 80.157MHz, 85MHz, 87.125MHz, 90MHz, 100MHz, 106.25MHz, 110MHz, 119MHz,
120MHz, 122.888MHz, 124.4MHz, 125MHz, 127MHz, 128MHz, 131.072MHz, 133MHz, 133.33MHz, 133.333MHz,
135MHz, 137.472MHz, 150MHz, 155.52MHz, 156.25MHz, 159.375MHz, or 161.1328MHz
0°C to 70°C, or -40°C to +85°C
-55°C to 125°C
2.5V
DC
±5%
63mA Maximum
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
CC
)
Input Current
Frequency Tolerance / Stability
Inclusive of All Conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, 1st Year
Aging at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Differential Output Voltage (V
OD
)
Offset Voltage (V
OS
)
Rise Time / Fall Time
Differential Output Error (
D
V
DD
)
Duty Cycle
Offset Error (
D
V
OS
)
Output Swing (
D
VO
PP
)
Load Drive Capability
Logic Control / Additional Output
Tri-State Input Voltage
1.43V
DC
Typical, 1.6V
DC
Maximum
1.1V
DC
Typical, 0.9V
DC
Minimum
247mV Minimum, 330mV Typical, 454mV Maximum
20% to 80% of waveform
at 50% of waveform or at the crossing point
1.125V Minimum, 1.250V Typical, 1.375V Maximum
300pSec Typical, 700pSec Maximum
50mV Maximum
50 ±5(%)
150mV Maximum
250mVdc Minimum
100 Ohms
Tri-State and Complementary Output
Enables Outputs
Enables Outputs
Disables Outputs: High Impedance
30µA Maximum
10 mSeconds Maximum
0.4pSec Typical, 1 pSec Maximum
-60dBc/Hz at 10Hz Offset
-95dBc/Hz at 100Hz Offset
-125dBc/Hz at 1kHz Offset
-143dBc/Hz at 10kHz Offset
-145dBc/Hz at 100kHz Offset
-145dBc/Hz at 1MHz Offset
-146dBc/Hz at 10MHz Offset
Between Output and Complementary Output
V
IH
of 70% of V
CC
Minimum
No Connection
V
IL
of 30% of V
CC
Maximum
Without Load
FJ = 12kHz to 20MHz
Fo=156.250MHz
Standby Current
Start Up Time
RMS Phase Jitter
Typical Phase Noise
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EL15C5
CERAMIC
2.5V
OS6Y
02/09
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EL15C5 E 2 F - 155.520M TR
FREQUENCY TOLERANCE & STABILITY/
OPERATING TEMPERATURE RANGE
C=±100ppm Maximum over 0°C to +70°C
D=±50ppm Maximum over 0°C to +70°C
E=±25ppm Maximum over 0°C to +70°C
F=±20ppm Maximum over 0°C to +70°C
G=±100ppm Maximum over -40°C to +85°C
H=±50ppm Maximum over -40°C to +85°C
J=±25ppm Maximum over -40°C to +85°C
AVAILABLE OPTIONS
Blank=Tubes
TR=Tape and Reel (Standard)
FREQUENCY
LOGIC CONTROL/ADDITIONAL OUTPUT
F=Tri-State and Complementary Output
DUTY CYCLE
2=50 ±5(%)

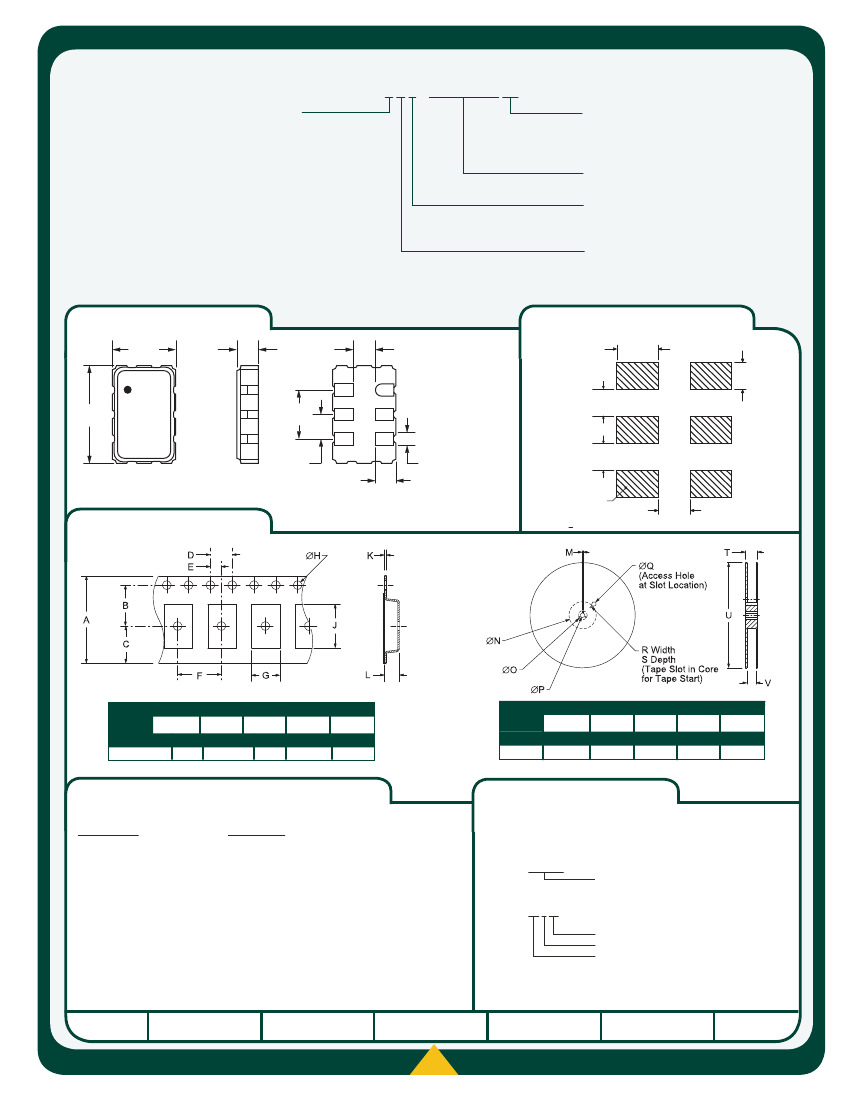

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
3.20
±0.15
1.30
MAX
6
1
1.20
±0.15
1.40
(X6)
1.00
(X6)
5.00
±0.15
2.54
±0.15
0.27
5
4
2
3
0.64
±0.10
0.27
1.27
±0.15
1.00
±0.15
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Tri-State
Pin 2: No Connect
Pin 3: Case Ground
Pin 4: Output
Pin 5: Complementary Output
Pin 6: Supply Voltage
Solder Land
(X6)
0.80
Tolerances= +0.1
TAPE
A
16±0.3
B
7.5±0.1
C
6.75±0.1
D
4.0 ±0.1
E
2.0±0.1
F
REEL
M
1.5 MIN
N
50 MIN
O
U
180 MAX
P
V
12.4+2-0
Q
40 MIN
QTY/REEL
1,000
20.2 MIN 13.0±0.2
F
8.0±0.1
G
H
J
A0*
K
0.3 ±0.1
L
K0*
R
2.5 MIN
S
10 MIN
T
18.4 MAX
B0* 1.5 +0.1-0.0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Characteristic
ESD Susceptibility
Fine Leak Test
Flammability
Gross Leak Test
Mechanical Shock
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
Specification
MIL-STD-883, Method 3015, Class 1, HBM: 1500V
MIL-STD-883, Method 1014, Condition A
UL94-V0
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 2007, Condition A
Line 1: EXX.XXX
Frequency in MHz (5 Digits Maximum + Decimal)
Line 2: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EL15C5
CERAMIC
2.5V
OS6Y
02/09
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
