SSL32 thru SSL34
Taiwan Semiconductor
CREAT BY ART

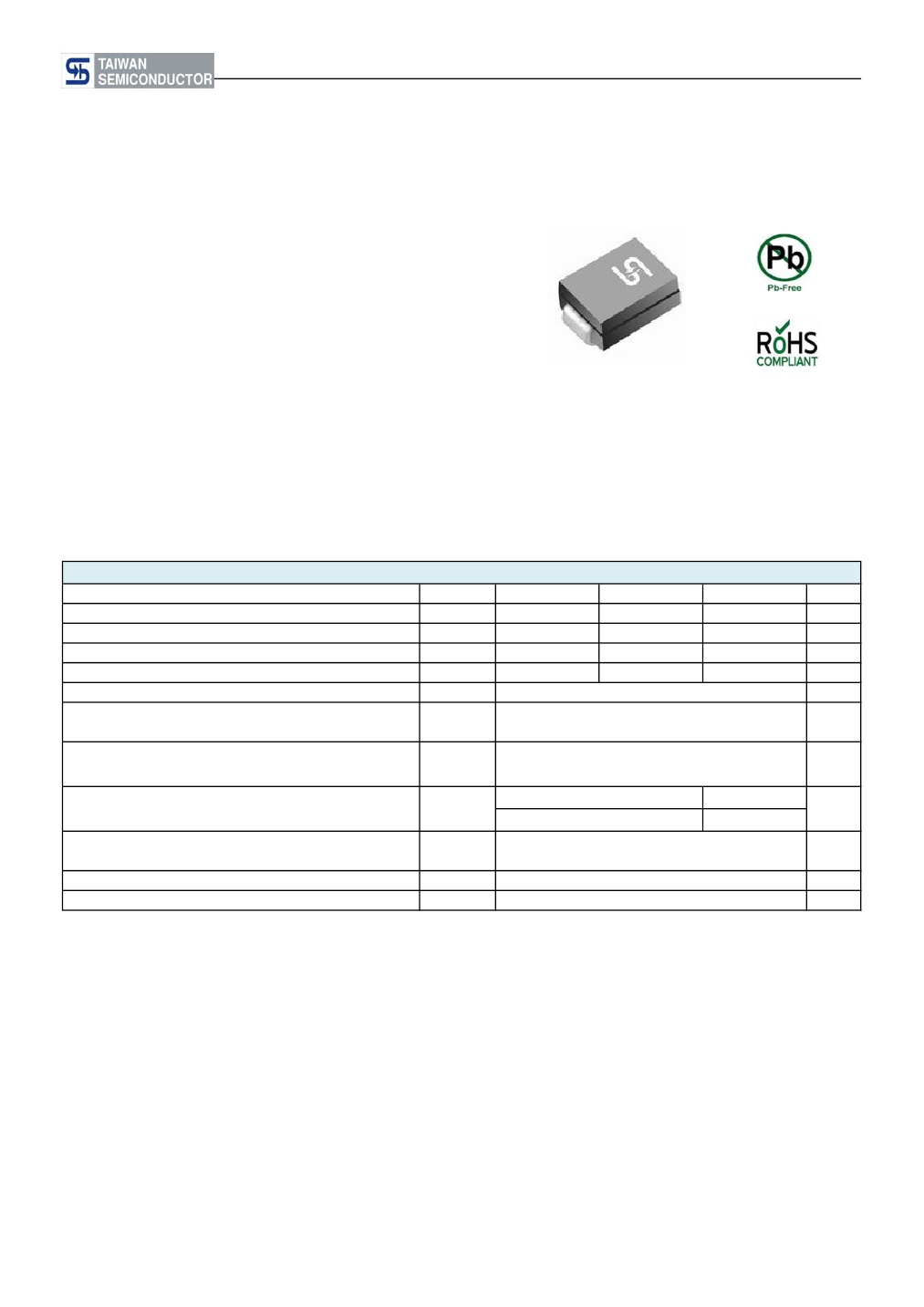

FEATURES
- Low power loss, high efficiency
- Ideal for automated placement
- Guardring for overvoltage protection
- High surge current capability
- Moisture sensitivity level: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Surface Mount Schottky Barrier Rectifier
MECHANICAL DATA
Case:
DO-214AB (SMC)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.21 g (approximately)
DO-214AB (SMC)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Marking Code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 3 A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=100℃
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
0.2
50
17
55
- 55 to +125
- 55 to +150
SYMBOL
SSL32
SL32
20
14
20
SSL33
SL33
30
21
30
3
100
0.41
0.5
100
SSL34
SL34
40
28
40
V
V
V
A
A
V
mA
O
Unit
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
C/W
O
O
C
C
Document Number: DS_D1309040
Version: G13
SSL32 thru SSL34
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
SSL3x
(Note 1)
R7
Prefix "H"
R6
M6
Suffix "G"
PACKING CODE
GREEN COMPOUND
CODE
SMC
SMC
SMC
850 / 7" Plastic reel
3,000 / 13" Paper reel
3,000 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "xx" defines voltage from 20V (SSL32) to 40V (SSL34)
EXAMPLE
PREFERRED P/N PART NO.
SSL34 R7
SSL34 R7G
SSL34HR7
SSL34
SSL34
SSL34
H
AEC-Q101
QUALIFIED
PACKING CODE
R7
R7
R7
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

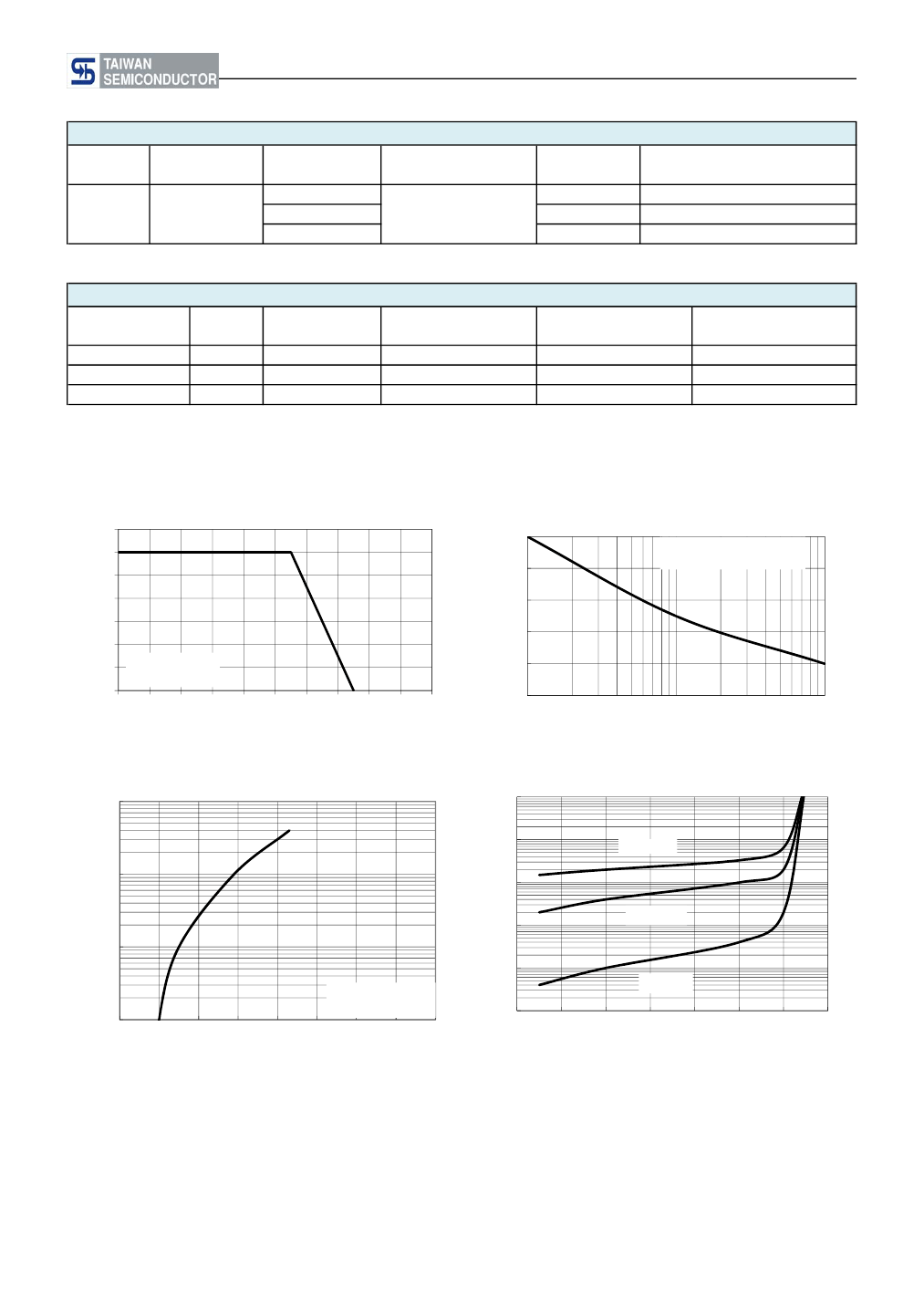

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
3.5
3
AVERAGE FORWARD
A
CURRENT (A)
PEAK FORWARD SURGE CURRENT
(A)
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
100
80
60
40
20
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine Wave
JEDEC Method
2.5
2
1.5
1
RESISTIVE OR
INDUCTIVELOAD
0.5
0
50
60
70
80
90
100
110
120
(
o
C)
130
140
150
LEAD TEMPERATURE
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE
A
CURRENT (mA)
10
INSTANTANEOUS FORWARD
A
CURRENT (A)
TJ=100℃
10
1
0.1
TJ=75℃
1
0.01
PULSE WIDTH=300μs
1% DUTY CYCLE
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
TJ=25℃
0
20
40
60
80
100
120
140
0.1
FORWARD VOLTAGE (V)
0.001
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1309040
Version: G13
SSL32 thru SSL34
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
CAPACITANCE (pF)
100
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
REVERSE VOLTAGE (V)
100

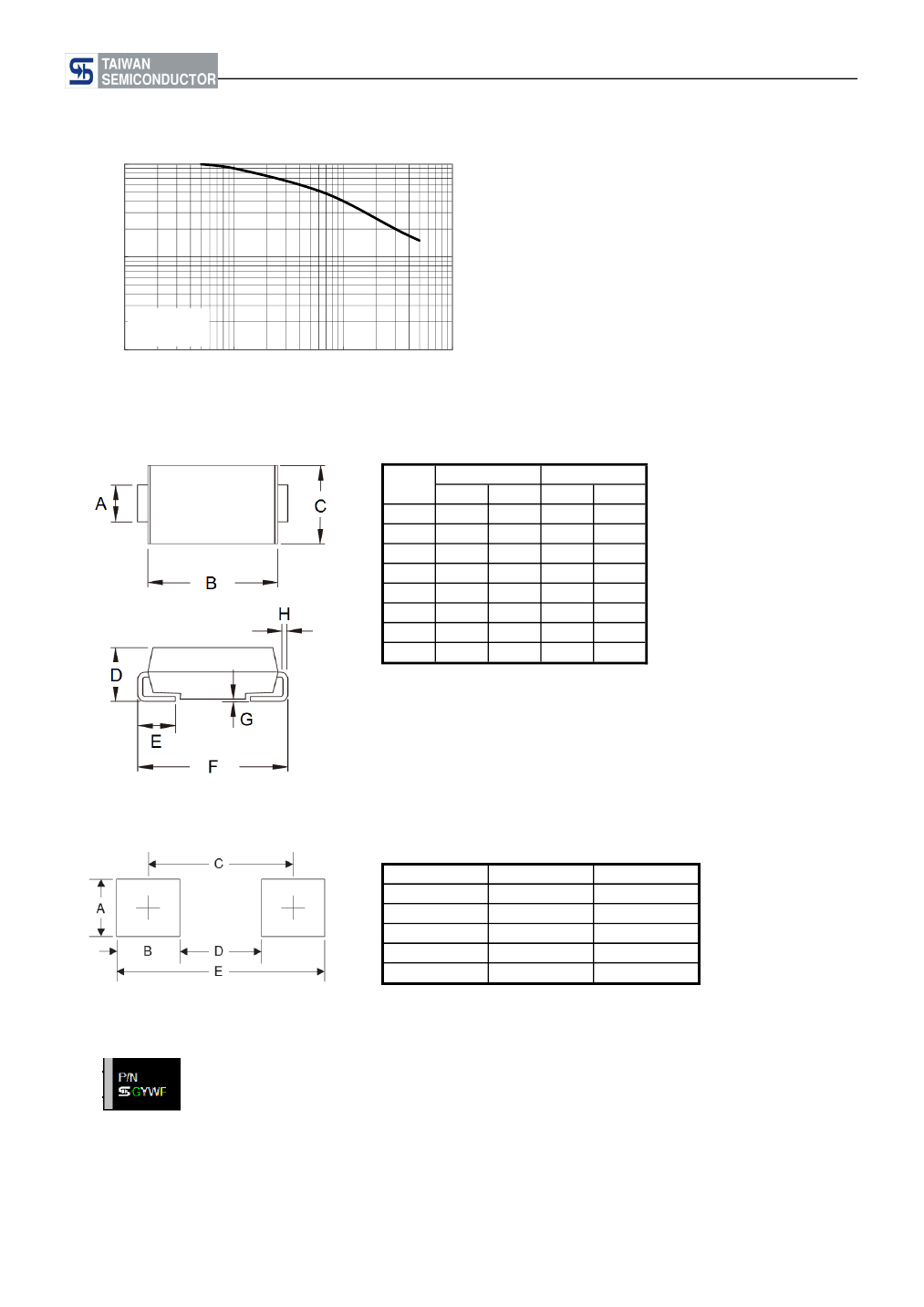

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.90
6.60
5.59
2.00
1.00
7.75
0.10
0.15
Max
3.20
7.11
6.22
2.62
1.60
8.13
0.20
0.31
Unit (inch)
Min
0.114
0.260
0.220
0.079
0.039
0.305
0.004
0.006
Max
0.126
0.280
0.245
0.103
0.063
0.320
0.008
0.012
DIM.
A
B
C
D
E
F
G
H
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
3.3
2.5
6.8
4.4
9.4
Unit (inch)
0.130
0.098
0.268
0.173
0.370
MARKING DIAGRAM
P/N
G
YW
F
= Marking Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1309040
Version: G13
SSL32 thru SSL34
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1309040
Version: G13
