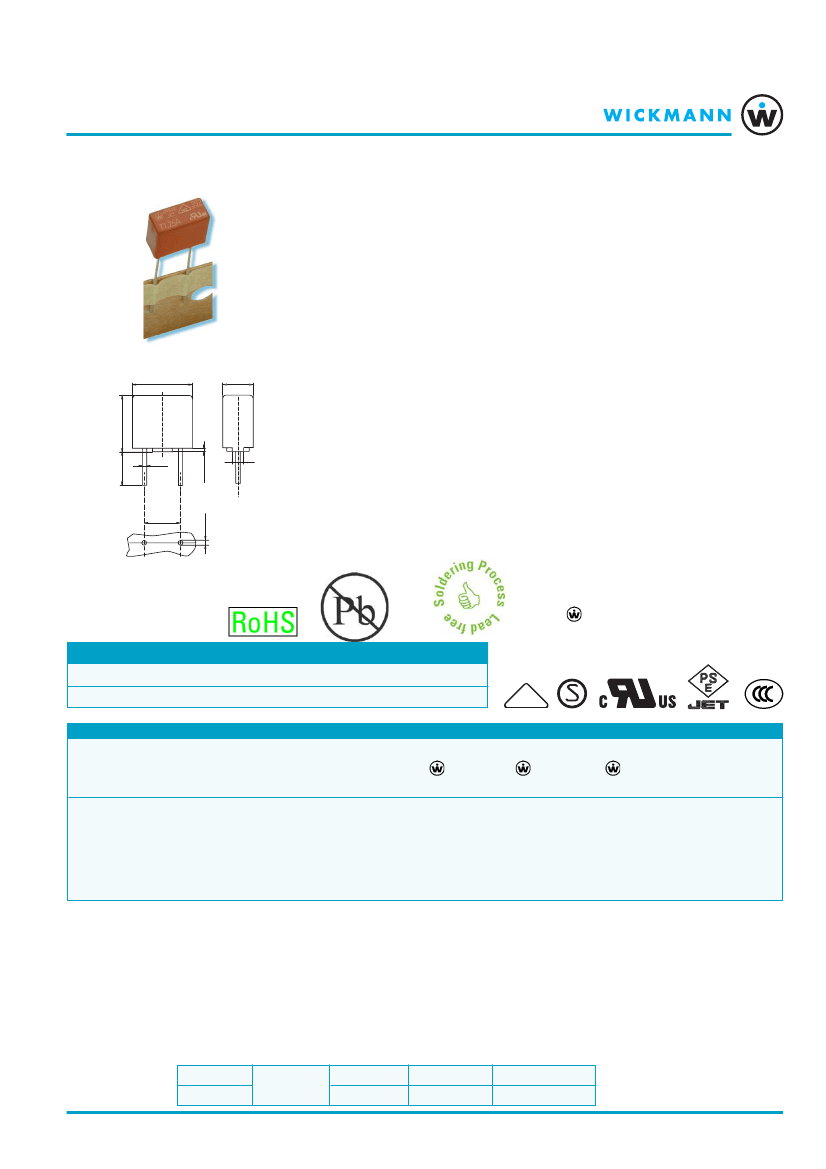

UBMINIATURE
S
UBMINIATURE
F
USES
No. 392 / TE5
®
60127-3/IV,
V,
IEC 60127-3/IV, 250 V, T
Lead Free
Time-Current
Time Lag (T)
Specifications
Packaging
Materials
000: Tape/Ammopack (1400 pcs.)
044: Short Leads - Bulk (1400 pcs.)
Base/Cap:
Brown Thermoplastic
Polyamide PA 6.6, UL 94 V0
Round Pins: Copper, Sn plated
-40 ºC to +85 ºC (consider de-rating)
-40 ºC/+85 ºC/21 days
(EN 60068-1,-2-1,-2-2,-78)
+10 ºC to +60 ºC
relative humidity
≤
75 % yearly average,
without dew, maximum value for 30 days - 95 %
24 cycles at 15 min. each (EN 60068-6)
10 - 60 Hz at 0.75 mm amplitude
60 - 2000 Hz at 10 g acceleration
10 N (IEC 60068-2-21)
260 ºC,
≤
3 s (Wave)
350 ºC,
≤
3 s (Soldering iron)
260 ºC, 10 s (IEC 60068-2-20)
Characteristic
Standard
According to IEC 60127-3/IV
VDE Expert Report
SEMKO
cULus Recognized
METI-PSE
CCC
Lead Free
Reduced PCB space requirements
Direct solderable or plug-in versions
Internationally approved
Low internal resistance
Shocksafe casing
Vibration resistant
Halogen free
Approvals
Temperature
Operating Temperature
Climatic Category
Stock Conditions
Dimensions (mm)
8,5
Features
max. 4
max. 8
Vibration Resistance
0,5 min
L
∅
0,6
1,5
W ebLinks
5,08
Further infos see:
www.wickmanngroup.com
Further application infos see
Fuseology:
Lead Pull Strength
Solderability
1 +0,1
Holes in PCB
www.wickmanngroup.com/download/
fuseology.pdf
Soldering Heat Resistance
Marking
Long Leads (L=18.8 mm)
Short Leads (L=4.3 mm)
, T, Current Rating, Approvals
Unit Weight
Time
Limits for Pre-arcing Time
Rated Current
800 mA ... 4.00 A
0.60 g (approx.)
1.5 x I
N
>1h
2.1 x I
N
< 2 min
2.75 x I
N
4 x I
N
10 x I
N
VDE
400 ms ... 10 s 150 ms ... 3 s 20 ms ... 150 ms
METI-PSE
SEMKO
cURus
VDE
800 mA
1.00 A
1.25 A
1.60 A
2.00 A
2.50 A
3.15 A
4.00 A
0800
1100
1125
1160
1200
1250
1315
1400
250V
250V
250V
250V
250V
250V
250V
250V
25A/250 V AC
25A/250 V AC
25A/250 V AC
25A/250 V AC
25A/250 V AC
25A/250 V AC
32A/250 V AC
40A/250 V AC
110
115
100
95
90
85
80
75
280
400
500
600
700
750
1100
1200
3.80
5.80
9.75
13.50
21.00
32.00
55.00
100.00
G
G
G
G
G
G
G
G
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
G = Expert Report
Order
Information
050118
Qty.
Order-
Number
Series
392
Amp Code
Packaging
Specifications are subject
to change without notice
China
Tel: +86 21 6432 5146
E-mail: sales@wickmann.cn
WebSite
Europe
Tel: +49 2302 662-107
www.wickmanngroup.com E-mail: sales@wickmann.com
Americas
Tel: +1 404 699-7820
E-mail: service@wickmannusa.com
Asia
Tel: +852 26 14-1108
E-mail: sales@wickmann.com.hk
CCC
Permissible continuous operating current is
≤
100 % at ambient temperature of 23 ºC (73.4 ºF).
Rated
Amp
Voltage
Breaking Voltage Drop Power Dissipation Melting Integral
1.5 x I
N
10 x I
N
Current
Code
Rating
Capacity
1.0 x I
N
50-60Hz/cos
ϕ
= 1.0
max. (mV)
max. (mW)
min. (A
2
s)
Approvals
•
•
•
•
•
•
•
•
UBMINIATURE
S
UBMINIATURE
F
USES
TE5
®
/ No. 392
Time (sec.)
I
Fault
/ I
Rated

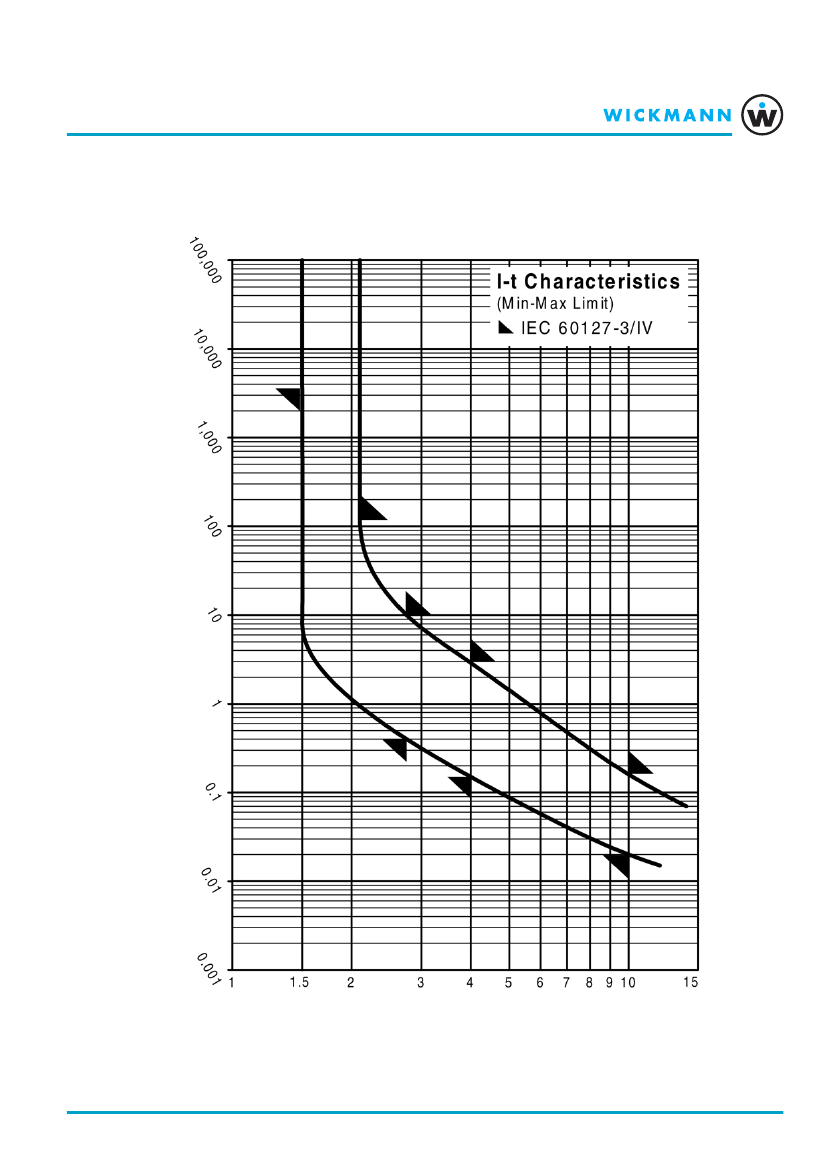

Contact WICKMANN for individual I-t curves
050118
WebSite
Europe
Tel: +49 2302 662-107
www.wickmanngroup.com E-mail: sales@wickmann.com
Americas
Tel: +1 404 699-7820
E-mail: service@wickmannusa.com
Asia
Tel: +852 26 14-1108
E-mail: sales@wickmann.com.hk
China
Tel: +86 21 6432 5146
E-mail: sales@wickmann.cn
