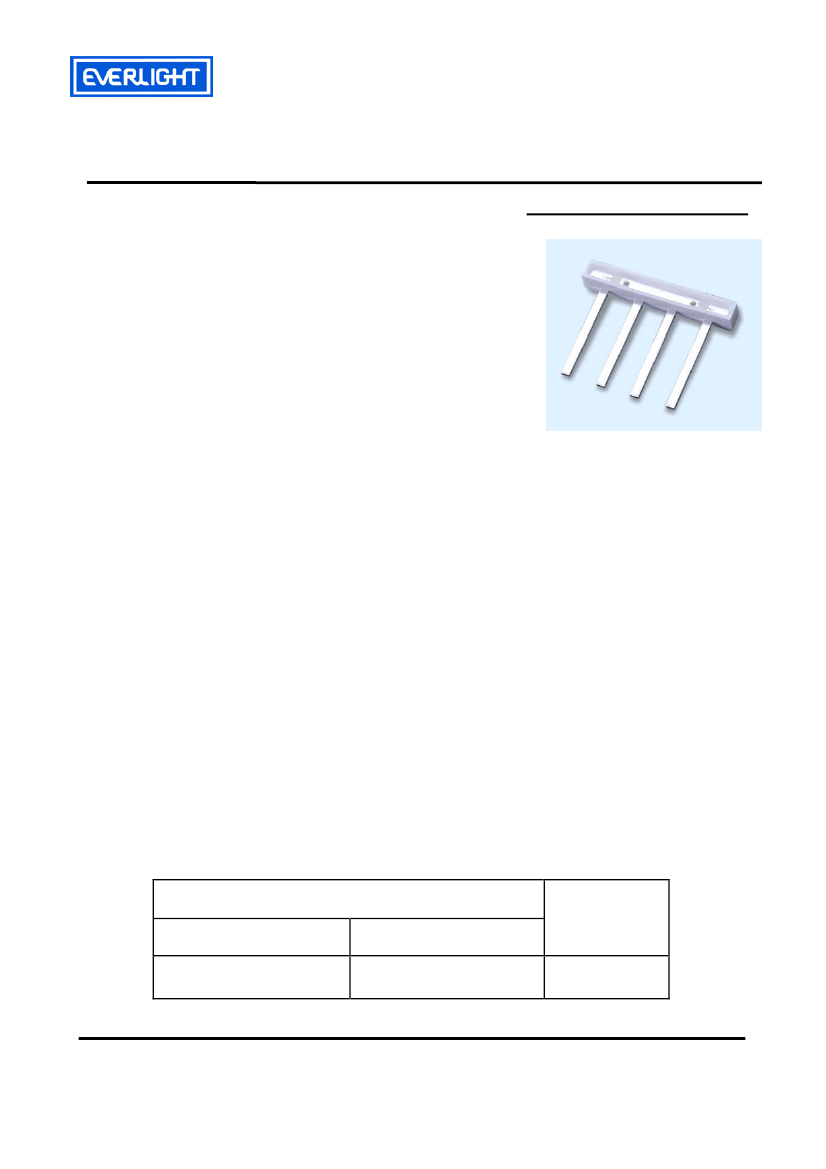

High performance SMD LED with Reflector
97-22UYC/S530-XX/S2
Features
White package.
Dual-chip, wide-angle, low-profile LEDs .
Excellent chip to chip consistency
Super Intensity
Highperformance
Pb-free.
The product itself will remain within RoHS
compliant version.
Applications
Automotive: backlighting in dashboard and switch.
Telecommunication: indicator and backlighting in
telephone and fax.
Indicator and backlight for audio and video
equipment.
Indicator and backlight for battery driven
equipment.
Display Screen Illumination on Portable Handheld
Devices
Indicator and backlight in office equipment.
General use.
Device Selection Guide
Chip
Material
AlGaInP
Emitted Color
Brilliant Yellow
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device No. : DSE-972-066
http://www.everlight.com
prepared date: 22-Sep-2005
Rev. 1
Page: 1 of 7
Prepared by: Venis Wu
EVERLIGHT ELECTRONICS CO.,LTD.
97-22UYC/S530-XX/S2
Package Dimensions
Note: The tolerances unless mentioned is
±0.1mm
;Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-972-066
http://www.everlight.com
prepared date: 22-Sep-2005
Rev. 1
Page: 2 of 7
Prepared by: Venis Wu
EVERLIGHT ELECTRONICS CO.,LTD.
97-22UYC/S530-XX/S2
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Electrostatic
Discharge(HBM)
Power Dissipation
Peak Forward Current(Duty
1/10 @ 1KH
Z
)
Soldering Temperature
Symbol
V
R
I
F
Topr
Tstg
ESD
Pd
I
FP
Rating
5
25
-40 ~ +85
-40~ +100
2000
60
60
Unit
V
mA
℃
℃
V
mW
mA
Reflow Soldering : 260
℃
for 10 sec.
Tsol
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No. : DSE-972-066
http://www.everlight.com
prepared date: 22-Sep-2005
Rev. 1
Page: 3 of 7
Prepared by: Venis Wu
EVERLIGHT ELECTRONICS CO.,LTD.
97-22UYC/S530-XX/S2
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
*Chip
Rank
A2
Luminous Intensity
Iv*1
A3
A4
Viewing Angle
2θ1/2
λp
-----
Min.
21
50
70
-----
Typ.
53
60
85
145
Max.
-----
-----
-----
-----
deg
IF=20mA
mcd
*2
IF=20mA
Unit
Condition
Peak Wavelength
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
-----
-----
591
-----
nm
IF=20mA
λd
△λ
V
F
I
R
-----
-----
589
-----
nm
IF=20mA
-----
-----
-----
-----
-----
15
2.0
-----
2.4
nm
V
μA
IF=20mA
IF=20mA
Reverse Current
-----
-----
10
VR=5V
*94-22UYC/S530-XX/S2
Chip Rank
*1 When two LED dies are operated simultaneously
*2 For each die
Everlight Electronics Co., Ltd.
Device No. : DSE-972-066
http://www.everlight.com
prepared date: 22-Sep-2005
Rev. 1
Page: 4 of 7
Prepared by: Venis Wu
EVERLIGHT ELECTRONICS CO.,LTD.
97-22UYC/S530-XX/S2

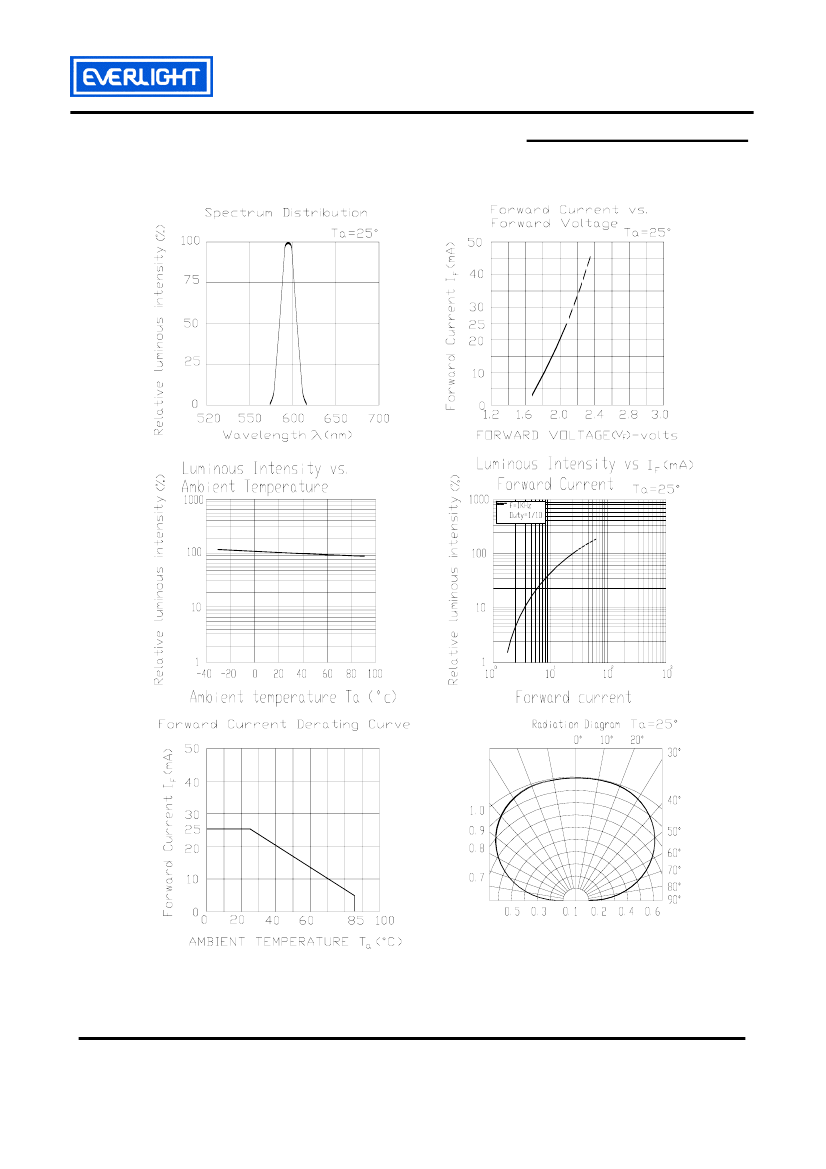

Typical Electro-Optical Characteristics Curves
