DUAL FULL-BRIDGE
PWM MOTOR DRIVER
3961
Designed for pulse-width modulated (PWM) current control of
bipolar stepper motors, the A3961S— is capable of continuous output
currents to
±800
mA and operating voltages to 45 V. Internal fixed
off-time PWM current-control circuitry can be used to regulate the
maximum load current to a desired value. An internal precision voltage
reference is provided to improve motor peak current control accuracy.
The peak load current limit is set by the user’s selection of an external
resistor divider and current-sensing resistors.
The fixed off-time pulse duration is set by user-selected external
RC timing networks. The capacitor in the RC timing network also
determines a user-selectable blanking window that prevents false
triggering of the PWM current control circuitry during switching transi-
tions. This eliminates the need for two external RC filter networks on
the current-sensing comparator inputs.
Data Sheet
29319.26
DUAL FULL-BRIDGE PWM MOTOR DRIVER
OUT
1
1B
E
1
2
24
23
OUT
2B
E
2
Note the A3961SB (DIP) and the A3961SLB
(SOIC) are electrically identical and share a
common terminal number assignment.
ABSOLUTE MAXIMUM RATINGS
Load Supply Voltage, V
BB
. . . . . . . . . .
45 V
Output Current, I
OUT
. . . . . . . . . .
±
800 mA*
Logic Supply Voltage, V
CC
. . . . . . . . .
7.0 V
Logic Input Voltage Range,
V
IN
. . . . . . . . . . .
-0.3 V to V
CC
+ 0.3 V
Sense Voltage, V
SENSE
. . . . . . . . . . . .
1.0 V
Reference Output Current,
I
REF OUT
. . . . . . . . . . . . . . . . . . .
1.0 mA
Package Power Dissipation,
P
D
. . . . . . . . . . . . . . . . . . . .
See Graph
Operating Temperature Range,
T
A
. . . . . . . . . . . . . . . . .
-20˚C to +85˚C
Junction Temperature, T
J
. . . . . . .
+150˚C†
Storage Temperature Range,
T
S
. . . . . . . . . . . . . . . .
-55˚C to +150˚C
* Output current rating may be limited by duty
cycle, ambient temperature, and heat sinking.
Under any set of conditions, do not exceed the
specified current rating or a junction tempera-
ture of 150˚C.
† Fault conditions that produce excessive
junction temperature will activate device
thermal shutdown circuitry. These conditions
can be tolerated but should be avoided.
T
C
U Y
D L
O N
R O
P E
D C
E N
U E
IN ER
T F
N E
O R
C R
IS O
D F
—
SENSE
1
3
OUT
1A
4
V
BB1
5
22
SENSE
2
21
OUT
2A
V
BB2
20
GROUND
6
19
GROUND
GROUND
7
V
REF
OUT
8
V
REF
IN
9
18
GROUND
17
I
FULL/PD
16
V
CC
RC
1
10
15
RC
2
PHASE
1
11
14
PHASE
2
ENABLE
1
12
13
ENABLE
2
For each bridge the PHASE input controls load current polarity by
selecting the appropriate source and sink driver pair. For each bridge
the ENABLE input, when held high, disables the output drivers. Special
power-up sequencing is not required. Internal circuit protection includes
thermal shutdown with hysteresis, transient-suppression diodes, and
crossover-current protection.
The A3961S— is supplied in a choice of two power packages:
24-pin dual-in-line plastic package with copper heat-sink tabs and
24-lead plastic SOIC with copper heat-sink tabs. In both packages the
power tab is at ground potential and needs no electrical isolation.
FEATURES
s
s
s
s
s
s
s
±800
mA Continuous Output Current Rating
45 V Output Voltage Rating
Internal PWM Current Control, Saturated Sink Drivers
Internally Generated Precision 2.5 V Reference
Internal Transient-Suppression Diodes
Internal Thermal-Shutdown Circuitry
Crossover-Current Protection, UVLO Protection
Always order by complete part number:
PART NUMBER
A3961SB
A3961SLB
PACKAGE
24-Pin DIP
24-Lead SOIC
R
θJA
40°C/W
55°C/W
R
θJT
6°C/W
6°C/W
3961
DUAL FULL-BRIDGE
PWM MOTOR DRIVER
ALLOWABLE PACKAGE POWER DISSIPATION IN WATTS
5
R
θJT
= 6.0°C/W
TRUTH TABLE
ENABLE
PHASE
X
H
L
OUT
A
Off
H
L
OUT
B
Off
L
H
4
3
SUFFIX 'B', R
θJA
= 40°C/W
H
L
L
2
1
X = Irrelevant
SUFFIX 'LB', R
θJA
= 55°C/W
0
25
50
75
100
TEMPERATURE IN
°C
125
150
Dwg. GP-049A

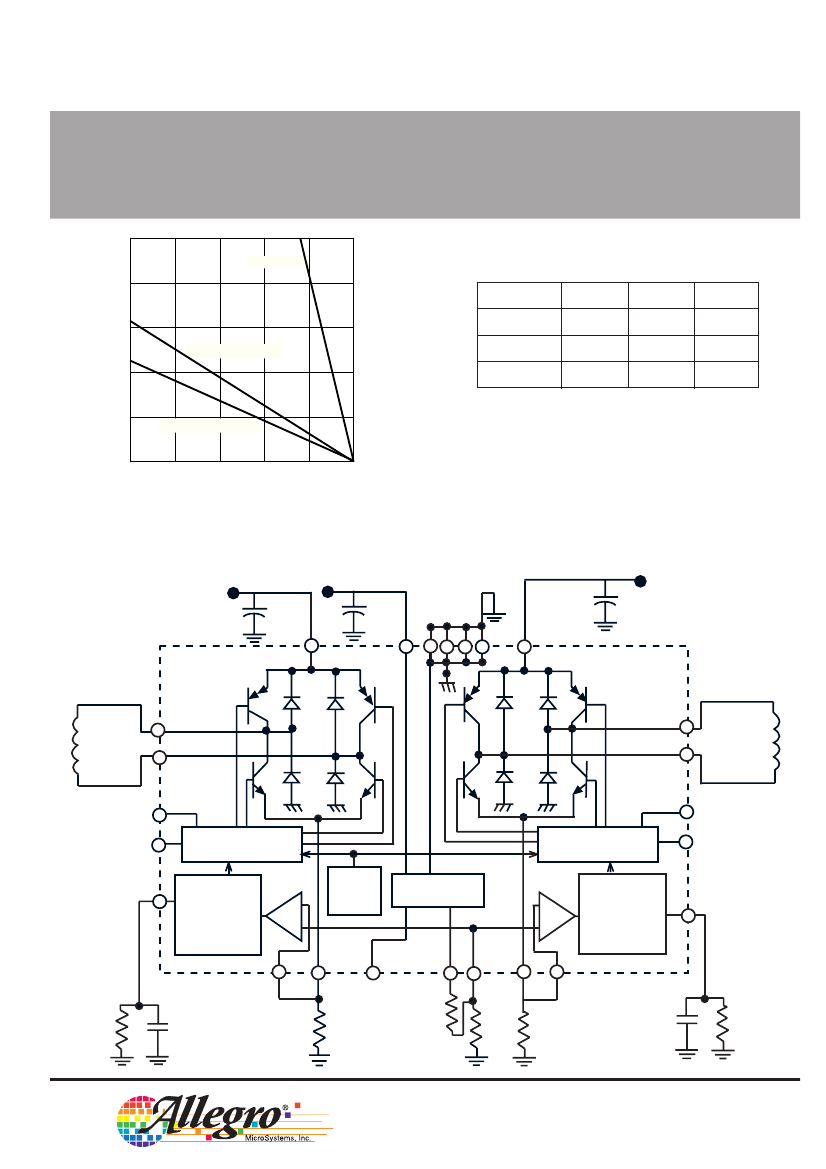

FUNCTIONAL BLOCK DIAGRAM AND TYPICAL
BIPOLAR STEPPER MOTOR APPLICATION
MOTOR SUPPLY 2
MOTOR SUPPLY 1
C
BB
V
BB1
LOGIC SUPPLY
C
cc
V
cc
GND
C
BB2
V
BB2
OUT
1A
OUT
1B
OUT
2A
OUT
2B
ENABLE 1
PHASE 1
CONTROL LOGIC
AND LEVEL SHIFT
BLANKING
TIME AND
SOURCE
DRIVER T
OFF
CONTROL
UVLO
AND
TSD
VOLTAGE
REFERENCE
CONTROL LOGIC
AND LEVEL SHIFT
BLANKING
TIME AND
SOURCE
DRIVER T
OFF
CONTROL
ENABLE 2
PHASE 2
RC1
+
_
+
_
RC
2
SENSE 1
R
T1
C
T1
E
1
I
FULL/PD
REF
OUT
R
1
REF
IN
R
2
E
2
R
S2
SENSE
2
C
T2
R
T2
E
2
R
S1
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
Copyright ©1995, 1996, Allegro MicroSystems, Inc.
3961
DUAL FULL-BRIDGE
PWM MOTOR DRIVER
ELECTRICAL CHARACTERISTICS at T
A
= +25
°
C, V
BB
= 45 V, V
CC
= 4.75 V to 5.25 V, V
SENSE
= 0
V, 30 k
Ω
& 1000 pF RC to Ground (unless noted otherwise)
Limits
Characteristic
Symbol
Test Conditions
Min.
Typ.
Max.
Units
Output Drivers
Load Supply Voltage Range
Output Leakage Current
V
BB
I
CEX
Operating, I
OUT
=
±800
mA, L = 3 mH
V
OUT
= V
BB
V
OUT
= 0 V
Output Saturation Voltage
V
CE(SAT)
Source Driver, I
OUT
= -500 mA
Source Driver, I
OUT
= -750 mA
Source Driver, I
OUT
= -800 mA
Sink Driver, I
OUT
= +500 mA
Sink Driver, I
OUT
= +750 mA
Sink Driver, I
OUT
= +800 mA
Clamp Diode Forward Voltage
(Sink or Source)
V
F
I
F
= 500 mA
I
F
= 750 mA
I
F
= 800 mA
Motor Supply Current
(No Load)
I
BB(ON)
I
BB(OFF)
V
ENABLE
= 0.8 V
V
ENABLE
= 2.4 V
5.0
—
—
—
—
—
—
—
—
—
—
—
—
—
—
<1.0
<-1.0
1.0
1.1
—
0.3
0.5
—
1.1
1.3
—
5.0
5.0
45
50
-50
1.2
1.3
1.4
0.6
0.9
1.0
1.4
1.6
1.7
7.0
7.0
V
µA
µA
V
V
V
V
V
V
V
V
V
mA
mA
Control Logic
Logic Supply Voltage Range
Logic Input Voltage
V
CC
V
IN(1)
V
IN(0)
Logic Input Current
I
IN(1)
I
IN(0)
Reference Output Voltage
V
REF OUT
V
IN
= 2.4 V
V
IN
= 0.8 V
V
CC
= 5.0 V, I
REF OUT
= 90 to 900
µA:
I
FULL/PD
= LOW
I
FULL/PD
= HIGH
2.45
1.49
2.50
1.67
2.55
1.84
V
V
Operating
4.75
2.4
—
—
—
—
—
—
<1.0
<-2.0
5.25
—
0.8
20
-200
V
V
V
µA
µA
Continued next page…
3961
DUAL FULL-BRIDGE
PWM MOTOR DRIVER
ELECTRICAL CHARACTERISTICS at T
A
= +25
°
C, V
BB
= 45 V, V
CC
= 4.75 V to 5.25 V, V
SENSE
= 0
V, 30 kW & 1000 pF RC to Ground (unless noted otherwise) (cont.)
Limits
Characteristic
Symbol
Test Conditions
Min.
Typ.
Max.
Units
Control Logic (Continued)
Reference Output Current
Ref. Input Offset Current
Comparator Input Offset Volt.
Comparator Input Volt. Range
PWM RC Fixed Off-time
PWM Propagation Delay Time
PWM Minimum On Time
Propagation Delay Times
I
REF OUT
I
OS
V
IO
V
REF
t
OFF RC
t
PWM
t
ON(min)
t
pd
3 kΩ
≤
R
D
= R
1
+ R
2
≤
15 kΩ
V
REF IN
= 1 V
V
REF
= 0 V
Operating
C
T
= 1000 pF, R
T
= 30 kΩ
Comparator Trip to Source OFF
C
T
= 1000 pF
±
5%, R
T
≥
15 kΩ, V
CC
= 5 V
I
OUT
=
±800
mA, 50% to 90%:
ENABLE ON to Source ON
ENABLE OFF to Source OFF
ENABLE ON to Sink ON
ENABLE OFF to Sink OFF
PHASE Change to Sink ON
PHASE Change to Source ON
PHASE Change to Sink OFF
PHASE Change to Source OFF
Thermal Shutdown Temp.
Thermal Shutdown Hysteresis
UVLO Disable Threshold
UVLO Hysterisis
Logic Supply Current
I
CC(ON)
I
CC(OFF)
Logic Supply Current
Temperature Coefficient
∆I
CC(ON)
V
ENABLE1
= V
ENABLE2
= 0.8 V
V
ENABLE1
= V
ENABLE2
= 2.4 V
V
ENABLE1
= V
ENABLE2
= 0.8 V
T
J
∆T
J
—
—
—
—
—
—
—
—
—
—
2.5
0.7
—
—
—
3.2
1.2
3.2
0.7
3.2
3.2
0.7
1.2
165
15
2.7
0.9
65
11
0.18
—
—
—
—
—
—
—
—
—
—
2.9
1.1
85
15
—
mA/˚C
µs
µs
µs
µs
µs
µs
µs
µs
˚C
˚C
V
V
mA
90
-2.5
-5.0
-0.3
27
—
—
—
0
0
—
30
1.2
2.5
900
1.0
5.0
1.0
33
2.0
3.6
µA
µA
mV
V
µs
µs
µs
NOTES: 1. Typical Data is for design information only.
2. Negative current is defined as coming out of
(sourcing) the specified device terminal.
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
3961
DUAL FULL-BRIDGE
PWM MOTOR DRIVER
FUNCTIONAL DESCRIPTION
Internal PWM Current Control.
The A3961S— contains
a fixed off-time pulse-width modulated (PWM) current-
control circuit that can be used to limit the load current to
a desired value. The peak value of the current limiting
(I
TRIP
) is set by the selection of an external current-sensing
resistor (R
S
) and reference input voltage (V
REF IN
).
The internal circuitry compares the voltage across the
external sense resistor to the voltage on the reference
input terminal (V
REF IN
), resulting in a transconductance
function approximated by:
I
TRIP
≈
V
REF IN
R
S
The reference input voltage is typically set with a
resistor divider from V
REF OUT
. The value of V
REF OUT
can be switched from a nominal value of 2.5 V to 1.67 V
by applying a low or high logic signal respectively to the
I
FULL/PD
terminal. To ensure proper operation of the
voltage reference, the resistor divider (R
D
= R
1
+R
2
) should
have an impedance of 3 kΩ to 15 kΩ. Within this range, a
low impedance will minimize the effect of the REF IN input
offset current.
The current-control circuitry limits the load current as
follows: when the load current reaches I
TRIP
, the compara-
tor resets a latch that turns off the selected source driver.
The load inductance causes the current to recirculate
through the sink driver and flyback diode.
For each bridge, the user selects an external resistor
(R
T
) and capacitor (C
T
) to determine the time period
(t
OFF
= R
T
C
T
) during which the source driver remains dis-
abled (see “RC Fixed Off-time” below). The range of rec-
ommended values for C
T
and R
T
are 1000 pF to
1500 pF and 15 kΩ to 100 kΩ respectively. For optimal
load current regulation, C
T
is normally set to 1000 pF (see
“Load Current Regulation” below). At the end of the RC in-
terval, the source driver is enabled allowing the load cur-
rent to increase again. The PWM cycle repeats, maintain-
ing the peak load current at the desired value.
internal current-control circuitry (or by the PHASE or
ENABLE inputs). The comparator output is blanked to
prevent false over-current detections due to reverse-
recovery currents of the clamp diodes, and/or switching
transients related to distributed capacitance in the load.
During internal PWM operation, at the end of the t
OFF
time, the comparator’s output is blanked and C
T
begins to
be charged from approximately 1.1 volts by an internal
current source of approximately 1 mA. The comparator
output remains blanked until the voltage on C
T
reaches
approximately 3.0 volts.
When a transition of the PHASE input occurs, C
T
is discharged to near ground during the crossover delay
time (The crossover delay time is present to prevent
simultaneous conduction of the source and sink drivers).
After the crossover delay, C
T
is charged by an internal cur-
rent source of approximately 1 mA. The comparator out-
put remains blanked until the voltage on C
T
reaches
approximately 3.0 volts.
When the device is disabled, via the ENABLE input,
C
T
is discharged to near ground. When the device is
re-enabled, C
T
is charged by an internal current source
of approximately 1 mA. The comparator output remains
blanked until the voltage on C
T
reaches approximately
3.0 volts.
The minimum recommended value for C
T
is
1000 pF.
This value ensures that the blanking time is suffi-
cient to avoid false trips of the comparator under normal
operating conditions. For optimal regulation of the load
current, the above value for C
T
is recommended and the
value of R
T
can be sized to determine t
OFF
. For more infor-
mation regarding load current regulation, see below.
Load Current Regulation.
Because the device operates
in a slow decay mode (2-quadrant PWM mode), there is a
limit to the lowest level that the PWM current control cir-
cuitry can regulate load current. The limitation is due to the
minimum PWM duty cycle, which is a function of the user-
selected value of t
OFF
and the minimum on-time pulse
t
ON(min)
max that occurs each time the PWM latch is reset.
RC BLANKING.
In addition to determining the fixed off-
If the motor is not rotating, as in the case of a stepper mo-
time of the PWM control circuit, the C
T
component sets the
tor in hold/detent mode, a brush dc motor when stalled or
comparator blanking time. This function blanks the output
at startup, the worst case value of current regulation can
of the comparator when the outputs are switched by the
be approximated by:
[(V
BB
- V
SAT(SOURCE+SINK)
) t
ON(min)
max] – (1.05 (V
SAT(SINK)
+ V
F
) t
OFF
)
I
AVG
≈
1.05 (t
ON(min)
max + t
OFF
) R
LOAD
京公网安备 11010802033920号
EEWORLD
