ZBBAMDK54W-4: DescriptionDual Color LED, Red/blue, Water Clear, 1.3mm, 2 X 1.25 MM, 0.45 MM HEIGHT, ROHS COMPLIANT, SMD, 4 PIN; CategoryLED optoelectronic/LED photoelectric; File Size211KB，5 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZBBAMDK54W-4 Overview

Dual Color LED, Red/blue, Water Clear, 1.3mm, 2 X 1.25 MM, 0.45 MM HEIGHT, ROHS COMPLIANT, SMD, 4 PIN

ZBBAMDK54W-4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2 X 1.25 MM, 0.45 MM HEIGHT, ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	RED/BLUE
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	198.0/49.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	0.45 mm
method of packing	TAPE AND REEL
peak wavelength	650/468 nm
shape	RECTANGULAR
size	1.3 mm
surface mount	YES
Terminal pitch	1.8 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

ZBBAMDK54W-4

www.SunLED.com

2.0x1.25mm SMD CHIP LED LAMP

PRELIMINARY SPEC

Features

2.0mmx1.25mm SMT LED, 0.45mm MAX. THICKNESS.

BI -COLOR, LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACKLIGHT AND INDICATOR.

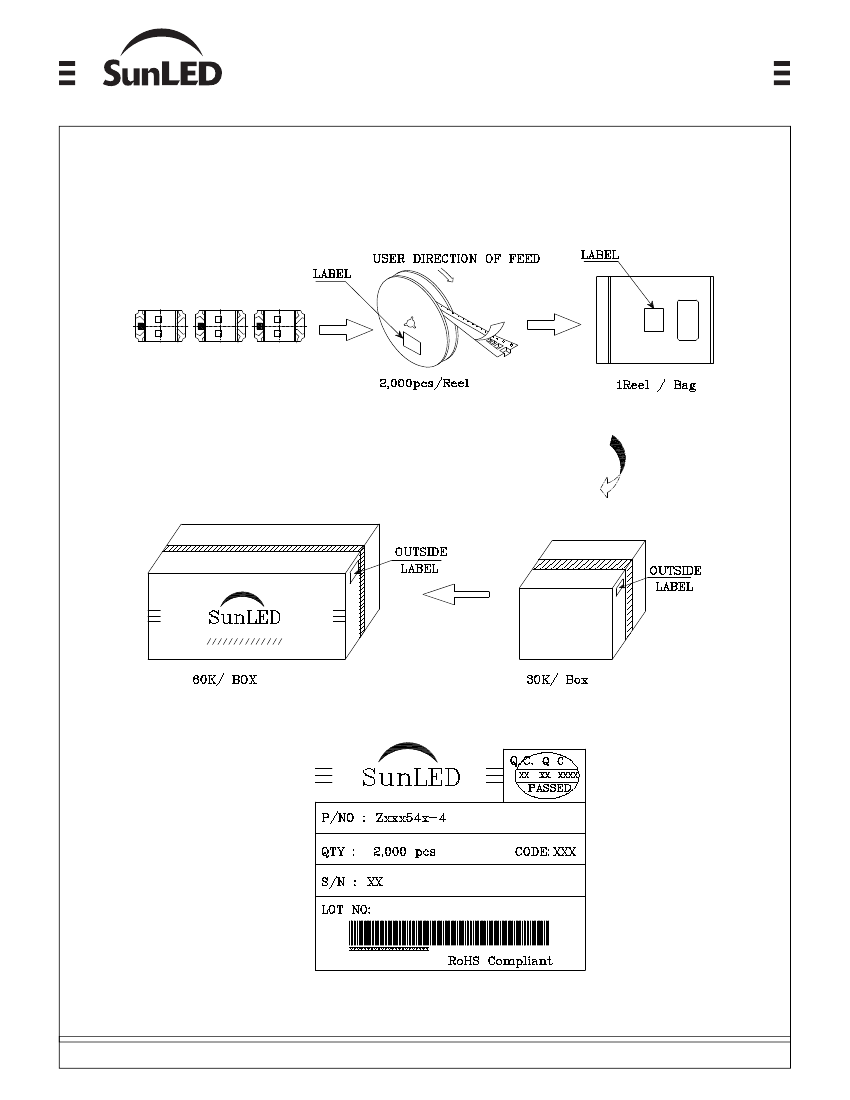

PACKAGE : 2000PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 3.

RoHS COMPLIANT.

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.1(0.004") unless otherwise noted.

3.Specifications are subject to change without notice.

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

BBA

MDK

(InGaN) (InGaAlP)

100

120

185

-40 ~ +85

1000

Unit

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=20mA)

Wavelength of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=20mA)

mcd

min.

ZBBAMDK54W-4

Blue

Red

InGaN

InGaAlP

Water Clear

typ.

198

468

650

120

BBA

MDK

(InGaN) (InGaAlP)

3.2

4.0

1.95

2.5

Unit

468

650

470

635

Δλ

Electrostatic Discharge Threshold

(HBM)

100

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Wavelength

Viewing

Angle

1/2

Published Date : JAN 31,2008

Drawing No :SDSA6137

Checked : B.L.LIU

P.1/5
