CBC20HS1000-030WXP3-509-3-VR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CBC20HS1000-030WXP3-509-3-VR

Preview

CBC20HS1000-030WXP3-509-3-VR: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size197KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

CBC20HS1000-030WXP3-509-3-VR Overview

Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,

CBC20HS1000-030WXP3-509-3-VR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	STANDARD: IEC 61076-4-104, 6 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	YES
IEC compliance	YES
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	CBC20HS1000
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

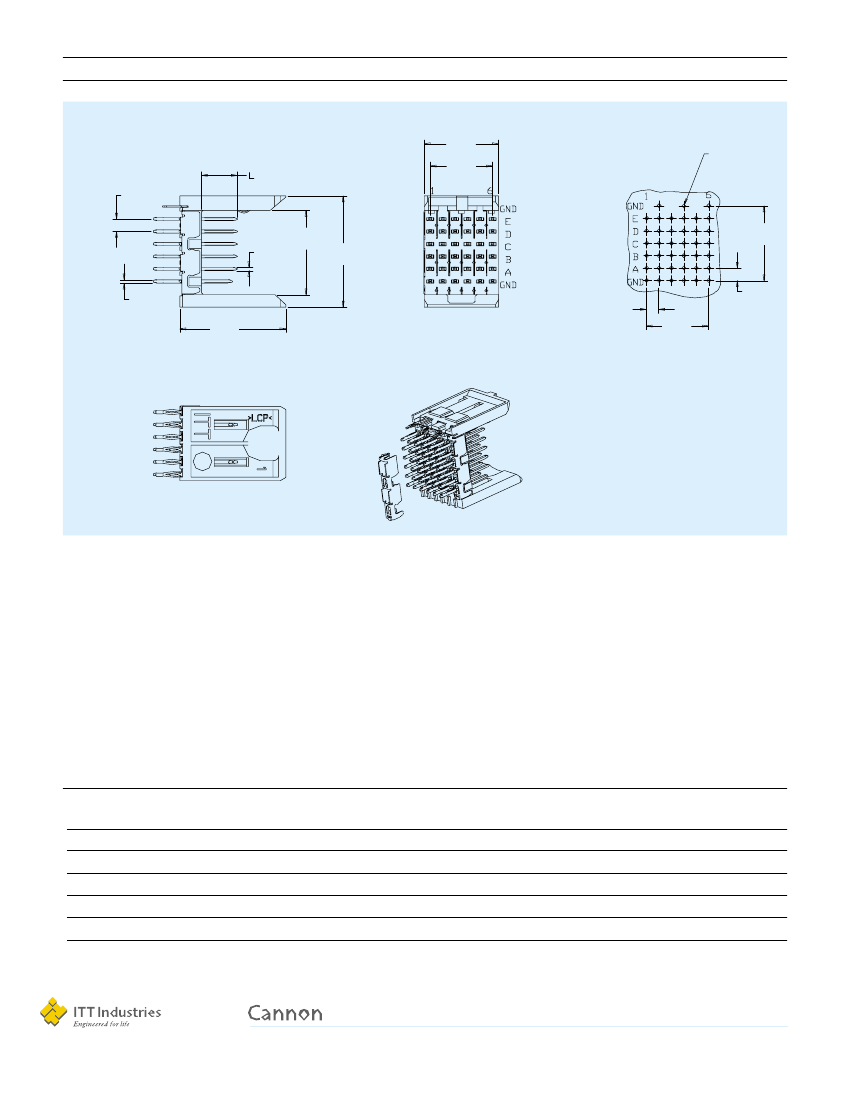

2 mm Interconnect

5-ROW - MALE SIGNAL MODULES - WIDE BODY

TEMPUS HS

11,98

(.471)

10,00

(.394)

2,00

(.079)

Ø0,65

(.026)

14,50

(.532)

0,50

(.020)

18,80

(.701)

12,00

(.472)

0,50

(.020)

17,00

(.669)

2,00

(.079)

2,00

(.079)

10,00

(.394)

Recommended P

.C.B. Hole Pattern

Component Side

Refer to Design Notes on page 14 for circuit board drill and hole plating details.

*

(Refer to Customer Drawing Number K026717Y2016.)

**

(Refer to Customer Drawing Number K026717Y2025.)

Part Number Nomenclature: CBC20HSwwww-030WXP3-zzz-y-VR

wwww : Series Number:

1000 = without stripline shield *

2000 = with stripline shield * *

y

: Plating Selection:

1 : 0.7

µm

PdNi (Palladium Nickel)

2 : 1.27µm Au (Gold)

3 : 0.8

µm

Au (Gold)

zzz : Sequencing/Pin Length, dim 'L':

Pattern No.*

501

502

503

505

509

GND-Row

5.00 (.196)

Row-A

5.00 (.196)

6.50 (.255)

5.75 (.226)

Row-B

5.00 (.196)

5.75 (.226)

6.50 (.255)

5.75 (.226)

Row-C

5.00 (.196)

5.75 (.226)

6.50 (.255)

5.75 (.226)

Row-D

5.00 (.196)

6.50 (.255)

5.75 (.226)

Row-E

5.00 (.196)

5.75 (.226)

6.50 (.255)

5.75 (.226)

*Other loading patterns possible upon request.

Dimensions are shown in mm (inch)

Dimensions subject to change

7
