CBC20HS2000-030WD-U1-501-1-VR datasheet, PDF

Datasheet> All Categories > The connector> The connector> CBC20HS2000-030WD-U1-501-1-VR

CBC20HS2000-030WD-U1-501-1-VR: Description30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

CBC20HS2000-030WD-U1-501-1-VR Overview

30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

CBC20HS2000-030WD-U1-501-1-VR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	STANDARD: IEC 61076-4-104, 6 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	YES
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	CBC20HS2000
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

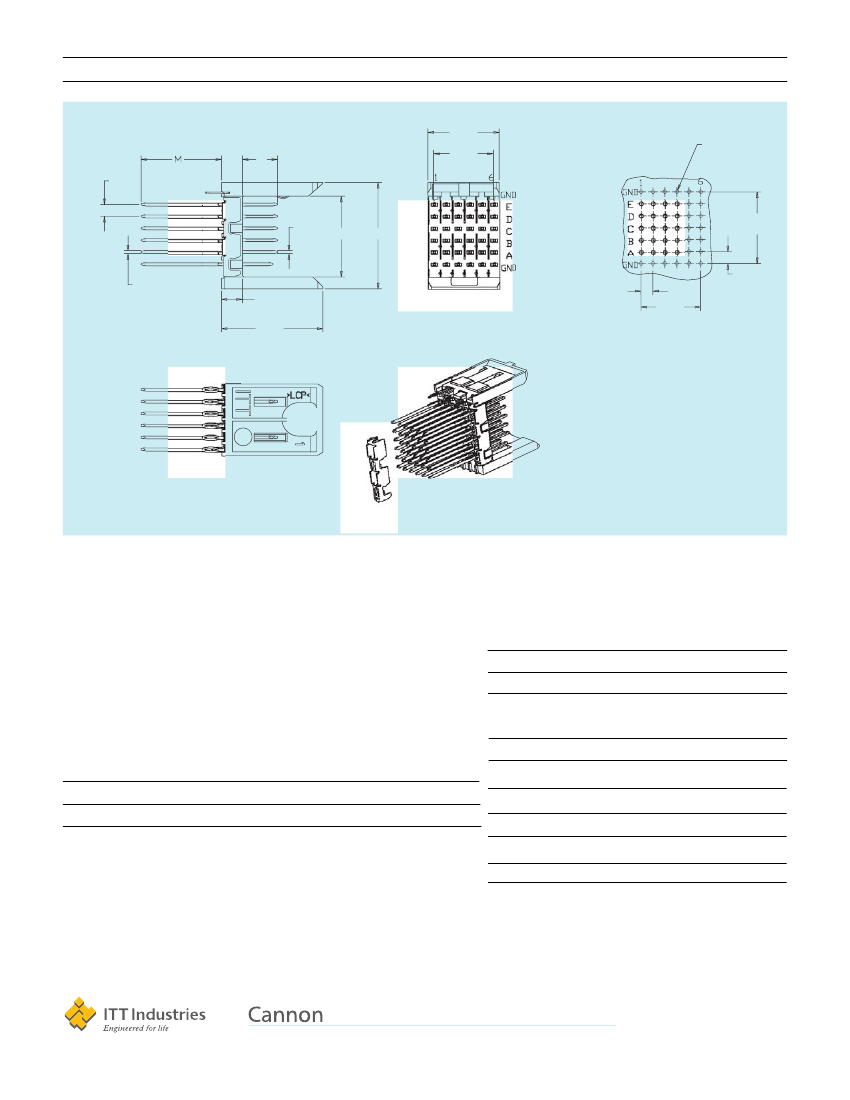

2 mm Interconnect

5-ROW - MALE SIGNAL MODULES - FEED-THROUGH

TEMPUS HS

11,98

(.471)

2,00

(.079)

10,00

(.394)

Ø0,65

(.026)

0,50

(.020)

K + 4.3

12,00

(.472)

0,50

(.020)

2,00

(.079)

3,50

(.138)

17,00

(.669)

2,00

(.079)

10,00

(.394)

Recommended P

.C.B. Hole Pattern

Component Side

Refer to Design

(1)*

(2)*

(1)* *

(2)* *

Notes on page 14 for circuit board drill and hole plating details.

(Refer to Customer Drawing Number K026717Y2021.)

(Refer to Customer Drawing Number K026717Y2022.)

(Refer to Customer Drawing Number K026717Y2027.)

(Refer to Customer Drawing Number K026717Y2028.)

Part Number Nomenclature : CBC20HSwwww-030Wuvv-zzz-y-VR

wwww

: Series Number:

1000 = without stripline shield *

2000 = with stripline shield * *

: Housing Version:

Standard (1)

Wide-Body (2)

vv-zzz : Sequencing/Pin Length:

Pattern No.*

vv-zzz

Dim 'L'

GND

-Row

U1-501

U1-503

U1-509

V2-501

V2-503

V2-509

5.00 (.196)

Signals

A-F

5.00 (.196)

6.50 (.255)

5.75 (.226)

5.00 (.196)

6.50 (.255)

5.75 (.226)

13.60 (.535)

17.00 (.669)

Dim 'M'

All

Dim 'K'

13.50 (.532)

14.50 (.571)

PCB Thickness

1.20 - 2.50 (.047 - .098)

1.20 - 3.40 (.047 - .134)

: Plating Selection:

1 : 0.7

µm

PdNi (Palladium Nickel)

2 : 1.27

µm

Au (Gold)

3 : 0.8

µm

Au (Gold)

*Other loading patterns possible upon request.

Dimensions are shown in mm (inch)

Dimensions subject to change

Recommended Resources

SRS system block diagram

Low Power Supply Regulator ADM66304

Bidirectional thyristor zero-crossing switching circuit
