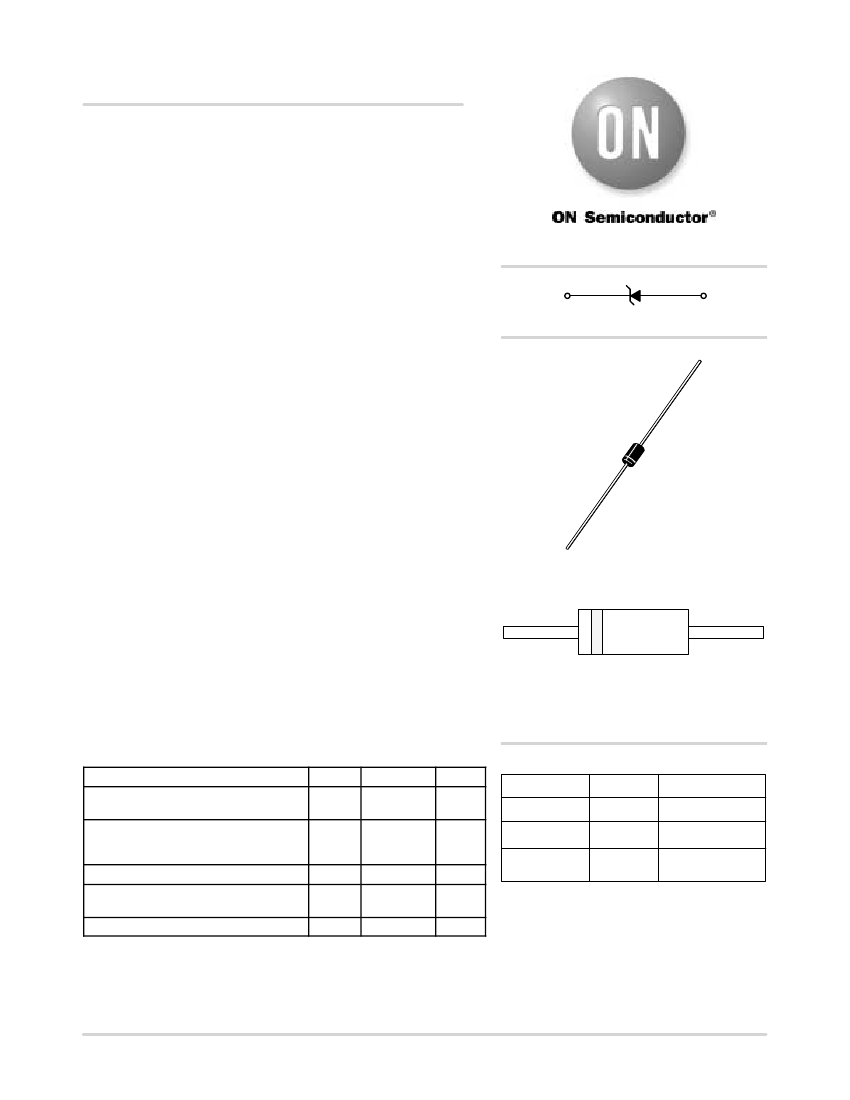

SA5.0A Series
500 Watt Peak Power
MiniMOSORBE Zener
Transient Voltage
Suppressors
Unidirectional
The SA5.0A series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SA5.0A series is supplied in
ON Semiconductor’s exclusive, cost-effective, highly reliable
Surmetic axial leaded package and is ideally-suited for use in
communication systems, numerical controls, process controls,
medical equipment, business machines, power supplies and many
other industrial/consumer applications.
Specification Features:
http://onsemi.com
Cathode
Anode
•
•
•
•
•
•
•
•
Working Peak Reverse Voltage Range − 5.0 to 170 V
Peak Power − 500 Watts @ 1.0 ms
ESD Rating of Class 3 (>16 kV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 1
mA
above 8.5 V
UL 497B for Isolated Loop Circuit Protection
Maximum Temperature Coefficient Specified
Response Time is typically < 1.0 ns
AXIAL LEAD
CASE 59
PLASTIC
Mechanical Characteristics:
CASE:
Void-free, Transfer-molded, Thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING:
230°C,
L
SA
xxxA
YYWW
L = Assembly Location
SAxxxA = ON Device Code
YY = Year
WW = Work Week
1/16″ from the case for 10 seconds
POLARITY:
Cathode indicated by polarity band.
MOUNTING POSITION:
Any
MAXIMUM RATINGS
Rating
Peak Power Dissipation (Note 1)
@ TL
≤
25°C
Steady State Power Dissipation
@ TL
≤
75°C, Lead Length = 3/8″
Derated above TL = 75°C
Thermal Resistance, Junction−to−Lead
Forward Surge Current (Note 2)
@ TA = 25°C
Operating and Storage Temperature Range
Symbol
PPK
PD
Value
500
3.0
30
R
qJL
IFSM
TJ, Tstg
33.3
70
− 55 to +175
Unit
Watts
Watts
mW/°C
°C/W
Amps
°C
ORDERING INFORMATION
Device
SAxxxA
SAxxxARL*
SAxxxALF**
Package
Axial Lead
Axial Lead
Axial Lead
Shipping
†
1000 Units / Box
5000 / Tape & Reel
2000 Units / Box
1. Nonrepetitive current pulse per Figure 4 and derated above TA = 25°C per
Figure 2.
2. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses
per minute.
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
*SA8.0A, SA130A, and SA160A Not Available in
5000/Tape & Reel.
** Lead formed device.
Semiconductor Components Industries, LLC, 2004
253
April, 2004 − Rev. 9
Publication Order Number:
SA5.0A/D
SA5.0A Series
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless
otherwise noted, VF = 3.5 V Max. @ IF (Note 6) = 35 A)
Symbol
IPP
VC
VRWM
IR
VBR
IT
QV
BR
IF
VF
Parameter
Maximum Reverse Peak Pulse Current
Clamping Voltage @ IPP
Working Peak Reverse Voltage
Maximum Reverse Leakage Current @ VRWM
Breakdown Voltage @ IT
Test Current
Maximum Temperature Variation of VBR
Forward Current
Forward Voltage @ IF
IPP
VC VBR VRWM
IR VF
IT
V
IF
I
Uni−Directional TVS
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted, VF = 3.5 V Max. @ IF (Note 6) = 35 A)
VRWM
(Note 3)
Volts
5
6
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
Breakdown Voltage
IR @ VRWM
mA
600
600
150
50
25
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
VBR
(Note 4)
(Volts)
Min
6.4
6.67
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
Nom
6.7
7.02
8.19
8.77
9.36
9.92
10.55
11.7
12.85
14
15.15
16.4
17.6
18.75
19.9
21.05
23.35
25.65
28.1
30.4
32.75
35.05
Max
7
7.37
8.6
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
@ IT
mA
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
VC @ IPP
(Note 5)
VC
Volts
9.2
10.3
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
IPP
A
54.3
48.5
41.7
38.8
36.7
34.7
32.5
29.4
27.4
25.1
23.2
21.5
20.6
19.2
18.1
17.2
15.4
14.1
12.8
11.9
11
10.3
QV
BR
mV/°C
5
5
6
7
7
8
9
10
11
12
13
14
16
17
19
20
23
25
28
30
31
36
Device
SA5.0A
SA6.0A
SA7.0A
SA7.5A
SA8.0A*
SA8.5A
SA9.0A
SA10A
SA11A
SA12A
SA13A
SA14A
SA15A
SA16A
SA17A
SA18A
SA20A
SA22A
SA24A
SA26A
SA28A
SA30A
NOTE:
Device
Marking
SA5.0A
SA6.0A
SA7.0A
SA7.5A
SA8.0A*
SA8.5A
SA9.0A
SA10A
SA11A
SA12A
SA13A
SA14A
SA15A
SA16A
SA17A
SA18A
SA20A
SA22A
SA24A
SA26A
SA28A
SA30A
Devices listed in
bold, italic
are ON Semiconductor
Preferred
devices.
Preferred
devices are recommended choices for
future use and best overall value.
3. MiniMOSORB transients suppressor is normally selected according to the maximum working peak reverse voltage (VRWM), which
should be equal to or greater than the dc or continuous peak operating voltage level.
4. VBR measured at pulse test current IT at an ambient temperature of 25°C.
5. Surge current waveform per Figure 4 and derate per Figures 1 and 2.
6. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute
*Not Available in the 5000/Tape & Reel.
http://onsemi.com
254
SA5.0A Series
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted, VF = 3.5 V Max. @ IF (Note 6) = 35 A)
VRWM
(Note 3)
Volts
33
36
40
43
45
48
51
58
60
64
64
70
78
90
100
110
120
130
150
160
170
Breakdown Voltage
IR @ VRWM
mA
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
VBR
(Note 4)
(Volts)
Min
36.7
40
44.4
47.8
50
53.3
56.7
64.4
66.7
71.1
71.1
77.8
86.7
100
111
122
133
144
167
178
189
Nom
38.65
42.1
46.55
50.3
52.65
56.1
59.7
67.8
70.2
74.85
74.85
81.9
91.25
105.5
117
128.5
140
151.5
176
187.5
199
Max
40.6
44.2
49.1
52.8
55.3
58.9
62.7
71.2
73.7
78.6
78.6
86
95.8
111
123
135
147
159
185
197
209
@ IT
mA
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
VC @ IPP
(Note 5)
VC
Volts
53.3
58.1
64.5
69.4
72.7
77.4
82.4
93.6
96.8
103
103
113
126
146
162
177
193
209
243
259
275
IPP
A
9.4
8.6
7.8
7.2
6.9
6.5
6.1
5.3
5.2
4.9
4.9
4.4
4.0
3.4
3.1
2.8
2.5
2.4
2.1
1.9
1.8
QV
BR
mV/°C
39
41
46
50
52
56
61
70
71
76
76
85
95
110
123
133
146
158
184
196
208
Device
SA33A
SA36A
SA40A
SA43A
SA45A
SA48A
SA51A
SA58A
SA60A
SA64A
SA64ALF
SA70A
SA78A
SA90A
SA100A
SA110A
SA120A
SA130A*
SA150A
SA160A*
SA170A
NOTE:
Device
Marking
SA33A
SA36A
SA40A
SA43A
SA45A
SA48A
SA51A
SA58A
SA60A
SA64A
SA64A
SA70A
SA78A
SA90A
SA100A
SA110A
SA120A
SA130A*
SA150A
SA160A*
SA170A
Devices listed in
bold, italic
are ON Semiconductor
Preferred
devices.
Preferred
devices are recommended choices for
future use and best overall value.
3. MiniMOSORB transients suppressor is normally selected according to the maximum working peak reverse voltage (VRWM), which
should be equal to or greater than the dc or continuous peak operating voltage level.
4. VBR measured at pulse test current IT at an ambient temperature of 25°C.
5. Surge current waveform per Figure 4 and derate per Figures 1 and 2.
6. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute
*Not Available in the 5000/Tape & Reel.
http://onsemi.com
255
SA5.0A Series
NONREPETITIVE PULSE
WAVEFORM SHOWN IN
FIGURE 4
10
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT @ T A = 25 C
°
100
P K , PEAK POWER (kW)
P
100
80
60
40
20
0
0
25
50 75 100 125 150 175 200
TA, AMBIENT TEMPERATURE (°C)
1
0.1
0.1
ms
1
ms
10
ms
100
ms
1 ms
10 ms
tp, PULSE WIDTH
Figure 1. Pulse Rating Curve
Figure 2. Pulse Derating Curve
tr
≤
10
ms
10,000
C, CAPACITANCE (pF)
MEASURED @
ZERO BIAS
100
VALUE (%)
PEAK VALUE − IPP
PULSE WIDTH (tp) IS
DEFINED AS THAT POINT
WHERE THE PEAK
CURRENT DECAYS TO
50% OF IPP.
IPP
2
1000
HALF VALUE −
50
tP
0
100
MEASURED @
(VRWM)
1
10
100
1000
0
10
0.1
1
2
3
4
VBR, BREAKDOWN VOLTAGE (VOLTS)
t, TIME (ms)
Figure 3. Capacitance versus Breakdown Voltage
Figure 4. Pulse Waveform
PD, STEADY STATE POWER DISSIPATION (WATTS)
5
4
3/8″
3/8″
3
2
1
0
0 25 50 75 100 125 150 175 200
TL, LEAD TEMPERATURE (°C)
Figure 5. Steady State Power Derating
http://onsemi.com
256
SA5.0A Series
UL RECOGNITION*
The entire series including the bidirectional CA suffix has
Underwriters Laboratory Recognition
for the classification
of protectors (QVGV2) under the UL standard for safety
497B and File #E 116110. Many competitors only have one
or two devices recognized or have recognition in a
non-protective category. Some competitors have no
recognition at all. With the UL497B recognition, our parts
successfully passed several tests including Strike Voltage
Breakdown test, Endurance Conditioning, Temperature test,
Dielectric Voltage-Withstand test, Discharge test and
several more.
Whereas, some competitors have only passed a
flammability test for the package material, we have been
recognized for much more to be included in their protector
category.
*Applies to SA5.0A, CA − SA170A, CA.
http://onsemi.com
257
