1-1623776-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 1-1623776-9

1-1623776-9: DescriptionFixed Resistor, Metal Glaze/thick Film, 5W, 5ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size85KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1623776-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1623776-9	-	-	View	Buy Now

1-1623776-9 Overview

Fixed Resistor, Metal Glaze/thick Film, 5W, 5ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

1-1623776-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TRAY
Rated power dissipation(P)	5 W
resistance	5 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal shape	FLAT
Tolerance	5%
Operating Voltage	300 V
Base Number Matches	1

Preview

Download Datasheet

View All

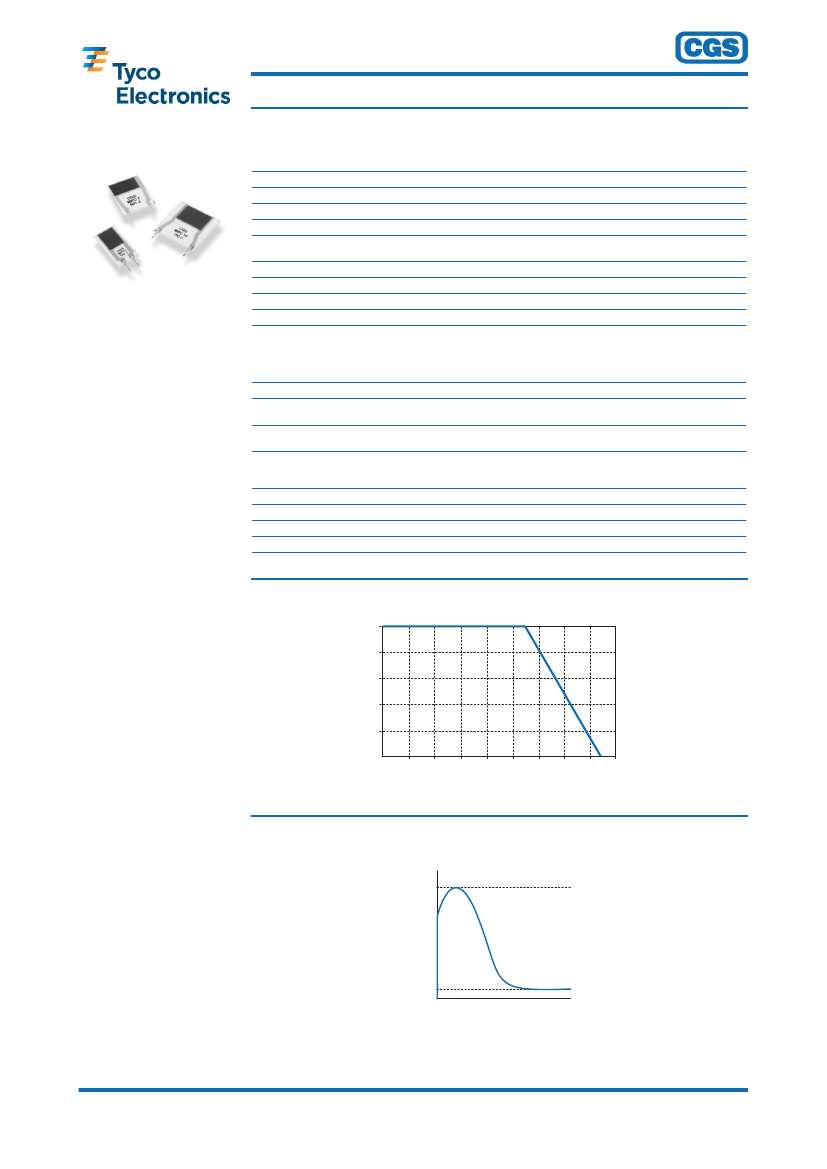

High Power Resistors

Type MPC Series

Characteristics -

Electrical

Resistance Values:

Resistance Tolerance:

Temp. Coefficient of Resistance:

Rated Power @ 70°C:

Equivalent Parallel Capacitance

(100 MHz):

Maximum Operating Voltage:

Withstanding Voltage:

A range of non inductive thick film

power resistors complementing the

T0220

packaged

MPR

series

(20 Watt heat sink styles), being

vertically mounted and suitable to

dissipate power from 3 Watts up to

10 Watts. Available in values from

1R0 to 200K ohms they are the

idea solution for small snubber

circuits, the output side of high

speed pulse generators and low

inductive resistor requirements in

switch mode power supplies.

R10 to 200K

1%, 5%

±100ppm/°C

3 to 10 Watts nominal

1.0pf

300V AC

5000V

-55°C to +125°C

20 x rated current up to 8 ms ( ΔR ± 0.5%)

Operating Temperature Range:

Overload Current:

Characteristics -

Mechanical

Test Condition MILR83401

Life (Rated Power):

Life (Moisture Load):

Temperature Cycling:

40°C, rated power, 90 min ON

30 min OFF, 1000 hrs.

60°C, 90 - 95% RH, rated power

90 min ON 30 min OFF, 1000 hrs.

Room temp > -55°C 30 min > RT

10 min ± 120°C 30 min > RT 10 min

5 cycles

UL94V-O rated

350°C Solderpot, 3 secs.

DC 100V, 1 min

10 - 50 Hz, 1 min, 20G, X-Y-Z 1 hr.

ΔR± ( 0.25% + 0.05 ohm)

Over 1000M ohm

ΔR± (0.25% + 0.05 ohm)

Specification

ΔR± ( 1.0% + 0.05 ohm)

ΔR± ( 0.25% + 0.05 ohm)

Flammability:

Soldering Heat:

Insulation Resistance:

Vibration:

Key Features

■

High Power Density

Easy to Mount

Non Inductive

Stable at 100ppm/°C

Temperature Range

-55°C to +125°C

High Power up to

10 Watts

Voltage Proof 5000V dc

Non Flammable

Power Derating Curve

100

-55

-40

-20

0 20 40

60 70 80

100

120 125

Ambient Temperature (°C)

Overload Characteristics

Percent Rated Power

20 x Nominal

Power Rating

Power

Time (milliseconds)

Literature No. 1773248

Issued: 02-08

Dimensions are shown for

reference purposes only.

Dimensions are in

millimetres unless

otherwise specified.

Specifications subject to

change.

tycoelectronics.com

passives.tycoelectronics.com

1-1623776-9 Related Products

	1-1623776-9	1-1623776-0	1-1623775-4	1623775-6	1623776-1	1623776-6	1623775-3
Description	Fixed Resistor, Metal Glaze/thick Film, 5W, 5ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 5W, 2000ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 10W, 50000ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 10W, 5ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 5W, 10ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 5W, 1ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 10W, 1ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT	,	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	not_compliant	compliant	compliant	compliant	not_compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TRAY	BULK, TRAY	BULK, TRAY	TRAY	TRAY	TRAY	TRAY
Rated power dissipation(P)	5 W	5 W	10 W	10 W	5 W	5 W	10 W
resistance	5 Ω	2000 Ω	50000 Ω	5 Ω	10 Ω	1 Ω	1 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	METAL GLAZE/THICK FILM	THICK FILM	THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Tolerance	5%	5%	5%	5%	5%	5%	5%
Operating Voltage	300 V	300 V	300 V	300 V	300 V	300 V	300 V
Base Number Matches	1	-	-	1	1	1	-
