LT1513CR-2#PBF: DescriptionIC 5.4 A BATTERY CHARGE CONTROLLER, 580 kHz SWITCHING FREQ-MAX, PSSO7, PLASTIC, D2PAK-7, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size834KB，16 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

LT1513CR-2#PBF Overview

IC 5.4 A BATTERY CHARGE CONTROLLER, 580 kHz SWITCHING FREQ-MAX, PSSO7, PLASTIC, D2PAK-7, Switching Regulator or Controller

LT1513CR-2#PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	D2PAK
package instruction	TO-263, SMSIP7H,.55,50TB
Contacts	7
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	25 V
Minimum input voltage	2.7 V
Nominal input voltage	5 V
JESD-30 code	R-PSSO-G7
JESD-609 code	e3
length	10.2235 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	7
Maximum output current	5.4 A
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Encapsulate equivalent code	SMSIP7H,.55,50TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.877 mm
Maximum supply current (Isup)	5.5 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	580 kHz
technology	BIPOLAR
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

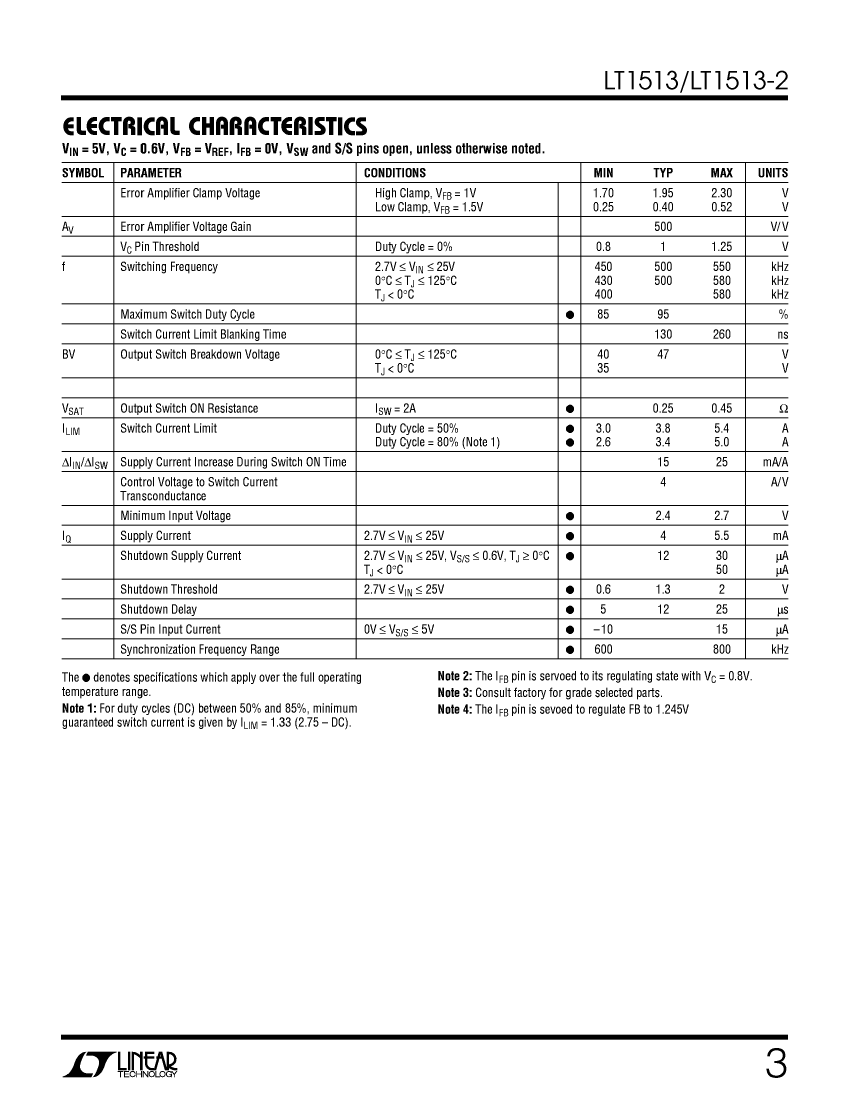

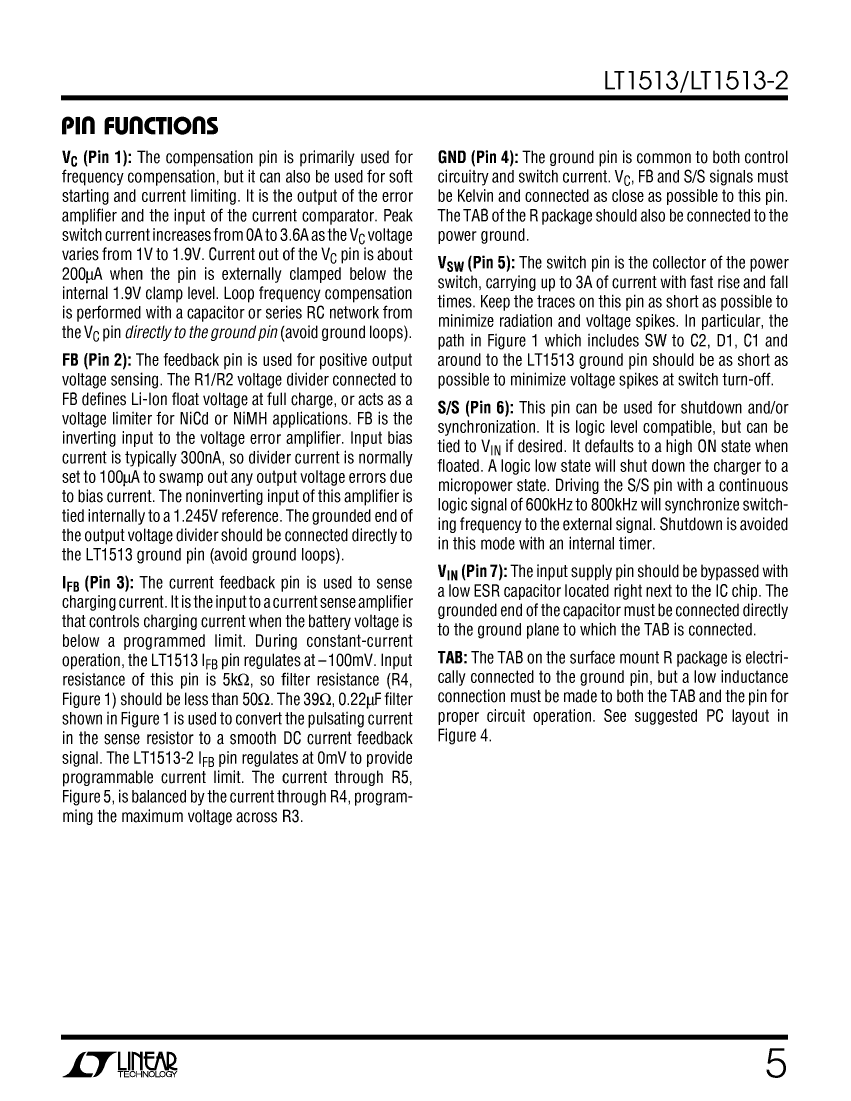

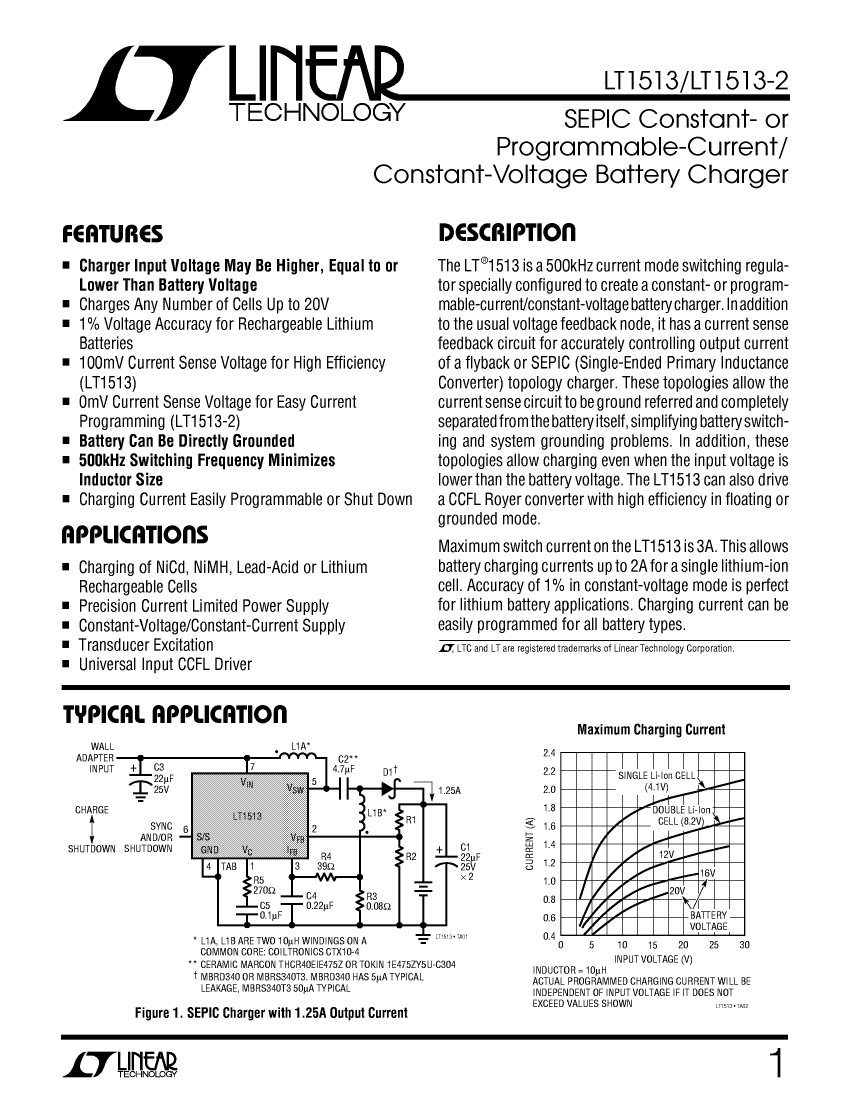

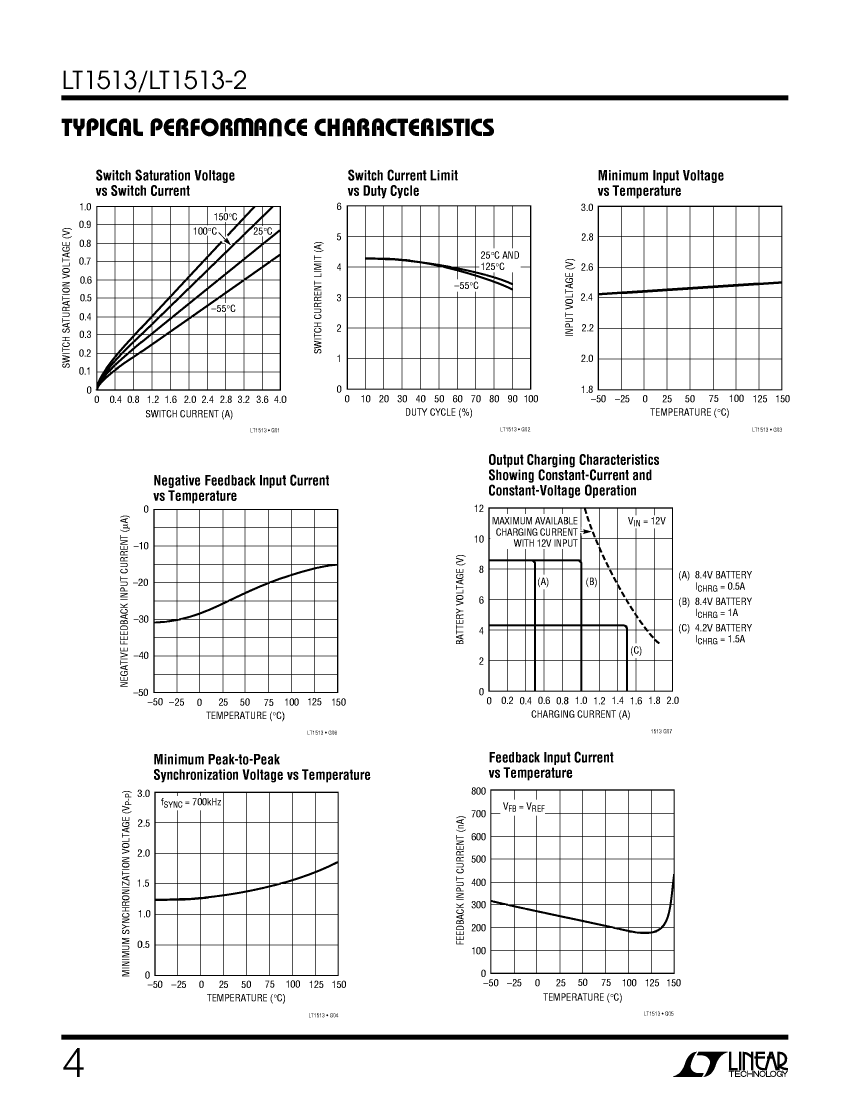

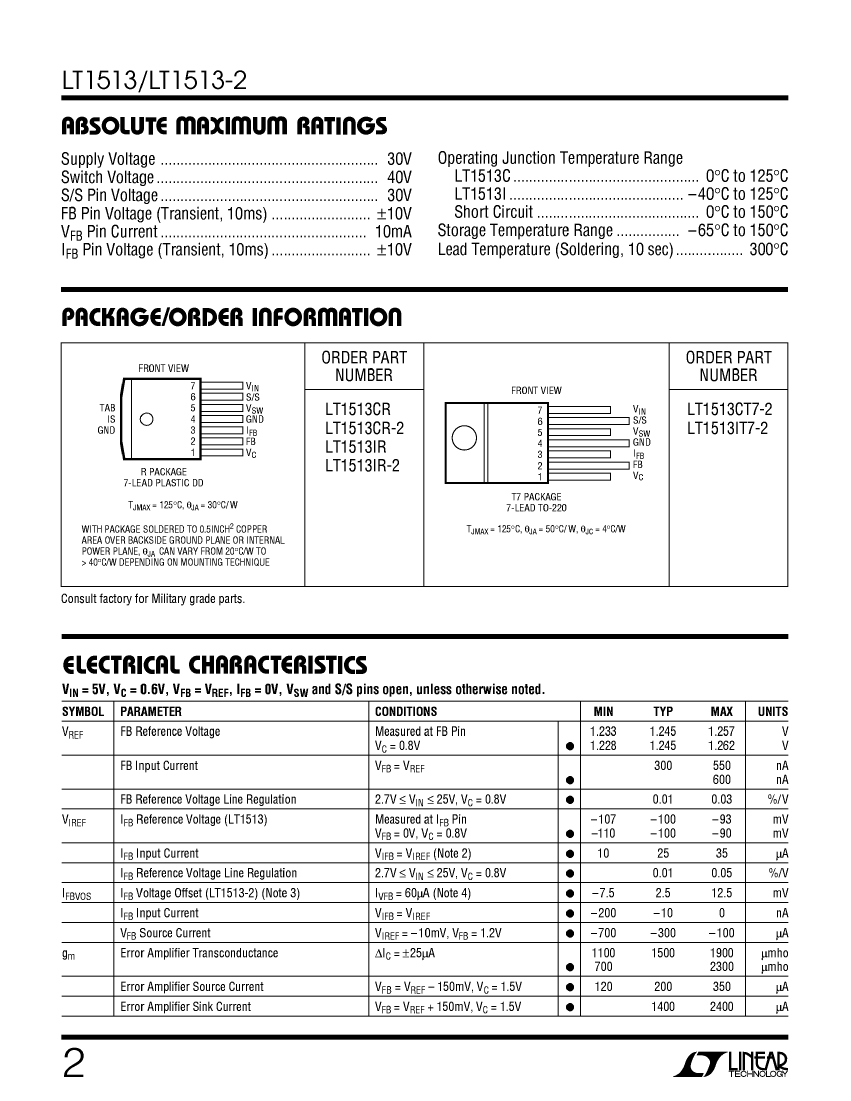

Preview

Download Datasheet

View All

LT1513CR-2#PBF Related Products

	LT1513CR-2#PBF	LT1513IR-2#PBF
Description	IC 5.4 A BATTERY CHARGE CONTROLLER, 580 kHz SWITCHING FREQ-MAX, PSSO7, PLASTIC, D2PAK-7, Switching Regulator or Controller	IC 5.4 A BATTERY CHARGE CONTROLLER, 580 kHz SWITCHING FREQ-MAX, PSSO7, PLASTIC, D2PAK-7, Switching Regulator or Controller
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Parts packaging code	D2PAK	D2PAK
package instruction	TO-263, SMSIP7H,.55,50TB	TO-263, SMSIP7H,.55,50TB
Contacts	7	7
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	25 V	25 V
Minimum input voltage	2.7 V	2.7 V
Nominal input voltage	5 V	5 V
JESD-30 code	R-PSSO-G7	R-PSSO-G7
JESD-609 code	e3	e3
length	10.2235 mm	10.2235 mm
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	7	7
Maximum output current	5.4 A	5.4 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-263	TO-263
Encapsulate equivalent code	SMSIP7H,.55,50TB	SMSIP7H,.55,50TB
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	250	250
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.877 mm	4.877 mm
Maximum supply current (Isup)	5.5 mA	5.5 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Switch configuration	SINGLE	SINGLE
Maximum switching frequency	580 kHz	580 kHz
technology	BIPOLAR	BIPOLAR
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	8.89 mm	8.89 mm
