BG-C506RD datasheet, PDF - EEWORLD Datasheet

BG-C506RD: Description7 Seg Numeric LED Display, 2-Character, 13mm; CategoryLED optoelectronic/LED photoelectric; File Size256KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

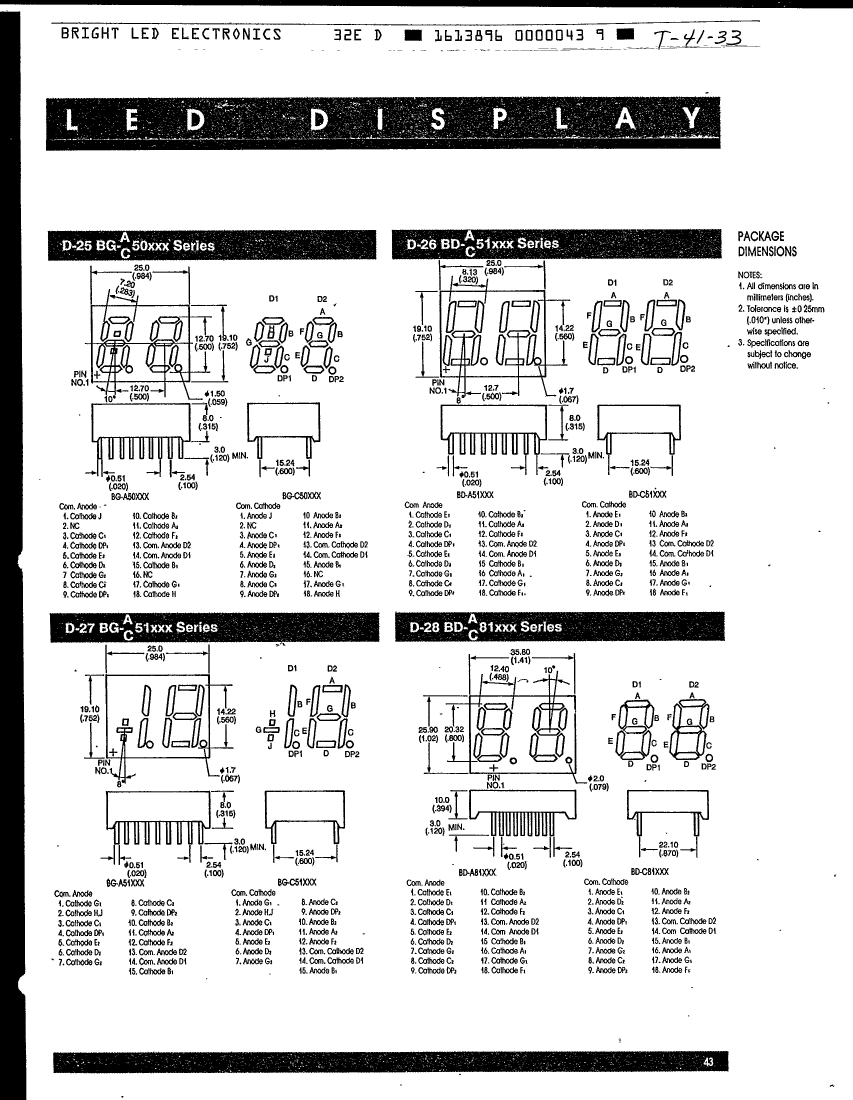

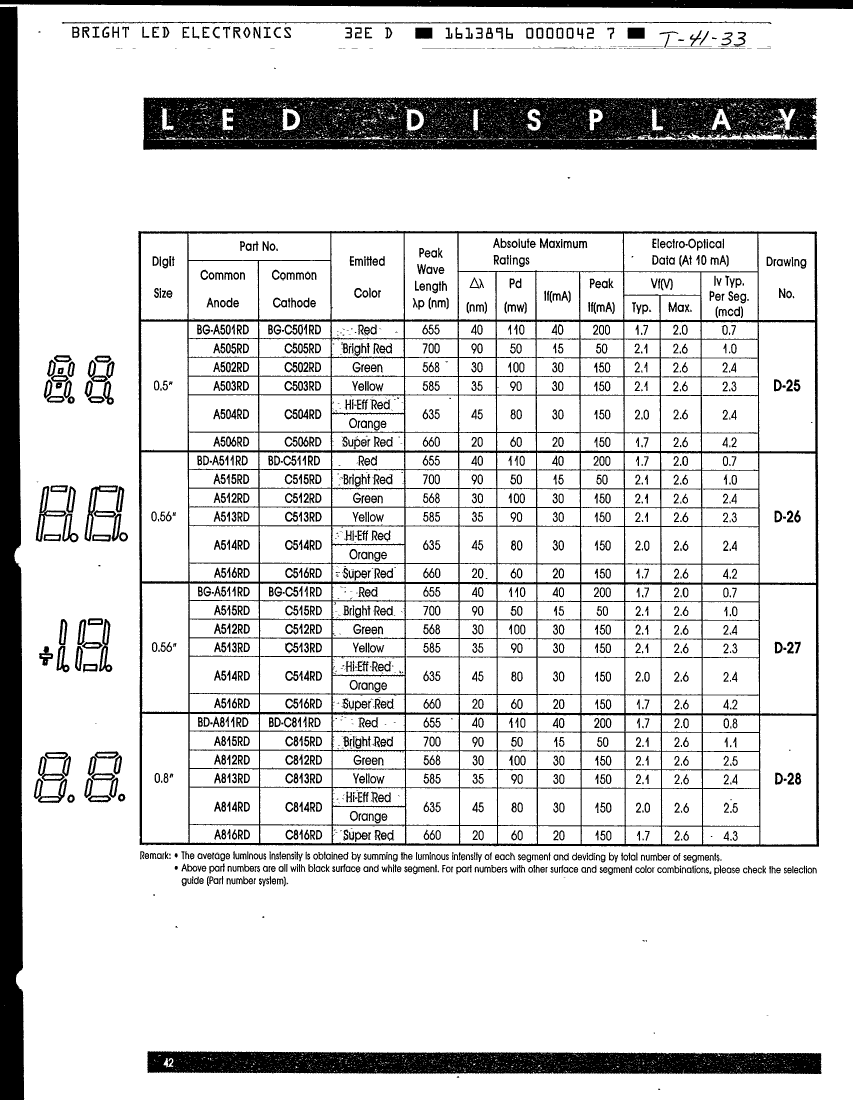

BG-C506RD Overview

7 Seg Numeric LED Display, 2-Character, 13mm

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
color@wavelength	Red
Configuration	Common Cathode
Display height	13 mm
Maximum forward voltage	2.6 V
JESD-609 code	e0
Number of characters	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	7 SEG NUMERIC LED DISPLAY
peak wavelength	660 nm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	BG-C506RD	BD-C511RD	BD-C516RD	BD-A511RD	BG-C511RD	BG-C513RD
Description	7 Seg Numeric LED Display, 2-Character, 13mm	7 Seg Numeric LED Display, 2-Character, 14mm	7 Seg Numeric LED Display, 2-Character, 14mm	7 Seg Numeric LED Display, 1.5-Character, 14mm	7 Seg Numeric LED Display, 1.5-Character, 14mm	7 Seg Numeric LED Display, 1.5-Character, 14mm
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	Common Cathode	COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT	Common Anode	Common Cathode	Common Cathode
Display height	13 mm	14.224 mm	14.224 mm	14 mm	14 mm	14 mm
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible	incompatible
color@wavelength	Red	-	-	Red	Red	Yellow
Maximum forward voltage	2.6 V	-	-	2 V	2 V	2.6 V
JESD-609 code	e0	-	-	e0	e0	e0
Number of characters	2	-	-	1.5	1.5	1.5
peak wavelength	660 nm	-	-	655 nm	655 nm	585 nm
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	-	-
Maker	-	BRIGHT	BRIGHT	-	BRIGHT	BRIGHT
