WP813SRD/G Overview

10mm SOLID STATE LAMP

Preview

Download Datasheet

View All

10mm SOLID STATE LAMP

Part Number: WP813SRD/G

Super Bright Red

Features

10mm diameter big lamp.

Reliable and rugged.

Long life - solid state reliability.

RoHS compliant.

Description

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

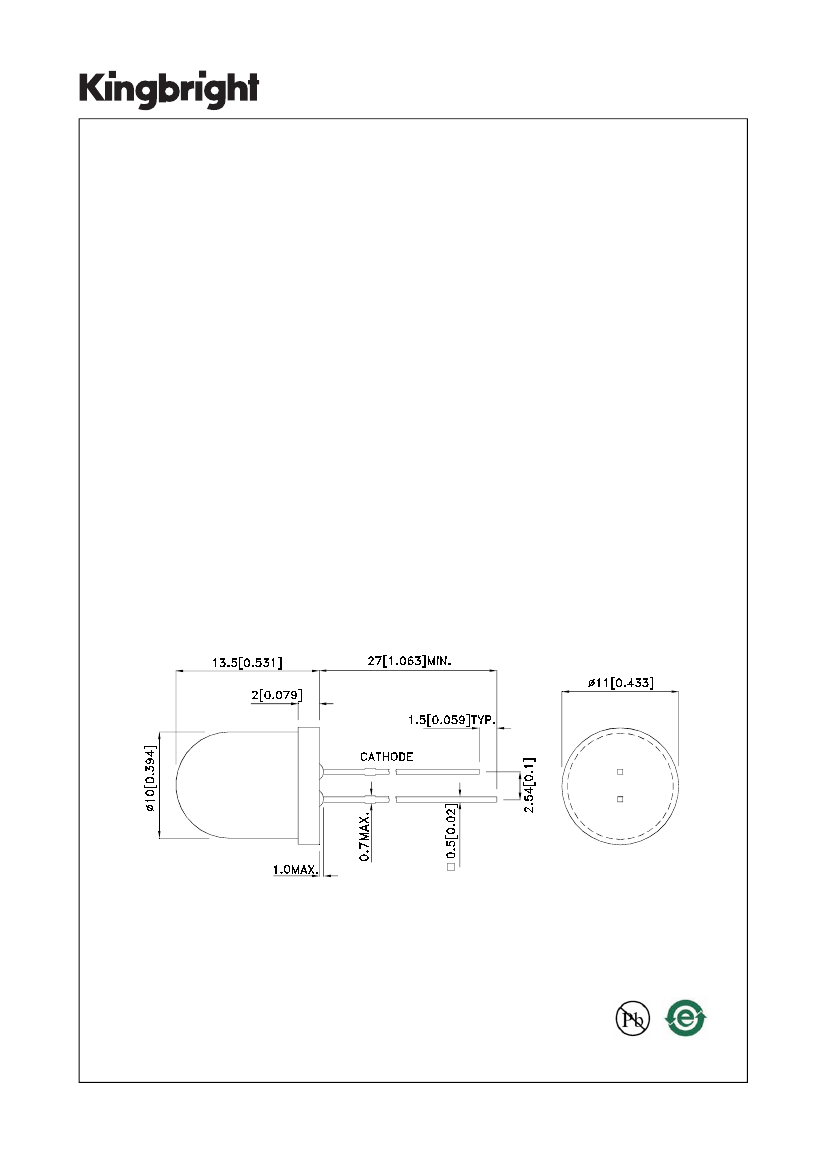

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAF2474

APPROVED: WYNEC

REV NO: V.3

CHECKED: Allen Liu

DATE: MAR/17/2011

DRAWN: J.Yu

PAGE: 1 OF 6

ERP: 1101007647-01
