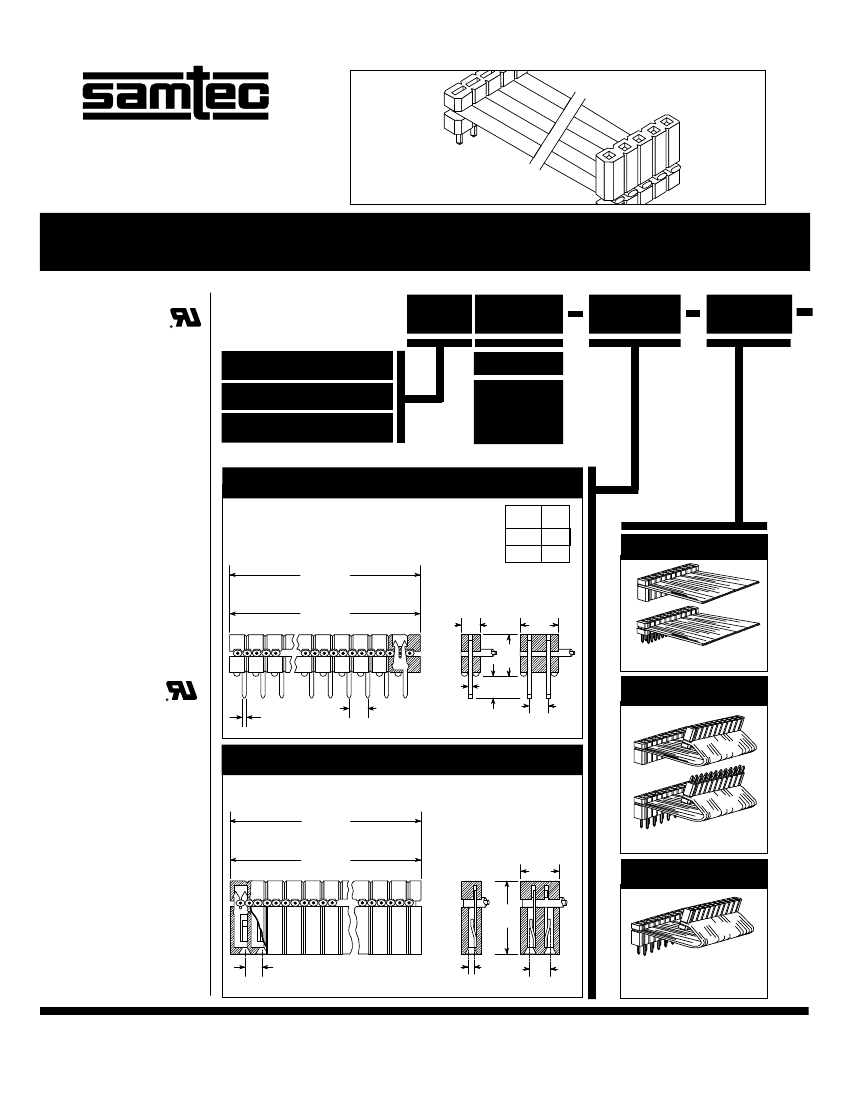

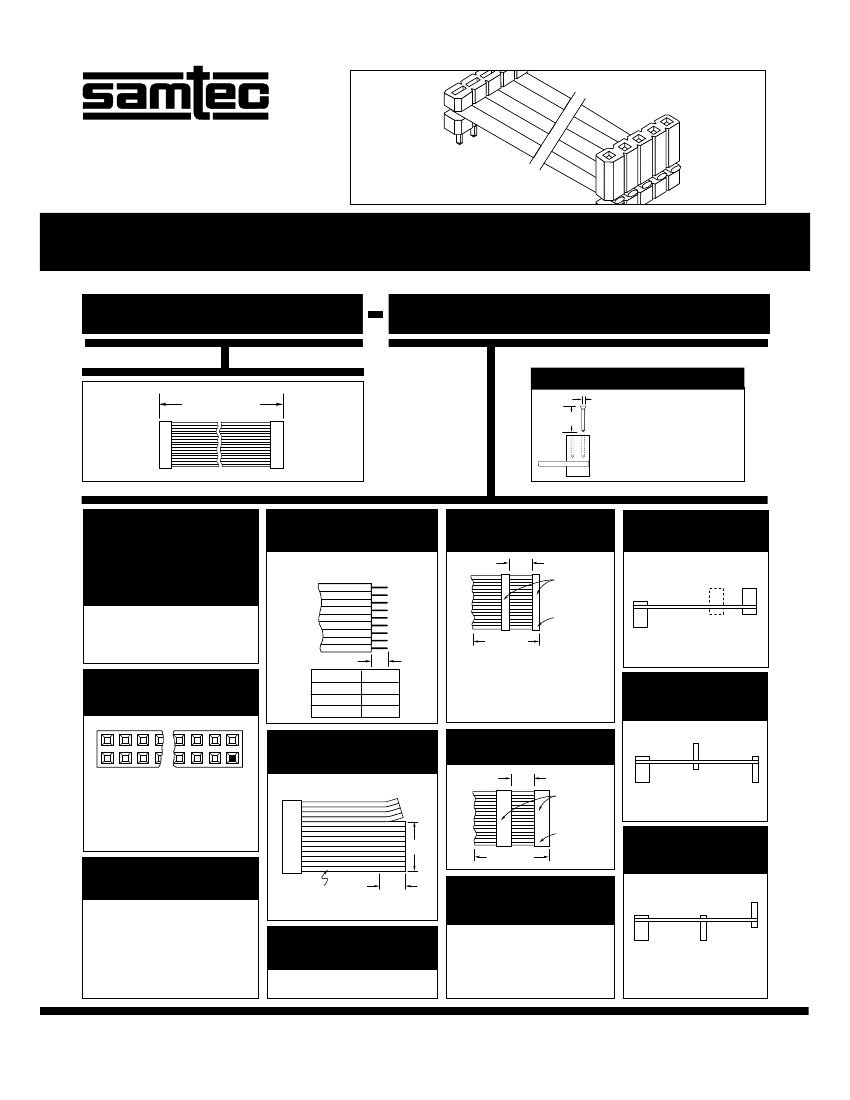

FACTSHEET F-200 SUPPLEMENT
IDSS–05–S–4
EDMS–05–S–4
IDC CABLE STRIPS
Specifications:
IDSS, IDSD
Insulator Material:
Black Glass Filled Polyester
Temperature Range:
-65°C to +80°C
Withstanding Voltage:
1000 VRMS @ 60 Hz
Contact:
BeCu
Plating:
Au over 50µ" (1,27µm) Ni or
Sn over 100µ" (2,54µm) Cu or
50µ" (1,27µm) Ni
Current Rating:
1A
Contact Resistance:
10 mΩ max
Socket Retention in Body:
5lb (22,25N) against barb
Lead Size Range:
.022" (0,56mm) SQ to
.028" (0,71mm) SQ
Lead Insertion Depth:
.185" (4,70mm) to .250"
(6,35mm)
Insertion Force:
4 oz avg
(.025" (0,63mm) SQ probe)
Withdrawal Force:
3 oz avg
(.025" (0,63mm) SQ probe)
Wire:
28 AWG 7/36 stranded
Tinned Copper
IDMS, IDMD, IDSS, IDSD
EDMS & EDMD SERIES
NO. PINS
PER ROW
END
ASSEMBLY
Mates with:
TSW, MTSW,
BST, LCW
TYPE
STRIP
ROW
OPTION
IDM
= Standard Tail Male Plug
EDM
= Long Tail Male Plug
IDS
= Socket
–02 thru –32
S
= Single
D
= Double
(Color coded cable
N/A for 31 thru 36
pins/row. See
–G option.)
TYPE
STRIP
A
(3,18)
.125
(5,08)
.200
IDM
DOUBLE
Full size (64 positions):
(82,55) 3.250
Less than 64 positions:
No. Positions/row X (2,54) .100 + (1,68) .066
SINGLE
Full Size (32 positions):
(81,53) 3.210
Less than 32 positions:
No. Positions/row X (2,54) .100 + (0,71) .028
EDM
–S
= End
Single
EDMS
IDMS
(Single)
(2,54)
.100
EDMD
IDMD
(Double)
(5,08)
.200
(6,10)
.240
MAX
Specifications:
IDMS, IDMD
EDMS, EDMD
Insulator Material:
Black Glass
Filled Polyester
Temperature Range:
-65°C to +80°C
Withstanding Voltage:
1000 VRMS @ 60 Hz
Contact:
BeCu
Plating:
Au over 50µ" (1,27µm) Ni or
Sn over 100µ" (2,54µm) Cu or
50µ" (1,27µm) Ni
Current Rating:
1A
Terminal Retention in Body:
5lb (22,25N) against barb
Wire:
28 AWG 7/36 stranded
Tinned Copper
(0,48)
.019
(0,46)
.018
x
(0,48)
.019
(2,54)
.100
Socket or Male Plug
on one end
A
(2,54)
.100
–D
= Double
End
–02 thru –36
DOUBLE
Full size (72 positions):
(91,71) 3.650
Less than 72 positions:
No. Positions/row X (2,54) .100 + (1,50) .059
SINGLE
Full size (32 positions):
(91,69) 3.610
Less than 36 positions:
No. Positions/row X (2,54) .100 + (0,48) .019
IDSS
(Single)
IDSD
(Double)
(5,08)
.200
Socket or Male Plug
on each end
–T
= End
Transfer
(9,27)
.365
REF
(2,54)
.100
Note:
This Series is non-standard,
non-returnable.
(0,76)
.030
SQ
(2,54)
.100
Male Plug on one end with
socket on other.
Begin part
number with IDM or EDM.
SAMTEC USA
• Tel: 1-800-SAMTEC-9 or 812-944-6733 • Fax: 812-948-5047
SAMTEC UK
• Tel: 01236 739292 • Fax: 01236 727113
SAMTEC ASIA PACIFIC
• Tel: 65-745-5955 • Fax: 65-841-1502
SAMTEC GERMANY
• Tel: +49 (0) 89 / 89460-0 • Fax: +49 (0) 89 / 89460-299
SAMTEC FRANCE
• Tel: 01 60 95 06 60 • Fax: 01 60 95 06 61
SAMTEC ITALY
• Tel: 39 039 6890337 • Fax: 39 039 6890315
SAMTEC JAPAN
• Tel: 81-424-42-8318 • Fax: 81-424-42-8319
SAMTEC CHINA
• Tel: 86-21-5385-4089 • Fax: 86-21-5385-4047
SAMTEC TAIWAN
• Tel: (02) 2395-1677 • Fax: (02) 2395-1689
Due to technical progress, all designs, specifications and components are subject to change without notice.
FACTSHEET F-200 SUPPLEMENT
IDSS–05–S–4
EDMS–05–S–4
IDC CABLE STRIPS
ASSEMBLED
LENGTH
IDMS, IDMD, IDSS, IDSD
EDMS & EDMD SERIES
OPTION
POLARIZING KEY
Assembled Length in
INCHES (±1/8" )
(2 inches minimum)
(0,64) .025
SQ
(5,84)
.230
Optional polarizing key for
use with IDSS & IDSD
Series. Also polarizes
SSW, SSQ, ESW & ESQ
Series. Black High
Temperature Thermoplastic
Order: Part Number PK-01
–T
= 150
µ
" (3,81
µ
m) Tin Plating
(Both ends)
(3,81
Tin
–C
= 150
µµ
"(0,25
µµ
m)GoldIDM/
m)
IDS
10 "
10
µ
" (0,25
µ
m) Gold IDM/
–ST “X”
= Stripped & Tinned
Specify Suffix from table. All
dimensions are
±
1
/
16
". Not available
in 28 positions and higher.
–S “XX”
= Daisy Chain Single
“XX” ±
1
⁄
8
"
2"
min.
Single Row
Connectors
(IDSS)
–R
= Reversed
–A
= 150
µ
" (3,81
µ
m) Tin IDS
Standard plating is selective
gold over BeCu contact for IDS;
Selective gold over phosphor
bronze for IDM & EDM.
Outer Most
4" minimum
1
–P “XX”
=Polarized
72
04
02
–ST8
–ST4
–ST2
–ST3
1/8" (3,18)
1/4" (6,35)
1/2" (12,70)
3/8" (9,53)
4
When mating double row
connector with two single row
connectors, the outer most
single will be connected to
Conductor #1 and the inside
single to Conductor #2.
8
–M
= Middle Reversed
7
–B “XX”
= Breakout
71
03
01
–D “XX”
= Daisy Chain, Double
“XX” ±
1
⁄
8
"
2"
min.
Double Row
Connectors
(IDSD or
IDMD)
Outer Most
“XX”
4" minimum
7
Specify “XX” as position. For
Double the same position will
be polarized on both ends. (Not
available on IDM or EDM,
unless Transfer, then only the
socket is polarized)
2
Specify “XX” as number of
conducts to be broken out.
Requires –SXX, –WXX or –DXX
8
–O
= Outside Reversed
–G
= Gray Cable
5"max.
2"min.
Breakout starts with Number 1
lead indicated by brown wire or
red stripe. Shown on top side.
–W “XX”
5
Specify –G for Gray cable.
Gray cable has one red edge.
IDSS uses .100" centerline
cable. IDSD and IDMD uses
.050" centerline cable. Cable is
28 AWG 7/36 copper wire.
Standard cable is same as
above except color coded.
= Wiring Reversed
Daisy Chain, Single
–RW
= Reversed Wiring
#1 wire opposite position #1.
3
6
Same as –S “XX” except outer
strip connected to Conductor
#2 and inside strip connected
to Conductor #1.
7
Requires –SXX, –WXX or –DXX
8
SAMTEC USA
• Tel: 1-800-SAMTEC-9 or 812-944-6733 • Fax: 812-948-5047
SAMTEC UK
• Tel: 01236 739292 • Fax: 01236 727113
SAMTEC ASIA PACIFIC
• Tel: 65-745-5955 • Fax: 65-841-1502
SAMTEC GERMANY
• Tel: +49 (0) 89 / 89460-0 • Fax: +49 (0) 89 / 89460-299
SAMTEC FRANCE
• Tel: 01 60 95 06 60 • Fax: 01 60 95 06 61
SAMTEC ITALY
• Tel: 39 039 6890337 • Fax: 39 039 6890315
SAMTEC JAPAN
• Tel: 81-424-42-8318 • Fax: 81-424-42-8319
SAMTEC CHINA
• Tel: 86-21-5385-4089 • Fax: 86-21-5385-4047
SAMTEC TAIWAN
• Tel: (02) 2395-1677 • Fax: (02) 2395-1689
Due to technical progress, all designs, specifications and components are subject to change without notice.
