1-178702-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-178702-4

1-178702-4: Description14 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-178702-4 Overview

14 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG

1-178702-4 Parametric

Parameter Name	Attribute value
Objectid	1941002659
Reach Compliance Code	unknown
YTEOL	0
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

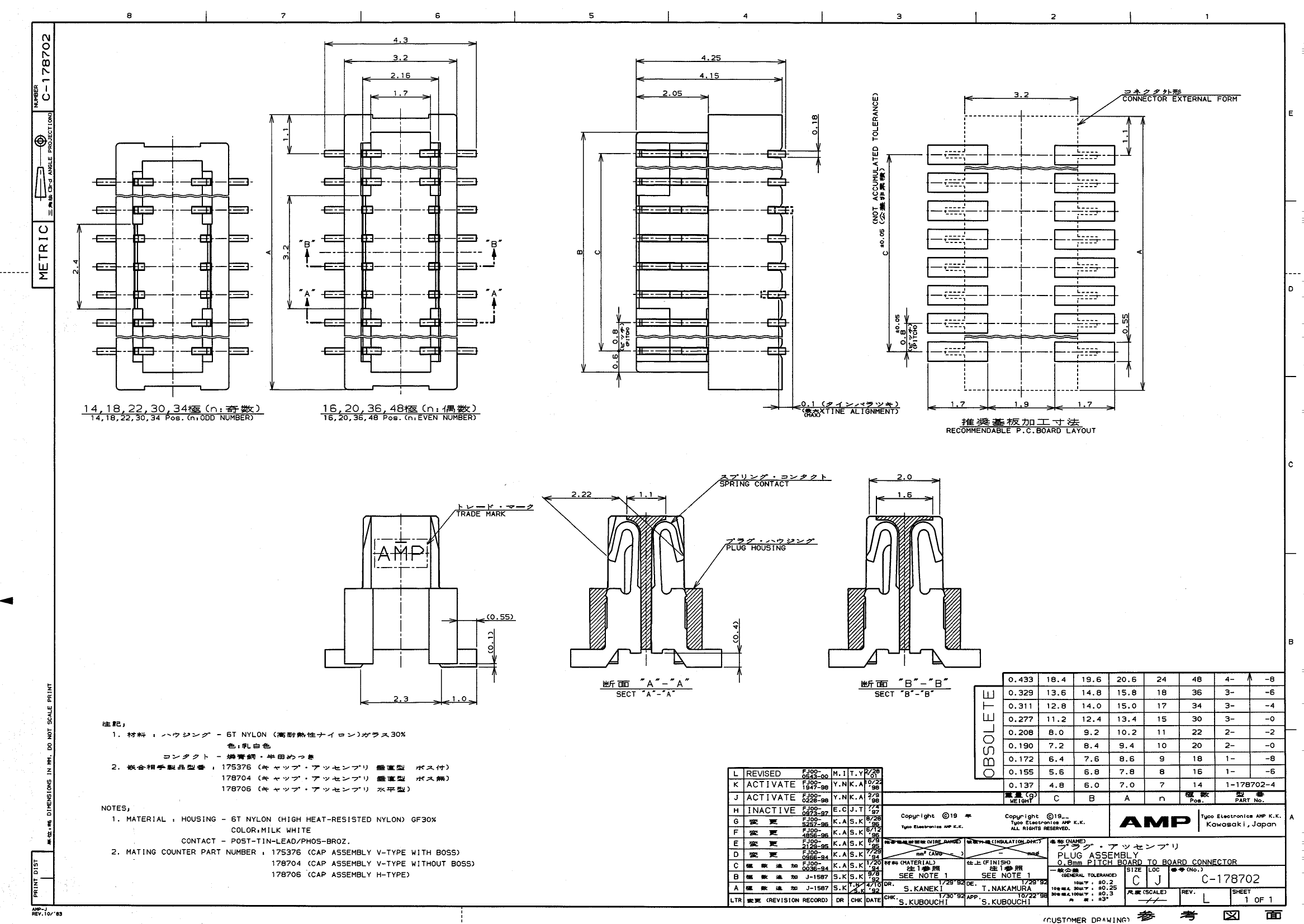

Preview

Download Datasheet

View All

1-178702-4 Related Products

	1-178702-4	1-178702-6	1-178702-8	2-178702-2	3-178702-4	3-178702-6	3-178702-0	2-178702-0	VX-700-ECI-GXCN-112M640000
Description	14 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	CONNECTOR, 16 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	CONNECTOR, 18 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	CONNECTOR, 22 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	CONNECTOR, 34 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	36 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	30 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	CONNECTOR, 20 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	LVPECL Output Clock Oscillator, 112.64MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, LCC-6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	compliant
Objectid	1941002659	1941002660	1941002661	1941002664	1941002667	1941002668	1941002666	-	1241295640
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	-
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	-
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-
Number of rows loaded	2	2	2	2	2	2	2	2	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	-
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Total number of contacts	14	16	18	22	34	36	30	20	-
