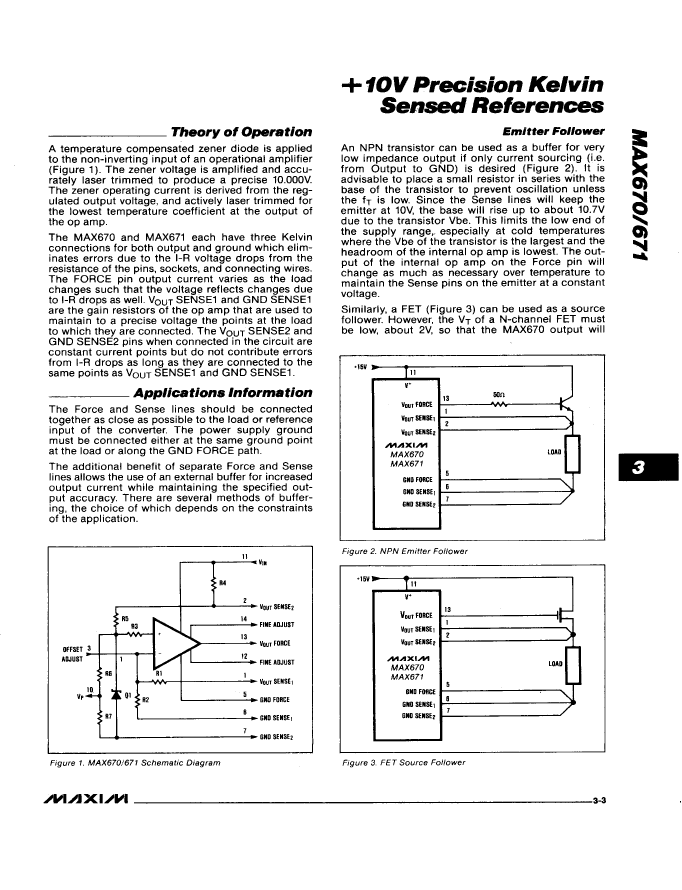

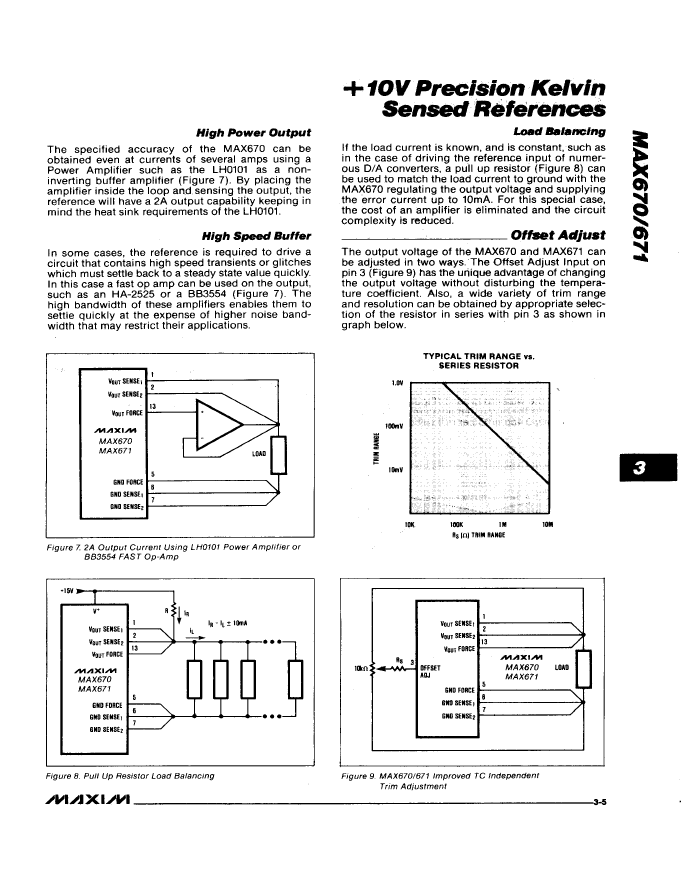

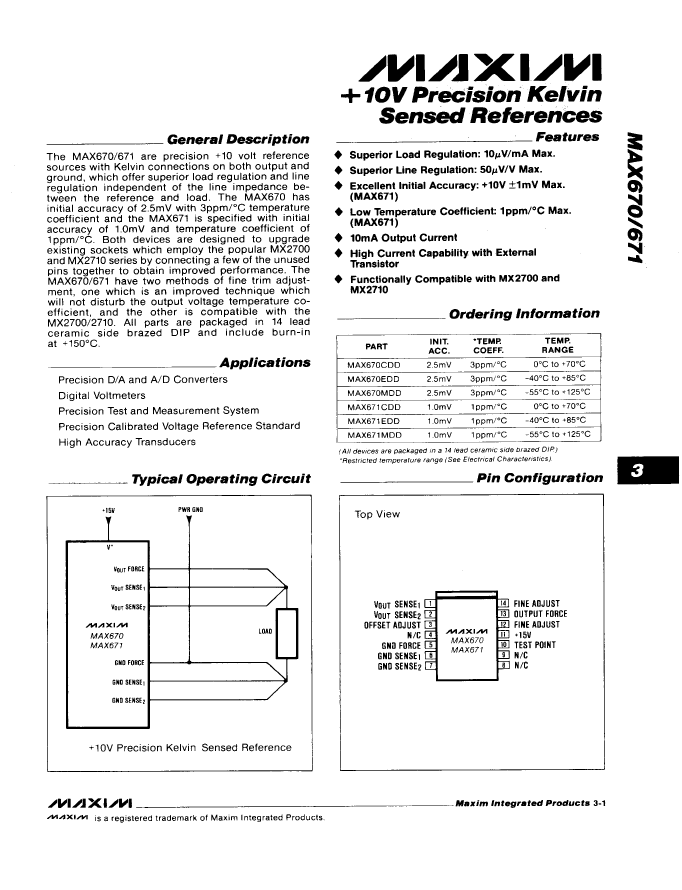

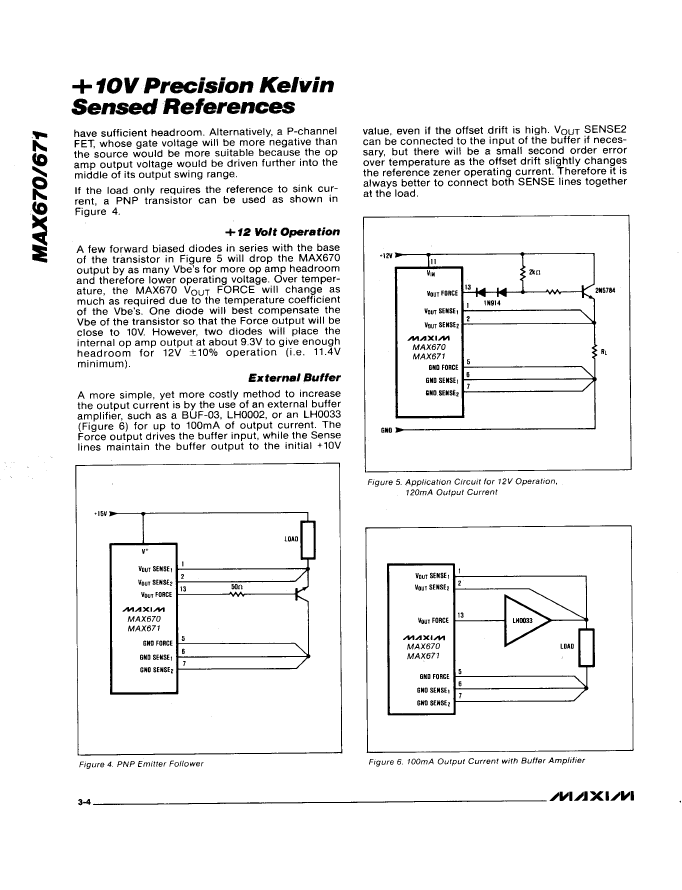

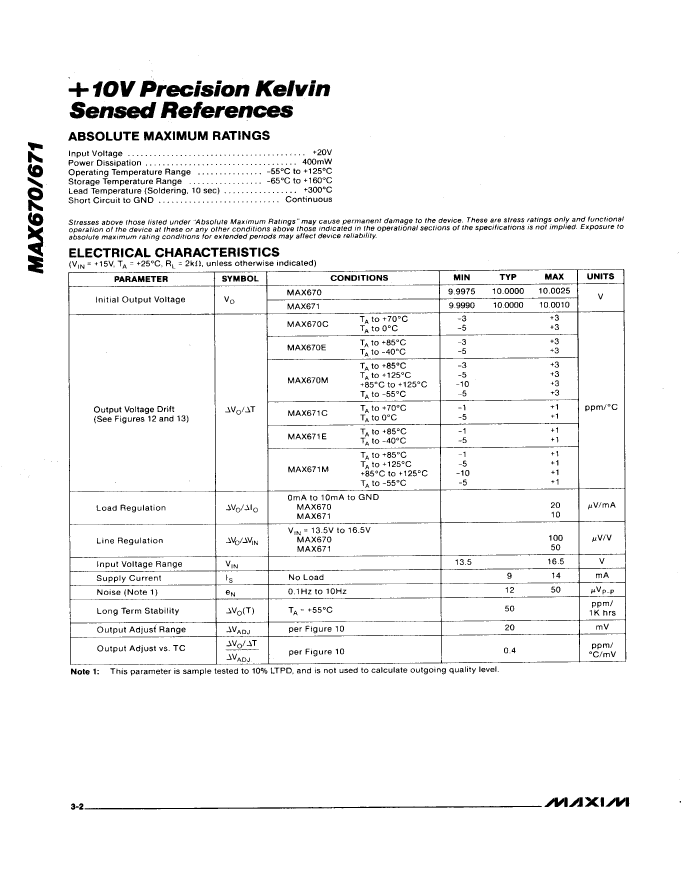

Preview

MAX671MDD: DescriptionThree Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP14, SIDE BRAZED, CERAMIC, DIP-14; CategoryPower/power management The power supply circuit; File Size249KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX671MDD Overview

Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP14, SIDE BRAZED, CERAMIC, DIP-14

MAX671MDD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	not_compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.001 V
Minimum output voltage	9.999 V
Nominal output voltage	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply current (Isup)	14 mA
Maximum supply voltage (Vsup)	16.5 V
Minimum supply voltage (Vsup)	13.5 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	1 ppm/°C
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.01%
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MAX671MDD Related Products

	MAX671MDD	MAX671CDD	MAX671EDD	MAX670CDD	MAX670EDD	MAX670MDD
Description	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP14, SIDE BRAZED, CERAMIC, DIP-14	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP14, SIDE BRAZED, CERAMIC, DIP-14	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP14, SIDE BRAZED, CERAMIC, DIP-14	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP14, SIDE BRAZED, CERAMIC, DIP-14	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP14, SIDE BRAZED, CERAMIC, DIP-14	Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, CDIP14, SIDE BRAZED, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	SIDE BRAZED, CERAMIC, DIP-14	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	14	14	14	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	85 °C	70 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-	-40 °C	-	-40 °C	-55 °C
Maximum output voltage	10.001 V	10.001 V	10.001 V	10.0025 V	10.0025 V	10.0025 V
Minimum output voltage	9.999 V	9.999 V	9.999 V	9.9975 V	9.9975 V	9.9975 V
Nominal output voltage	10 V	10 V	10 V	10 V	10 V	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply current (Isup)	14 mA	14 mA	14 mA	14 mA	14 mA	14 mA
Maximum supply voltage (Vsup)	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V
Minimum supply voltage (Vsup)	13.5 V	13.5 V	13.5 V	13.5 V	13.5 V	13.5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	1 ppm/°C	1 ppm/°C	1 ppm/°C	3 ppm/°C	3 ppm/°C	3 ppm/°C
Temperature level	MILITARY	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES
Maximum voltage tolerance	0.01%	0.01%	0.01%	0.025%	0.025%	0.025%
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
