TQ1553-71: DescriptionPulse Transformer, GENERAL PURPOSE Application(s), 1CT:3.54CT; 1CT:2.5CT; CategoryPower management transformer; File Size444KB，3 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

TQ1553-71 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TQ1553-71	-	-	View	Buy Now

TQ1553-71 Overview

Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:3.54CT; 1CT:2.5CT

TQ1553-71 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
application	GENERAL PURPOSE
high	6.35 mm
Insulation voltage	100 V
length	15.88 mm
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TUBE
physical size	L15.88XB15.88XH6.35 (mm)
surface mount	NO
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1CT:3.54CT; 1CT:2.5CT
width	15.88 mm
Base Number Matches	1

Preview

Download Datasheet

View All

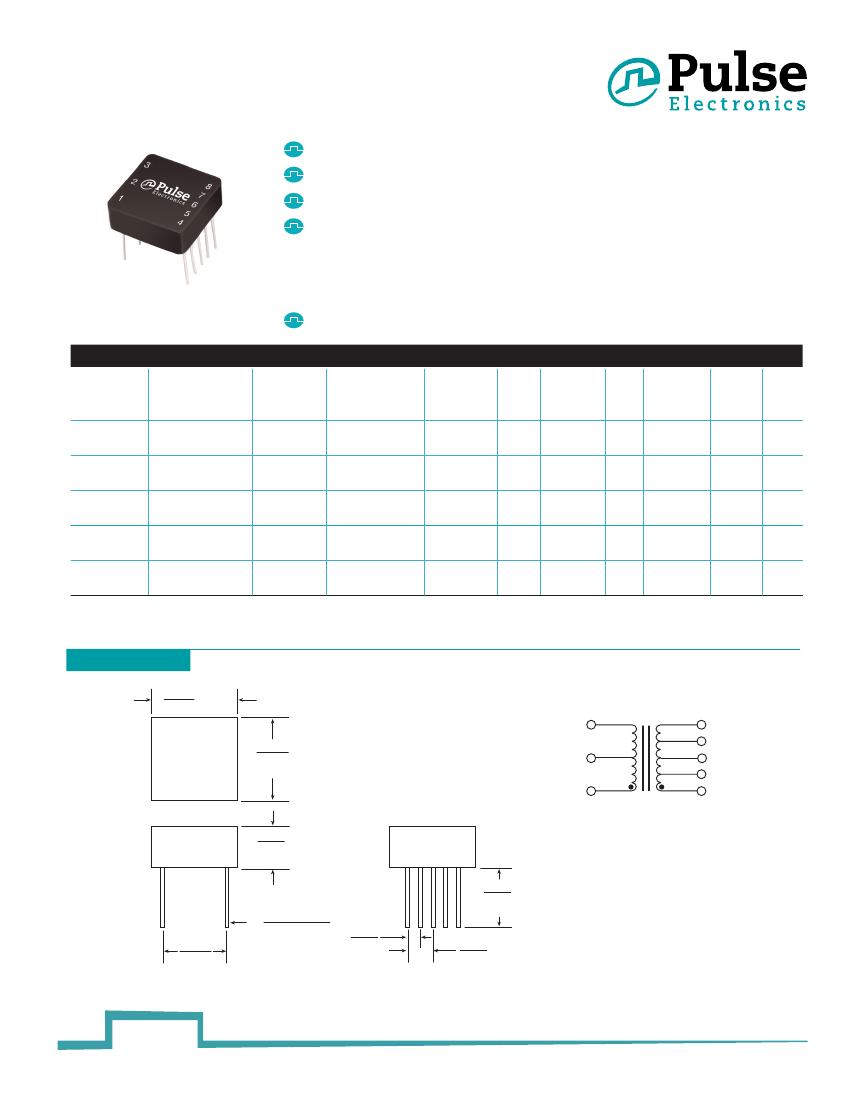

MIL-STD-1553 Transformers

Low profile 3.3V Pulse Transformers

Dual ratio in a single transformer package (see Schematic)

Operating and Storage Temperature: -55 °C to +125 °C

Weight:

≤5.0

grams

Applicable specifications

n

MIL-STD-1553B

n

MIL-PRF-21038

n

MIL-STD-202

n

ISO 9001

Maximum Reflow Temperature for SMT parts: 235 deg C

Electrical Specifications @ 25°C

Part

Number

Q1553-70

SMQ1553-70

GL1553-71

DGL1553-71

TQ1553-71

Terminals

1-3:4-8

1-3:5-7

1-3:4-8

1-3:5-7

1-3:4-8

1-3:5-7

1-3:1613/5-7:12-9

1-3:15-14/5-7:11-10

1-3:4-8

1-3:5-7

Ratio

(±3%)

1.0CT:3.0CT

1.0CT:2.15CT

1CT:3CT

1CT:2.15CT

1CT:3.54CT

1CT:2.50CT

1CT:3.54CT

1CT:2.5CT

1CT:3.54CT

1CT:2.5CT

DC Resistance

(Ω MAX)

1-3 = 0.35

4-8 = 3.50

(1-3) .35

(4-8) 3.5

(1-3) 0.35

(4-8) 3.5

(1-3),(5-7) 0.35

(16-13),(12-9) 3.5

(1-3) 0.35

(4-8) 3.5

Impedance

(Ω MIN)

4-8

4000

4-8

4000

4-8

4000

16-13 & 12-9

4000

4-8

4000

Droop

20%

MAX

20%

max

20%

max

20%

max

20%

max

Overshoot

±1V

MIN

±1V

MAX

±1V

MAX

±1V

MAX

±1V

MAX

CMR

45db

MIN

45dB

MIN

45dB

MIN

45dB

MIN

45dB

MIN

Frequency

Range

(No Load)

75kHz to

1MHz

75kHz to

1MHz

75kHz to

1MHz

75kHz to

1MHz

75kHz to

1MHz

IR @

250Vdc

(MIN)

10K MΩ

DWV

100

Vrms

100

Vrms

100

Vrms

100

Vrms

100

Vrms

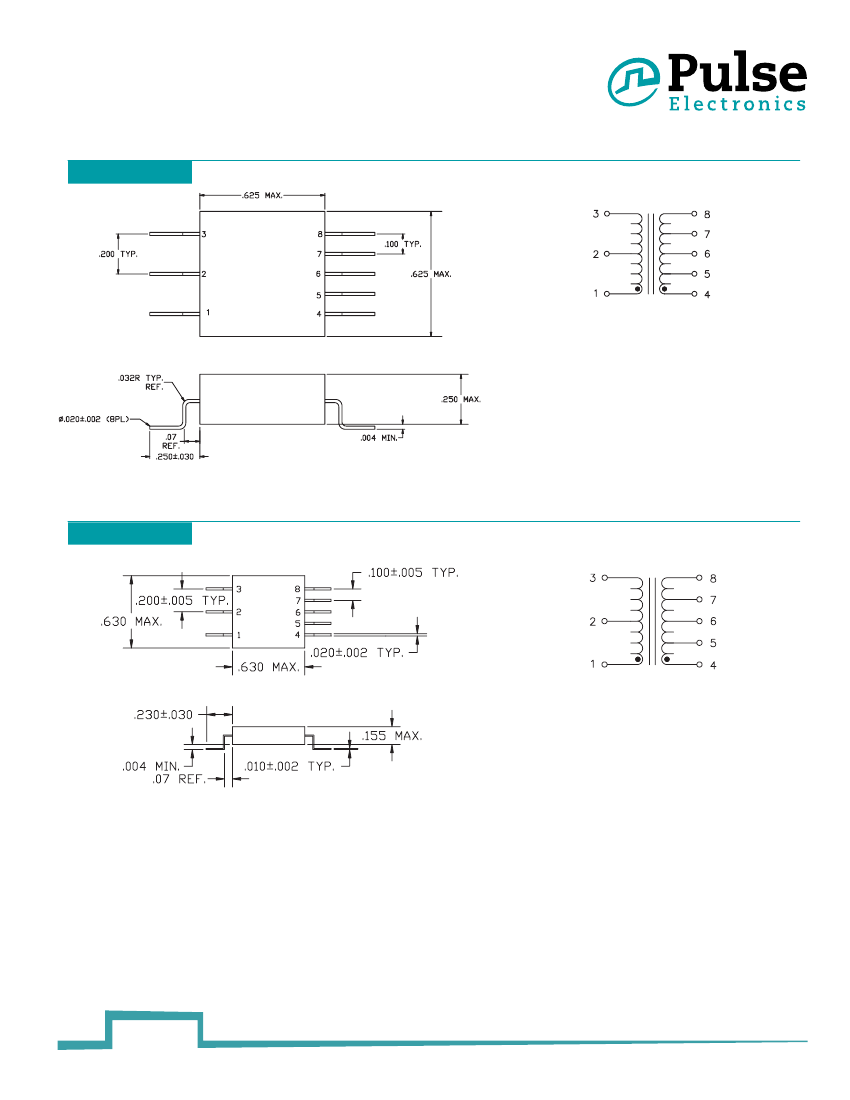

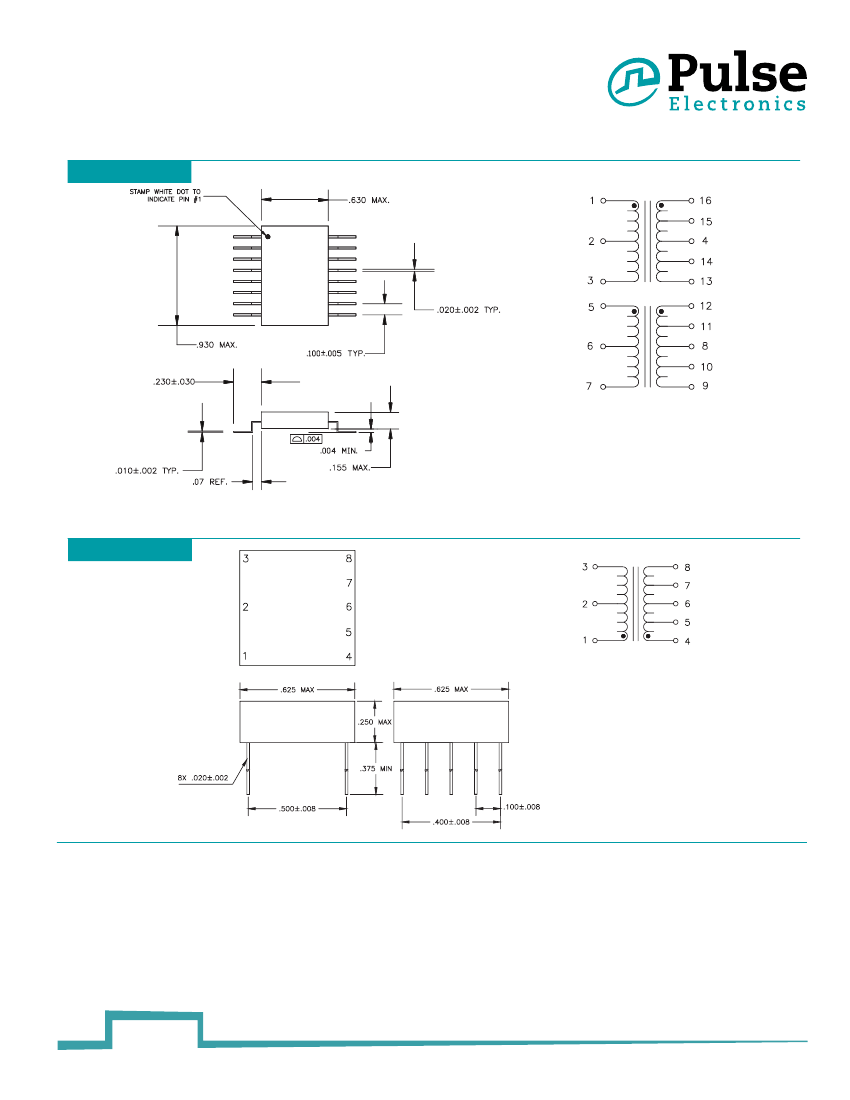

Mechanical

Q1553-70

.625 MAX

15,86

Schematic

3

2

1

8

7

6

5

4

3

.625

15,86

MAX

2

1

8

7

6

5

4

.250

6,35

MAX

.375

9,53

MIN

.100

2,54

.200

5,08

.500

12,70

Ø

0,51

±

0,05

.020

±

.002

Notes:

1. All dimensions are in inches.

2. Tolerances: .xx = +.008

3. All specifications and dimensions

are subject to change without notice

.

4. MSL - 1

5. Tube - 20 pieces

1

pulseelectronics.com

M128.D (4/13)
