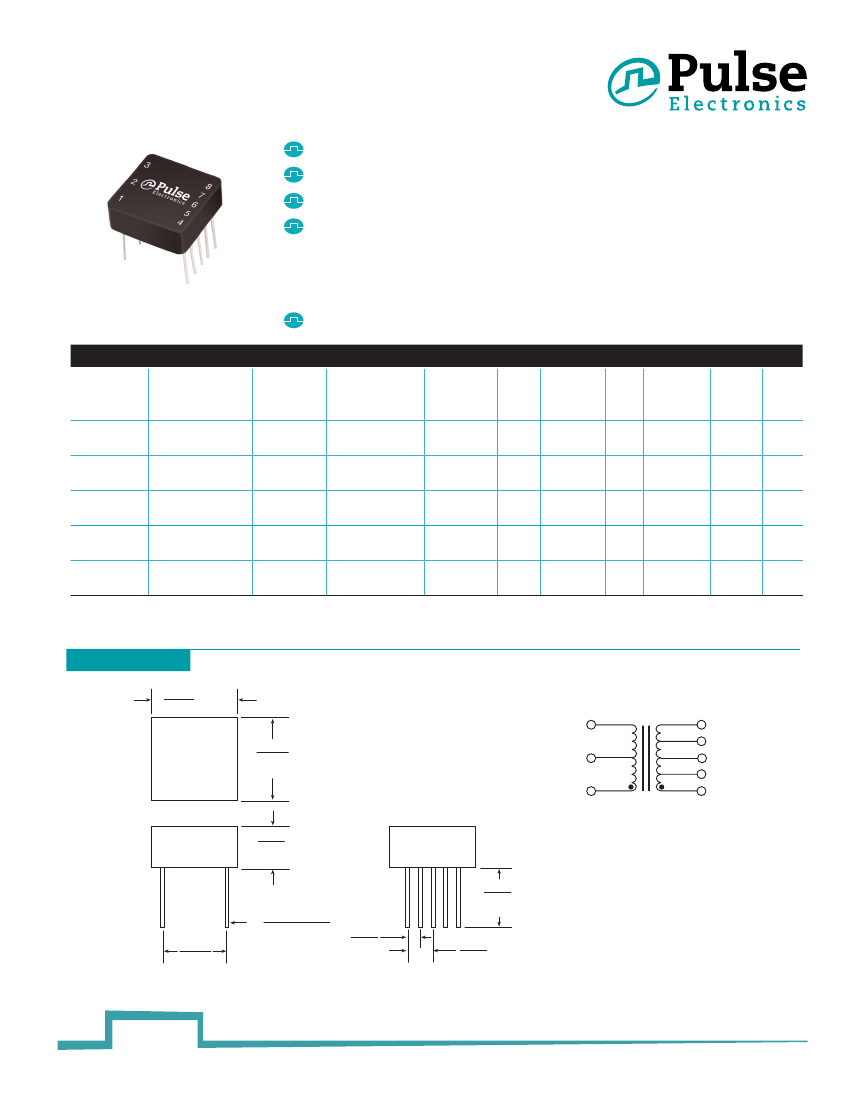

Dual ratio in a single transformer package (see Schematic)
Operating and Storage Temperature: -55 °C to +125 °C
Weight:
≤5.0
grams
Applicable specifications
n
MIL-STD-1553B
n
MIL-PRF-21038
n
MIL-STD-202
n
ISO 9001
Maximum Reflow Temperature for SMT parts: 235 deg C
Electrical Specifications @ 25°C
Part
Number
Q1553-70
SMQ1553-70
GL1553-71
DGL1553-71
TQ1553-71
Terminals
1-3:4-8
1-3:5-7
1-3:4-8
1-3:5-7
1-3:4-8
1-3:5-7
1-3:1613/5-7:12-9
1-3:15-14/5-7:11-10
1-3:4-8
1-3:5-7
Ratio
(±3%)
1.0CT:3.0CT
1.0CT:2.15CT
1CT:3CT
1CT:2.15CT
1CT:3.54CT
1CT:2.50CT
1CT:3.54CT
1CT:2.5CT
1CT:3.54CT
1CT:2.5CT
DC Resistance
(Ω MAX)
1-3 = 0.35
4-8 = 3.50
(1-3) .35
(4-8) 3.5
(1-3) 0.35
(4-8) 3.5
(1-3),(5-7) 0.35
(16-13),(12-9) 3.5
(1-3) 0.35
(4-8) 3.5
Impedance
(Ω MIN)
4-8
4000
4-8
4000
4-8
4000
16-13 & 12-9
4000
4-8
4000
Droop
20%
MAX
20%
max
20%
max
20%
max
20%
max
Overshoot
±1V
MIN
±1V
MAX
±1V
MAX
±1V
MAX
±1V
MAX
CMR
45db
MIN
45dB
MIN
45dB
MIN
45dB
MIN
45dB
MIN
Frequency
Range
(No Load)
75kHz to
1MHz
75kHz to
1MHz
75kHz to
1MHz
75kHz to
1MHz
75kHz to
1MHz
IR @
250Vdc
(MIN)
10K MΩ
10K MΩ
10K MΩ
10K MΩ
10K MΩ
DWV
100
Vrms
100
Vrms
100
Vrms
100
Vrms
100
Vrms
Mechanical
Q1553-70
.625 MAX
15,86
Schematic
3
2
1
8
7
6
5
4
3
.625
15,86
MAX
2
1
8
7
6
5
4
.250
6,35
MAX
.375
9,53
MIN
.100
2,54
.200
5,08
.500
12,70
Ø
0,51
±
0,05
.020
±
.002
Notes:
1. All dimensions are in inches.
2. Tolerances: .xx = +.008
3. All specifications and dimensions
are subject to change without notice
.
4. MSL - 1
5. Tube - 20 pieces
1
pulseelectronics.com
M128.D (4/13)
MIL-STD-1553 Transformers
Low profile 3.3V Pulse Transformers

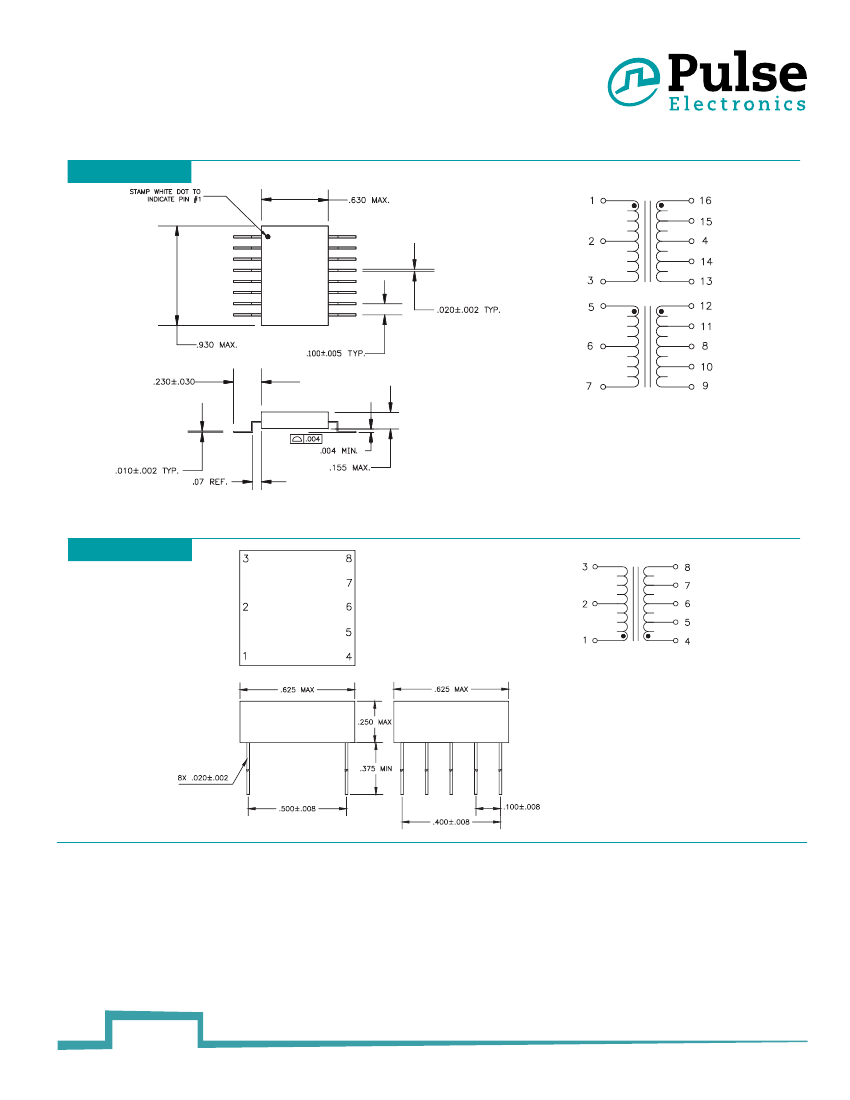

Mechanical
SMQ1553-70
Schematic
Notes:
1. All dimensions are in inches.
2. Tolerances: .xx = +.008
3. All specifications and dimensions
are subject to change without notice
.
4. MSL – 3
5. Tape & Reel Size – 300

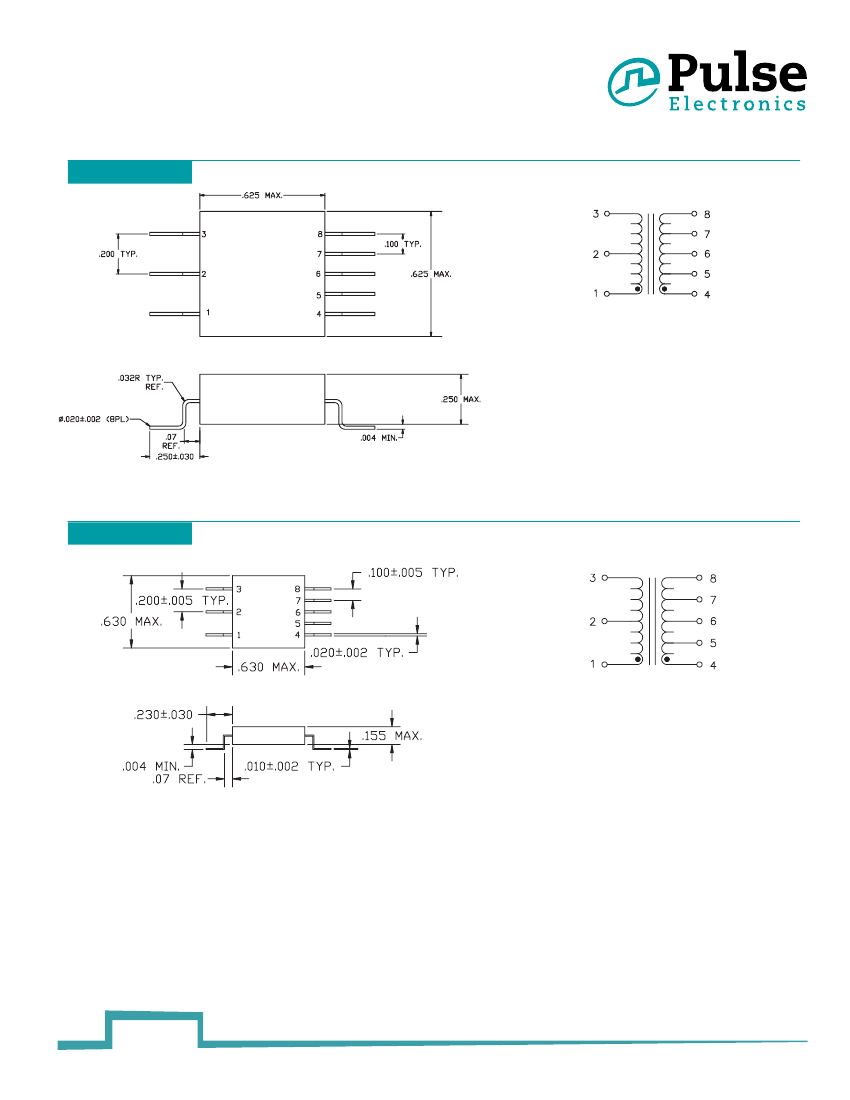

Mechanical
GL1553-71
Schematic
Notes:
1. All dimensions are in inches.
2. Tolerances: .xx = +.008
3. All specifications and dimensions
are subject to change without notice
.
4. MSL – 3
5. Tape & Reel Size – 350
2
pulseelectronics.com
M128.D (4/13)
MIL-STD-1553 Transformers
Low profile 3.3V Pulse Transformers
Mechanical
DGL1553-71
Schematic
Notes:
1. All dimensions are in inches.
2. Tolerances: .xx = +.008
3. All specifications and dimensions
are subject to change without notice
.
4. MSL - 3
5. Tape & Reel Size – 300
Mechanical
TQ1553-71
Schematic
Notes:
1. All dimensions are in inches.
2. Tolerances: .xx = +.008
3. All specifications and dimensions
are subject to change without notice
.
4. MSL - 1
5. Tube - 20 pieces
