The
ACTF552B/446.0/QCC8C
is a low-loss, compact, and economical surface-acoustic-wave
(SAW) filter in a surface-mount ceramic
QCC8C
case for FRS & PMR mobile radio applications with
centre frequency
446.000
MHz.

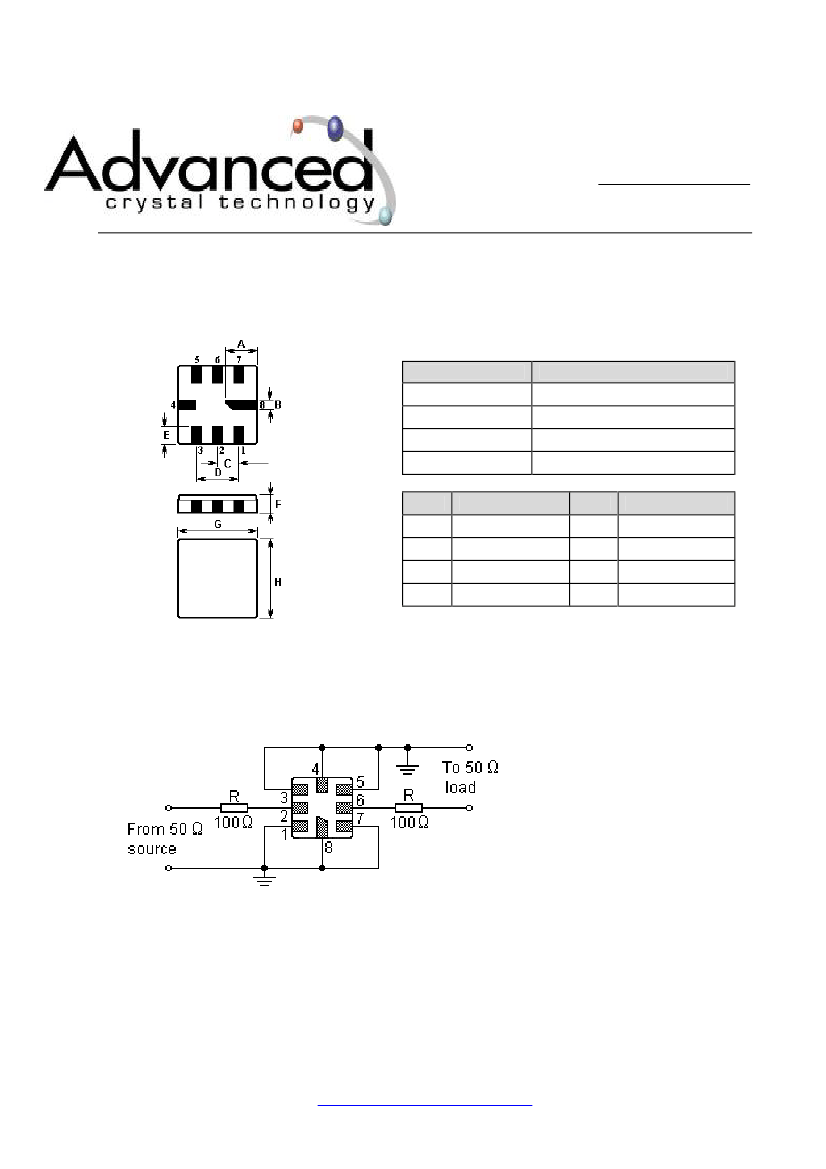

1. Package Dimension
(QCC8C)
Pin
2
6
1,3,5,7
4,8
Sign
A
B
C
D
Data (unit: mm)
2.08
0.60
1.27
2.54
Configuration
Input / Output
Output / Input
To be Grounded
Case Ground
Sign
E
F
G
H
Data (unit: mm)
1.20
1.35
5.00
5.00
3. Test Circuit
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com

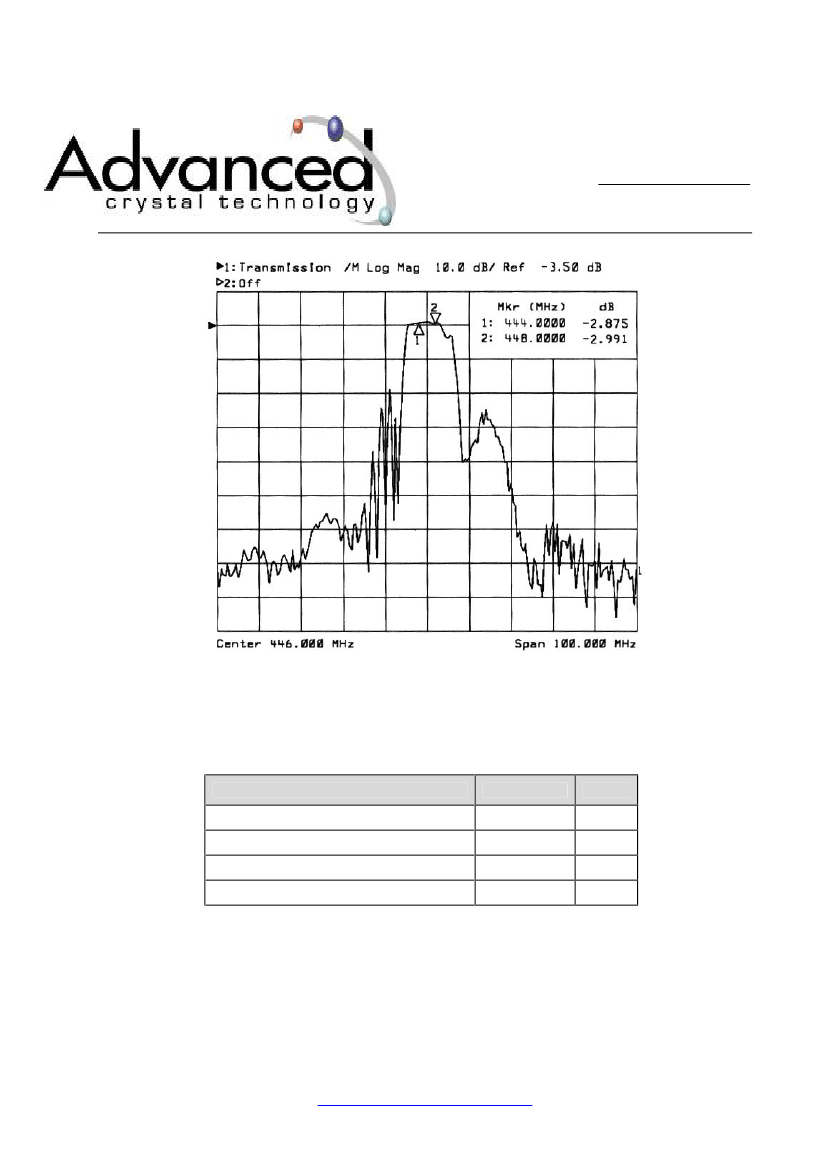

4. Typical Frequency Response
5. Performance
5-1. Maximum Ratings
Rating
Input Power Level
DC Voltage
Operable Temperature Range
Storage Temperature Range
P
V
DC
T
A
T
stg
Value
0
10
-10 to +65
-40 to +85
Unit
dBm
V
°C
°C
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com
5-2. Electronic Characteristics
Characteristic
Centre Frequency
User Signal Band
Insertion Loss
f
C
±2.0MHz
Absolute Attenuation
DC to f
C
-20.0MHz
f
C
+25.0MHz to fc +200.0MHz
Pass Band Ripple
f
C
±2.0MHz
Input / Output Impedance (Nominal)
α
42
48
Δα
--
--
150Ω // 0pF
2.0
dB
54
60
--
--
dB
f
C
BW
IL
--
3.0
4.5
dB
Minimum
--
--
Typical
446.000
±2.0
Maximum
--
--
Unit
MHz
MHz
i
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling
!
1.
2.
The frequency f
C
is defined as the midpoint between the 3dB frequencies.
Unless noted otherwise, all measurements are made with the filter installed in the specified test fixture that is
connected to a 50
Ω
test system with VSWR
≤1.2:1.
The test fixture L and C are adjusted for minimum insertion
loss at the filter centre frequency, f
C
. Note that insertion loss, bandwidth, and passband shape are dependent on
the impedance matching component values and quality.
Unless noted otherwise, specifications apply over the entire specified operating temperature range.
The specifications of this device are based on the test circuit shown above and subject to change or
obsolescence without notice.
All equipment designs utilizing this product must be approved by the appropriate government agency prior to
manufacture or sale.
Our liability is only assumed for the Surface Acoustic Wave (SAW) component(s) per se, not for applications,
processes and circuits implemented within components or assemblies.
3.
4.
5.
6.
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
