BRIGHT LED ELECTRONICS CORP.
BL-B2134-TBS22A
●
Features:
1. Chip material: GaP/GaP
2. Emitted color : Green
3. Lens Appearance : Green Diffused
4. Low power consumption.
5. High efficiency.
6. Versatile mounting on P.C. Board or panel.
7. Low current requirement.
8. 5mm diameter package.
9. This product don’t contained restriction
substance, compliance RoHS standard.
2.54(.10) NOM.
●
Package dimensions:
5.0(.197)
1.0(.04)
8.62(.339)
1.5(.059)
MAX.
0.5(.02)
SQ. TYP.
Cathode
25.4(1.0) MIN.
5.7(.22)
1.0(.039) MIN.
FLAT DENOTES CATHODE
●
Applications:
1. TV set
2. Monitor
3. Telephone
4. Computer
5. Circuit board
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.
3. Lead spacing is measured where the leads emerge from
the package.
4. Specifications are subject to change without notice.
●
Absolute maximum ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current*
1
Reverse
Voltage
Operating Temperature
Storage Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Rating
80
30
150
5
-40
℃
~85
℃
-40
℃
~100
℃
Unit
mW
mA
mA
V
*
1
Condition for I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.1.1 Page: 1 of 6
BRIGHT LED ELECTRONICS CORP.
BL-B2134-TBS22A
Max.
2.6
-
100
-
574
-
-
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Symbol
V
F
Iv
I
R
λp
λd
∆λ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
-
-
-
560
-
-
Typ.
2.2
40
-
568
-
30
35
Unit
V
mcd
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Viewing Angle
µA
nm
nm
nm
deg
●
Typical electro-optical characteristics curves
Fig.1 Relative intensity vs. Wavelength
1.0
60
Fig.2 Forward current derating curve
vs. Ambient temperature
50
Relative radiant intensity
Forward current(mA)
40
0.5
30
20
10
0
520
570
620
0
20
40
60
80
100
Wavelength
λ(nm)
Ambient temperature Ta(
℃
)
Fig.3 Forward current vs. Forward voltage
50
3.0
Fig.4 Relative luminous intensity
vs. Ambient temperature
40
Relative luminous intensity
1
2
3
4
5
2.5
Forward current(mA)
2.0
30
1.5
20
1.0
10
0.5
0
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta(
℃
)
Fig.5 Relative luminous intensity
vs. Forward current
2.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity(@20mA)
1.5
Relative radiant intensity
1.0
40
1.0
0.9
0.8
50
60
70
0.5
0.7
80
90
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.1 Page: 2 of 6
BRIGHT LED ELECTRONICS CORP.
BL-B2134-TBS22A
●

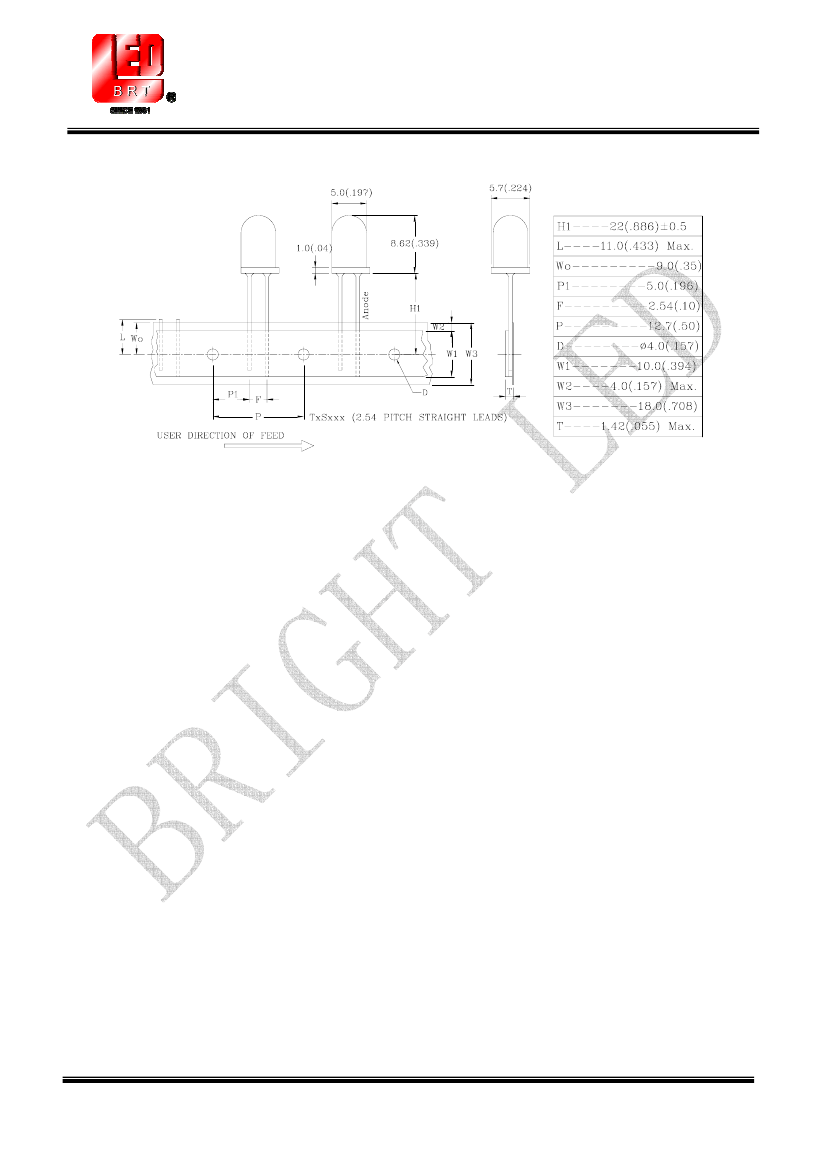

Tapping and packaging specifications(Units: mm)
Notes: 1.All dimensions are in millimeter (inch).
2.Tolerance is ±0.25mm (0.01”) unless otherwise specified.
3.Lead spacing is measured where the leads emerge from the packa
Ver.1.1 Page: 3 of 6
BRIGHT LED ELECTRONICS CORP.
BL-B2134-TBS22A
●
Bin Limits
1. Intensity Bin Limits (At I
F
= 20mA)
Bin Code
K
L
M
N
P
Min. (mcd)
12.3
18.5
28
42
63
Max. (mcd)
18.5
28
42
63
94
●
Bin
：
x
Intensity Bin Code
N O T E S : 1 . To l e r a n c e o f m e a s u r e m e n t o f l u m i n o u s i n t e n s i t y.
:
±15%
Ver.1.1 Page: 4 of 6
BRIGHT LED ELECTRONICS CORP.
BL-B2134-TBS22A
●
Reliability Test
Classification
Test Item
Reference Standard
Test Conditions
Result
Operation Life MIL-STD-750:1026
MIL-STD-883:1005
JIS-C-7021 :B-1
High
Temperature MIL-STD-202:103B
High Humidity JIS-C-7021 :B-11
Endurance
Storage
Test
High
MIL-STD-883:1008
Temperature
JIS-C-7021 :B-10
Storage
Low
Temperature JIS-C-7021 :B-12
Storage
Temperature MIL-STD-202:107D
Cycling
MIL-STD-750:1051
MIL-STD-883:1010
JIS-C-7021 :A-4
Thermal Shock MIL-STD-202:107D
MIL-STD-750:1051
MIL-STD-883:1011
Environmental
Solder
Test
MIL-STD-202:201A
Resistance
MIL-STD-750:2031
JIS-C-7021 :A-1
Solderability
MIL-STD-202F:208D
MIL-STD-750D:2026
MIL-STD-883D:2003
JIS C 7021:A-2
I
F
=20mA
Ta=+25℃±5℃
Test time=1,000hrs
Ta=+85℃±5℃
RH=90%-95%
Test time=240hrs
High Ta=+85℃±5℃
Test time=1,000hrs
Low Ta=-45℃±5℃
Test time=1,000hrs
Ta﹕ +85℃(30min) ~ +25℃(5min) ~
-45℃(30min) ~ +25℃(5min)
Test Time
﹕70min/ctcle
10cycle
-45℃±5℃ ~+85℃±5℃
20min
20min
Test Time=10cycle
Preheating：
120℃,within 120-180 sec.
Operation heating：
255℃±5℃within 5 sec.260℃ (Max)
T.sol=230±5℃
Dwell Time=5±1secs
0/32
0/32
0/32
0/32
0/32
0/32
0/32
0/32
●
Judgment criteria of failure for the reliability
Measuring items
Forward voltage
Reverse current
Luminous intensity
Note:
Symbol
V
F
(V)
I
R
(uA)
Iv ( mcd)
Measuring conditions
I
F
=20mA
V
R
=5V
I
F
=20mA
Judgment criteria for failure
Over U
1
x1.2
Over U
1
x2
Below S
1
X0.5
S means initial value.
1. U means the upper limit of specified characteristics.
2.
Measurment shall be taken between 2 hours and after the test pieces have been returned to normal
ambient conditions after completion of each test.
Ver.1.1 Page: 5 of 6
