BM-07J57ND: DescriptionSmart/Normal 5 X 7 Dot Matrix LED Display, Ultra Orange, 17.78mm, DM-01, 12 PIN; CategoryLED optoelectronic/LED photoelectric; File Size341KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BM-07J57ND Overview

Smart/Normal 5 X 7 Dot Matrix LED Display, Ultra Orange, 17.78mm, DM-01, 12 PIN

BM-07J57ND Parametric

Parameter Name	Attribute value
package instruction	DM-01, 12 PIN
Reach Compliance Code	unknown
color	ULTRA ORANGE
Configuration	COMMON CATHODE, 1 DIGIT
Display height	17.78 mm
Maximum forward current	0.03 A
Number of functions	1
Optoelectronic device types	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

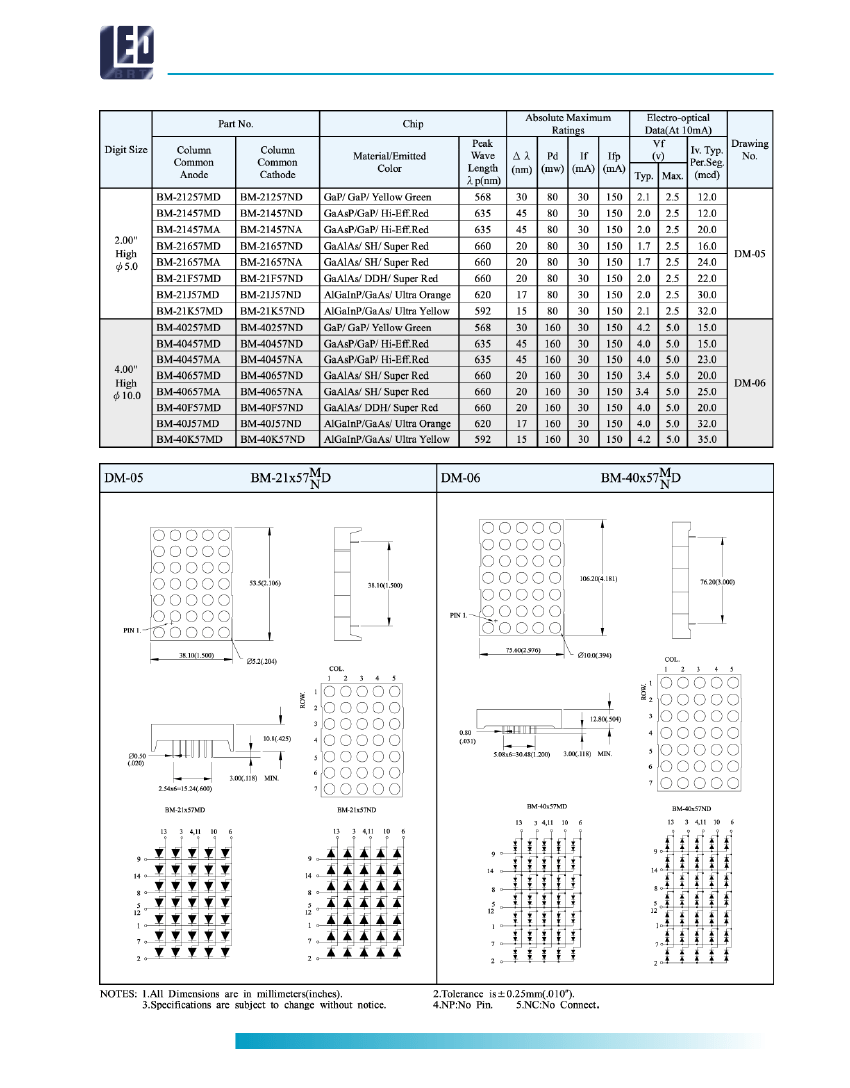

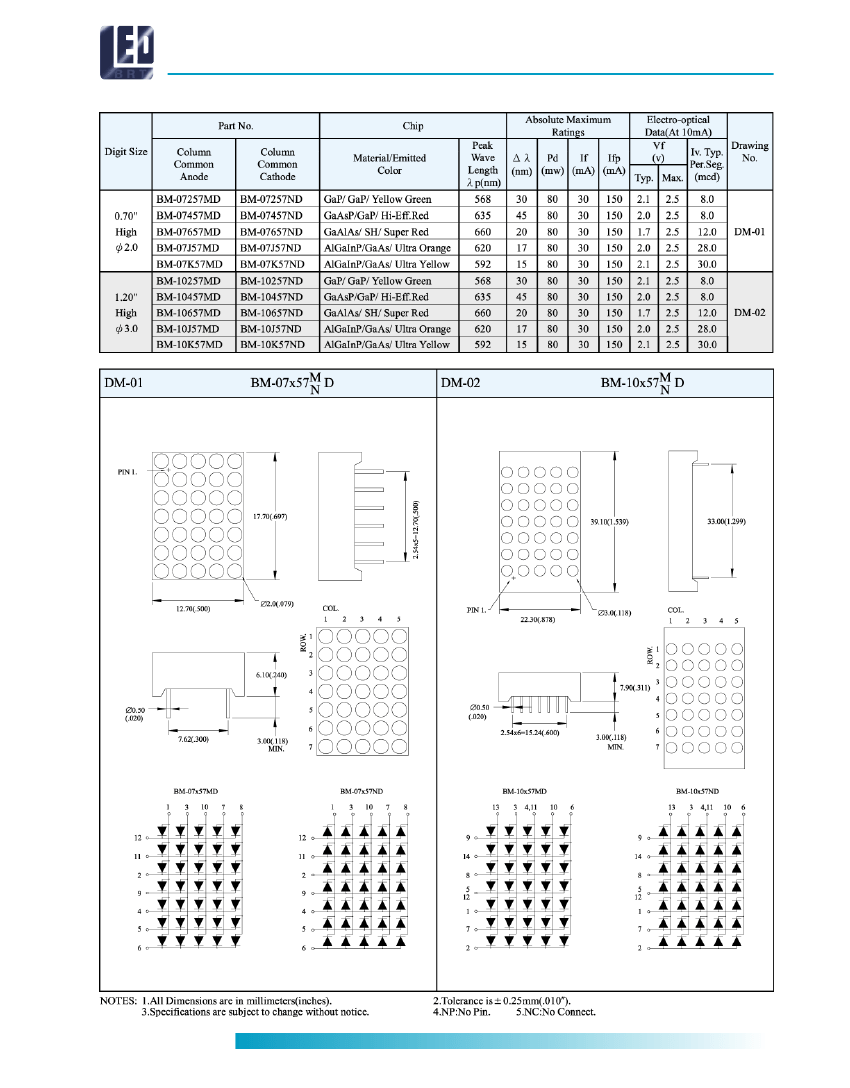

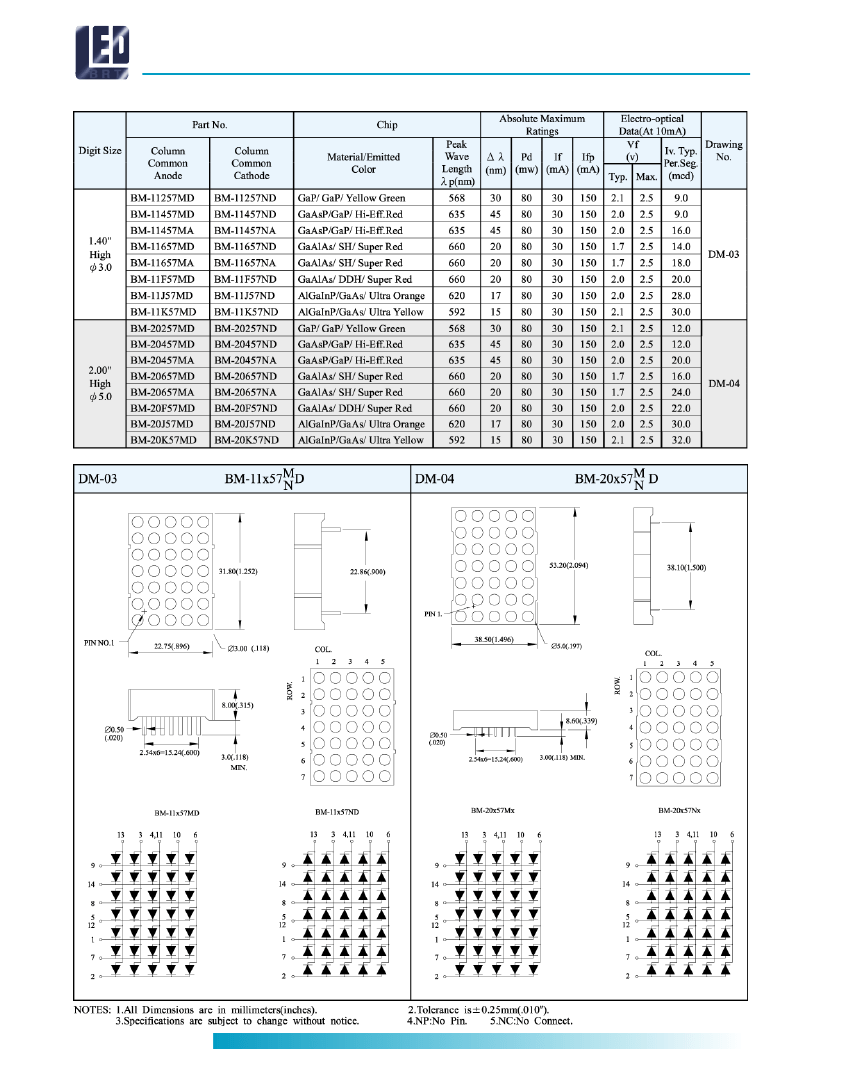

LED Dot Matrix Display

BM Series

Single Color, 5 x 7 Dot Matrix Displays

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m

171

BM-07J57ND Related Products

	BM-07J57ND	BM-07257ND	BM-07657MD	BM-07K57ND	BM-07457ND	BM-07J57MD	BM-07K57MD
Description	Smart/Normal 5 X 7 Dot Matrix LED Display, Ultra Orange, 17.78mm, DM-01, 12 PIN	Smart/Normal 5 X 7 Dot Matrix LED Display, Yellow Green, 17.78mm, DM-01, 12 PIN	Smart/Normal 5 X 7 Dot Matrix LED Display, Super Red, 17.78mm, DM-01, 12 PIN	Smart/Normal 5 X 7 Dot Matrix LED Display, Ultra Yellow, 17.78mm, DM-01, 12 PIN	Smart/Normal 5 X 7 Dot Matrix LED Display, High Efficiency Red, 17.78mm, DM-01, 12 PIN	Smart/Normal 5 X 7 Dot Matrix LED Display, Ultra Orange, 17.78mm, DM-01, 12 PIN	Smart/Normal 5 X 7 Dot Matrix LED Display, Ultra Yellow, 17.78mm, DM-01, 12 PIN
package instruction	DM-01, 12 PIN	DM-01, 12 PIN	DM-01, 12 PIN	DM-01, 12 PIN	DM-01, 12 PIN	DM-01, 12 PIN	DM-01, 12 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	ULTRA ORANGE	YELLOW GREEN	SUPER RED	ULTRA YELLOW	HIGH EFFICIENCY RED	ULTRA ORANGE	ULTRA YELLOW
Configuration	COMMON CATHODE, 1 DIGIT	COMMON CATHODE, 1 DIGIT	COMMON ANODE, 1 DIGIT	COMMON CATHODE, 1 DIGIT	COMMON CATHODE, 1 DIGIT	COMMON ANODE, 1 DIGIT	COMMON ANODE, 1 DIGIT
Display height	17.78 mm	17.78 mm	17.78 mm	17.78 mm	17.78 mm	17.78 mm	17.78 mm
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Number of functions	1	1	1	1	1	1	1
Optoelectronic device types	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY
Base Number Matches	1	1	1	1	-	-	-
