6mm FLANGE BASED LED LAMP
BLFA064MBC-6V
BLUE
Features
!
BUILT-IN
Description
The Blue source color devices are made with GaN on
SiC Light Emitting Diode.
Static electricity and surge damage the LEDS. It is
recommended to use a wrist band or anti-
electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be
electrically grounded.
CURRENT LIMITING RESISTOR FOR
DIRECT APPLICATION OF DIFFERENT ACROSS
CURRENT.
!
LONG
!
LOW
!
LOW
LIFE.
CURRENT, POWER SAVINGS.
MAINTENANCE.
COLOR AVAILABLE.
!
DIFFERENT
!
SOLID
STATE, HIGH VIBRATION RESISTANT.
!
6V INTERNAL RESISTOR.

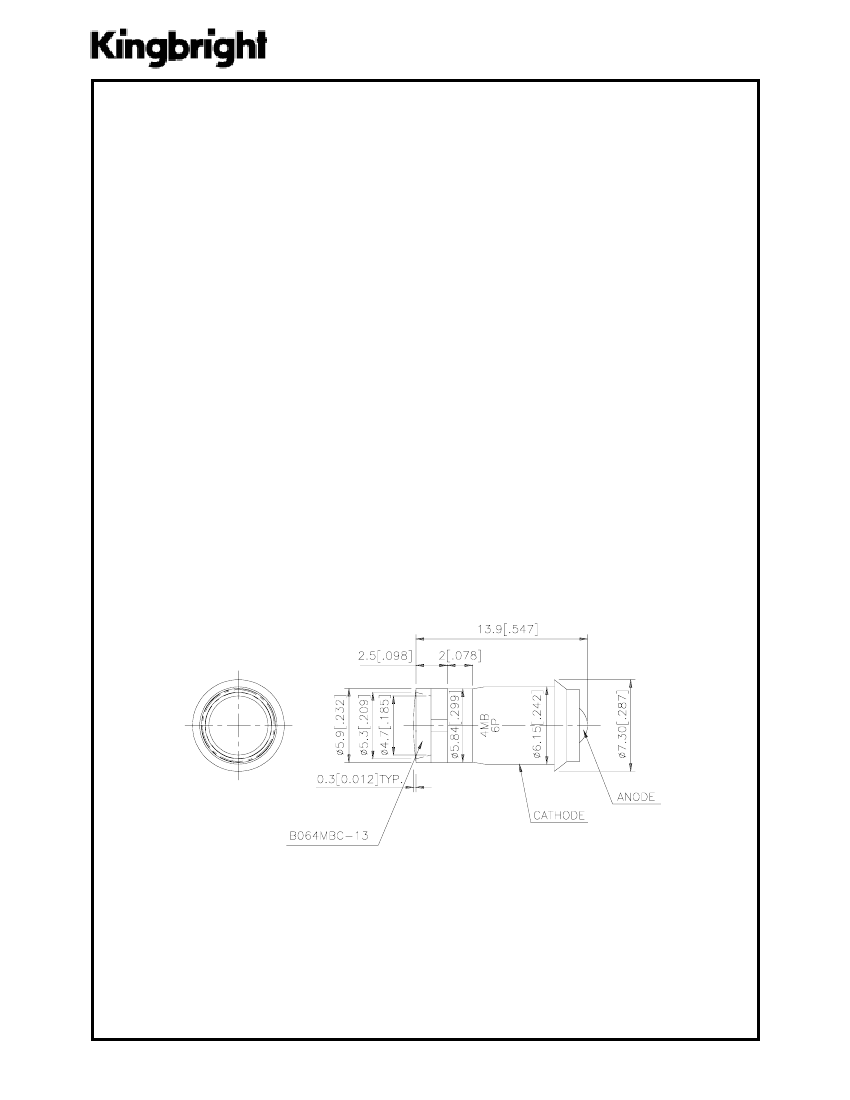

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAD1612
APPROVED : J. Lu
REV NO: V.1
CHECKED : Allen Liu
DATE: APR/09/2003
DRAWN: F.Y.YUAN
PAGE: 1 OF 3
Selection Guide
Iv (m c d )
V=6V
Min .
BLFA064MBC-6V
BLUE(GaN)
WATER CLEAR
18
Ty p .
60
V i ew i n g
An g l e
2
θ 1 / 2
110
°
P ar t N o .
Dic e
L en s Ty p e
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
I
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
Blue
Blue
D ev i c e
Ty p .
430
466
60
100
40
-
Max .
-
-
-
-
-
10
Un its
nm
nm
nm
pF
mA
uA
Tes t Co n d it io n s
V
F
= 6 V
V
F
= 6 V
V
F
= 6 V
V
F
= 0 V ; f = 1 M H z
V
F
= 6 V
V
R
=5 V
Spectral Line Halfwidth Blue
Capacitance
ForwardCurrent
Reverse Current
Blue
Blue
Blue
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
Forward Voltage
Reverse Voltage
Operating Temperature
Storage Temperature
B lu e
280
7
5
-40
°
C To +70
°C
-40
°
C To + 85
°C
Un its
mW
V
V
SPEC NO: DSAD1612
APPROVED : J. Lu
REV NO: V.1
CHECKED : Allen Liu
DATE: APR/09/2003
DRAWN: F.Y.YUAN
PAGE: 2 OF 3
