20.32mm (0.8INCH) SINGLE DIGIT
NUMERIC DISPLAY
Part Number: SA08-13YWA
YELLOW
Features
0.8 INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
I.C. COMPATIBLE.
CATEGORIZED FOR LUMINOUS INTENSITY.
MECHANICALLY RUGGED.
STANDARD : GRAY FACE, WHITE SEGMENT.
RoHS COMPLIANT.
Description
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.

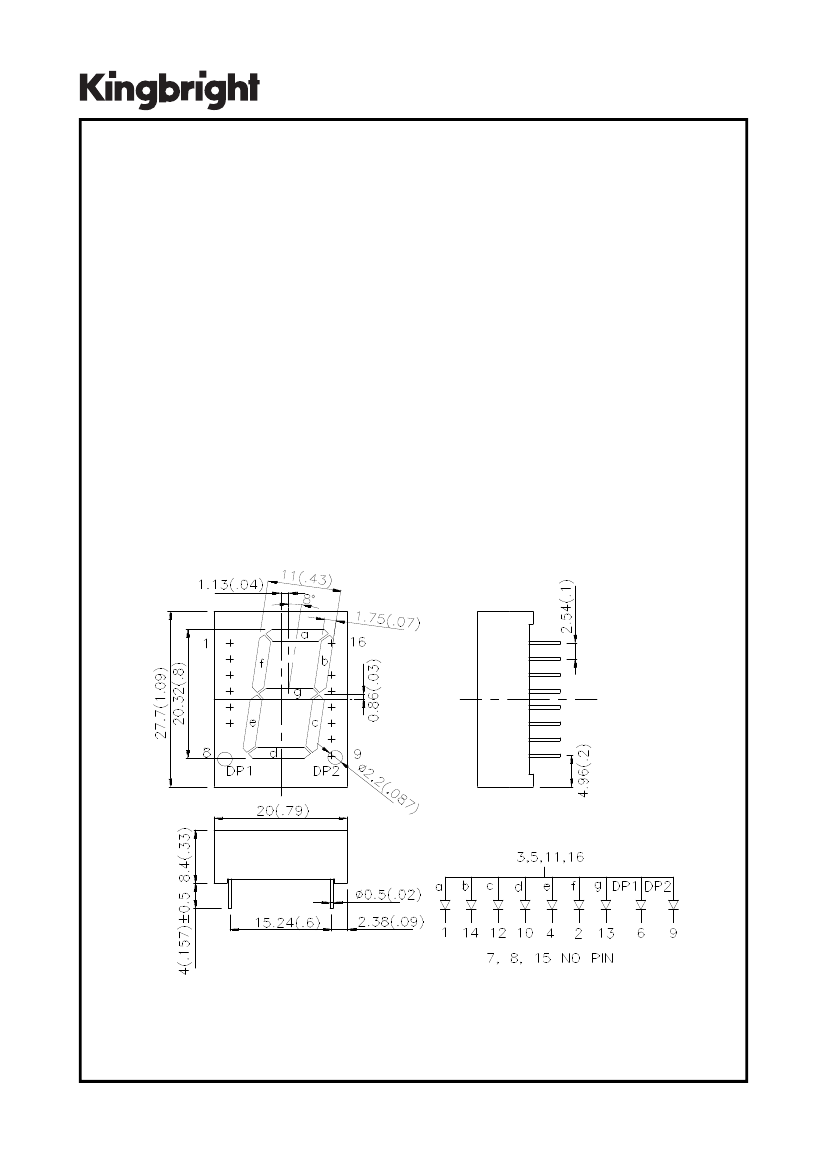

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAC1996
APPROVED: J. Lu
REV NO: V.7
CHECKED: Joe Lee
DATE: NOV/01/2006
DRAWN: Y.L.LI
PAGE: 1 OF 4
ERP: 1301000130
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
SA08-13YWA
YELLOW (GaAsP/GaP)
WHITE DIFFUSED
1200
Typ.
4700
Common Anode, Rt.&
Lt. Hand Decimal.
Description
Note:
1. Luminous Intensity / Luminous Flux: +/-15%.

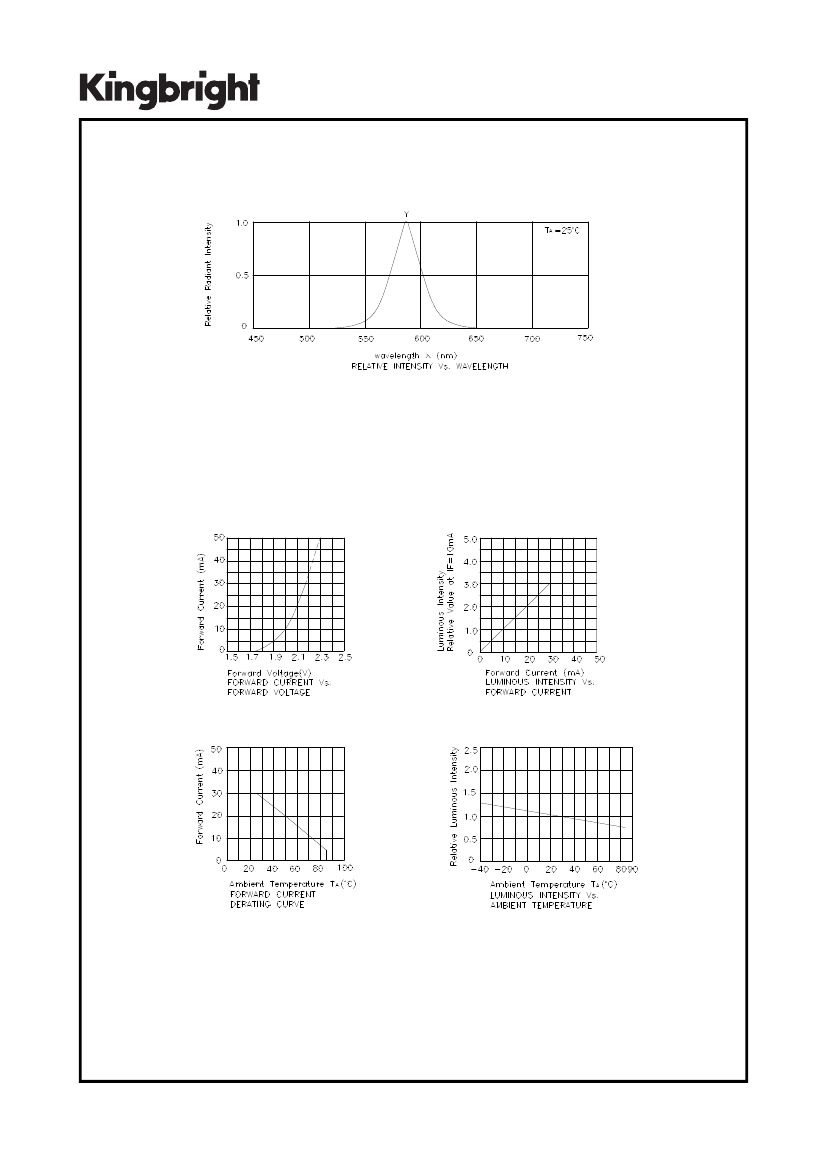

Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
[1]
∆λ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Typ.
590
588
35
20
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Yellow
105
30
140
5
-40°C To +85°C
260°C For 3 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAC1996
APPROVED: J. Lu
REV NO: V.7
CHECKED: Joe Lee
DATE: NOV/01/2006
DRAWN: Y.L.LI
PAGE: 2 OF 4
ERP: 1301000130
