2.0x1.25mm SMD CHIP LED LAMP
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: APTK2012RWC/Z-F01
WHITE
Description
The source color devices are made with InGaN on SiC Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
Features
2.0mmx1.25mm SMT LED, 0.75mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACK LIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
MOISTURE SENSITIVITY LEVEL : LEVEL 4.
ELECTROSTATIC DISCHARGE THRESHOLD (HBM):1000V.
TYP. COLOR TEMPERATURE:6500K
COLOR COORDINATES:X=0.31,Y=0.31 ACC. TO
CIE1931(WHITE).
OPTICAL EFFICIENCY:26 lm/W(TYP.)
COLOR REPRODUCTION INDEX:80
RoHS COMPLIANT.
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
Applications
traffic signaling.
backlighting (illuminated advertising , general lighting).
interior and exterior automotive lighting.
substitution of micro incandescent lamps.
reading lamps.
signal and symbol luminaire for orientation.
marker lights (e.g. steps, exit ways, etc).
decorative and entertainment lighting.
indoor and outdoor commercial and residential
architectural lighting.

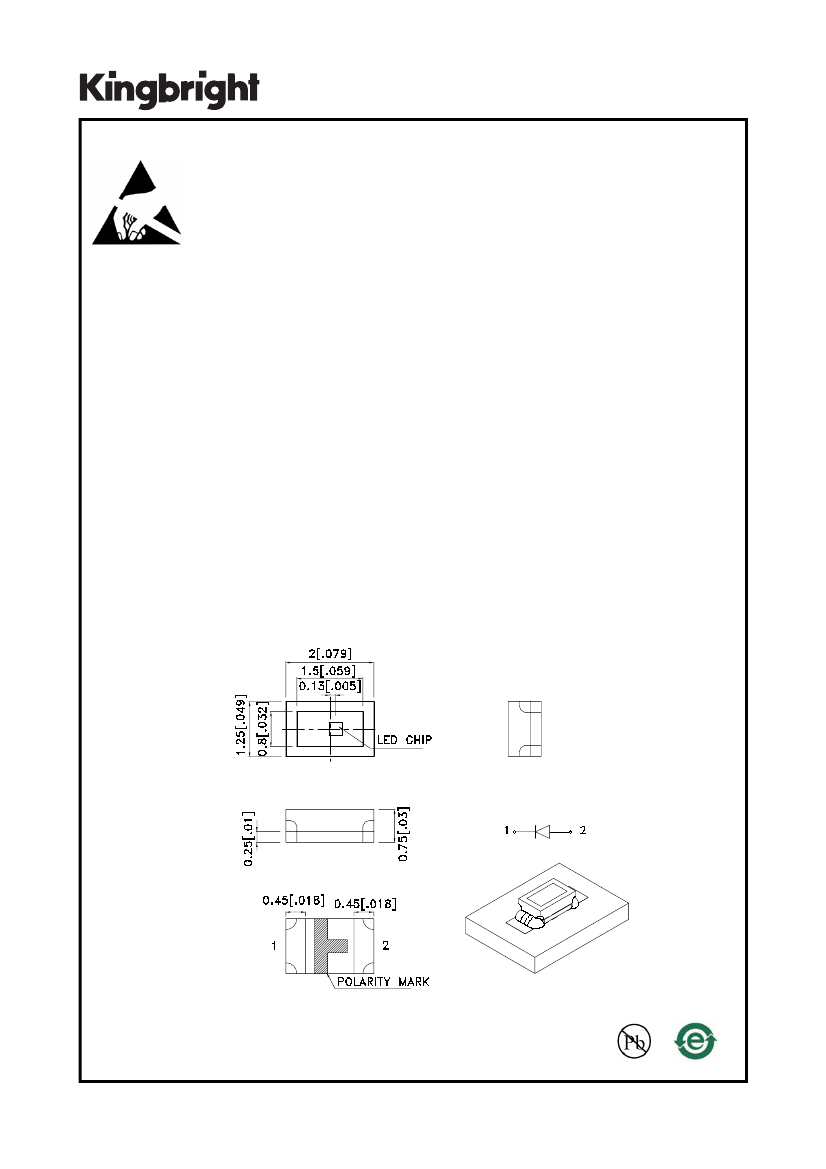

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.1(0.004")
unless otherwise noted.
3. Specifications are subject to change without notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAH3790
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JUN/08/2007
DRAWN: Y.L.LI
PAGE: 1 OF 7
ERP: 1204000745
Selection Guide
Part No.
Dice
Lens Type
luminous Intensity
Iv(mcd) @ 20mA
Min.
APTK2012RWC/Z-F01
WHITE (InGaN)
WATER CLEAR
380
Typ.
700
Note2
Φv
(mlm)
@ 20mA
Typ.
1700
Note3
Viewing
Note1
Angle
2θ1/2
100°
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
Reverse Voltage
Junction temperature
Operating Temperature
Storage Temperature
DC Forward Current
Peak Forward Current
Thermal resistance
Note5
Junction/ambient
Junction/solder point
Note4
Symbol
P
t
V
R
T
J
Top
Tstg
I
F
I
FM
R
th JA
R
th JS
Value
120
5
110
-40 To +85
-40 To +100
30
100
350
130
Unit
mW
V
°C
°C
°C
mA
mA
°C/W
°C/W
Notes:
1.θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2.Luminous intensity is measured by a current pulse of 10ms at a tolerance of ±15%.
3.The typical data of Luminous Flux can only reflect statistical figures, actual parameters of individual product could differ from the typical data.
For the purpose of product enhancement, the typical data is subject to change without prior notice.
4.1/10 Duty Cycle, 0.1ms Pulse Width.
5.Rth(J-A) Results from mounting on PC board FR4 (pad size≥16 mm
2
per pad),
Electrical / Optical Characteristics at T
A
=25°C
Parameter
Chromaticity coordinate x acc.to CIE1931
I
F
=20mA [Typ.]
Chromaticity coordinate y acc.to CIE1931
I
F
=20mA [Typ.]
Forward Voltage I
F
=20mA [Min.]
Forward Voltage I
F
=20mA [Typ.]
Forward Voltage
I
F
=20mA [Max.]
[Typ.]
I
R
Reverse Current (V
R
=5V)
[Max.]
TC x
10
-0.1
10
-3
/
°
C
10
-3
/
°
C
mV/
°
C
Temperature coefficient of x
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
Temperature coefficient of y
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
Temperature coefficient of V
F
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
V
F
Note2
Symbol
X
Y
Note1
Value
0.31
0.31
2.6
3.2
4.0
0.01
Unit
-
-
Note1
V
Reverse Current (V
R
=5V)
μA
TCy
-0.2
TC
V
-2.5
Notes:
1.Chromaticity coordinates are measured by a current pulse of 20ms with a tolerance of ±0.01 in X and Y color coordinates.
2.Forward voltage is measured with a current pulse of 10ms at a tolerance of ±0.1V.
SPEC NO: DSAH3790
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JUN/08/2007
DRAWN: Y.L.LI
PAGE: 2 OF 7
ERP: 1204000745

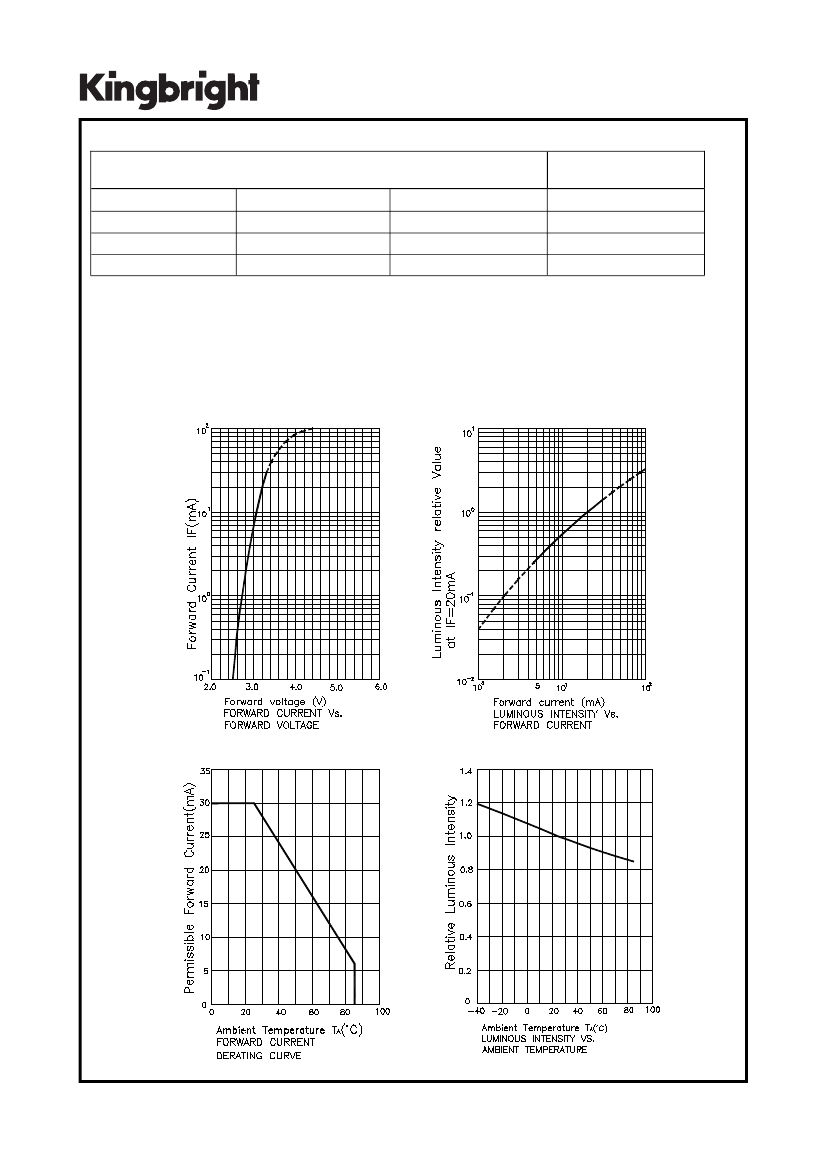

Brightness codes
luminous Intensity
Iv(mcd) @ 20mA
Code.
R
S
T
Min.
380
480
650
Note1
Φv
(mlm)
@ 20mA
Max.
550
750
1100
Typ.
1270
1720
2380
Note2
Notes:
1.Luminous intensity is measured by a current pulse of 10ms at a tolerance of ±15%.
2.The typical data of Luminous Flux can only reflect statistical figures, actual parameters of individual product could differ from the typical data.
For the purpose of product enhancement, the typical data is subject to change without prior notice.
White
APTK2012RWC/Z-F01
SPEC NO: DSAH3790
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JUN/08/2007
DRAWN: Y.L.LI
PAGE: 3 OF 7
ERP: 1204000745

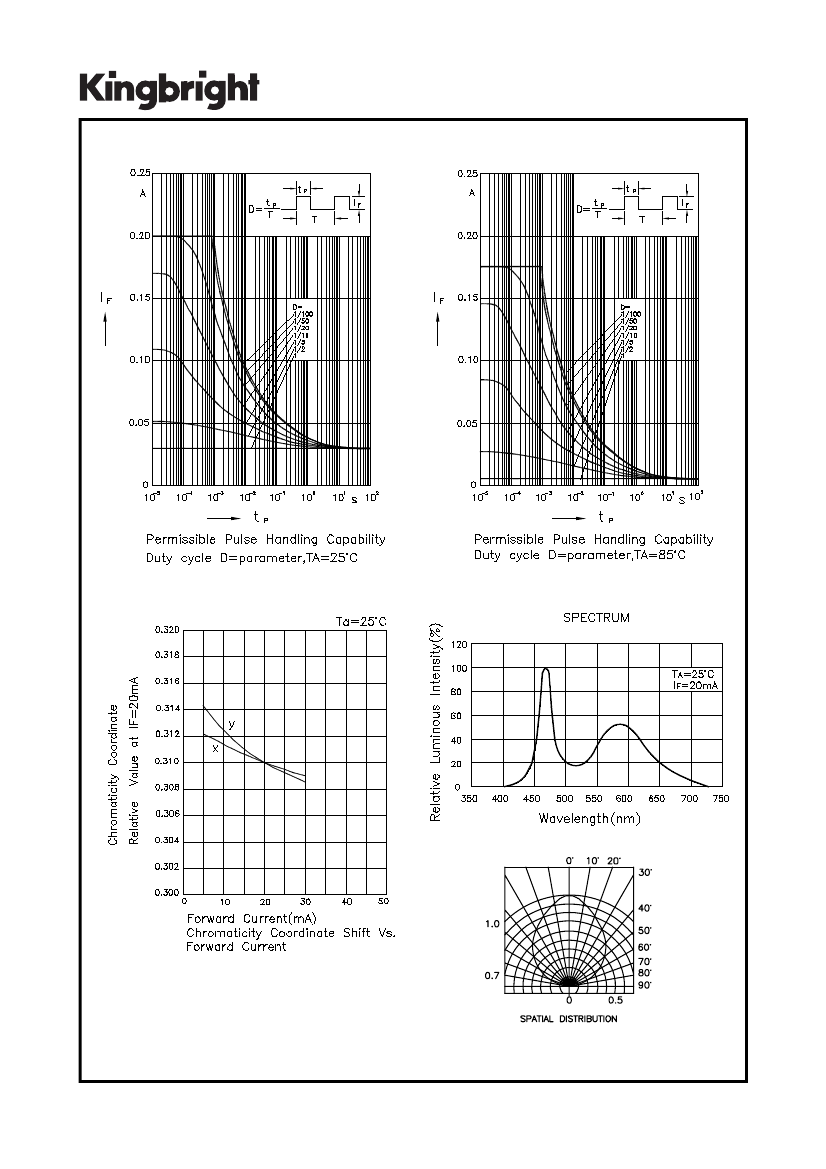

APTK2012RWC/Z-F01
SPEC NO: DSAH3790
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JUN/08/2007
DRAWN: Y.L.LI
PAGE: 4 OF 7
ERP: 1204000745
Color Codes
APTK2012RWC/Z-F01
White CIE
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.35
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.27
0.26
0.25
0.24
0.23
0.22
0.21 0.22 0.23 0.24 0.25 0.26 0.27 0.28 0.29 0.30 0.31 0.32 0.33 0.34 0.35 0.36 0.37 0.38
a0
a1
b3
b1
b2
b4
c0
c1
a0
X
Y
0.264 0.283 0.296 0.280
0.267 0.305 0.276 0.248
X
Y
a1
0.248 0.275 0.283 0.264
0.286 0.321 0.305 0.267
X
Y
b1
0.283 0.330 0.330 0.287
0.305 0.360 0.339 0.295
Reference CCT: 14000~9000k
b2
X
Y
0.287 0.330 0.330 0.296
0.295 0.339 0.318 0.276
Reference CCT: 14000~9000k
b3
X
Y
0.275 0.298 0.306 0.283
0.321 0.350 0.332 0.305
Reference CCT: 9000~5600k
b4
X
Y
0.298 0.321 0.330 0.306
0.350 0.379 0.360 0.332
Reference CCT: 9000~5600k
c0
X
Y
0.330 0.361 0.356 0.330
0.360 0.385 0.351 0.318
Reference CCT: 9000~7000k
c1
X
Y
0.321 0.366 0.361 0.330
0.379 0.419 0.385 0.360
Reference CCT: 7600~5600k
Reference CCT: 5600~4600k
Reference CCT: 6000~4600k
SPEC NO: DSAH3790
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JUN/08/2007
DRAWN: Y.L.LI
PAGE: 5 OF 7
ERP: 1204000745
