BC56-13YWA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BC56-13YWA

BC56-13YWA: Description14.22mm (0.56INCH) THREE DIGIT NUMERIC DISPLAY; CategoryLED optoelectronic/LED photoelectric; File Size142KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

BC56-13YWA Overview

14.22mm (0.56INCH) THREE DIGIT NUMERIC DISPLAY

BC56-13YWA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-28
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	YELLOW
color@wavelength	Yellow
Configuration	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height	14.2 mm
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Number of characters	3
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	590 nm
Base Number Matches	1

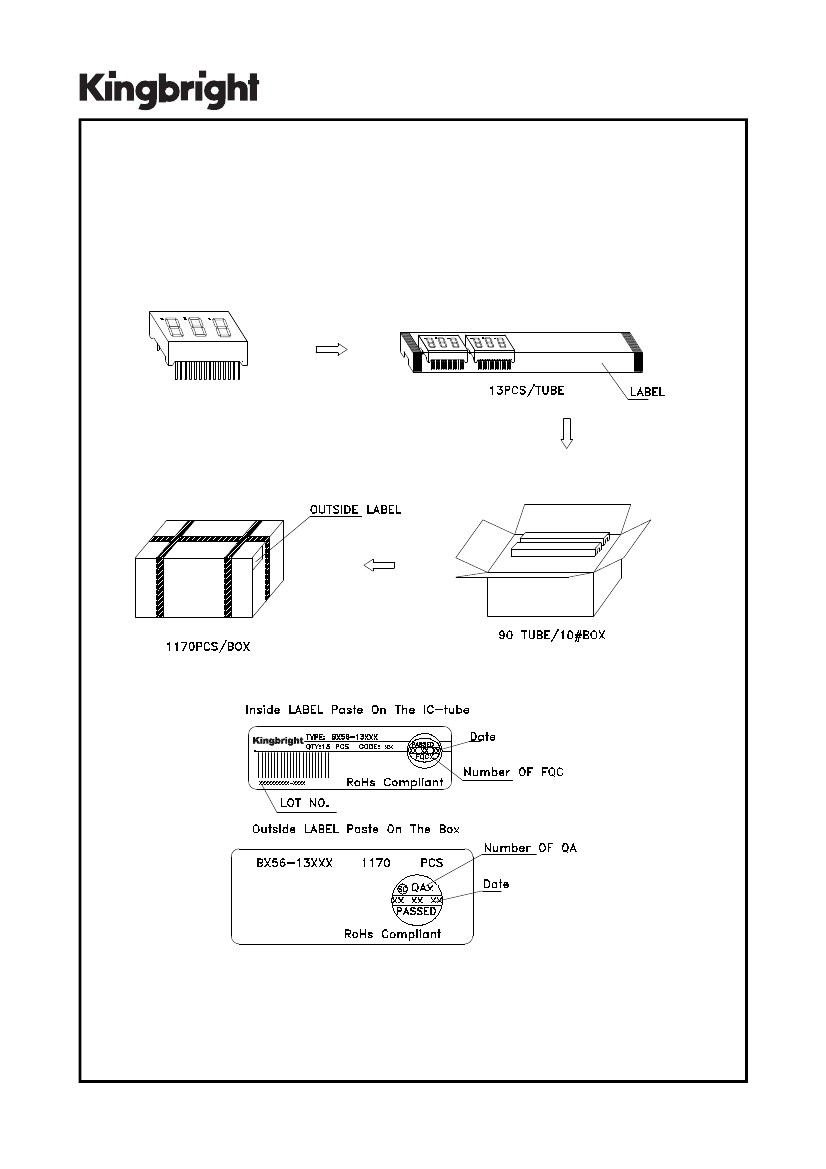

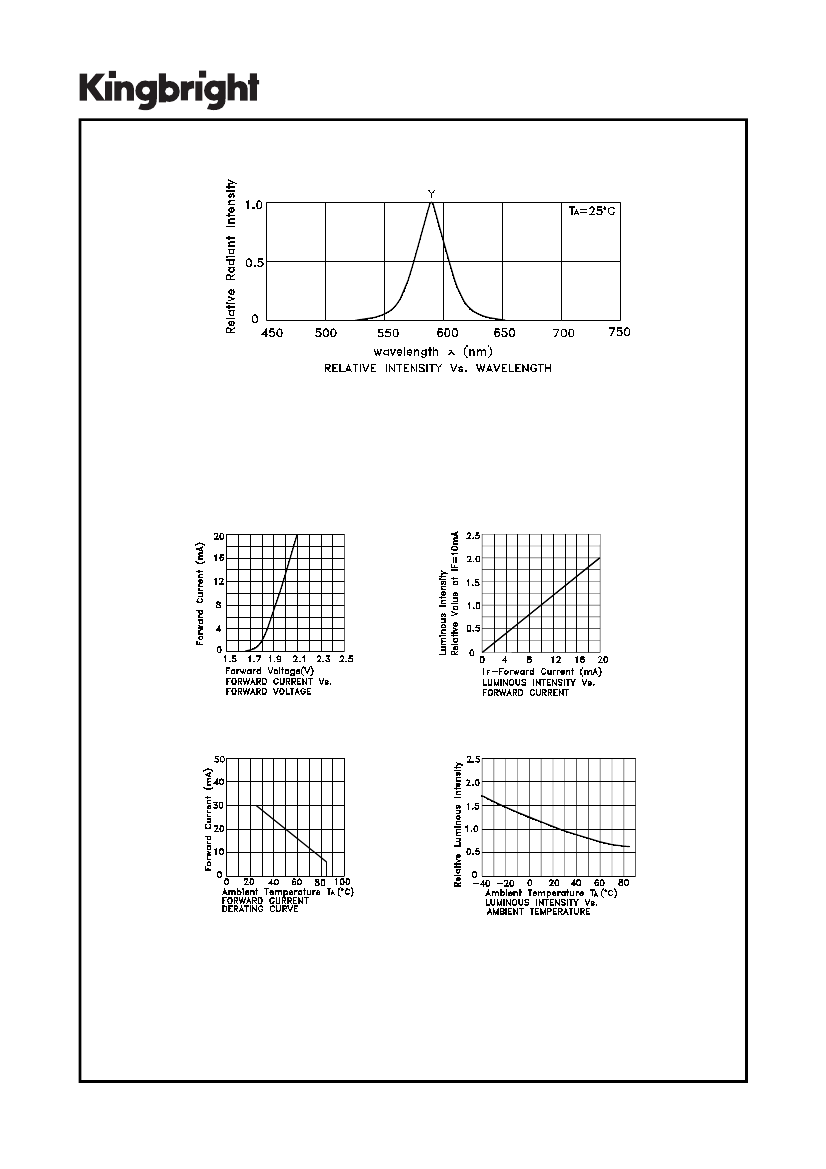

Preview

Download Datasheet

View All

14.22mm (0.56INCH) THREE DIGIT NUMERIC

DISPLAY

Part Number: BC56-13YWA

Yellow

Features

0.56 INCH DIGIT HEIGHT.

LOW CURRENT OPERATION.

EXCELLENT CHARACTER APPEARANCE.

EASY MOUNTING ON P.C. BOARDS OR SOCKETS.

I.C. COMPATIBLE.

MECHANICALLY RUGGED.

STANDARD: GRAY FACE, WHITE SEGMENT.

RoHS COMPLIANT.

Description

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

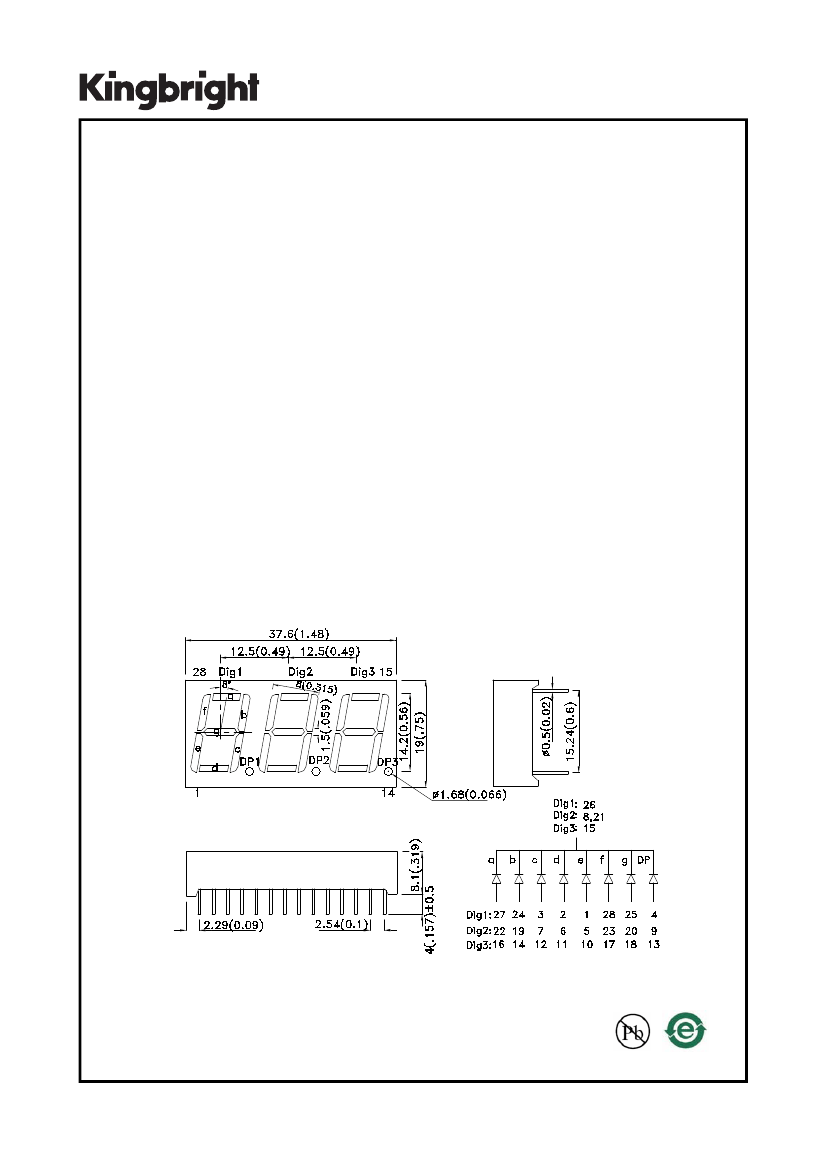

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. Specifications are subject to change without notice.

SPEC NO: DSAD2358

APPROVED: WYNEC

REV NO: V.8

CHECKED: Joe Lee

DATE: MAY/24/2007

DRAWN: Y.L.LI

PAGE: 1 OF 4

ERP: 1303000251
