SVC182D-10AFS5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> SVC182D-10AFS5

SVC182D-10AFS5: DescriptionVaristor, 1465V, 24J, Through Hole Mount, RADIAL LEADED; CategoryPassive components The resistor; File Size3MB，17 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

SVC182D-10AFS5 Overview

Varistor, 1465V, 24J, Through Hole Mount, RADIAL LEADED

SVC182D-10AFS5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	RADIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Circuit maximum DC voltage	1465 V
Circuit RMS maximum voltage	1000 V
Maximum energy absorption capacity	24 J
Manufacturer's serial number	SVC
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Package shape	DISK PACKAGE
method of packing	TAPE
Rated power dissipation(P)	0.6 W
Rated temperature	85 °C
Resistor type	VARISTOR
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

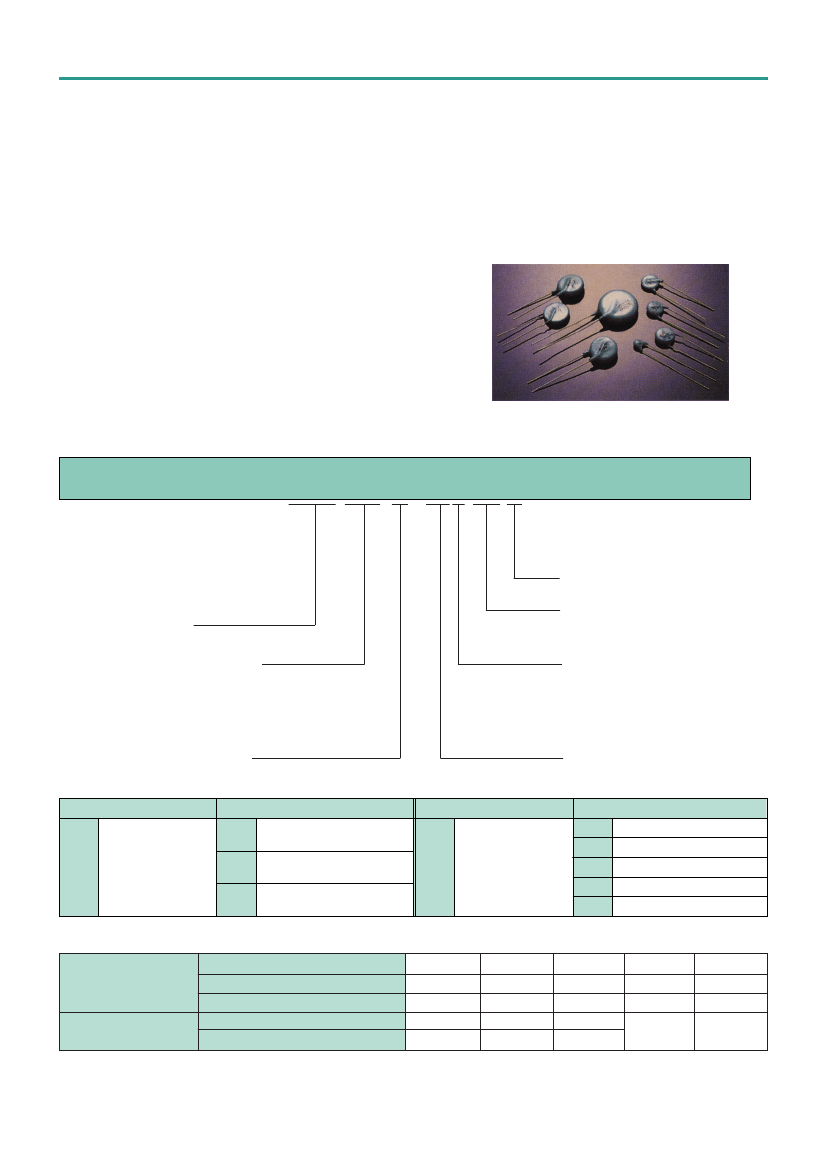

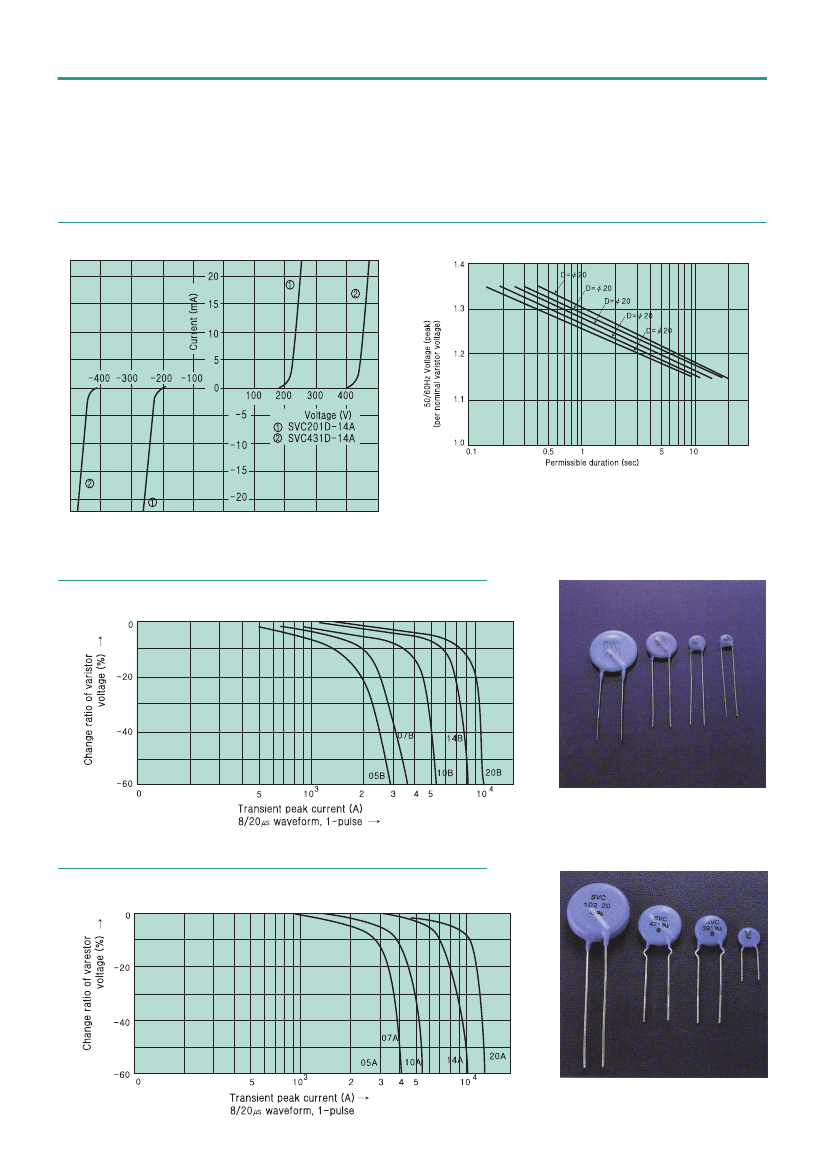

CERAMIC SURGE ABSORBERS (VARISTORS)

SVC

SVC CHARACTERISTIC

INTRODUCTION

SVC series Varistors are gapless ceramic surge absorbers of a new type made of metal oxide which is designed to protect

various kinds of electronic devices and semiconducting elements from surges.

FEATURES

1. High discharge current capability up to 4000 Amps.

2. Excellent clamping characteristics.

3. Fast response time under 50 nanesesconds.

4. Improve product safety

5. UL, CSA, VDE recognized

TYPE DESIGNATION (HOW TO ORDER)

SVC 471 D-14A FF 7

Lead Spacing & Pitch of Component

Basic Type

ZnO Varistor

Varistor Nominal Voltage

(The first two digit indicate significaticant digits)

(The 3rd digit indicate the number of zeros following)

Packing Style & Lead Variation

Classification

A : High Voltage(82V and above)

B : Low Voltage(less then 68V)

Chip Element Size (Dia)

05 : 5mm

14 : 14mm

07 : 7mm

20 : 20mm

10 : 10mm

Lead Variation

Straight Type

In-Kink Type

Out-Kink Type

Bulk

Packing Style

Lead Variation

Straight Long Type

Kink short Type

Kink long Type

Kink short Type

Straight short Type

Style

D : Disk Type Varistor

Packing Style

Taping

Type

Flat Pack

Suffix Code

Taping Type

Code

Lead Spacing(mm)

Pitch of Component(mm)

Code

Lead Spacing(mm)

5.0

12.7

5.0

7.5

15.0

7.5

30.0

10.0

7.5

25.4

10.0

30.0

Bulk Type
