DM2202J-20 datasheet, PDF - EEWORLD Datasheet

DM2202J-20: DescriptionCache DRAM, 1MX4, 20ns, CMOS, PDSO28,; Categorystorage storage; File Size535KB，17 Pages; ManufacturerRamtron International Corporation (Cypress Semiconductor Corporation); Websitehttp://www.cypress.com/

Download Datasheet Parametric Compare View All

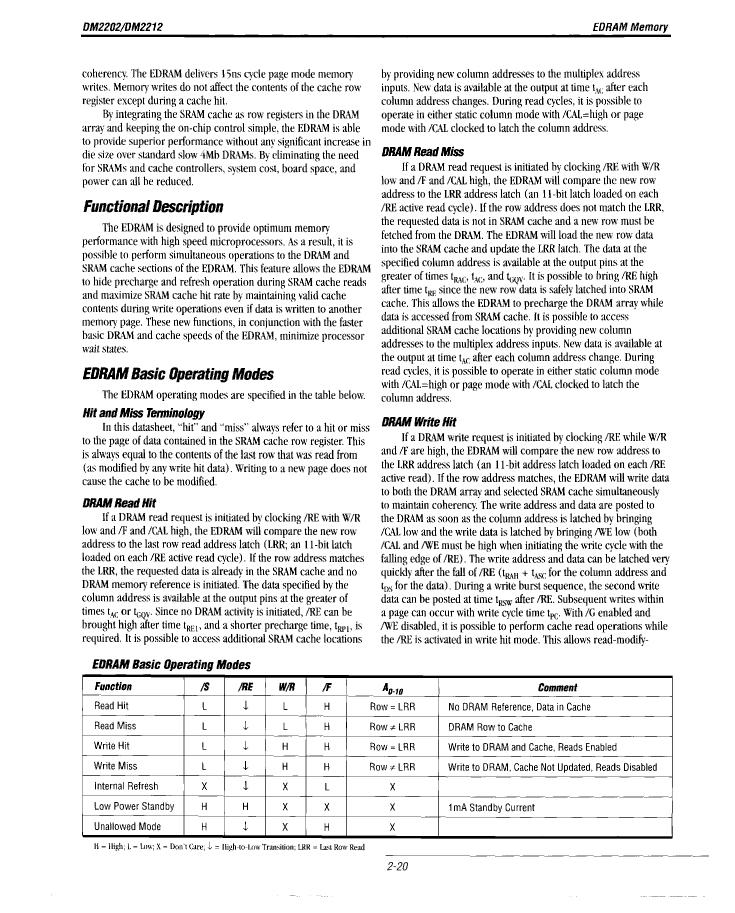

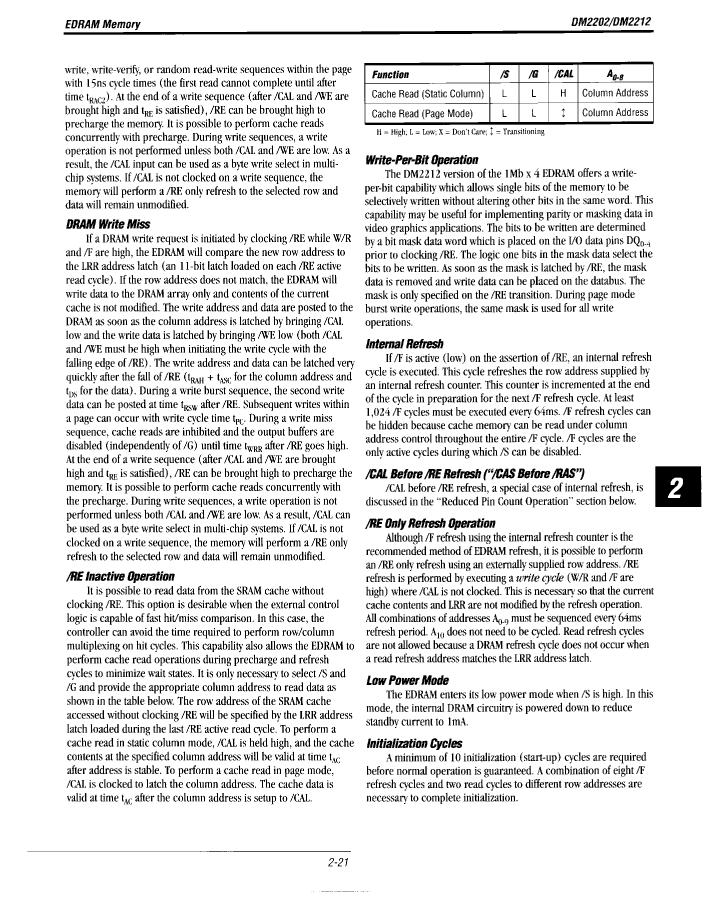

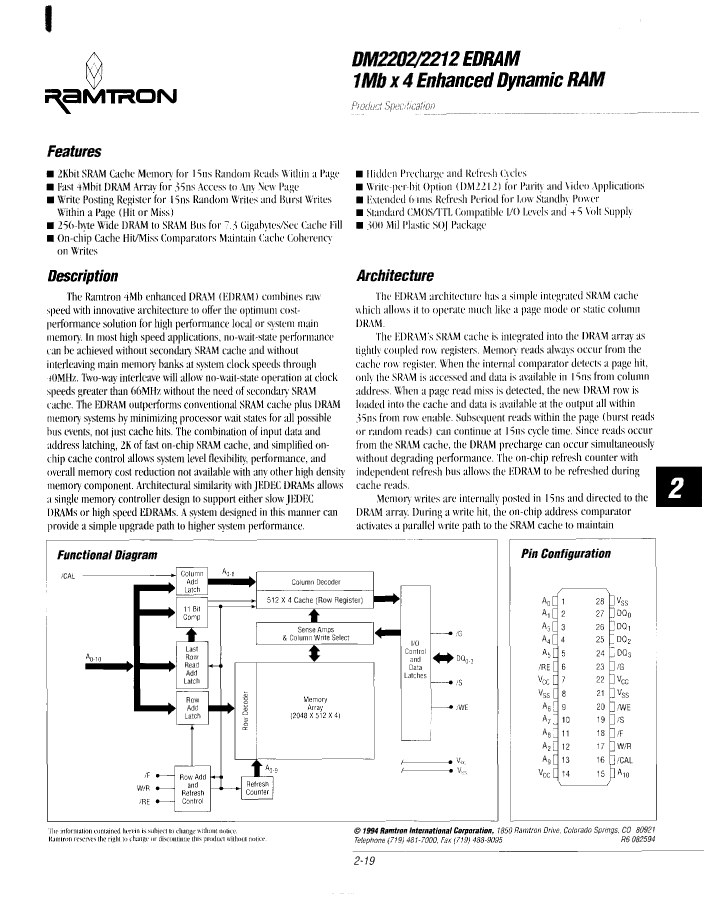

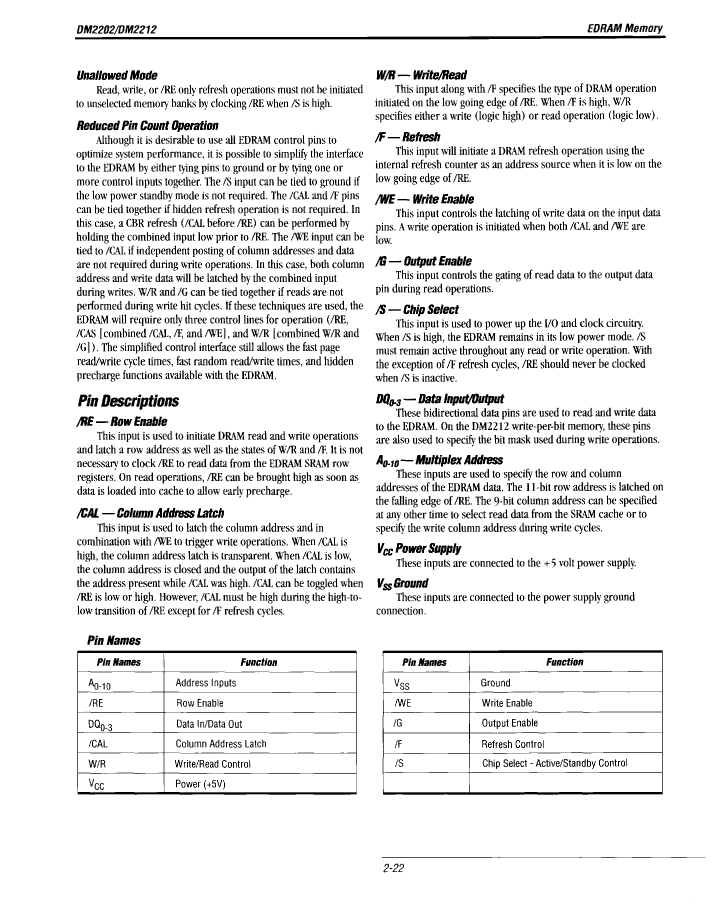

DM2202J-20 Overview

Cache DRAM, 1MX4, 20ns, CMOS, PDSO28,

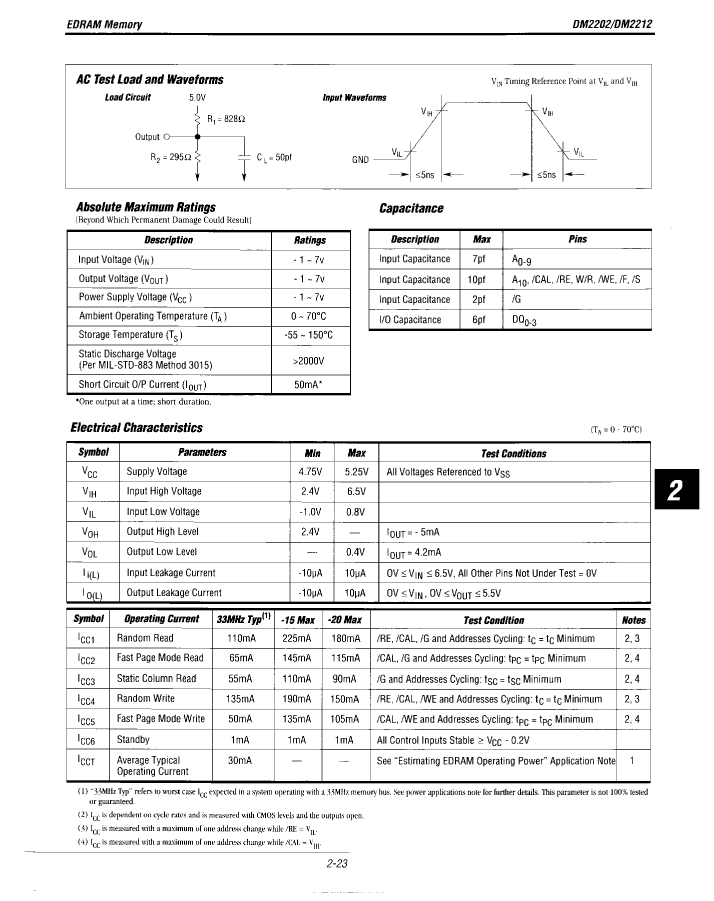

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SOJ, SOJ28,.34
Reach Compliance Code	unknown
Maximum access time	20 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	CACHE DRAM
memory width	4
Number of terminals	28
word count	1048576 words
character code	1000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.18 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	DM2202J-20	DM2212J-20
Description	Cache DRAM, 1MX4, 20ns, CMOS, PDSO28,	Cache DRAM, 1MX4, 45ns, CMOS, PDSO28,
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
package instruction	SOJ, SOJ28,.34	SOJ, SOJ28,.34
Reach Compliance Code	unknown	unknown
Maximum access time	20 ns	45 ns
I/O type	COMMON	COMMON
JESD-30 code	R-PDSO-J28	R-PDSO-J28
JESD-609 code	e0	e0
memory density	4194304 bit	4194304 bit
Memory IC Type	CACHE DRAM	CACHE DRAM
memory width	4	4
Number of terminals	28	28
word count	1048576 words	1048576 words
character code	1000000	1000000
Maximum operating temperature	70 °C	70 °C
organize	1MX4	1MX4
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ
Encapsulate equivalent code	SOJ28,.34	SOJ28,.34
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
refresh cycle	1024	1024
self refresh	NO	NO
Maximum standby current	0.001 A	0.001 A
Maximum slew rate	0.18 mA	0.12 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
