TB6593FNG Overview

Toshiba Bi-CD Integrated Circuit Silicon Monolithic

TB6593FNG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
Parts packaging code	SSOP
package instruction	LSSOP, SSOP20,.25
Contacts	20
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G20
length	6.5 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output current	4.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	SSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3,4.5 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	BCDMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

TB6593FNG

Toshiba Bi-CD Integrated Circuit Silicon Monolithic

TB6593FNG

Driver IC for DC motor

TB6593FNG is a driver IC for DC motor with output

transistor in LD MOS structure with low ON-resistor. Two

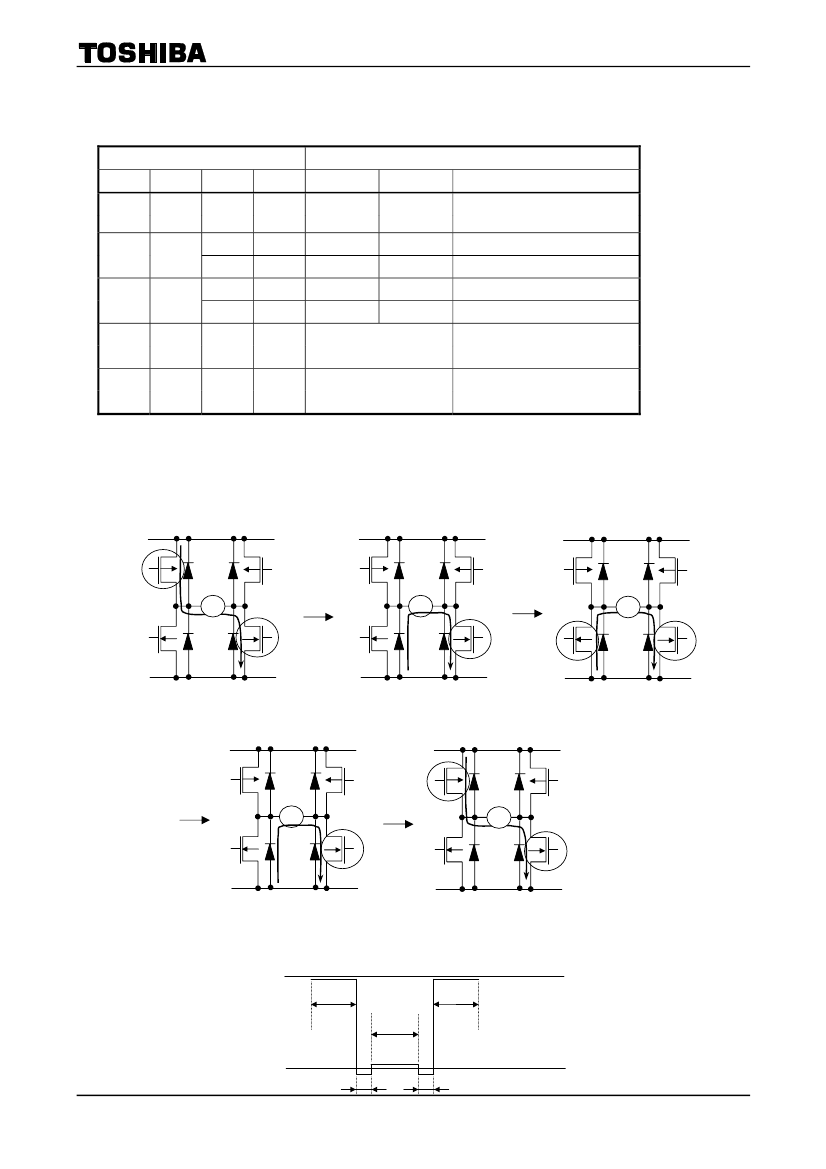

input signals, IN1 and IN2, can choose one of four modes

such as CW, CCW, short brake, and stop mode.

Features

•

Power supply voltage

Output current

Output low ON resistor

: VM=15V（Max.）

: Iout=1.2A(ave) / 3.2A (peak)

: 0.35Ω ((typ. @VM≧5V)

Weight

SSOP20-P-225-0.65: 0.09g (Typ.)

Standby (Power save)system

CW/CCW/short brake/stop function modes

Built-in thermal shutdown circuit and low voltage detecting circuit

Small faced package（SSOP20:0.65mm pitch）

Response to Pb free packaging

The TB6593FNG is a Pb-free product.

The following conditions apply to solderability:

*Solderability

1. Use of Sn-63Pb solder bath

*solder bath temperature = 230°C

*dipping time = 5 seconds

*number of times = once

*use of R-type flux

2. Use of Sn-3.0Ag-0.5Cu solder bath

*solder bath temperature = 245°C

*dipping time = 5 seconds

*the number of times = once

*use of R-type flux

This product has a MOS structure and is sensitive to electrostatic discharge. When handling this product,

ensure that the environment is protected against electrostatic discharge by using an earth strap, a conductive

mat and an ionizer. Ensure also that the ambient temperature and relative humidity are maintained at

reasonable levels.
