UC1707L/81032 datasheet, PDF - EEWORLD Datasheet

UC1707L/81032: DescriptionBuffer/Inverter Based MOSFET Driver, 1.5A, BIPolar, CQCC20, CERAMIC, LCC-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size3MB，12 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

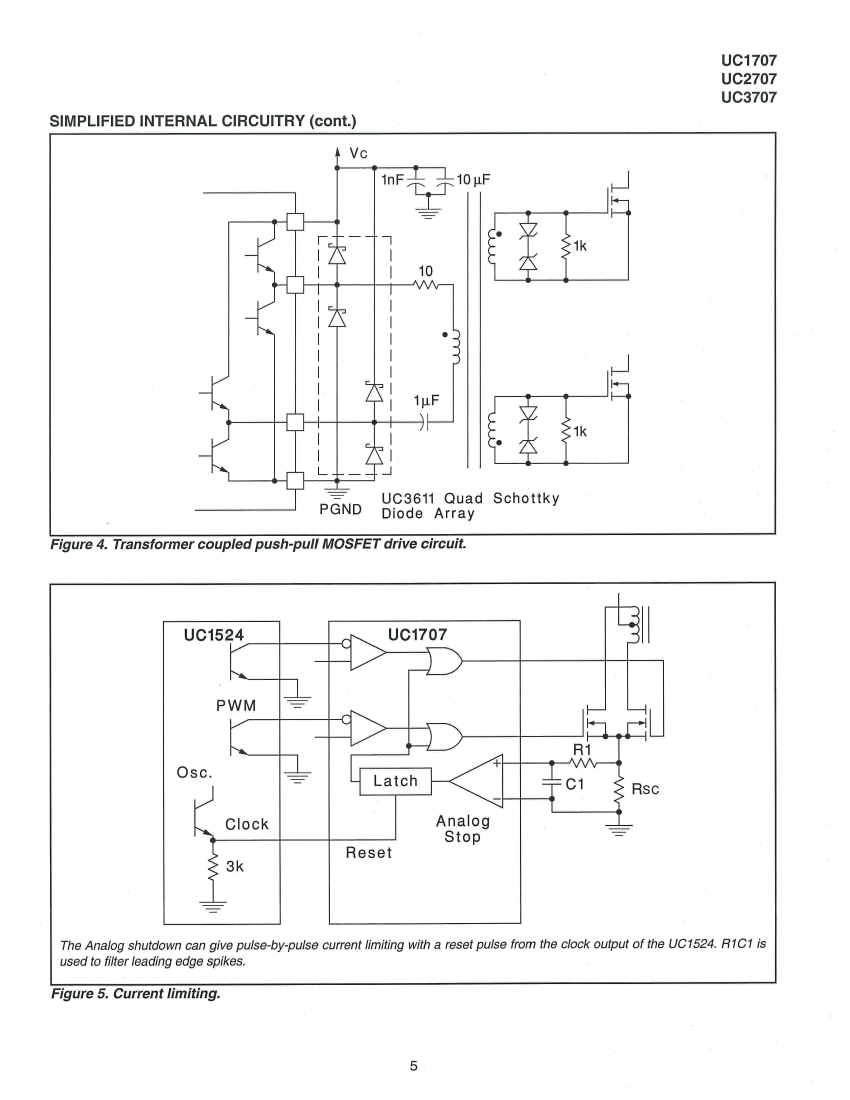

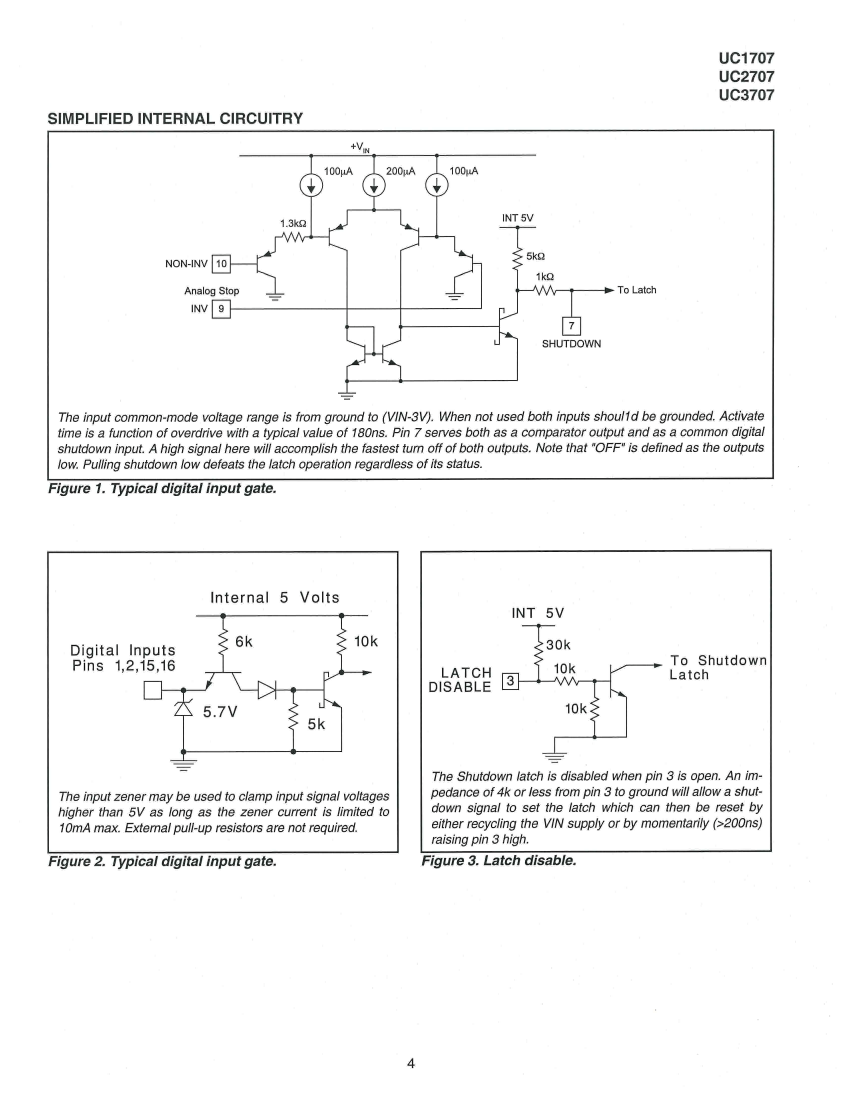

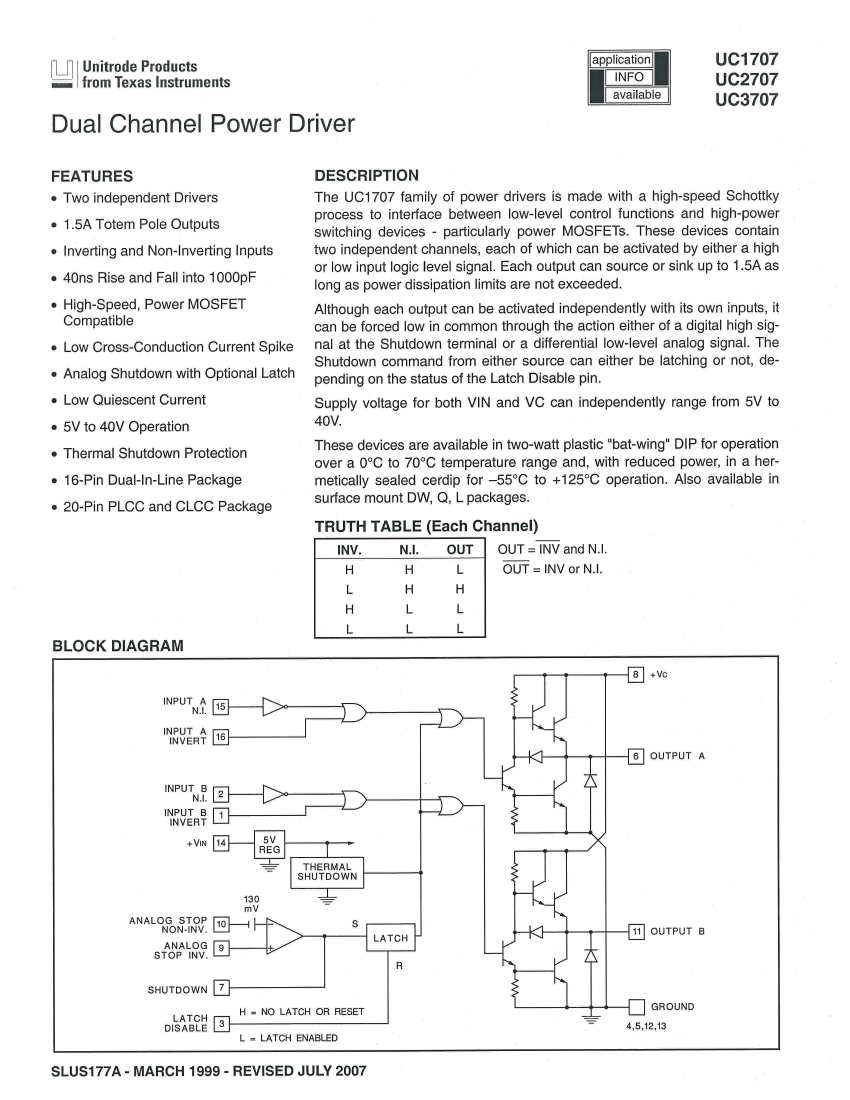

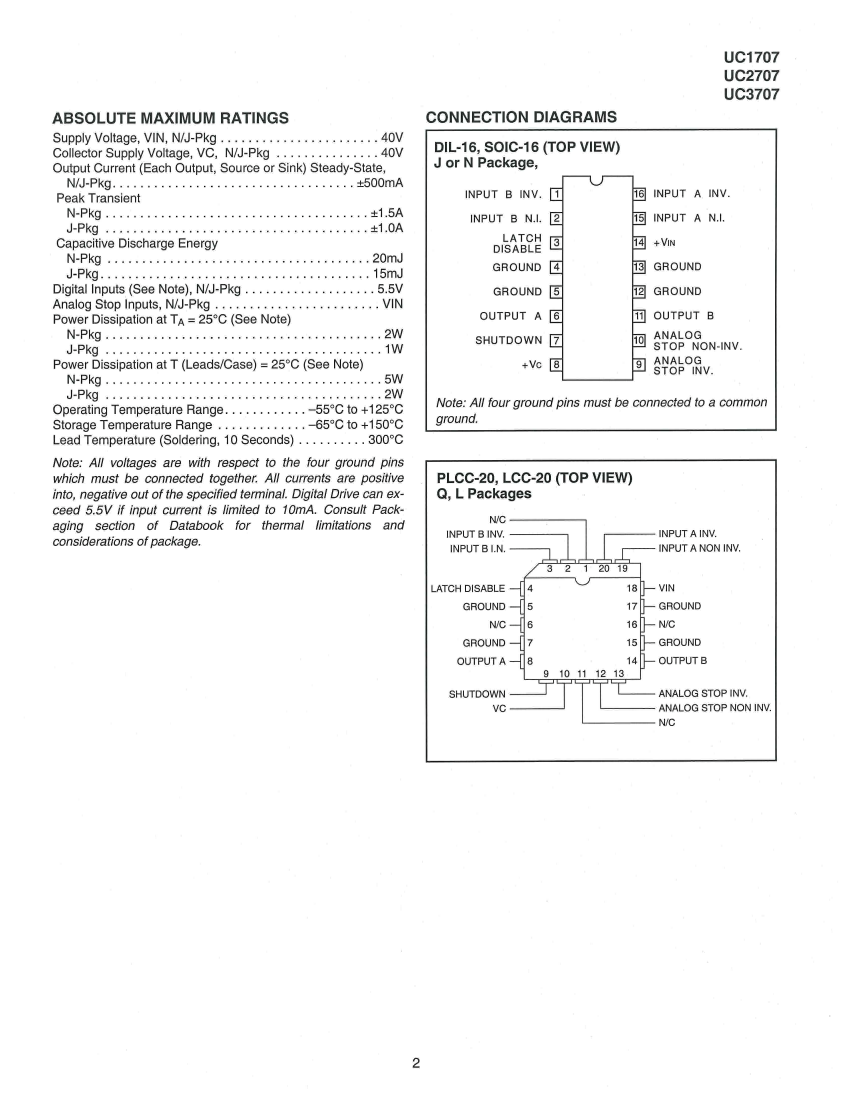

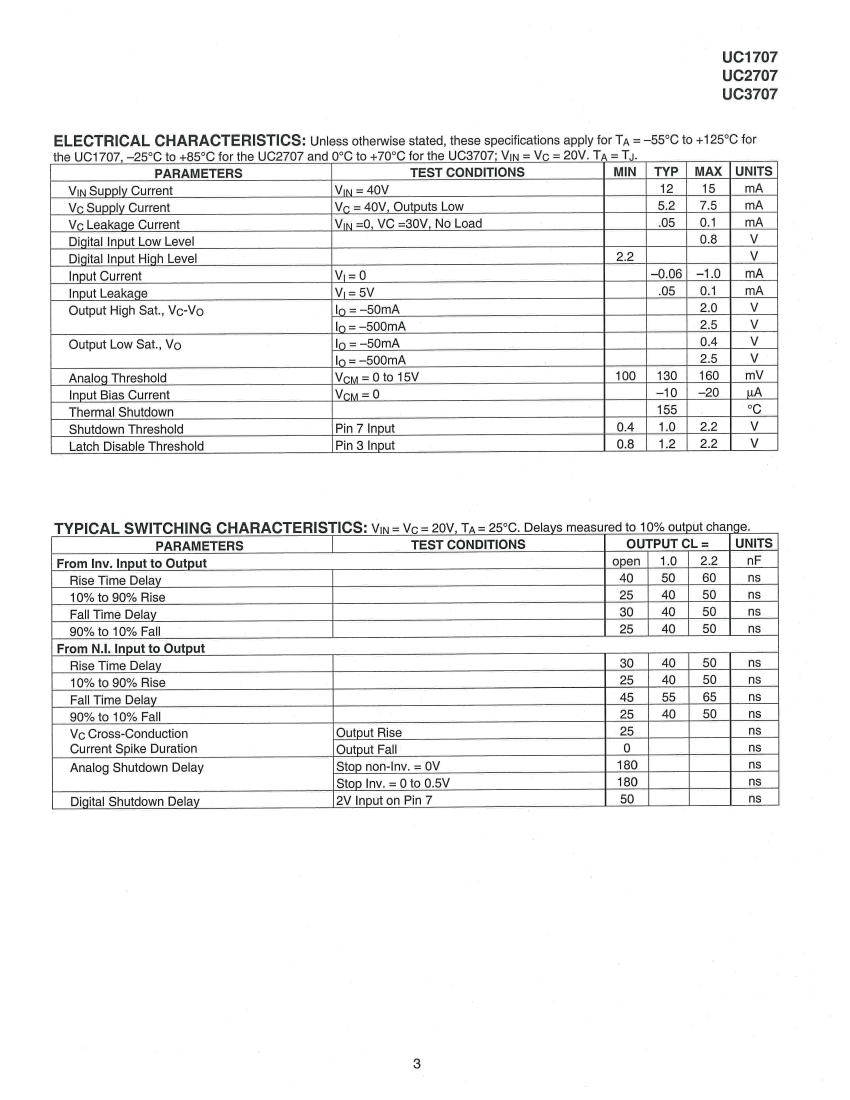

UC1707L/81032 Overview

Buffer/Inverter Based MOSFET Driver, 1.5A, BIPolar, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
package instruction	QCCN,
Reach Compliance Code	unknown
ECCN code	EAR99
high side driver	NO
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	S-CQCC-N20
length	8.89 mm
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Nominal output peak current	1.5 A
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum seat height	2.03 mm
Maximum supply voltage	40 V
Minimum supply voltage	5 V
Nominal supply voltage	20 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Disconnect time	0.065 µs
connection time	0.05 µs
width	8.89 mm
Base Number Matches	1

	UC1707L/81032	UC1707J/80900
Description	Buffer/Inverter Based MOSFET Driver, 1.5A, BIPolar, CQCC20, CERAMIC, LCC-20	Buffer/Inverter Based MOSFET Driver, 1A, BIPolar, CDIP16, CERAMIC, DIP-16
package instruction	QCCN,	DIP,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
high side driver	NO	NO
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	S-CQCC-N20	R-GDIP-T16
length	8.89 mm	19.56 mm
Number of functions	2	2
Number of terminals	20	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Nominal output peak current	1.5 A	1 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Maximum seat height	2.03 mm	5.08 mm
Maximum supply voltage	40 V	40 V
Minimum supply voltage	5 V	5 V
Nominal supply voltage	20 V	20 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Disconnect time	0.065 µs	0.065 µs
connection time	0.05 µs	0.05 µs
width	8.89 mm	7.62 mm
