T-1 3/4 (5mm) SOLID STATE LAMP
Part Number: WP7083VGD/Z
Green
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
OUTSTANDING MATERIAL EFFICIENCY.
RELIABLE AND RUGGED.
I.C. COMPATIBLE.
RoHS COMPLIANT.
Description
The Green source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

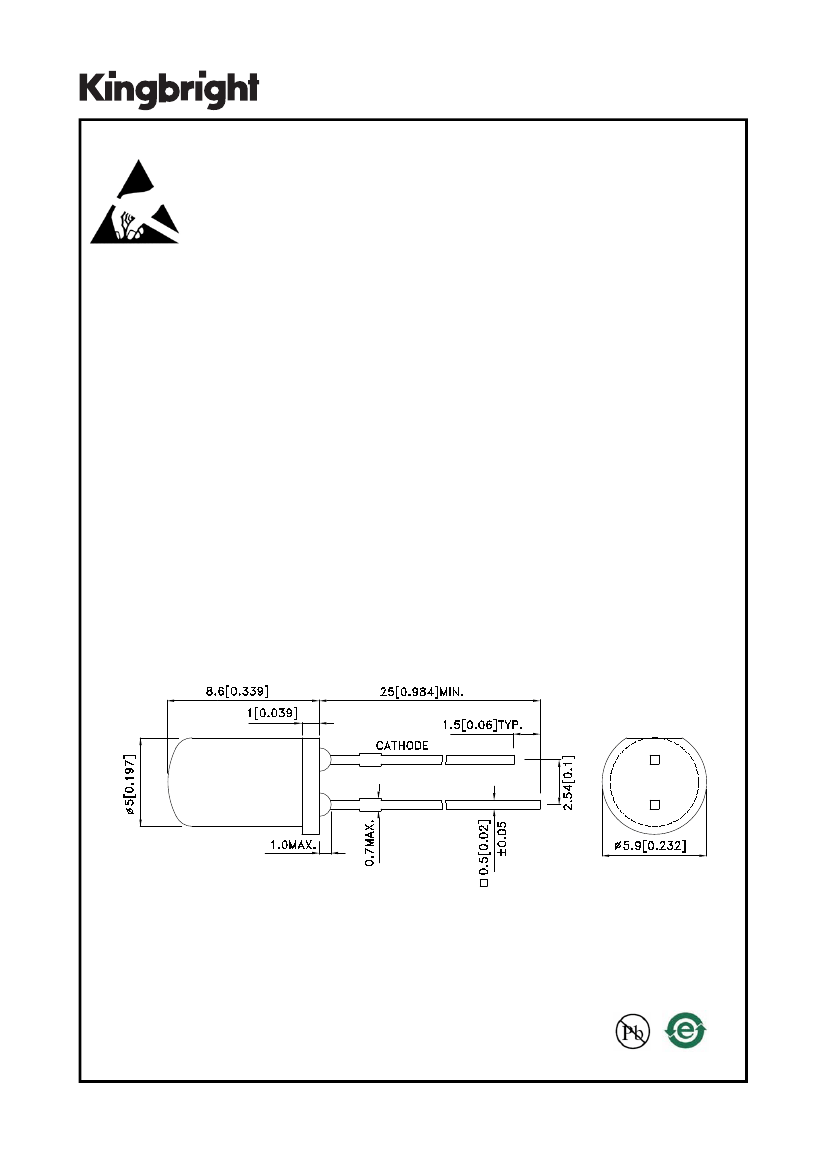

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAH1057
APPROVED: WYNEC
REV NO: V.4
CHECKED: Allen Liu
DATE: APR/07/2008
DRAWN: Y.F.Lu
PAGE: 1 OF 6
ERP: 1101020221
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
WP7083VGD/Z
Green (InGaN)
GREEN DIFFUSED
1500
Typ.
2300
Viewing
Angle [1]
2θ1/2
60
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
525
535
39
65
3.2
3.7
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Electrostatic Discharge Threshold (HBM)
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Green
111
30
100
5
1000
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
V
SPEC NO: DSAH1057
APPROVED: WYNEC
REV NO: V.4
CHECKED: Allen Liu
DATE: APR/07/2008
DRAWN: Y.F.Lu
PAGE: 2 OF 6
ERP: 1101020221

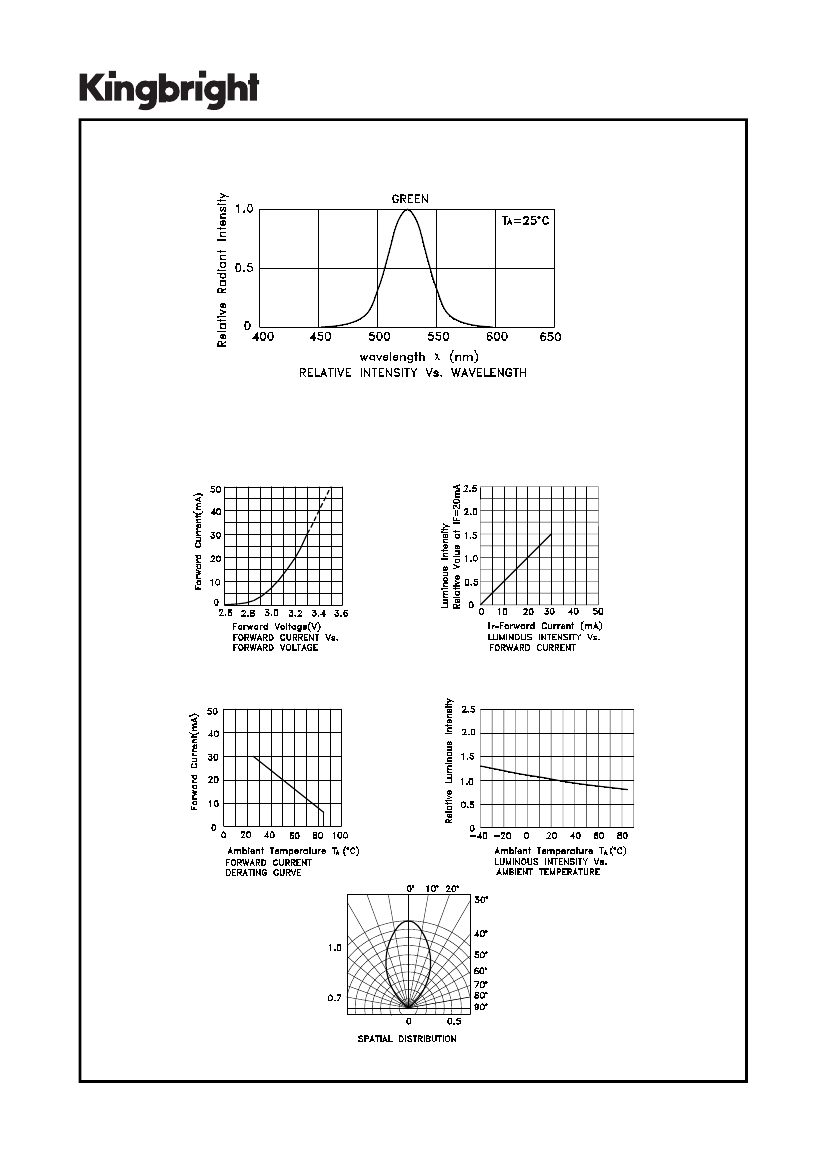

Green
WP7083VGD/Z
SPEC NO: DSAH1057
APPROVED: WYNEC
REV NO: V.4
CHECKED: Allen Liu
DATE: APR/07/2008
DRAWN: Y.F.Lu
PAGE: 3 OF 6
ERP: 1101020221

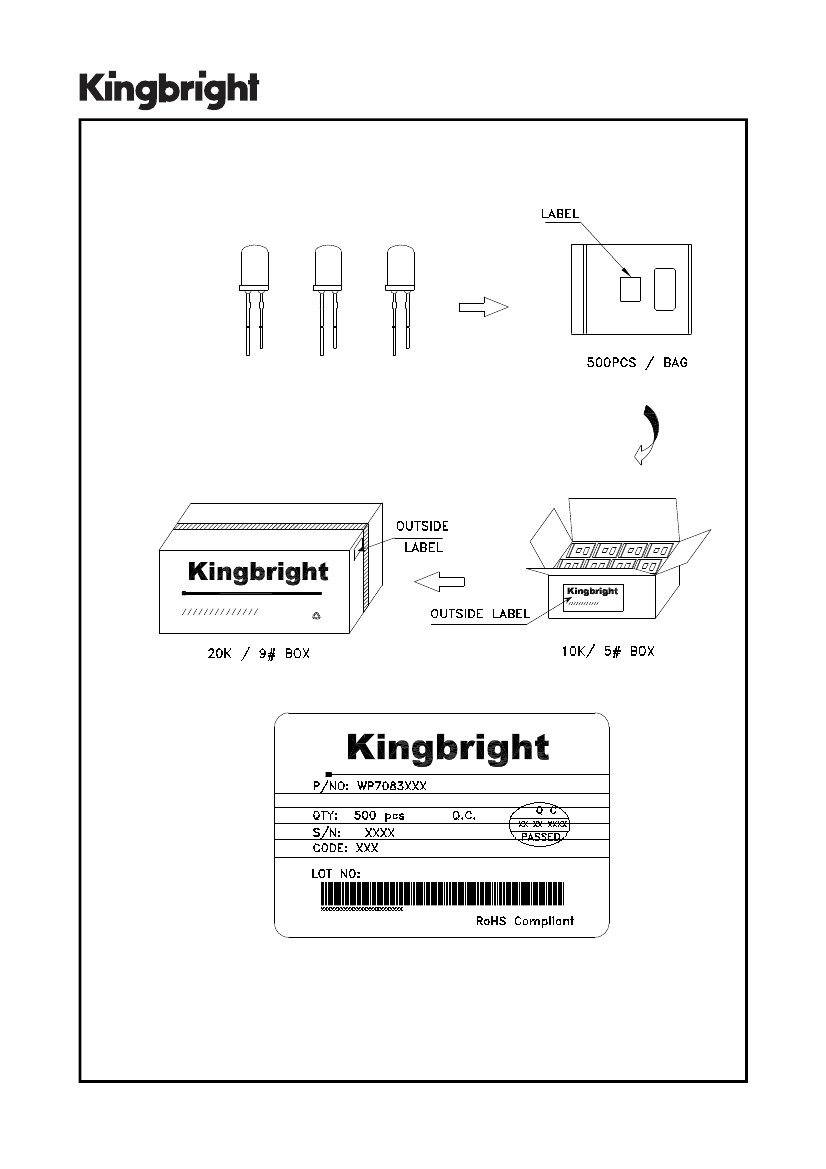

PACKING & LABEL SPECIFICATIONS
WP7083VGD/Z
SPEC NO: DSAH1057
APPROVED: WYNEC
REV NO: V.4
CHECKED: Allen Liu
DATE: APR/07/2008
DRAWN: Y.F.Lu
PAGE: 4 OF 6
ERP: 1101020221

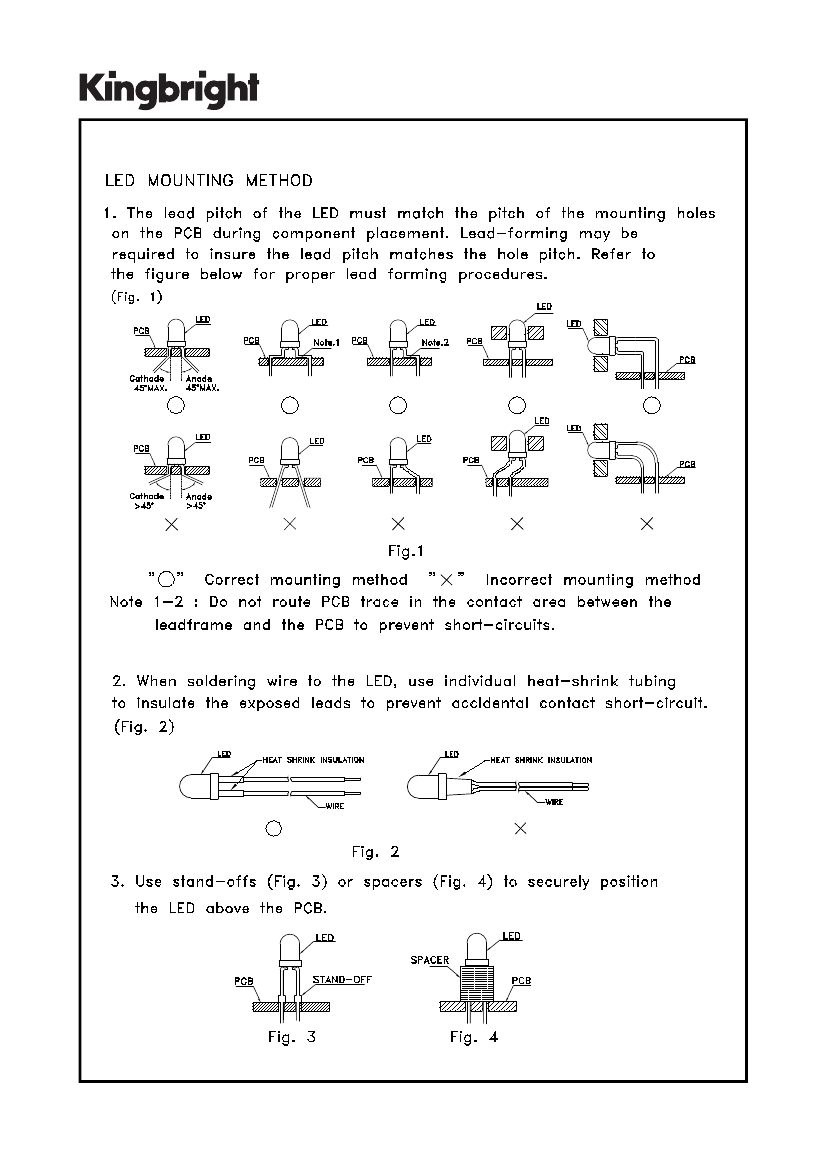

SPEC NO: DSAH1057
APPROVED: WYNEC
REV NO: V.4
CHECKED: Allen Liu
DATE: APR/07/2008
DRAWN: Y.F.Lu
PAGE: 5 OF 6
ERP: 1101020221
