L-C150KRCT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-C150KRCT

L-C150KRCT: DescriptionSingle Color LED, Super Red, Water Clear, 2.1mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size150KB，1 Pages; ManufacturerParalight; Websitehttp://www.paralighttaiwan.com/web/zh/home-tw/

Download Datasheet Parametric Compare View All

L-C150KRCT Overview

Single Color LED, Super Red, Water Clear, 2.1mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN

L-C150KRCT Parametric

Parameter Name	Attribute value
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	unknown
color	SUPER RED
Configuration	SINGLE
Lens type	WATER CLEAR
Nominal luminous intensity	40.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL 7"
peak wavelength	639 nm
shape	RECTANGULAR
size	2.1 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	130 deg
Base Number Matches	1

Preview

Download Datasheet

View All

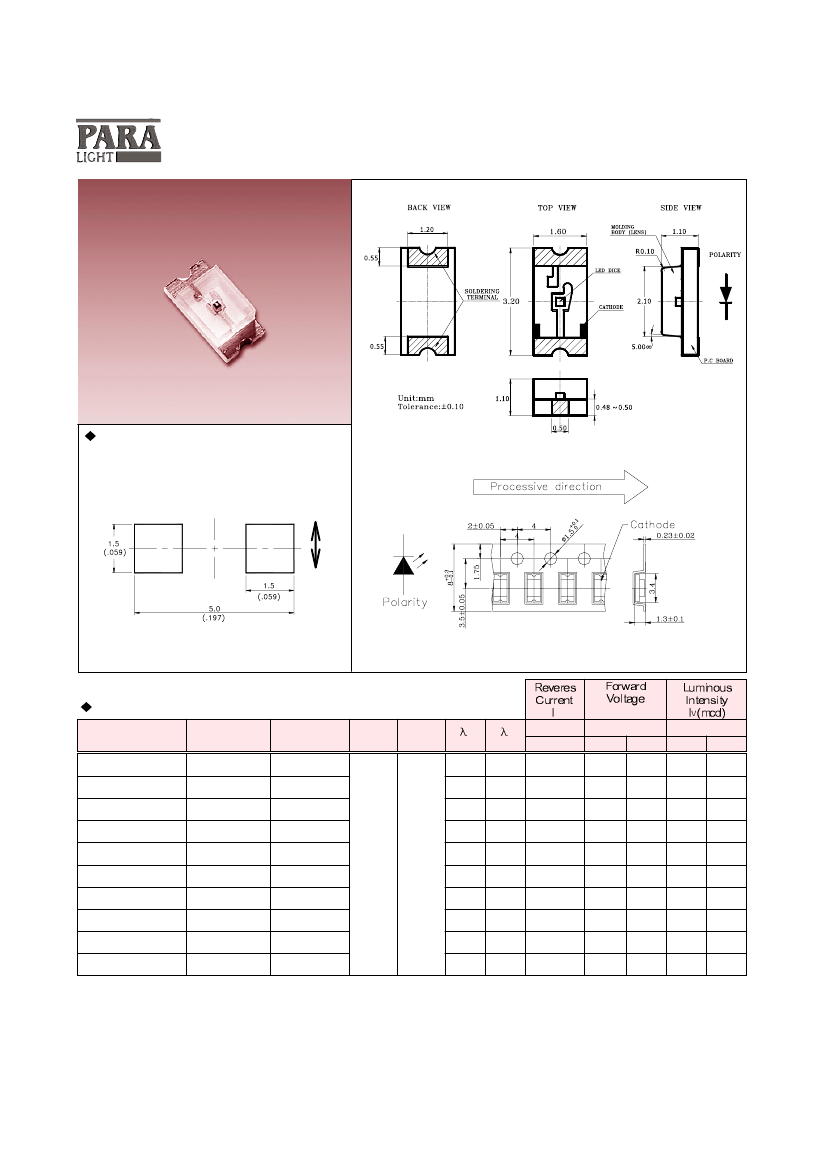

L-C150XX

3.20 X 1.60 X 1.10 mm SMD CHIP LED (1206)

Recommended Soldering Pad

Direction of PWB Camber and go to Re-Flow furnace.

Package in 8mm Tape on 7" diameter reel (3000 pcs / reel)

Electrical / Optical Characteristics (Ta=25

Part No.

Chip

Material

Emitting

Color

Lens

Color

View

Angle

(V)

@20mA

(5mA)

@20mA

(5mA)

Min.

Typ.

Max.

(nm)

=5V

Max.

L-C150GCT

L-C150ECT

L-C150YCT

L-C150SRCT

L-C150KGCT

L-C150KRCT

L-C150KFCT

L-C150KYCT

L-C150TBCT

(5mA)

L-C150LBCT

GaP

GaAsP/GaP

GaAlAs

AlInGaP

InGaN

Green

Orange

Yellow

Red

Super Green

Super Red

Super Amber

Super Yellow

Blue

Water

Clear

130º

570

620

588

643

570

631

605

590

568

630

585

655

571

639

611

591

100

2.1

1.8

2.0

(2.8)

3.3

2.6

2.2

2.4

(3.1)

3.8

4.0

2.5

1.6

10.0

16.0

40.0

25.0

(6.3)

25.0

12.5

6.3

4.5

20.0

30.0

40.0

80.0

60.0

(16.0)

40.0

(470) (468)

470

468

FEATURES

1. Top view & wide view angle chip LED.

2. High brightness & low current drive.

3. Compatible with automatic pick & place equipment.

4. Single color, Application for :

Keypad Backlighting / LCD Backlighting / Symbol Backlighting / Front Panel Indicator ping.

5. EIA STD package.

I-2

L-C150KRCT Related Products

	L-C150KRCT	L-C150KGCT
Description	Single Color LED, Super Red, Water Clear, 2.1mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN	Single Color LED, Super Green, Water Clear, 2.1mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN	3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	unknown	unknown
color	SUPER RED	SUPER GREEN
Configuration	SINGLE	SINGLE
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	40.0 mcd	30.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.1 mm	1.1 mm
method of packing	TAPE AND REEL 7"	TAPE AND REEL 7"
peak wavelength	639 nm	571 nm
shape	RECTANGULAR	RECTANGULAR
size	2.1 mm	2.1 mm
surface mount	YES	YES
Terminal pitch	3.5 mm	3.5 mm
perspective	130 deg	130 deg
Base Number Matches	1	1
