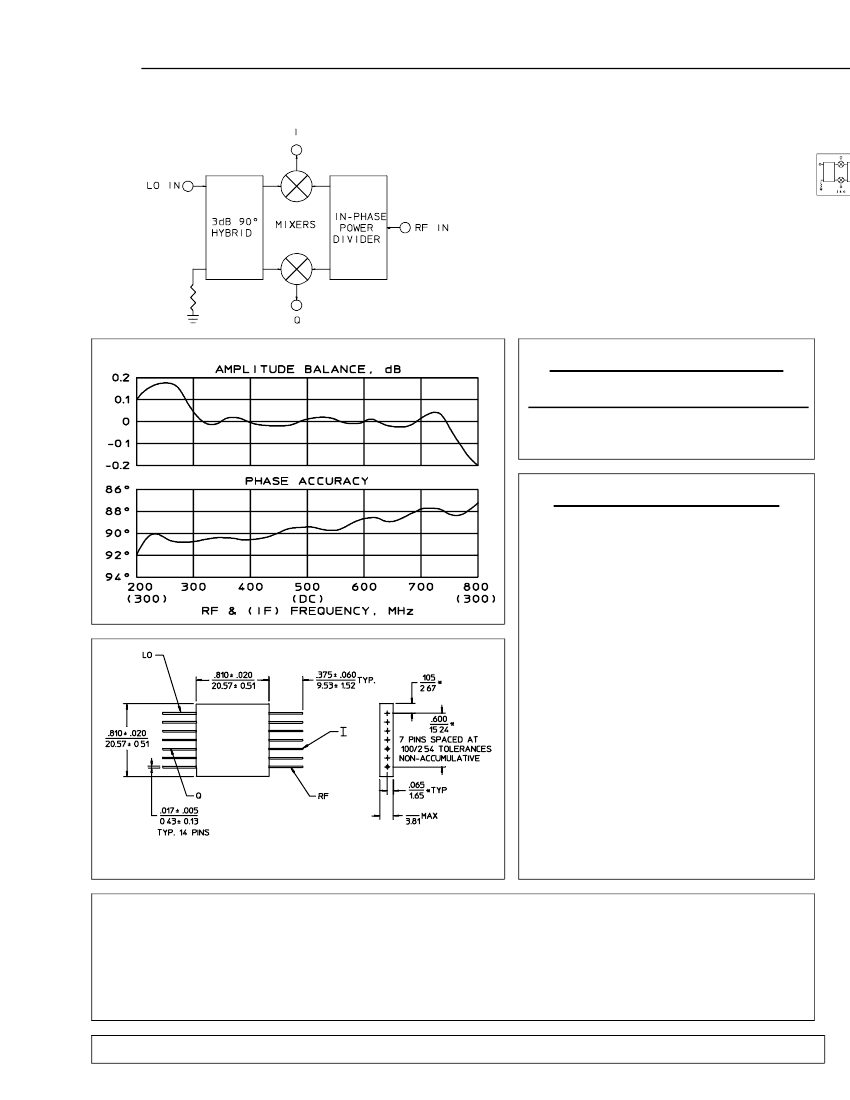

IQF-20E Series
I&Q NETWORKS
Up To 1 GHz Catalog and Custom Units / Precision Phase and Amplitude Balance / Hi-Rel Flatpack
-
Performance over Video Bandwidth (LO at 500 MHz)
PRINCIPAL SPECIFICATIONS
Model
Number
LO
Freq., f
o
Video
Bandwidth
†
50
†
IQF-20E-***B 20 - 160 MHz
IQF-20E-***B 160 - 1000 MHz
MHz
100 MHz
For complete model number replace *** with desired LO center freq, f
o
in MHz.
GENERAL SPECIFICATIONS
RF/LO Input Characteristics
†
RF Bandwidth:
10% of f
o
Impedance:
50
Ω
nom.
VSWR:
1.5:1 max.
RF Power Level:
0 dBm nom.
LO Power Level @ f
o
:
+10 dBm nom.
I & Q Output Characteristics
Output Impedance:
50
Ω
nom.
Conversion Loss
(RF to I or Q):
10 dB typ.,
12 dB max.
IF Quadrature Balance (I to Q), @ 100 kHz IF
Phase, @ LO=f
o
:
±1°
nom.,
±2°
max.
Phase, @ LO=f
o
±5%:
±3°
nom.,
±5°
max.
Ampl., @ LO=f
o
:
0.2 dB max.
Ampl., @ LO=f
o
±5%:
0.5 dB max.
Weight, nominal:
0.32 oz (9 g)
Operating Temp:
-- 55° to +85°C
†
Outline of E - Size Flatpack
.160/4.06
1. Tolerance on 3 place decimals
±
.010(.25) except as noted.
2. Dimensions in inches over millimeters.
3. Dimensions marked with * apply only at body.
4. All unmarked pins are case ground.
NOTES:
RF and Video Bandwidths are typically much greater than specified.
General Notes:
1. I & Q networks are integrated devices that produce two quadrature-phased, equal amplitude signals when fed RF and LO signals.
2. Comprised of standard components, these units are optimized for high accuracy at a specified LO frequency and maintain specified performance
across a bandwidth of 10% of the LO frequency.
3. I & Q networks can also be used in digital systems as a QPSK demodulator where it recovers two data channels from the incoming phase
information. The QPSK input is applied to the RF port while the recovered carrier is applied to the LO port resulting in the two independent data
outputs at the I and Q data ports.
4. Merrimac I & Q networks comply with the relevant sections of MIL-M-28837 and can be supplied screened for compliance with additional
specifications for military and space applications requiring the highest reliability.
29Apr96
For further information contact
MERRIMAC / 41 Fairfield Pl., W est Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
