APTGF20X60E2
APTGF20X60P2
Electrical Characteristics
Symbol Characteristic
BV
CES
Collector - Emitter Breakdown Voltage
I
CES
V
CE(on)
V
GE(th)
I
GES
Zero Gate Voltage Collector Current
Collector Emitter on Voltage
Gate Threshold Voltage
Gate – Emitter Leakage Current
Test Conditions
V
GE
= 0V, I
C
= 500µA
V
GE
= 0V
T
j
= 25°C
V
CE
= 600V
T
j
= 125°C
V
GE
= 15V
T
j
= 25°C
I
C
= 20A
T
j
= 125°C
V
GE
= V
CE
, I
C
= 0.5mA
V
GE
= 20V, V
CE
= 0V
Min
600
Typ
1
1
2.0
2.2
Max
500
2.5
6.5
400
Unit
V
µA
mA
V
V
nA
3
Dynamic Characteristics
Symbol
C
ies
C
res
T
d(on)
T
r
T
d(off)
T
f
T
d(on)
T
r
T
d(off)
T
f
E
off
Characteristic
Input Capacitance
Reverse Transfer Capacitance
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Turn off Energy
Test Conditions
V
GE
= 0V, V
CE
= 25V
f = 1MHz
Inductive Switching (25°C)
V
GE
= ±15V
V
Bus
= 300V
I
C
= 20A
R
G
= 27Ω
Inductive Switching (125°C)
V
GE
= ±15V
V
Bus
= 300V
I
C
= 20A
R
G
= 27Ω
Min
Typ
1100
70
45
23
107
18
47
24
125
21
0.38
Max
Unit
pF
ns
ns
mJ
Reverse diode ratings and characteristics
Symbol Characteristic
V
F
E
R
Q
rr
Diode Forward Voltage
Reverse Recovery Energy
Reverse Recovery Charge
Test Conditions
I
F
= 20A
V
GE
= 0V
I
F
= 20A
V
R
= 300V
di/dt =800A/µs
I
F
= 20A
V
R
= 300V
di/dt =800A/µs
Min
T
j
= 25°C
T
j
= 125°C
T
j
= 125°C
T
j
= 25°C
T
j
= 125°C
Typ
1.25
1.2
0.43
1.4
2.4
Max
1.6
Unit
V
mJ
µC
Thermal and package characteristics
Symbol Characteristic
R
thJC
V
ISOL
T
J
T
STG
T
C
Torque
Wt
Junction to Case
RMS Isolation Voltage, any terminal to case t =1 min,
I isol<1mA, 50/60Hz
Operating junction temperature range
Storage Temperature Range
Operating Case Temperature
Mounting torque
To Heatsink
Package Weight
IGBT
Diode
Min
Typ
2500
-40
-40
-40
2
150
125
125
3.5
185
V
°C
N.m
g
M5
APT website – http://www.advancedpower.com
2-4
APTGF20X60E2(P2) – Rev 0 November, 2003
Max
1
1.5
Unit
°C/W
APTGF20X60E2
APTGF20X60P2

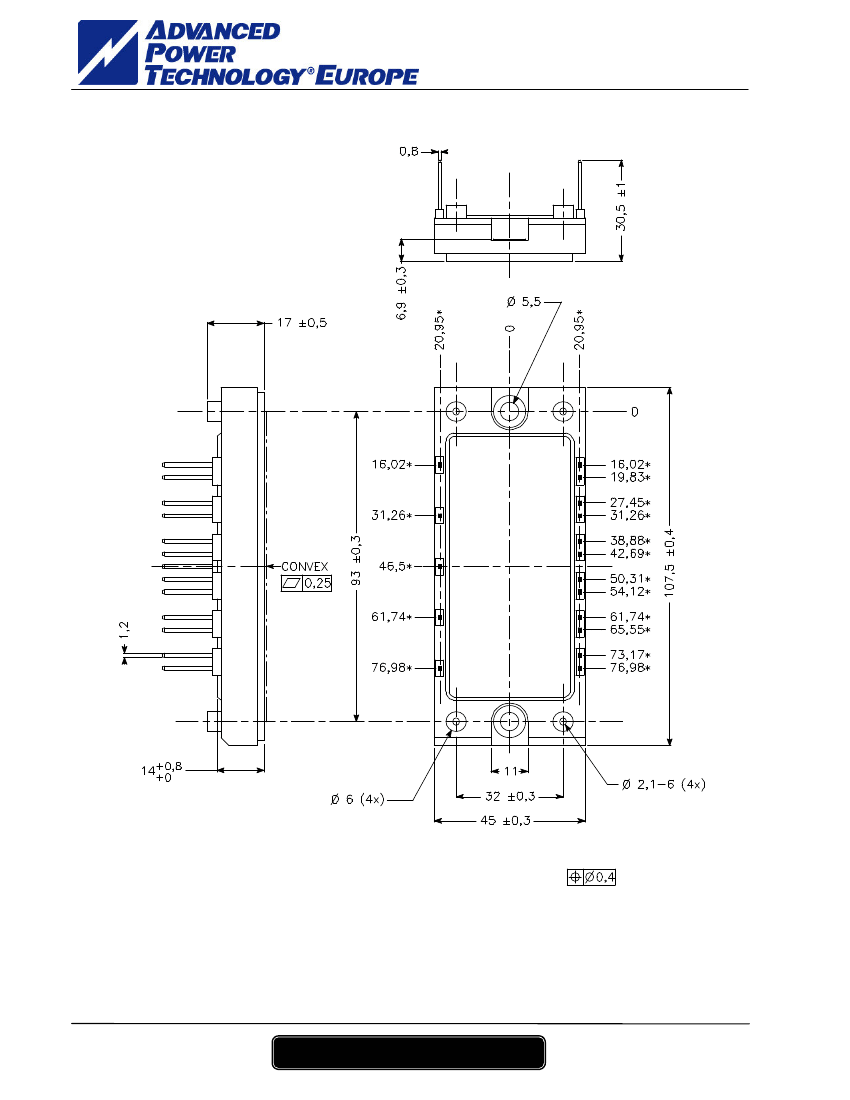

Package outline
Pin out: APTGF20X60E2
(Long pins)
ALL DIMENSIONS MARKED " * " ARE TOLERENCED AS :
APT website – http://www.advancedpower.com
3-4
APTGF20X60E2(P2) – Rev 0 November, 2003
APTGF20X60E2
APTGF20X60P2

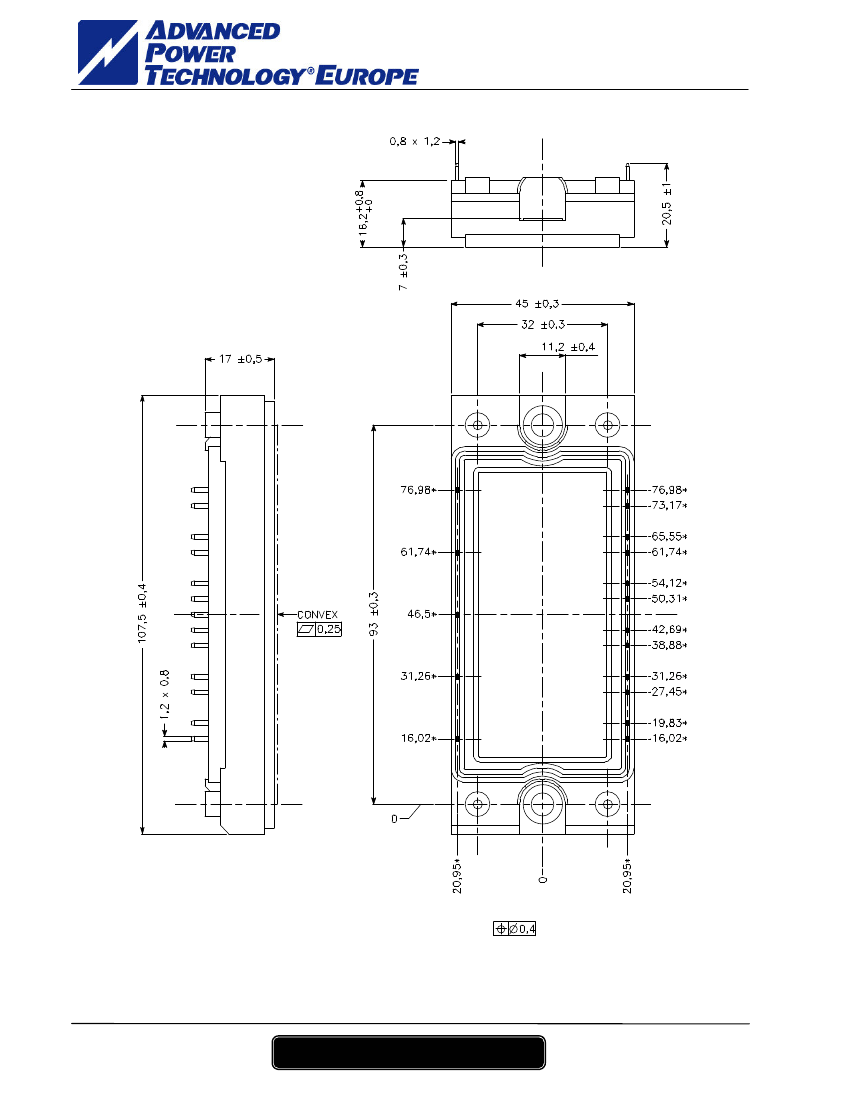

Package outline
Pin out: APTGF20X60P2
(Short pins)
ALL DIMENSIONS MARKED " * " ARE TOLERENCED AS :
APT reserves the right to change, without notice, the specifications and information contained herein
APT's products are covered by one or more of U.S patents 4,895,810 5,045,903 5,089,434 5,182,234 5,019,522
5,262,336 6,503,786 5,256,583 4,748,103 5,283,202 5,231,474 5,434,095 5,528,058 and foreign patents. U.S and Foreign patents pending. All Rights Reserved.
