APS1002SP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> APS1002SP

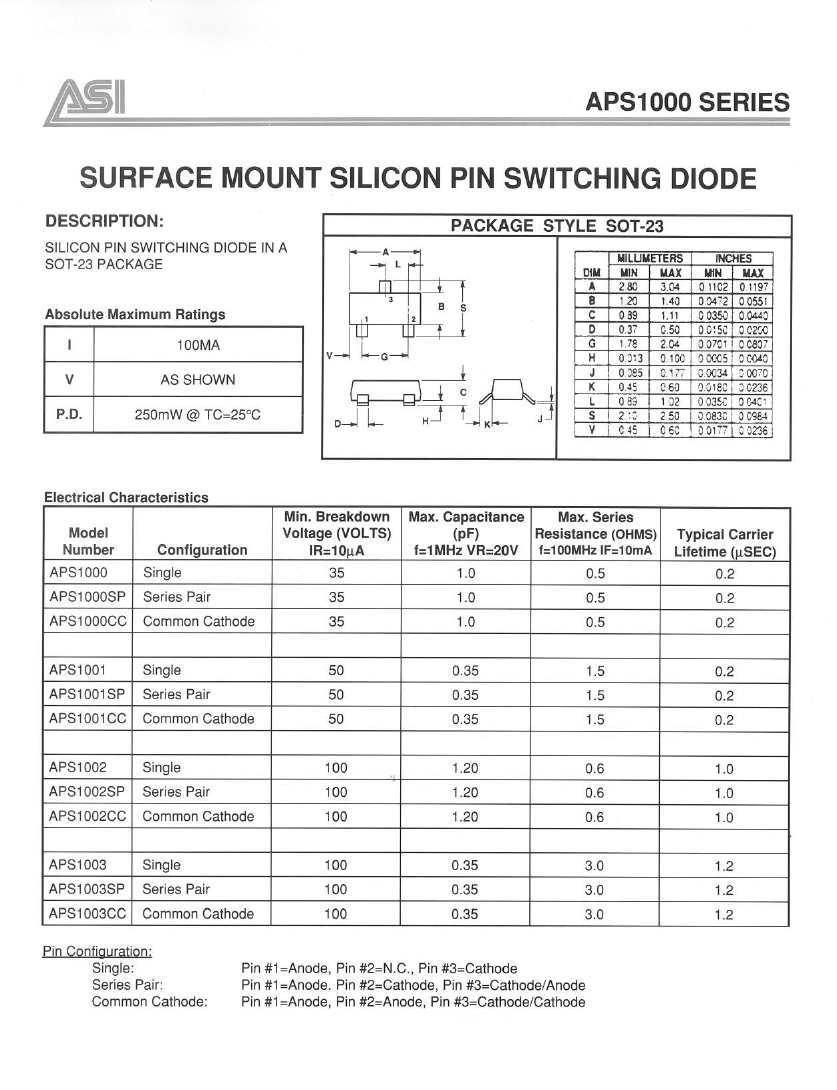

APS1002SP: DescriptionPin Diode, 100V V(BR), Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size181KB，1 Pages; ManufacturerAdvanced Semiconductor, Inc.

Download Datasheet Parametric Compare View All

APS1002SP Overview

Pin Diode, 100V V(BR), Silicon, SOT-23, 3 PIN

APS1002SP Parametric

Parameter Name	Attribute value
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
application	SWITCHING
Minimum breakdown voltage	100 V
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum diode capacitance	1.2 pF
Diode component materials	SILICON
Maximum diode forward resistance	0.6 Ω
Diode resistance test current	10 mA
Diode resistance test frequency	100 MHz
Diode type	PIN DIODE
JESD-30 code	R-PDSO-G3
Minority carrier nominal lifetime	1 µs
Number of components	2
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

APS1002SP Related Products

	APS1002SP	APS1003CC	APS1000SP	APS1002CC	APS1002	APS1000CC	APS1001	APS1001CC	APS1003SP	APS1001SP
Description	Pin Diode, 100V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 100V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 35V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 100V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 100V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 35V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 50V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 50V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 100V V(BR), Silicon, SOT-23, 3 PIN	Pin Diode, 50V V(BR), Silicon, SOT-23, 3 PIN
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Minimum breakdown voltage	100 V	100 V	35 V	100 V	100 V	35 V	50 V	50 V	100 V	50 V
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum diode capacitance	1.2 pF	0.35 pF	1 pF	1.2 pF	1.2 pF	1 pF	0.35 pF	0.35 pF	0.35 pF	0.35 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum diode forward resistance	0.6 Ω	3 Ω	0.5 Ω	0.6 Ω	0.6 Ω	0.5 Ω	1.5 Ω	1.5 Ω	3 Ω	1.5 Ω
Diode resistance test current	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Diode resistance test frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Diode type	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Minority carrier nominal lifetime	1 µs	1.2 µs	0.2 µs	1 µs	1 µs	0.2 µs	0.2 µs	0.2 µs	1.2 µs	0.2 µs
Number of components	2	2	2	2	1	2	1	2	2	2
Number of terminals	3	3	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	Advanced Semiconductor, Inc.	-	-	-	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.
